Which has more horsepower, the Bad Boy Tractors 3026 or the Massey Ferguson MF 1520?

The Bad Boy Tractors 3026 leads on engine hp at 24 hp hp, compared to 20 hp hp for the Massey Ferguson MF 1520.

Which has more three-point hitch lift capacity, the Bad Boy Tractors 3026 or the Massey Ferguson MF 1520?

The Massey Ferguson MF 1520 leads on 3-pt lift (24 in) at 1,323 lb lb, compared to 974 lb lb for the Bad Boy Tractors 3026.

Bad Boy Tractors 3026 vs Massey Ferguson MF 1520

Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.

Across 3 measurable specs, the Massey Ferguson MF 1520 leads 2 categories to 1. Machine pages: Bad Boy Tractors 3026 and Massey Ferguson MF 1520.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Spec	Bad Boy Tractors 3026	Massey Ferguson MF 1520
Engine HP (hp)	▲ 24 hp	20 hp
PTO HP (hp)	18 hp	—
Weight (lb)	1,829.8 lb	—
Loader Lift (lb)	1,314 lb	—
3-Pt Lift (24 in) (lb)	974 lb	▲ 1,323 lb
Lift Height (in)	86 in	—
Breakout Force (lbf)	1,960 lbf	—
Hydraulic Flow (gpm)	7.4 gpm	▲ 8.7 gpm
Travel Speed (mph)	14.8 mph	—

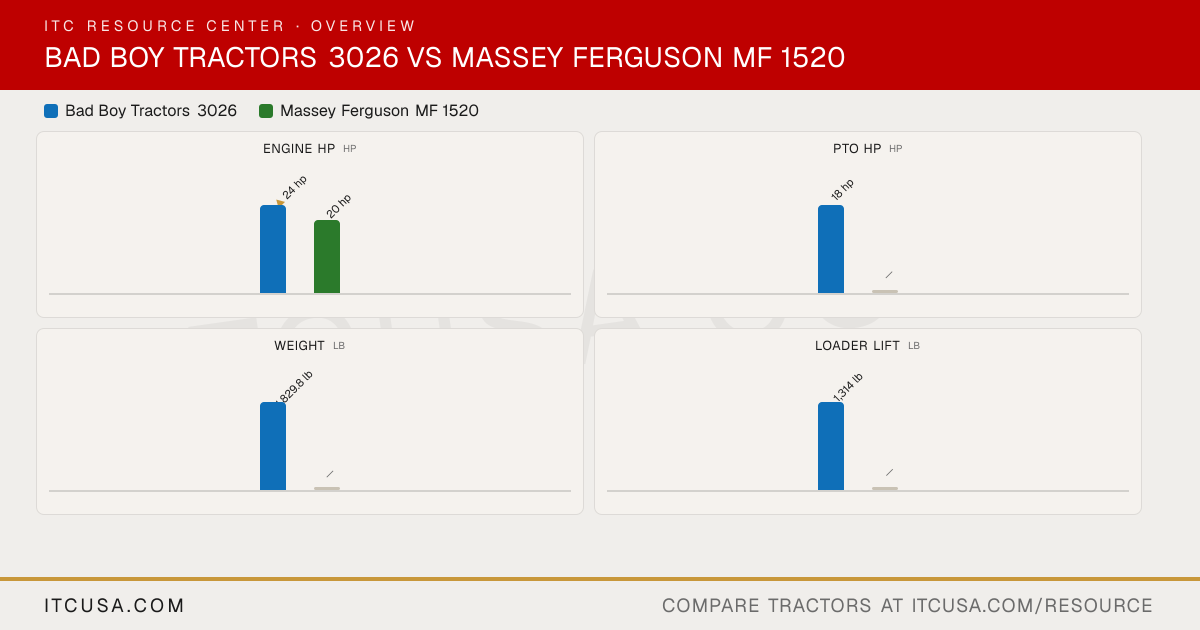

The headline numbers at a glance.

Bad Boy Tractors 3026Massey Ferguson MF 1520

Engine HPhp

▲24 hp

20 hp

PTO HPhp

18 hp

—

Weightlb

1,829.8 lb

—

Loader Liftlb

1,314 lb

—

3-Pt Lift (24 in)lb

974 lb

▲1,323 lb

at pin

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Bad Boy Tractors3026	Massey FergusonMF 1520


PTO Power	18 hp	Not Published
Alternator	50 A, 12 V	Not Published
Air Cleaner	Dry, Element	Not Published
Engine Type	3 CYL, Water Cooled, Diesel	3-cylinder diesel
Fuel System	Diesel	Not Published
Displacement	71.7 in³	68.5 in³
Engine Model	A1100N2	—
No. of Cylinders	3	3
Rated Engine Speed	2600 rpm	2500 rpm
Cooling System Type	Water Cooled	Not Published
Engine Manufacturer	TYM	Massey Ferguson (AGCO)
Engine Power (Gross)	24 hp	20 hp
Engine Emissions Constraints	Final Tier4	Not Published

Tractor Weight (Base)	1,829.8 lb (1,829 lbs) for 2024H, 2,107.6 lb (2,107 lbs) for 3026H	—
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	2,106 lbs - base tractor with loader, no cab option confirmed for 3026 in available sources	Not Published

Warranty Length & Coverage	6-year powertrain warranty	Not Published

Pump Type	Gear type pump with primary and secondary pumps	Not Published
Steering Flow	3.1 gpm	3.2 gpm
Implement Flow	4.3 gpm	5.5 gpm
Total Hydraulic Flow	7.4 gpm 28.0 lpm	8.7 gpm
Hydraulic System Type	Power Assisted Hydro-Static	Not Published
System Operating Pressure	352.7 lbf/cm² (max operating pressure)	—
Rear Remote Hydraulic Flow	Not Published	Not Published
Overall Hydraulic Pump Flow	7.7 gal per min	8.7 gpm
No. of Optional Remote Valves	Optional (Up To 1)	Not Published
No. of Standard Remote Valves	0	1

PTO Rear	540 / 960 rpm @ 2,600 rpm	540 rpm
PTO Type	Live P.T.O. (6 Spline shaft)	Sliding gear
Lift Control Type	Position control	Not Published
Hitch Lift Capacity	1,433 lbs	1,323 lb
Mid-PTO Availability	Option: 2,500 rpm (Mid)	Optional
Category, 3-Point Hitch	Cat 1	Category I
Hitch Lift Capacity (at 24”)	974 lb	Not Published

R3 Turf - Rear	Not Published	315X75D-15
R3 Turf - Front	Not Published	24X8.5-12
Tire Size & Options	IND (Industrial) Front: 25×8.50-14; IND Rear: 14×17.5	R1 Agricultural, R3 Turf
R4 Industrial - Rear	14X17.5	Not Applicable
R4 Industrial - Front	25X8.50-14	Not Applicable
R1 Agricultural - Rear	11.2-20 8PR	9.5-16
R1 Agricultural - Front	7-16 6PR	6.0-12

Coolant Capacity	1.21 gal	Not Published
Crankcase Capacity	0.79 gal	Not Published
Fuel Tank Capacity	6.08 gal	7.4 gal
Front Axle Fluid Capacity	0.79 gal	Not Published
Transmission / Hydraulic System Capacity	2.90 gal	Not Published

Loader Lift Height	86 in.	Not Published
Loader Breakout Force	1,960 lbs.	Not Published
Quick Attach Loader System	SSQA	Not Published
Loader Lift Capacity (Full Height)	1,314 lbs.	Not Published

Clutch	Dry Single Plate	Not Published
No. of Speeds	3 Range	8F / 8R
Transmission Type	Hydrostatic (HST)	Mechanical
Max Travel Speed (Forward)	14.8 mph	Not Published
Max Travel Speed (Reverse)	14.8 mph	Not Published
Differential Lock & Limited Slip Options	Differential Lock	Rear differential lock

Brakes	Wet, Multi-Disc	Not Published
Steering	Hydrostatic	Not Published
Frame Type	Steel frame with cast iron axles	Not Published
Front Axle Type	4 Wheel Drive	Not Published
Drawbar Capacity	Not Published	Not Published
Front Axle Rating	Not Published	Not Published
Seat Suspension & Adjustability	Adjustable seat; flips up and back for rear backhoe operation	Not Published

Wheelbase	65.7"	61.4 in
Overall Width	53.8"	43.3 in
Overall Length	120.7 in for 2024H, 122.9 in for 3026H	—
Ground Clearance	16.4"	9.6 in
Height to Top of ROPS	91.4"	79.1 in
Height to Top of Cab Model	Not Applicable	Not Applicable
Height to Top of ROPS (folded)	91.4 in - ROPS up (no folded dimension found in available sources)	Not Published
Min. Turn Radius without Brakes	46°	Not Published
Overall Length with 3-Point Hitch	110 in	112.8 in
