Bad Boy Tractors 4035 Cab vs Bobcat CT4045

Across 9 measurable specs, the Bobcat CT4045 leads 7 categories to 2. Machine pages: Bad Boy Tractors 4035 Cab and Bobcat CT4045.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

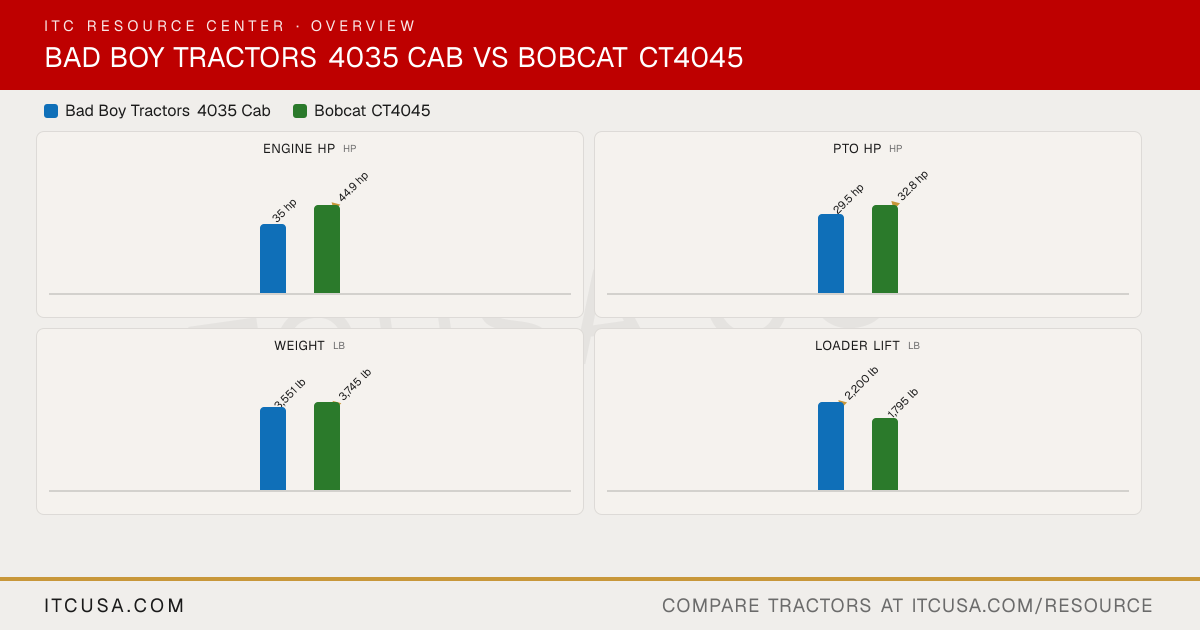

Category Verdict

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Bad Boy Tractors4035 Cab	BobcatCT4045

▶Engine
Engine Manufacturer	TYM	Daedong
Engine Model	A1700N4-BUTC_4	3FT-TL4
Engine Type	Vertical, 4-stroke, water-cooled diesel	Turbocharged diesel
No. of Cylinders	3	3
Displacement	104.7 in³	111.4 in³
Rated Engine Speed	2600 rpm	2600 rpm
Engine Power (Gross)	35 hp	44.9 hp
PTO Power	29.5 hp	32.8 hp
Engine Emissions Constraints	Not Published	Tier 4
Cooling System Type	Water-cooled	Liquid-cooled
Air Cleaner	Not Published	Not Published
Fuel System	Not Published	Common rail direct injection
Alternator	50 A, 12 V	Not Published
▶Hydraulics
Pump Type	Not Published	Not Published
Implement Flow	8.2 gpm	9.6 gpm
Steering Flow	4.4 gpm	6.9 gpm
Total Hydraulic Flow	12.6 gpm	HST: 16.5 gpm; SST: 14.1 gpm
Overall Hydraulic Pump Flow	12.6 gpm	HST: 16.5 gpm; SST: 14.1 gpm
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	Not Published	HST: 1 pair
No. of Optional Remote Valves	Up to 2	HST: 1 pair (2nd pair optional); SST: 2 pairs
▶Fluid Capacity
Fuel Tank Capacity	7.13 gal	HST: 12.7 gal; SST: 11.9 gal
Coolant Capacity	1.32 gal	Not Published
Crankcase Capacity	1.14 gal	Not Published
Transmission / Hydraulic System Capacity	9.77 gal	Not Published
Front Axle Fluid Capacity	1.69 gal	Not Published
▶PTO & Hitch
PTO Type	Independent	Independent
PTO Rear	540 rpm	540 rpm
Mid-PTO Availability	Not Published	HST: Optional, 2119 rpm
Category, 3-Point Hitch	Category 1	Category 1
Hitch Lift Capacity	3,306.9 lb	Not Published
Hitch Lift Capacity (at 24”)	2,425 lb	2716 lb
Lift Control Type	Position control	Hydraulic position control
▶Transmission & Drivetrain
Transmission Type	Hydrostatic (HST), 3-range	Hydrostatic (HST), 3-range
No. of Speeds	3 range (HST)	HST: Infinite (3 ranges); SST: 8 forward, 8 reverse
Max Travel Speed (Forward)	18.21 mph	HST: 18.5 mph; SST: 17.5 mph
Max Travel Speed (Reverse)	18.21 mph	HST: 12.9 mph; SST: 17.1 mph
Clutch	None (HST)	Not Published
Differential Lock & Limited Slip Options	Rear differential lock	Rear differential lock, standard
▶Chassis, Steering & Controls
Frame Type	Not Published	Not Published
Steering	Electro-hydraulic power steering	Hydrostatic power steering
Brakes	Wet, multi-disc	Wet multi-disc
Seat Suspension & Adjustability	Heated leather seat (cab)	Adjustable seat (standard)
Front Axle Type	Selectable 4WD	Not Published
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published
▶Dimensions & Maneuverability
Overall Length with 3-Point Hitch	134.88 in	125.5 in
Overall Width	56.3 in	70.3 in
Wheelbase	65.7 in	71.2 in
Ground Clearance	13.19 in	15.3 in
Min. Turn Radius without Brakes	Not Published	103.5 in (with brake applied)
Height to Top of ROPS	Not Published	97.4 in
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	85.9 in	n/a (open-station ROPS model)
▶Weight
Tractor Weight (Base)	3,551 lb	3745 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	n/a (open-station ROPS model)
▶Tire Options
Tire Size & Options	R1 ag 7-16 / 11.2-24 (standard); R4 industrial 28x8.50-15 / 43x16.00-20	Agricultural (R1), Turf (R3), Industrial (R4)
R1 Agricultural - Front	7-16	8-16
R1 Agricultural - Rear	11.2-24	13.6-24
R3 Turf - Front	Not Published	29X12.5-15
R3 Turf - Rear	Not Published	44X18-20
R4 Industrial - Front	28x8.50-15	Not Published
R4 Industrial - Rear	43x16.00-20	Not Published
▶Loader & Attachments
Quick Attach Loader System	SSQA	Standard quick attach mounting system
Loader Model	BBL400	FL9
Loader Lift Height	104 in	103.2 in
Loader Lift Capacity (Full Height)	2,200 lb	1795 lb
Loader Breakout Force	3,660 lb	4136 lb
▶Warranty
Warranty Length & Coverage	Engine and powertrain 72 months or 2,000 hours; other tractor parts 24 months or 1,000 hours	24 months or 1,500 hours, whichever occurs first (defects in material and workmanship)
▶ITC Company Accessories
Accessories that fit	Brush Guard Side Guards $199.99 Bolt onto the side of the OEM guard and offers wrap around protection Branson TYM 15/20 Series--Bad Boy 40/50 Series Brush Screen $250.00 Branson / TYM 15 Series Fuel Tank Cover $250.00	Brush Guard Side Guards $199.99 Bolt onto the side of the OEM guard and offers wrap around protection

Find a Bad Boy dealer near you→Find a dealer near you→

Bad Boy Tractors 4035 Cab vs Bobcat CT4045: Quick Answers

Which has more horsepower, the Bad Boy Tractors 4035 Cab or the Bobcat CT4045?

The Bobcat CT4045 leads on engine hp at 44.9 hp hp, compared to 35 hp hp for the Bad Boy Tractors 4035 Cab.

Which has more PTO horsepower, the Bad Boy Tractors 4035 Cab or the Bobcat CT4045?

The Bobcat CT4045 leads on pto hp at 32.8 hp hp, compared to 29.5 hp hp for the Bad Boy Tractors 4035 Cab.

Which is heavier, the Bad Boy Tractors 4035 Cab or the Bobcat CT4045?

The Bobcat CT4045 leads on weight at 3,745 lb lb, compared to 3,551 lb lb for the Bad Boy Tractors 4035 Cab.

Which has more loader lift capacity, the Bad Boy Tractors 4035 Cab or the Bobcat CT4045?

The Bad Boy Tractors 4035 Cab leads on loader lift at 2,200 lb lb, compared to 1,795 lb lb for the Bobcat CT4045.

Which has more three-point hitch lift capacity, the Bad Boy Tractors 4035 Cab or the Bobcat CT4045?

The Bobcat CT4045 leads on 3-pt lift (24 in) at 2,716 lb lb, compared to 2,425 lb lb for the Bad Boy Tractors 4035 Cab.
