Bad Boy Tractors 4035 Cab vs Case IH Farmall 45C Gear Cab

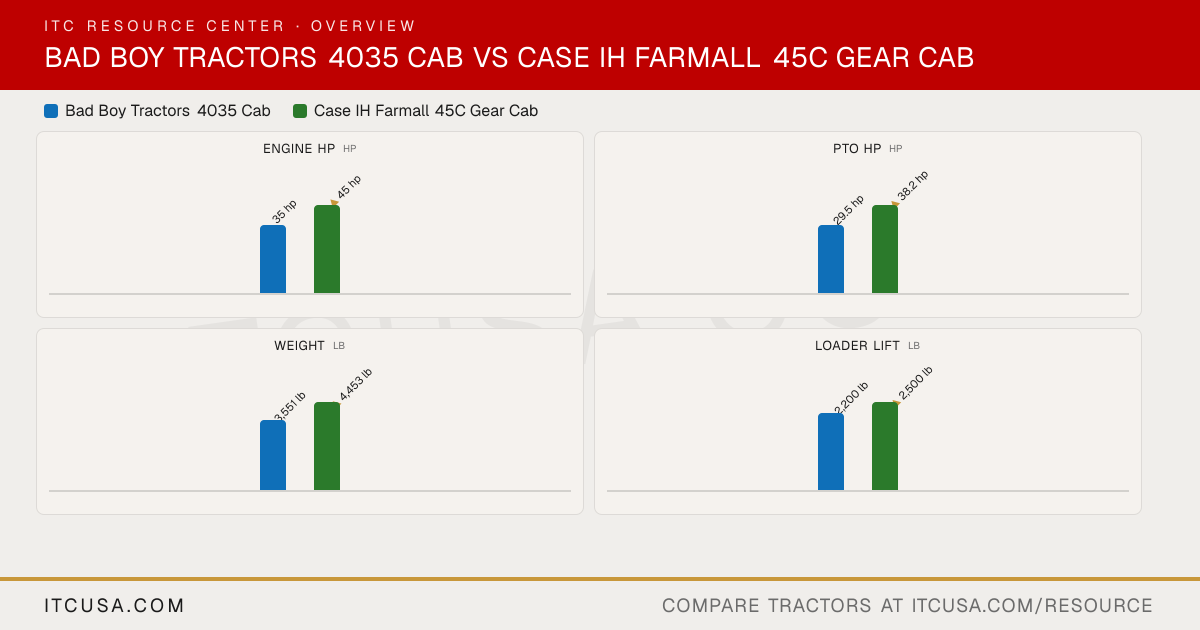

Across 9 measurable specs, the Case IH Farmall 45C Gear Cab leads 6 categories to 3. Machine pages: Bad Boy Tractors 4035 Cab and Case IH Farmall 45C Gear Cab.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Bad Boy Tractors4035 Cab	Case IHFarmall 45C Gear Cab

▶Engine
Engine Manufacturer	TYM	LS Mtron
Engine Model	A1700N4-BUTC_4	L3C19-T
Engine Type	Vertical, 4-stroke, water-cooled diesel	Diesel, 3-cylinder, turbocharged
No. of Cylinders	3	3
Displacement	104.7 in³	116 in³
Rated Engine Speed	2600 rpm	2600 rpm
Engine Power (Gross)	35 hp	45 hp
PTO Power	29.5 hp	38.2 hp
Engine Emissions Constraints	Not Published	Tier 4
Cooling System Type	Water-cooled	Liquid-cooled
Air Cleaner	Not Published	Replaceable dry element
Fuel System	Not Published	Common rail direct injection
Alternator	50 A, 12 V	70 A
▶Hydraulics
Pump Type	Not Published	Not Published
Implement Flow	8.2 gpm	8.2 gpm
Steering Flow	4.4 gpm	4.2 gpm
Total Hydraulic Flow	12.6 gpm	Not Published
Overall Hydraulic Pump Flow	12.6 gpm	Not Published
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	Not Published	2
No. of Optional Remote Valves	Up to 2	2
▶Fluid Capacity
Fuel Tank Capacity	7.13 gal	12.4 gal
Coolant Capacity	1.32 gal	Not Published
Crankcase Capacity	1.14 gal	Not Published
Transmission / Hydraulic System Capacity	9.77 gal	Not Published
Front Axle Fluid Capacity	1.69 gal	Not Published
▶PTO & Hitch
PTO Type	Independent	Independent rear PTO, electro-hydraulic engagement
PTO Rear	540 rpm	540 rpm
Mid-PTO Availability	Not Published	Optional, 2000 rpm
Category, 3-Point Hitch	Category 1	Category 1
Hitch Lift Capacity	3,306.9 lb	2,756 lb
Hitch Lift Capacity (at 24”)	2,425 lb	2,469 lb
Lift Control Type	Position control	Mechanical draft control (MDC)
▶Transmission & Drivetrain
Transmission Type	Hydrostatic (HST), 3-range	16 x 16 mechanical shuttle with synchro shift
No. of Speeds	3 range (HST)	16 forward, 16 reverse
Max Travel Speed (Forward)	18.21 mph	16.9 mph
Max Travel Speed (Reverse)	18.21 mph	Not Published
Clutch	None (HST)	dry clutch
Differential Lock & Limited Slip Options	Rear differential lock	Mechanical rear differential lock
▶Chassis, Steering & Controls
Frame Type	Not Published	Not Published
Steering	Electro-hydraulic power steering	Power steering
Brakes	Wet, multi-disc	Wet multi-disc
Seat Suspension & Adjustability	Heated leather seat (cab)	Adjustable suspension seat
Front Axle Type	Selectable 4WD	Mechanical Front Drive (MFD)
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published
▶Dimensions & Maneuverability
Overall Length with 3-Point Hitch	134.88 in	128.1 in
Overall Width	56.3 in	69.1 in
Wheelbase	65.7 in	73.2 in
Ground Clearance	13.19 in	Not Published
Min. Turn Radius without Brakes	Not Published	Not Published
Height to Top of ROPS	Not Published	97.1 in
Height to Top of ROPS (folded)	Not Published	78.6 in
Height to Top of Cab Model	85.9 in	93.3 in
▶Weight
Tractor Weight (Base)	3,551 lb	4,453 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published
▶Tire Options
Tire Size & Options	R1 ag 7-16 / 11.2-24 (standard); R4 industrial 28x8.50-15 / 43x16.00-20	R1 Agricultural; R3 Turf; R4 Industrial
R1 Agricultural - Front	7-16	9.5-16
R1 Agricultural - Rear	11.2-24	13.6-24
R3 Turf - Front	Not Published	28x8.50-15
R3 Turf - Rear	Not Published	41x14.00-20
R4 Industrial - Front	28x8.50-15	12-16.5
R4 Industrial - Rear	43x16.00-20	17.5L-24
▶Loader & Attachments
Quick Attach Loader System	SSQA	Quick-Attach faceplate; quick-connect loader mounting (L360A)
Loader Model	BBL400	L360A
Loader Lift Height	104 in	112 in
Loader Lift Capacity (Full Height)	2,200 lb	2,500 lb
Loader Breakout Force	3,660 lb	3,114 lbf
▶Warranty
Warranty Length & Coverage	Engine and powertrain 72 months or 2,000 hours; other tractor parts 24 months or 1,000 hours	6-year (72-month) extended warranty: 2-year bumper-to-bumper plus 4 additional years powertrain
▶ITC Company Accessories
Accessories that fit	Brush Guard Side Guards $199.99 Bolt onto the side of the OEM guard and offers wrap around protection Branson TYM 15/20 Series--Bad Boy 40/50 Series Brush Screen $250.00 Branson / TYM 15 Series Fuel Tank Cover $250.00	None tagged yet

Find a Bad Boy dealer near you→Find a Case IH dealer near you→

Bad Boy Tractors 4035 Cab vs Case IH Farmall 45C Gear Cab: Quick Answers

Which has more horsepower, the Bad Boy Tractors 4035 Cab or the Case IH Farmall 45C Gear Cab?

The Case IH Farmall 45C Gear Cab leads on engine hp at 45 hp hp, compared to 35 hp hp for the Bad Boy Tractors 4035 Cab.

Which has more PTO horsepower, the Bad Boy Tractors 4035 Cab or the Case IH Farmall 45C Gear Cab?

The Case IH Farmall 45C Gear Cab leads on pto hp at 38.2 hp hp, compared to 29.5 hp hp for the Bad Boy Tractors 4035 Cab.

Which is heavier, the Bad Boy Tractors 4035 Cab or the Case IH Farmall 45C Gear Cab?

The Case IH Farmall 45C Gear Cab leads on weight at 4,453 lb lb, compared to 3,551 lb lb for the Bad Boy Tractors 4035 Cab.

Which has more loader lift capacity, the Bad Boy Tractors 4035 Cab or the Case IH Farmall 45C Gear Cab?

The Case IH Farmall 45C Gear Cab leads on loader lift at 2,500 lb lb, compared to 2,200 lb lb for the Bad Boy Tractors 4035 Cab.

Which has more three-point hitch lift capacity, the Bad Boy Tractors 4035 Cab or the Case IH Farmall 45C Gear Cab?

The Case IH Farmall 45C Gear Cab leads on 3-pt lift (24 in) at 2,469 lb lb, compared to 2,425 lb lb for the Bad Boy Tractors 4035 Cab.
