Bad Boy Tractors 4035 Cab vs Case IH Farmall Compact 35A

Across 9 measurable specs, the Bad Boy Tractors 4035 Cab leads 7 categories to 1 (1 tied). Machine pages: Bad Boy Tractors 4035 Cab and Case IH Farmall Compact 35A.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

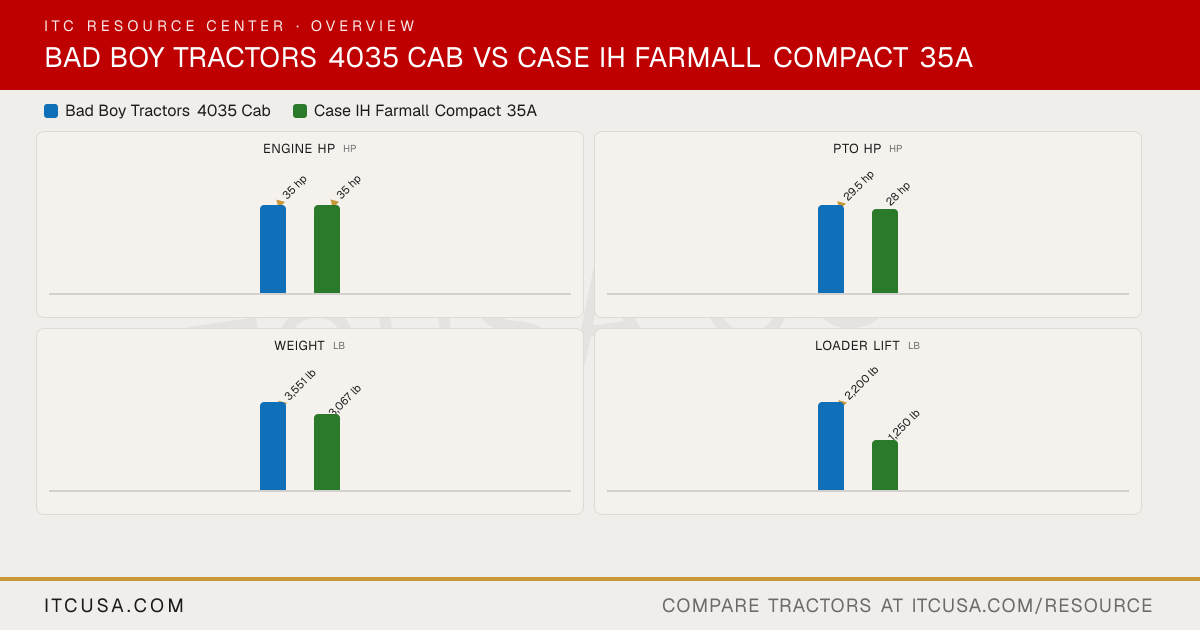

Category Verdict

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Bad Boy Tractors4035 Cab	Case IHFarmall Compact 35A

▶Engine
Engine Manufacturer	TYM	LS Mtron
Engine Model	A1700N4-BUTC_4	L3C19-T5
Engine Type	Vertical, 4-stroke, water-cooled diesel	3-cylinder, turbocharged diesel, Tier 4 B/Final
No. of Cylinders	3	3
Displacement	104.7 in³	116 in³
Rated Engine Speed	2600 rpm	2600 rpm
Engine Power (Gross)	35 hp	35 hp
PTO Power	29.5 hp	28 hp
Engine Emissions Constraints	Not Published	Tier 4
Cooling System Type	Water-cooled	Pressurized liquid cooling with recirculating bypass
Air Cleaner	Not Published	Not Published
Fuel System	Not Published	High pressure common rail
Alternator	50 A, 12 V	70 A, 12 V
▶Hydraulics
Pump Type	Not Published	Gear
Implement Flow	8.2 gpm	8.2 gpm
Steering Flow	4.4 gpm	5.3 gpm
Total Hydraulic Flow	12.6 gpm	13.5 gpm (8.2 + 5.3, computed) (8.2 + 4.2, computed)
Overall Hydraulic Pump Flow	12.6 gpm	Not Published
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	Not Published	0
No. of Optional Remote Valves	Up to 2	1
▶Fluid Capacity
Fuel Tank Capacity	7.13 gal	7.4 gal
Coolant Capacity	1.32 gal	7.5 qt
Crankcase Capacity	1.14 gal	5.8 qt
Transmission / Hydraulic System Capacity	9.77 gal	8.5 gal
Front Axle Fluid Capacity	1.69 gal	6.9 qt
▶PTO & Hitch
PTO Type	Independent	Independent, electro-hydraulic engagement
PTO Rear	540 rpm	540 rpm
Mid-PTO Availability	Not Published	Optional, 2,000 rpm
Category, 3-Point Hitch	Category 1	Category 1
Hitch Lift Capacity	3,306.9 lb	1,808 lb
Hitch Lift Capacity (at 24”)	2,425 lb	1,433 lb
Lift Control Type	Position control	Mechanical Draft Control (MDC)
▶Transmission & Drivetrain
Transmission Type	Hydrostatic (HST), 3-range	3-range hydrostatic (optional)
No. of Speeds	3 range (HST)	infinite, 3 ranges
Max Travel Speed (Forward)	18.21 mph	14.8 mph
Max Travel Speed (Reverse)	18.21 mph	14.96 mph
Clutch	None (HST)	Dry clutch
Differential Lock & Limited Slip Options	Rear differential lock	Mechanical differential lock
▶Chassis, Steering & Controls
Frame Type	Not Published	Not Published
Steering	Electro-hydraulic power steering	Power steering
Brakes	Wet, multi-disc	Wet disc, mechanical actuation
Seat Suspension & Adjustability	Heated leather seat (cab)	Adjustable suspension seat
Front Axle Type	Selectable 4WD	Mechanical Front Drive (MFD)
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published
▶Dimensions & Maneuverability
Overall Length with 3-Point Hitch	134.88 in	145.2 in
Overall Width	56.3 in	66.4 in
Wheelbase	65.7 in	67.3 in
Ground Clearance	13.19 in	10.0 in
Min. Turn Radius without Brakes	Not Published	123 in
Height to Top of ROPS	Not Published	87.6 in
Height to Top of ROPS (folded)	Not Published	68.2 in
Height to Top of Cab Model	85.9 in	Not Published
▶Weight
Tractor Weight (Base)	3,551 lb	3,067 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published
▶Tire Options
Tire Size & Options	R1 ag 7-16 / 11.2-24 (standard); R4 industrial 28x8.50-15 / 43x16.00-20	R1 agricultural, R3 turf, or R4 industrial (R4 standard)
R1 Agricultural - Front	7-16	7x14
R1 Agricultural - Rear	11.2-24	11.2x24
R3 Turf - Front	Not Published	25x8.50-14
R3 Turf - Rear	Not Published	41x14.00-20
R4 Industrial - Front	28x8.50-15	25x8.50-14
R4 Industrial - Rear	43x16.00-20	43x16.00-20
▶Loader & Attachments
Quick Attach Loader System	SSQA	Not Published
Loader Model	BBL400	L340A
Loader Lift Height	104 in	98.4 in
Loader Lift Capacity (Full Height)	2,200 lb	1,250 lb
Loader Breakout Force	3,660 lb	1913 lb
▶Warranty
Warranty Length & Coverage	Engine and powertrain 72 months or 2,000 hours; other tractor parts 24 months or 1,000 hours	6-year extended warranty: 2 years bumper-to-bumper plus 4 additional years of powertrain protection
▶ITC Company Accessories
Accessories that fit	Brush Guard Side Guards $199.99 Bolt onto the side of the OEM guard and offers wrap around protection Branson TYM 15/20 Series--Bad Boy 40/50 Series Brush Screen $250.00 Branson / TYM 15 Series Fuel Tank Cover $250.00	None tagged yet

Find a Bad Boy dealer near you→Find a Case IH dealer near you→

Bad Boy Tractors 4035 Cab vs Case IH Farmall Compact 35A: Quick Answers

Which has more horsepower, the Bad Boy Tractors 4035 Cab or the Case IH Farmall Compact 35A?

They are effectively tied: both machines are rated at 35 hp hp for engine hp.

Which has more PTO horsepower, the Bad Boy Tractors 4035 Cab or the Case IH Farmall Compact 35A?

The Bad Boy Tractors 4035 Cab leads on pto hp at 29.5 hp hp, compared to 28 hp hp for the Case IH Farmall Compact 35A.

Which is heavier, the Bad Boy Tractors 4035 Cab or the Case IH Farmall Compact 35A?

The Bad Boy Tractors 4035 Cab leads on weight at 3,551 lb lb, compared to 3,067 lb lb for the Case IH Farmall Compact 35A.

Which has more loader lift capacity, the Bad Boy Tractors 4035 Cab or the Case IH Farmall Compact 35A?

The Bad Boy Tractors 4035 Cab leads on loader lift at 2,200 lb lb, compared to 1,250 lb lb for the Case IH Farmall Compact 35A.

Which has more three-point hitch lift capacity, the Bad Boy Tractors 4035 Cab or the Case IH Farmall Compact 35A?

The Bad Boy Tractors 4035 Cab leads on 3-pt lift (24 in) at 2,425 lb lb, compared to 1,433 lb lb for the Case IH Farmall Compact 35A.
