Bad Boy Tractors 4035 Cab vs John Deere 2038R

Across 9 measurable specs, the Bad Boy Tractors 4035 Cab leads 7 categories to 2. Machine pages: Bad Boy Tractors 4035 Cab and John Deere 2038R.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

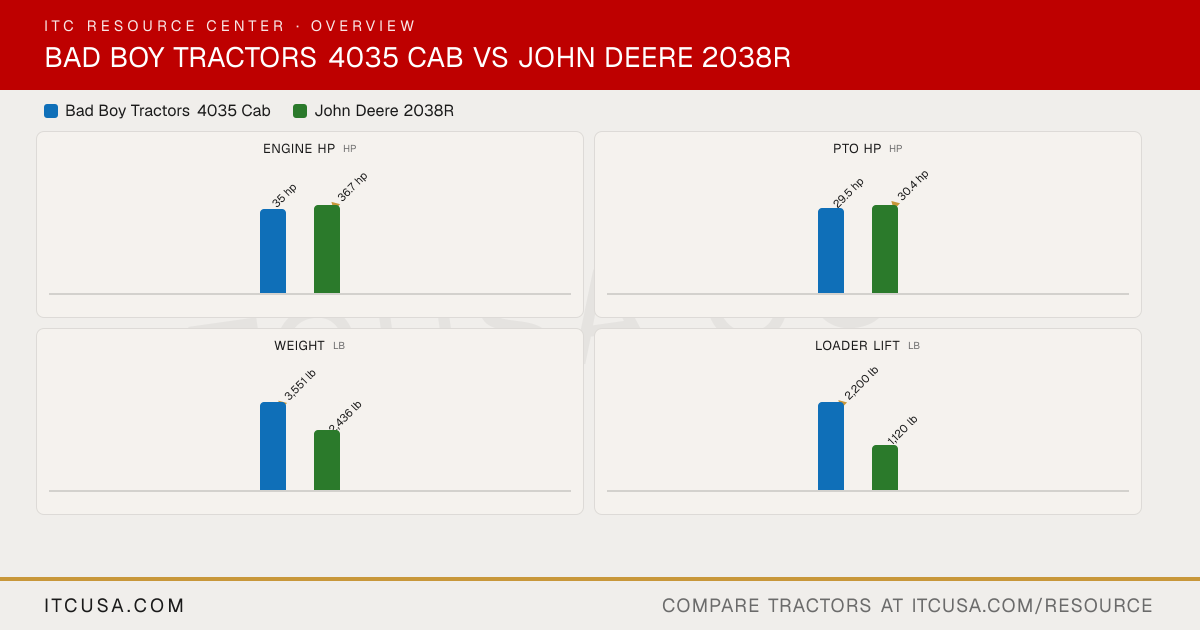

Category Verdict

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Bad Boy Tractors4035 Cab	John Deere2038R

▶Engine
Engine Manufacturer	TYM	Yanmar
Engine Model	A1700N4-BUTC_4	3TNV88C-NJT
Engine Type	Vertical, 4-stroke, water-cooled diesel	Diesel, turbocharged
No. of Cylinders	3	3
Displacement	104.7 in³	95.8 in³
Rated Engine Speed	2600 rpm	2500 rpm
Engine Power (Gross)	35 hp	36.7 hp
PTO Power	29.5 hp	30.4 hp
Engine Emissions Constraints	Not Published	Tier 4
Cooling System Type	Water-cooled	Liquid-cooled
Air Cleaner	Not Published	Dual element
Fuel System	Not Published	Direct injection
Alternator	50 A, 12 V	85 A, 12 V
▶Hydraulics
Pump Type	Not Published	Dual gear
Implement Flow	8.2 gpm	5.3 gpm
Steering Flow	4.4 gpm	4 gpm
Total Hydraulic Flow	12.6 gpm	9.3 gpm
Overall Hydraulic Pump Flow	12.6 gpm	9.3 gpm
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	Not Published	Not Published
No. of Optional Remote Valves	Up to 2	Up to 3
▶Fluid Capacity
Fuel Tank Capacity	7.13 gal	8.5 gal
Coolant Capacity	1.32 gal	1.37 gal
Crankcase Capacity	1.14 gal	4.7 qt
Transmission / Hydraulic System Capacity	9.77 gal	6.2 gal
Front Axle Fluid Capacity	1.69 gal	1.0 gal
▶PTO & Hitch
PTO Type	Independent	Independent
PTO Rear	540 rpm	540 rpm
Mid-PTO Availability	Not Published	2000 rpm
Category, 3-Point Hitch	Category 1	Category 1
Hitch Lift Capacity	3,306.9 lb	1,356 lb
Hitch Lift Capacity (at 24”)	2,425 lb	1356 lb
Lift Control Type	Position control	Position Control
▶Transmission & Drivetrain
Transmission Type	Hydrostatic (HST), 3-range	Hydrostatic
No. of Speeds	3 range (HST)	Infinite (2-range HST)
Max Travel Speed (Forward)	18.21 mph	15.3 mph
Max Travel Speed (Reverse)	18.21 mph	Not Published
Clutch	None (HST)	Not Published
Differential Lock & Limited Slip Options	Rear differential lock	Differential lock: Yes; Limited slip: Not Published
▶Chassis, Steering & Controls
Frame Type	Not Published	Not Published
Steering	Electro-hydraulic power steering	Power
Brakes	Wet, multi-disc	Wet Disc
Seat Suspension & Adjustability	Heated leather seat (cab)	Not Published
Front Axle Type	Selectable 4WD	4WD (MFWD)
Front Axle Rating	Not Published	1940 lb
Drawbar Capacity	Not Published	Not Published
▶Dimensions & Maneuverability
Overall Length with 3-Point Hitch	134.88 in	117.7 in
Overall Width	56.3 in	53.9 in
Wheelbase	65.7 in	67.9 in
Ground Clearance	13.19 in	Not Published
Min. Turn Radius without Brakes	Not Published	Not Published
Height to Top of ROPS	Not Published	92.3 in
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	85.9 in	Not Published
▶Weight
Tractor Weight (Base)	3,551 lb	2436 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published
▶Tire Options
Tire Size & Options	R1 ag 7-16 / 11.2-24 (standard); R4 industrial 28x8.50-15 / 43x16.00-20	R1 Ag, R3 Turf, R4 Industrial, R3 Turf Radial
R1 Agricultural - Front	7-16	7.00-12
R1 Agricultural - Rear	11.2-24	12.4-16
R3 Turf - Front	Not Published	23x8.50-14
R3 Turf - Rear	Not Published	14-17.5
R4 Industrial - Front	28x8.50-15	23x8.50-14
R4 Industrial - Rear	43x16.00-20	14-17.5
▶Loader & Attachments
Quick Attach Loader System	SSQA	220R Quik-Park Loader System
Loader Model	BBL400	220R
Loader Lift Height	104 in	85 in (at pivot pin)
Loader Lift Capacity (Full Height)	2,200 lb	1,120 lb (at pivot pin, full height)
Loader Breakout Force	3,660 lb	1,949 lbf (at pivot pin)
▶Warranty
Warranty Length & Coverage	Engine and powertrain 72 months or 2,000 hours; other tractor parts 24 months or 1,000 hours	6-year/2,000-hour powertrain; 2-year/2,000-hour basic (full machine)
▶ITC Company Accessories
Accessories that fit	Brush Guard Side Guards $199.99 Bolt onto the side of the OEM guard and offers wrap around protection Branson TYM 15/20 Series--Bad Boy 40/50 Series Brush Screen $250.00 Branson / TYM 15 Series Fuel Tank Cover $250.00	None tagged yet

Find a Bad Boy dealer near you→Find a John Deere dealer near you→

Bad Boy Tractors 4035 Cab vs John Deere 2038R: Quick Answers

Which has more horsepower, the Bad Boy Tractors 4035 Cab or the John Deere 2038R?

The John Deere 2038R leads on engine hp at 36.7 hp hp, compared to 35 hp hp for the Bad Boy Tractors 4035 Cab.

Which has more PTO horsepower, the Bad Boy Tractors 4035 Cab or the John Deere 2038R?

The John Deere 2038R leads on pto hp at 30.4 hp hp, compared to 29.5 hp hp for the Bad Boy Tractors 4035 Cab.

Which is heavier, the Bad Boy Tractors 4035 Cab or the John Deere 2038R?

The Bad Boy Tractors 4035 Cab leads on weight at 3,551 lb lb, compared to 2,436 lb lb for the John Deere 2038R.

Which has more loader lift capacity, the Bad Boy Tractors 4035 Cab or the John Deere 2038R?

The Bad Boy Tractors 4035 Cab leads on loader lift at 2,200 lb lb, compared to 1,120 lb lb for the John Deere 2038R.

Which has more three-point hitch lift capacity, the Bad Boy Tractors 4035 Cab or the John Deere 2038R?

The Bad Boy Tractors 4035 Cab leads on 3-pt lift (24 in) at 2,425 lb lb, compared to 1,356 lb lb for the John Deere 2038R.
