Bad Boy Tractors 4035 Cab vs John Deere 3043D

Across 9 measurable specs, the Bad Boy Tractors 4035 Cab leads 7 categories to 2. Machine pages: Bad Boy Tractors 4035 Cab and John Deere 3043D.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

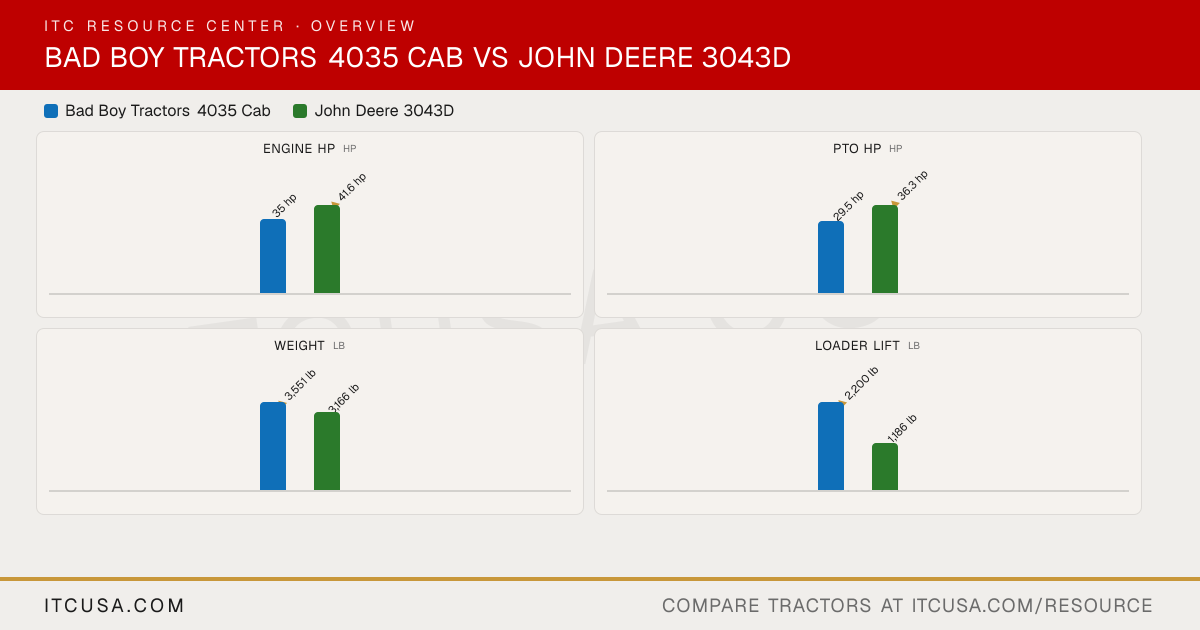

Category Verdict

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Bad Boy Tractors4035 Cab	John Deere3043D

▶Engine
Engine Manufacturer	TYM	Yanmar
Engine Model	A1700N4-BUTC_4	3TNV86CT-KJPT
Engine Type	Vertical, 4-stroke, water-cooled diesel	4-cycle, inline, water-cooled diesel, turbocharged
No. of Cylinders	3	3
Displacement	104.7 in³	100.1 in³
Rated Engine Speed	2600 rpm	2800 rpm
Engine Power (Gross)	35 hp	41.6 hp
PTO Power	29.5 hp	36.3 hp
Engine Emissions Constraints	Not Published	Tier 4
Cooling System Type	Water-cooled	Liquid
Air Cleaner	Not Published	Dual element
Fuel System	Not Published	Direct injection
Alternator	50 A, 12 V	55 A, 12 V
▶Hydraulics
Pump Type	Not Published	Two single-section external gear pumps, one each side of engine timing-gear cover
Implement Flow	8.2 gpm	5.0 gpm
Steering Flow	4.4 gpm	3.6 gpm
Total Hydraulic Flow	12.6 gpm	Not Published
Overall Hydraulic Pump Flow	12.6 gpm	10.3 gpm
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	Not Published	0
No. of Optional Remote Valves	Up to 2	Up to 2 (optional)
▶Fluid Capacity
Fuel Tank Capacity	7.13 gal	10.0 gal
Coolant Capacity	1.32 gal	1.3 gal
Crankcase Capacity	1.14 gal	1.1 gal
Transmission / Hydraulic System Capacity	9.77 gal	9.2 gal
Front Axle Fluid Capacity	1.69 gal	1.0 gal
▶PTO & Hitch
PTO Type	Independent	Transmission
PTO Rear	540 rpm	540 rpm at 2800 rpm engine (rated)
Mid-PTO Availability	Not Published	Not Published
Category, 3-Point Hitch	Category 1	Category 1
Hitch Lift Capacity	3,306.9 lb	2081.2 lb
Hitch Lift Capacity (at 24”)	2,425 lb	2081.2 lb
Lift Control Type	Position control	Position control
▶Transmission & Drivetrain
Transmission Type	Hydrostatic (HST), 3-range	8F/8R synchromesh shuttle shift gear transmission
No. of Speeds	3 range (HST)	8F/8R
Max Travel Speed (Forward)	18.21 mph	12.9 mph
Max Travel Speed (Reverse)	18.21 mph	13.5 mph
Clutch	None (HST)	Single dry traction (mechanical)
Differential Lock & Limited Slip Options	Rear differential lock	Differential lock: Yes
▶Chassis, Steering & Controls
Frame Type	Not Published	Not Published
Steering	Electro-hydraulic power steering	Power steering
Brakes	Wet, multi-disc	Wet disk
Seat Suspension & Adjustability	Heated leather seat (cab)	Not Published
Front Axle Type	Selectable 4WD	4WD
Front Axle Rating	Not Published	1940 lb
Drawbar Capacity	Not Published	1102 lb
▶Dimensions & Maneuverability
Overall Length with 3-Point Hitch	134.88 in	111.2 in
Overall Width	56.3 in	57.3 in
Wheelbase	65.7 in	62.6 in
Ground Clearance	13.19 in	13.0 in
Min. Turn Radius without Brakes	Not Published	6.9 ft (with brakes) (with brake applied)
Height to Top of ROPS	Not Published	Not Published
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	85.9 in	Not Published
▶Weight
Tractor Weight (Base)	3,551 lb	3166 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published
▶Tire Options
Tire Size & Options	R1 ag 7-16 / 11.2-24 (standard); R4 industrial 28x8.50-15 / 43x16.00-20	R1 Bar, R3 Turf, R4 Industrial
R1 Agricultural - Front	7-16	7-14
R1 Agricultural - Rear	11.2-24	11.2-24
R3 Turf - Front	Not Published	27X8.50-15
R3 Turf - Rear	Not Published	41X14-20
R4 Industrial - Front	28x8.50-15	25X8.50-14
R4 Industrial - Rear	43x16.00-20	15-19.5
▶Loader & Attachments
Quick Attach Loader System	SSQA	Quick-change attachment carrier
Loader Model	BBL400	D160
Loader Lift Height	104 in	84.0 in
Loader Lift Capacity (Full Height)	2,200 lb	1186 lb
Loader Breakout Force	3,660 lb	1704 lb
▶Warranty
Warranty Length & Coverage	Engine and powertrain 72 months or 2,000 hours; other tractor parts 24 months or 1,000 hours	6-year/2,000-hour powertrain; 2-year/2,000-hour basic (full machine)
▶ITC Company Accessories
Accessories that fit	Brush Guard Side Guards $199.99 Bolt onto the side of the OEM guard and offers wrap around protection Branson TYM 15/20 Series--Bad Boy 40/50 Series Brush Screen $250.00 Branson / TYM 15 Series Fuel Tank Cover $250.00	None tagged yet

Find a Bad Boy dealer near you→Find a John Deere dealer near you→

Bad Boy Tractors 4035 Cab vs John Deere 3043D: Quick Answers

Which has more horsepower, the Bad Boy Tractors 4035 Cab or the John Deere 3043D?

The John Deere 3043D leads on engine hp at 41.6 hp hp, compared to 35 hp hp for the Bad Boy Tractors 4035 Cab.

Which has more PTO horsepower, the Bad Boy Tractors 4035 Cab or the John Deere 3043D?

The John Deere 3043D leads on pto hp at 36.3 hp hp, compared to 29.5 hp hp for the Bad Boy Tractors 4035 Cab.

Which is heavier, the Bad Boy Tractors 4035 Cab or the John Deere 3043D?

The Bad Boy Tractors 4035 Cab leads on weight at 3,551 lb lb, compared to 3,166 lb lb for the John Deere 3043D.

Which has more loader lift capacity, the Bad Boy Tractors 4035 Cab or the John Deere 3043D?

The Bad Boy Tractors 4035 Cab leads on loader lift at 2,200 lb lb, compared to 1,186 lb lb for the John Deere 3043D.

Which has more three-point hitch lift capacity, the Bad Boy Tractors 4035 Cab or the John Deere 3043D?

The Bad Boy Tractors 4035 Cab leads on 3-pt lift (24 in) at 2,425 lb lb, compared to 2,081.2 lb lb for the John Deere 3043D.
