Which has more horsepower, the Bad Boy Tractors 4035 Cab or the Kioti CK20?

The Bad Boy Tractors 4035 Cab leads on engine hp at 24.5 hp hp, compared to 21 hp hp for the Kioti CK20.

Which has more PTO horsepower, the Bad Boy Tractors 4035 Cab or the Kioti CK20?

The Bad Boy Tractors 4035 Cab leads on pto hp at 39.6 hp hp, compared to 16.5 hp hp for the Kioti CK20.

Which has more loader lift capacity, the Bad Boy Tractors 4035 Cab or the Kioti CK20?

The Bad Boy Tractors 4035 Cab leads on loader lift at 2,200 lb lb, compared to 1,076 lb lb for the Kioti CK20.

Which has more three-point hitch lift capacity, the Bad Boy Tractors 4035 Cab or the Kioti CK20?

The Bad Boy Tractors 4035 Cab leads on 3-pt lift (24 in) at 2,425 lb lb, compared to 1,109 lb lb for the Kioti CK20.

Bad Boy Tractors 4035 Cab vs Kioti CK20

Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.

Across 8 measurable specs, the Bad Boy Tractors 4035 Cab leads 8 categories to 0. Machine pages: Bad Boy Tractors 4035 Cab and Kioti CK20.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Spec	Bad Boy Tractors 4035 Cab	Kioti CK20
Engine HP (hp)	▲ 24.5 hp	21 hp
PTO HP (hp)	▲ 39.6 hp	16.5 hp
Weight (lb)	3,496.5 lb	—
Loader Lift (lb)	▲ 2,200 lb	1,076 lb
3-Pt Lift (24 in) (lb)	▲ 2,425 lb	1,109 lb
Lift Height (in)	▲ 104 in	88 in
Breakout Force (lbf)	▲ 3,660 lbf	1,515 lbf
Hydraulic Flow (gpm)	▲ 12.6 gpm	7.7 gpm
Travel Speed (mph)	▲ 18.2 mph	10.1 mph

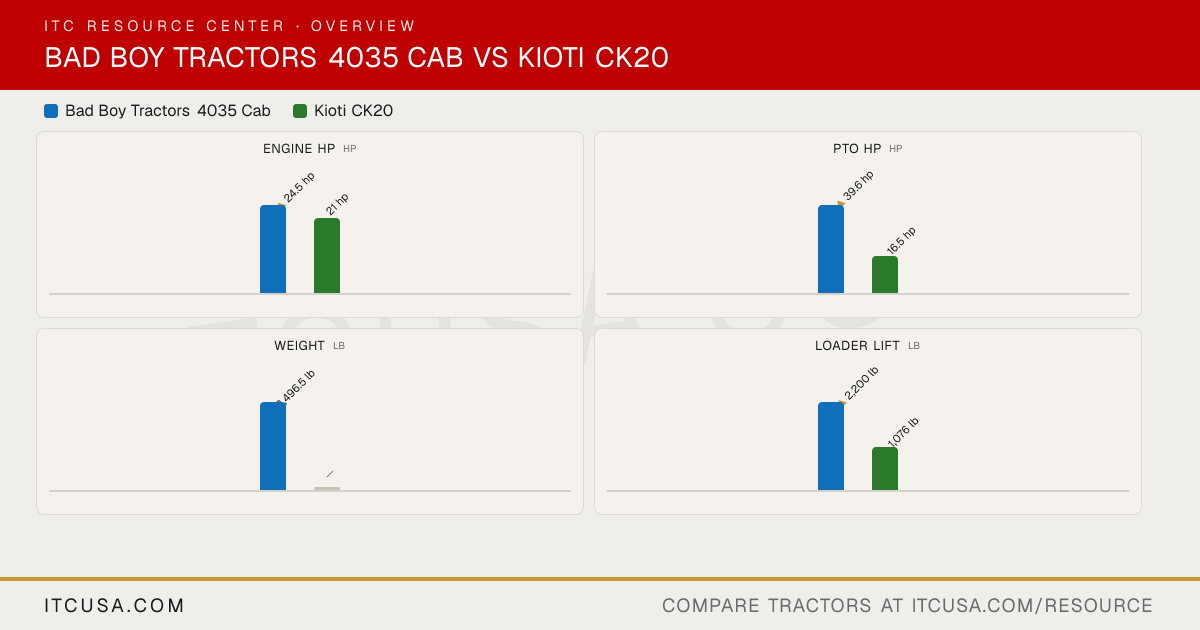

The headline numbers at a glance.

Bad Boy Tractors 4035 CabKioti CK20

Engine HPhp

▲24.5 hp

21 hp

PTO HPhp

▲39.6 hp

16.5 hp

Weightlb

3,496.5 lb

—

Loader Liftlb

▲2,200 lb

1,076 lb

3-Pt Lift (24 in)lb

▲2,425 lb

1,109 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Bad Boy Tractors4035 Cab	KiotiCK20


PTO Power	39.6 hp	16.5 hp
Alternator	50 A, 12 V	Not Published
Air Cleaner	Not Published	Not Published
Engine Type	Vertical, water cooled 4-cycle, diesel engine	Liquid-cooled, diesel
Fuel System	Diesel fuel	Not Published
Displacement	104.6 in³	56.6 in³
No. of Cylinders	3	3
Rated Engine Speed	2100 rpm	2800 rpm
Cooling System Type	Pressurized Radiator	Liquid-cooled
Engine Manufacturer	Not specified in source	KIOTI (Daedong)
Engine Power (Gross)	24.5 hp	21 hp
Engine Emissions Constraints	Not Published	Not Published

Tractor Weight (Base)	4025H: 3,496.5 lb (3,497 lbs), ROPS: 3,496.5 lb (3,497 lbs), Cabin: 3,728 lb (3,728 lbs)	—
Weight with ROPS and Loader	Not Applicable	Not Published
Weight with Cab and Loader	3,551 lb (tractor only)	Not Applicable

Warranty Length & Coverage	6-year powertrain warranty	Limited: Tractors (Non-Commercial Application) 24 months parts & labor; Extended (driveline): 48 months parts & labor

Pump Type	Not Published	Not Published
Steering Flow	4.4 gpm	Not Published
Implement Flow	8.2 gpm	Not Published
Total Hydraulic Flow	12.6 gpm (4.4+8.2)	7.66 gpm
Hydraulic System Type	Not Published	Not Published
System Operating Pressure	396.8 lbf/cm² (control valve), 286.6 lbf/cm² (PST valve relief)	—
Rear Remote Hydraulic Flow	Not Published	Not Published
Overall Hydraulic Pump Flow	12.6 gpm	7.66 gpm
No. of Optional Remote Valves	Optional (Up to 2)	1
No. of Standard Remote Valves	Not Published	0

PTO Rear	540 rpm	540 rpm
PTO Type	Independent	Transmission
Lift Control Type	Position control	Not Published
Hitch Lift Capacity	3,306.9 lb	1,631 lb
Mid-PTO Availability	Not Published	Yes (2,000 rpm)
Category, 3-Point Hitch	Cat 1	Category 1
Hitch Lift Capacity (at 24”)	2,425 lb	1,109 lb

R3 Turf - Rear	Not Published	33X12.5-16.5
R3 Turf - Front	Not Published	24X8.50-12/4
Tire Size & Options	R1 (manual): 7-16 / 11.2-24; R4 (website): 28X8.50-15 / 43X16.00-20	R1 Agricultural, R3 Turf, R4 Industrial
R4 Industrial - Rear	43X16.00-20	12-16.5
R4 Industrial - Front	28X8.50-15	24X8.50-12/4
R1 Agricultural - Rear	11.2-24 8PR	9.5-16
R1 Agricultural - Front	7-16 6PR	6.0-12

Coolant Capacity	5.0 ℓ (1.32 u.s. gal)	Not Published
Crankcase Capacity	4.3 ℓ (1.14 u.s. gal)	Not Published
Fuel Tank Capacity	27 ℓ (7.13 u.s. gal)	5.28 gal
Front Axle Fluid Capacity	Not Published	Not Published
Transmission / Hydraulic System Capacity	HST: 9.77 gal	Not Published

Loader Lift Height	104 in	88.0 in
Loader Breakout Force	3,660 lb	1,515 lb
Quick Attach Loader System	SSQA	Not Published
Loader Lift Capacity (Full Height)	2,200 lb (at pivot pin)	1,076 lb

Clutch	None (HST)	Not Published
No. of Speeds	3 Range	6F/2R
Transmission Type	HST (Hydrostatic Transmission) with range shift	Partially synchronized
Max Travel Speed (Forward)	18.21 mph (range C)	10.1 mph
Max Travel Speed (Reverse)	18.21 mph	Not Published
Differential Lock & Limited Slip Options	Differential lock	Not Published

Brakes	Wet multi-disc	Wet disc
Steering	Fully hydraulic power steering	Power steering
Frame Type	Not Published	Not Published
Front Axle Type	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published
Front Axle Rating	Not Published	Not Published
Seat Suspension & Adjustability	Not Published	Not Published

Wheelbase	65.79 in	57.9 in
Overall Width	ROPS: 57.13 in, Cabin: 55.63 in	44.1 in
Overall Length	134.88 in	—
Ground Clearance	ROPS: 13.19 in, Cabin: 13.50 in	12.2 in
Height to Top of ROPS	ROPS: 104.06 in, Cabin: 88.9 in	77.5 in
Height to Top of Cab Model	86 in	Not Applicable
Height to Top of ROPS (folded)	Not Applicable	Not Published
Min. Turn Radius without Brakes	Not Published	Not Published
Overall Length with 3-Point Hitch	134.88 in	105.7 in
