Bad Boy Tractors 4035 Cab vs Kioti CS2510

Across 8 measurable specs, the Bad Boy Tractors 4035 Cab leads 7 categories to 0 (1 tied). Machine pages: Bad Boy Tractors 4035 Cab and Kioti CS2510.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

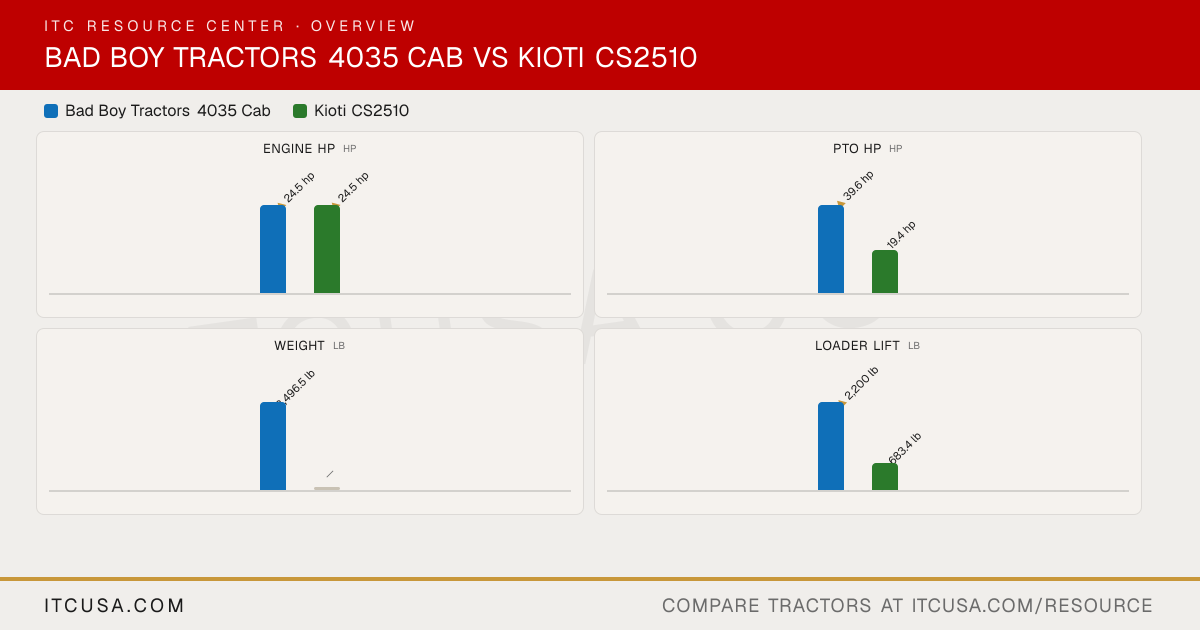

Category Verdict

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Bad Boy Tractors4035 Cab	KiotiCS2510

▶Engine
PTO Power	39.6 hp	19.4 hp
Alternator	50 A, 12 V	40 A, 12 V
Air Cleaner	Not Published	Dry type (cyclone type)
Engine Type	Vertical, water cooled 4-cycle, diesel engine	Liquid-cooled, diesel
Fuel System	Diesel fuel	Injection pump type: Bosch; nozzle type: Throttle
Displacement	104.6 in³	69 in³
No. of Cylinders	3	3
Rated Engine Speed	2100 rpm	3000 rpm
Cooling System Type	Pressurized Radiator	Liquid-cooled
Engine Manufacturer	Not specified in source	Shibaura (S204.2 gal-F21)
Engine Power (Gross)	24.5 hp	24.5 hp
Engine Emissions Constraints	Not Published	Not Published
▶Weight
Tractor Weight (Base)	4025H: 3,496.5 lb (3,497 lbs), ROPS: 3,496.5 lb (3,497 lbs), Cabin: 3,728 lb (3,728 lbs)	—
Weight with ROPS and Loader	Not Applicable	Not Published
Weight with Cab and Loader	3,551 lb (tractor only)	Not Applicable
▶Warranty
Warranty Length & Coverage	6-year powertrain warranty	Limited: Tractors (Non-Commercial Application) 24 months parts & labor; Extended (driveline): 48 months parts & labor
▶Hydraulics
Pump Type	Not Published	Not Published
Steering Flow	4.4 gpm	Not Published
Implement Flow	8.2 gpm	Not Published
Total Hydraulic Flow	12.6 gpm (4.4+8.2)	6.5 gpm
Hydraulic System Type	Not Published	Open center
System Operating Pressure	396.8 lbf/cm² (control valve), 286.6 lbf/cm² (PST valve relief)	—
Rear Remote Hydraulic Flow	Not Published	Not Published
Overall Hydraulic Pump Flow	12.6 gpm	6.5 gpm
No. of Optional Remote Valves	Optional (Up to 2)	Not Published
No. of Standard Remote Valves	Not Published	Not Published
▶PTO & Hitch
PTO Rear	540 rpm	540 rpm
PTO Type	Independent	Independent
Lift Control Type	Position control	Position control
Hitch Lift Capacity	3,306.9 lb	700 lbs (at 24 in)
Mid-PTO Availability	Not Published	Available (2,200 rpm)
Category, 3-Point Hitch	Cat 1	Category 1
Hitch Lift Capacity (at 24”)	2,425 lb	700 lbs
▶Tire Options
R3 Turf - Rear	Not Published	26X12.00-12
R3 Turf - Front	Not Published	18X8.5-8
Tire Size & Options	R1 (manual): 7-16 / 11.2-24; R4 (website): 28X8.50-15 / 43X16.00-20	TractorData lists industrial tire sizes (see R4 rows); other tire options not specified.
R4 Industrial - Rear	43X16.00-20	26X12.00-12
R4 Industrial - Front	28X8.50-15	18X8.50-10
R1 Agricultural - Rear	11.2-24 8PR	Not Applicable
R1 Agricultural - Front	7-16 6PR	Not Applicable
▶Fluid Capacity
Coolant Capacity	5.0 ℓ (1.32 u.s. gal)	3.7 qt
Crankcase Capacity	4.3 ℓ (1.14 u.s. gal)	3.2 qt
Fuel Tank Capacity	27 ℓ (7.13 u.s. gal)	6.7 gal
Front Axle Fluid Capacity	Not Published	0.5 gal
Transmission / Hydraulic System Capacity	HST: 9.77 gal	3.4 gal
▶Loader & Attachments
Loader Lift Height	104 in	70.9 in
Loader Breakout Force	3,660 lb	1,435.2 lb
Quick Attach Loader System	SSQA	Quick-attach (QA) bucket
Loader Lift Capacity (Full Height)	2,200 lb (at pivot pin)	683.4 lb
▶Transmission & Drivetrain
Clutch	None (HST)	None
No. of Speeds	3 Range	Infinite, 2 range (High/Low)
Transmission Type	HST (Hydrostatic Transmission) with range shift	HST (hydrostatic)
Max Travel Speed (Forward)	18.21 mph (range C)	10.3 mph
Max Travel Speed (Reverse)	18.21 mph	7 mph
Differential Lock & Limited Slip Options	Differential lock	Rear differential lock (standard)
▶Chassis, Steering & Controls
Brakes	Wet multi-disc	Wet disk type
Steering	Fully hydraulic power steering	Power steering
Frame Type	Not Published	Not Published
Front Axle Type	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published
Front Axle Rating	Not Published	Not Published
Seat Suspension & Adjustability	Not Published	Not Published
▶Dimensions & Maneuverability
Wheelbase	65.79 in	55.12 in
Overall Width	ROPS: 57.13 in, Cabin: 55.63 in	46.65 in
Overall Length	134.88 in	—
Ground Clearance	ROPS: 13.19 in, Cabin: 13.50 in	6.38 in
Height to Top of ROPS	ROPS: 104.06 in, Cabin: 88.9 in	87.63 in
Height to Top of Cab Model	86 in	Not Applicable
Height to Top of ROPS (folded)	Not Applicable	Not Published
Min. Turn Radius without Brakes	Not Published	8.33 ft (2.54 m) (with one rear wheel braked)
Overall Length with 3-Point Hitch	134.88 in	99.33 in
▶ITC Company Accessories
Accessories that fit	None tagged yet	Brush Guard Side Guards $199.99 Bolt onto the side of the OEM guard and offers wrap around protection

Bad Boy Tractors 4035 Cab vs Kioti CS2510: Quick Answers

Which has more horsepower, the Bad Boy Tractors 4035 Cab or the Kioti CS2510?

They are effectively tied: both machines are rated at 24.5 hp hp for engine hp.

Which has more PTO horsepower, the Bad Boy Tractors 4035 Cab or the Kioti CS2510?

The Bad Boy Tractors 4035 Cab leads on pto hp at 39.6 hp hp, compared to 19.4 hp hp for the Kioti CS2510.

Which has more loader lift capacity, the Bad Boy Tractors 4035 Cab or the Kioti CS2510?

The Bad Boy Tractors 4035 Cab leads on loader lift at 2,200 lb lb, compared to 683.4 lb lb for the Kioti CS2510.

Which has more three-point hitch lift capacity, the Bad Boy Tractors 4035 Cab or the Kioti CS2510?

The Bad Boy Tractors 4035 Cab leads on 3-pt lift (24 in) at 2,425 lb lb, compared to 700 lb lb for the Kioti CS2510.
