Across 8 measurable specs, this matchup is a dead heat: 4 categories to the Bad Boy Tractors 1022, 4 to the Kioti CS2510. Machine pages: Bad Boy Tractors 1022 and Kioti CS2510 .
Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.
Category Verdict Spec Bad Boy Tractors 1022 Kioti CS2510 Engine HP (hp) 21.5 hp ▲ 24.5 hpPTO HP (hp) 15.4 hp ▲ 19.4 hpWeight (lb) 1,433 lb — Loader Lift (lb) ▲ 992 lb683.4 lb 3-Pt Lift (24 in) (lb) 679 lb ▲ 700 lbLift Height (in) ▲ 72.7 in70.9 in Breakout Force (lbf) ▲ 1,531 lbf1,435.2 lbf Hydraulic Flow (gpm) ▲ 7 gpm6.5 gpm Travel Speed (mph) 7.8 mph ▲ 10.3 mph

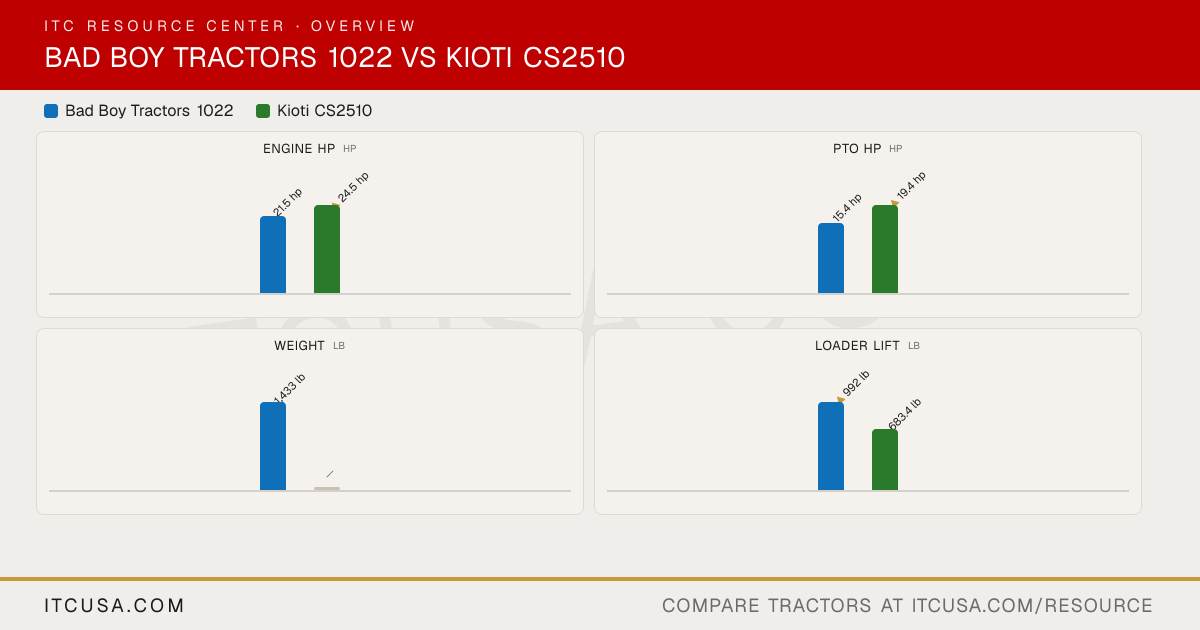

Overview Loader Work PTO Work
The headline numbers at a glance.
Bad Boy Tractors 1022 Kioti CS2510
ITCUSA.COM ITCUSA.COM ITCUSA.COM
Full Spec Sheet Every published spec, side by side, including the details the graphs above don't chart.
Spec Bad Boy Tractors 1022 Kioti CS2510
▶ EnginePTO Power 15.4 hp 19.4 hp Alternator 40 A, 12 V 40 A, 12 V Air Cleaner Single Dry Dry type (cyclone type) Engine Type Natural Aspiration Liquid-cooled, diesel Fuel System Diesel Injection pump type: Bosch; nozzle type: Throttle Displacement 60.6 (993) 69 in³ No. of Cylinders 3 3 Rated Engine Speed 3,200 3000 rpm Cooling System Type Water cooled Liquid-cooled Engine Manufacturer Yanmar Shibaura (S204.2 gal-F21) Engine Power (Gross) 21.5 hp 24.5 hp Engine Emissions Constraints Tier 4 Not Published ▶ WeightTractor Weight (Base) 1,433 (650) — Weight with ROPS and Loader 1,433 lb Not Published Weight with Cab and Loader Not Published Not Applicable ▶ WarrantyWarranty Length & Coverage 7-year powertrain warranty Limited: Tractors (Non-Commercial Application) 24 months parts & labor; Extended (driveline): 48 months parts & labor ▶ HydraulicsPump Type Single Gear Pump with Flow Divider Not Published Steering Flow 2.11 gpm Not Published Implement Flow 4.17 (15.8) Not Published Total Hydraulic Flow 6.97 (26.4) 6.5 gpm Hydraulic System Type Not Published Open center Rear Remote Hydraulic Flow Not Published Not Published Overall Hydraulic Pump Flow 6.97 gpm (max total flow) 6.5 gpm No. of Optional Remote Valves Up to 1 Not Published No. of Standard Remote Valves Not Published Not Published ▶ PTO & HitchPTO Rear 540 rpm 540 rpm PTO Type Independent Independent Lift Control Type Position Position control Hitch Lift Capacity 1,100 lb 700 lbs (at 24 in) Mid-PTO Availability Optional (2,500 rpm) Available (2,200 rpm) Category, 3-Point Hitch Category I (N) Category 1 Hitch Lift Capacity (at 24”) 679 lb 700 lbs ▶ Tire OptionsR3 Turf - Rear TURF R 16X12.00-12 26X12.00-12 R3 Turf - Front TURF F 16X7.50-8 18X8.5-8 Tire Size & Options R1 (BAR) / R3 (TURF) / R4 (IND) TractorData lists industrial tire sizes (see R4 rows); other tire options not specified. R4 Industrial - Rear 26X12-12 26X12.00-12 R4 Industrial - Front 18X8.50-10 18X8.50-10 R1 Agricultural - Rear BAR R 24X12.00-12 Not Applicable R1 Agricultural - Front BAR F 16X7.50-9 Not Applicable ▶ Fluid CapacityCoolant Capacity 0.9 gal 3.7 qt Crankcase Capacity 0.48 gal 3.2 qt Fuel Tank Capacity 6.6 gal 6.7 gal Front Axle Fluid Capacity 2.6 qt 0.5 gal Transmission / Hydraulic System Capacity 3.6 gal 3.4 gal ▶ Loader & AttachmentsLoader Lift Height 72.7 in (under level bucket); 78.5 in (pivot pin) 70.9 in Loader Breakout Force 1,531 lb (at pivot pin, ground level) 1,435.2 lb Quick Attach Loader System SSQA Quick-attach (QA) bucket Loader Lift Capacity (Full Height) 992 lb (at pivot pin) 683.4 lb ▶ Transmission & DrivetrainClutch Dry single plate None No. of Speeds 2 Range Infinite, 2 range (High/Low) Transmission Type Hydrostatic transmission (HST) HST (hydrostatic) Max Travel Speed (Forward) 7.8 mph 10.3 mph Max Travel Speed (Reverse) Not Published 7 mph Differential Lock & Limited Slip Options Mechanical rear differential lock Rear differential lock (standard) ▶ Chassis, Steering & ControlsBrakes Wet disc Wet disk type Steering Hydrostatic Power steering Frame Type Sub-compact tractor, 4WD Not Published Front Axle Type Center pin front axle Not Published Drawbar Capacity Not Published Not Published Front Axle Rating Not Published Not Published Seat Suspension & Adjustability Standard adjustable seat Not Published ▶ Dimensions & ManeuverabilityWheelbase 53.1 (1,350) 55.12 in Overall Width 44.5 (1,130) 46.65 in Overall Length 94.2 (2,394) — Ground Clearance 8.3 in. 6.38 in Height to Top of ROPS 86.6 (2,200) 87.63 in Height to Top of Cab Model Not Published Not Applicable Height to Top of ROPS (folded) Not Published Not Published Min. Turn Radius without Brakes 86.6 (2,200) 8.33 ft (2.54 m) (with one rear wheel braked) Overall Length with 3-Point Hitch 94.2 in 99.33 in ▶ ITC Company AccessoriesAccessories that fit None tagged yet
Bad Boy Tractors 1022 vs Kioti CS2510: Quick Answers
Which has more horsepower, the Bad Boy Tractors 1022 or the Kioti CS2510? The Kioti CS2510 leads on engine hp at 24.5 hp hp, compared to 21.5 hp hp for the Bad Boy Tractors 1022.
Which has more PTO horsepower, the Bad Boy Tractors 1022 or the Kioti CS2510? The Kioti CS2510 leads on pto hp at 19.4 hp hp, compared to 15.4 hp hp for the Bad Boy Tractors 1022.
Which has more loader lift capacity, the Bad Boy Tractors 1022 or the Kioti CS2510? The Bad Boy Tractors 1022 leads on loader lift at 992 lb lb, compared to 683.4 lb lb for the Kioti CS2510.
Which has more three-point hitch lift capacity, the Bad Boy Tractors 1022 or the Kioti CS2510? The Kioti CS2510 leads on 3-pt lift (24 in) at 700 lb lb, compared to 679 lb lb for the Bad Boy Tractors 1022. More Head-to-Heads
