Bad Boy Tractors 3026 vs Kioti CS2510

Across 8 measurable specs, the Bad Boy Tractors 3026 leads 6 categories to 2. Machine pages: Bad Boy Tractors 3026 and Kioti CS2510.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

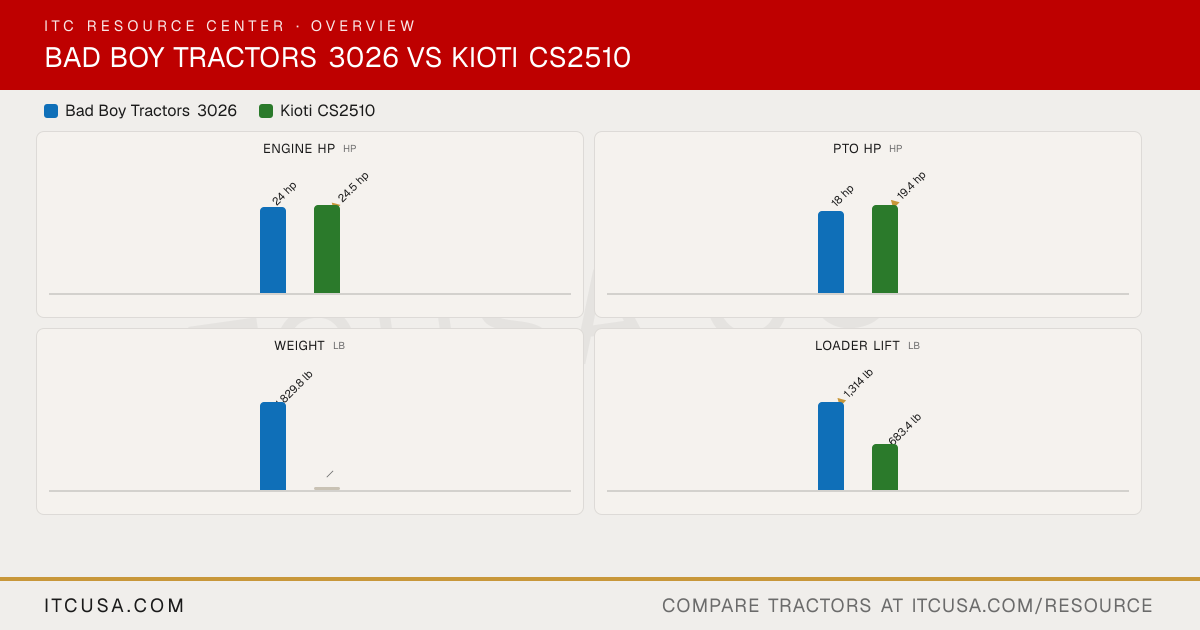

Category Verdict

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Bad Boy Tractors3026	KiotiCS2510

▶Engine
PTO Power	18 hp	19.4 hp
Alternator	50 A, 12 V	40 A, 12 V
Air Cleaner	Dry, Element	Dry type (cyclone type)
Engine Type	3 CYL, Water Cooled, Diesel	Liquid-cooled, diesel
Fuel System	Diesel	Injection pump type: Bosch; nozzle type: Throttle
Displacement	71.7 in³	69 in³
Engine Model	A1100N2	—
No. of Cylinders	3	3
Rated Engine Speed	2600 rpm	3000 rpm
Cooling System Type	Water Cooled	Liquid-cooled
Engine Manufacturer	TYM	Shibaura (S204.2 gal-F21)
Engine Power (Gross)	24 hp	24.5 hp
Engine Emissions Constraints	Final Tier4	Not Published
▶Weight
Tractor Weight (Base)	1,829.8 lb (1,829 lbs) for 2024H, 2,107.6 lb (2,107 lbs) for 3026H	—
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	2,106 lbs - base tractor with loader, no cab option confirmed for 3026 in available sources	Not Applicable
▶Warranty
Warranty Length & Coverage	6-year powertrain warranty	Limited: Tractors (Non-Commercial Application) 24 months parts & labor; Extended (driveline): 48 months parts & labor
▶Hydraulics
Pump Type	Gear type pump with primary and secondary pumps	Not Published
Steering Flow	3.1 gpm	Not Published
Implement Flow	4.3 gpm	Not Published
Total Hydraulic Flow	7.4 gpm 28.0 lpm	6.5 gpm
Hydraulic System Type	Power Assisted Hydro-Static	Open center
System Operating Pressure	352.7 lbf/cm² (max operating pressure)	—
Rear Remote Hydraulic Flow	Not Published	Not Published
Overall Hydraulic Pump Flow	7.7 gal per min	6.5 gpm
No. of Optional Remote Valves	Optional (Up To 1)	Not Published
No. of Standard Remote Valves	0	Not Published
▶PTO & Hitch
PTO Rear	540 / 960 rpm @ 2,600 rpm	540 rpm
PTO Type	Live P.T.O. (6 Spline shaft)	Independent
Lift Control Type	Position control	Position control
Hitch Lift Capacity	1,433 lbs	700 lbs (at 24 in)
Mid-PTO Availability	Option: 2,500 rpm (Mid)	Available (2,200 rpm)
Category, 3-Point Hitch	Cat 1	Category 1
Hitch Lift Capacity (at 24”)	974 lb	700 lbs
▶Tire Options
R3 Turf - Rear	Not Published	26X12.00-12
R3 Turf - Front	Not Published	18X8.5-8
Tire Size & Options	IND (Industrial) Front: 25×8.50-14; IND Rear: 14×17.5	TractorData lists industrial tire sizes (see R4 rows); other tire options not specified.
R4 Industrial - Rear	14X17.5	26X12.00-12
R4 Industrial - Front	25X8.50-14	18X8.50-10
R1 Agricultural - Rear	11.2-20 8PR	Not Applicable
R1 Agricultural - Front	7-16 6PR	Not Applicable
▶Fluid Capacity
Coolant Capacity	1.21 gal	3.7 qt
Crankcase Capacity	0.79 gal	3.2 qt
Fuel Tank Capacity	6.08 gal	6.7 gal
Front Axle Fluid Capacity	0.79 gal	0.5 gal
Transmission / Hydraulic System Capacity	2.90 gal	3.4 gal
▶Loader & Attachments
Loader Lift Height	86 in.	70.9 in
Loader Breakout Force	1,960 lbs.	1,435.2 lb
Quick Attach Loader System	SSQA	Quick-attach (QA) bucket
Loader Lift Capacity (Full Height)	1,314 lbs.	683.4 lb
▶Transmission & Drivetrain
Clutch	Dry Single Plate	None
No. of Speeds	3 Range	Infinite, 2 range (High/Low)
Transmission Type	Hydrostatic (HST)	HST (hydrostatic)
Max Travel Speed (Forward)	14.8 mph	10.3 mph
Max Travel Speed (Reverse)	14.8 mph	7 mph
Differential Lock & Limited Slip Options	Differential Lock	Rear differential lock (standard)
▶Chassis, Steering & Controls
Brakes	Wet, Multi-Disc	Wet disk type
Steering	Hydrostatic	Power steering
Frame Type	Steel frame with cast iron axles	Not Published
Front Axle Type	4 Wheel Drive	Not Published
Drawbar Capacity	Not Published	Not Published
Front Axle Rating	Not Published	Not Published
Seat Suspension & Adjustability	Adjustable seat; flips up and back for rear backhoe operation	Not Published
▶Dimensions & Maneuverability
Wheelbase	65.7"	55.12 in
Overall Width	53.8"	46.65 in
Overall Length	120.7 in for 2024H, 122.9 in for 3026H	—
Ground Clearance	16.4"	6.38 in
Height to Top of ROPS	91.4"	87.63 in
Height to Top of Cab Model	Not Applicable	Not Applicable
Height to Top of ROPS (folded)	91.4 in - ROPS up (no folded dimension found in available sources)	Not Published
Min. Turn Radius without Brakes	46°	8.33 ft (2.54 m) (with one rear wheel braked)
Overall Length with 3-Point Hitch	110 in	99.33 in
▶ITC Company Accessories
Accessories that fit	None tagged yet	Brush Guard Side Guards $199.99 Bolt onto the side of the OEM guard and offers wrap around protection

Bad Boy Tractors 3026 vs Kioti CS2510: Quick Answers

Which has more horsepower, the Bad Boy Tractors 3026 or the Kioti CS2510?

The Kioti CS2510 leads on engine hp at 24.5 hp hp, compared to 24 hp hp for the Bad Boy Tractors 3026.

Which has more PTO horsepower, the Bad Boy Tractors 3026 or the Kioti CS2510?

The Kioti CS2510 leads on pto hp at 19.4 hp hp, compared to 18 hp hp for the Bad Boy Tractors 3026.

Which has more loader lift capacity, the Bad Boy Tractors 3026 or the Kioti CS2510?

The Bad Boy Tractors 3026 leads on loader lift at 1,314 lb lb, compared to 683.4 lb lb for the Kioti CS2510.

Which has more three-point hitch lift capacity, the Bad Boy Tractors 3026 or the Kioti CS2510?

The Bad Boy Tractors 3026 leads on 3-pt lift (24 in) at 974 lb lb, compared to 700 lb lb for the Kioti CS2510.
