Bad Boy Tractors 4035 Cab vs Kioti NX4510H

Across 9 measurable specs, the Kioti NX4510H leads 8 categories to 1. Machine pages: Bad Boy Tractors 4035 Cab and Kioti NX4510H.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Bad Boy Tractors4035 Cab	KiotiNX4510H

▶Engine
Engine Manufacturer	TYM	KIOTI (Daedong)
Engine Model	A1700N4-BUTC_4	3F183T
Engine Type	Vertical, 4-stroke, water-cooled diesel	KIOTI 3 Cylinder, In-Line Vertical, Water-Cooled 4-Cycle Turbo Diesel, CRDI
No. of Cylinders	3	3
Displacement	104.7 in³	111.4 in³
Rated Engine Speed	2600 rpm	2600 rpm
Engine Power (Gross)	35 hp	45 hp
PTO Power	29.5 hp	33.9 hp
Engine Emissions Constraints	Not Published	Tier 4
Cooling System Type	Water-cooled	Water-cooled
Air Cleaner	Not Published	Dry type element
Fuel System	Not Published	Common Rail Direct Injection (CRDI)
Alternator	50 A, 12 V	Not Published
▶Hydraulics
Pump Type	Not Published	Gear
Implement Flow	8.2 gpm	9.6 gpm
Steering Flow	4.4 gpm	8.2 gpm
Total Hydraulic Flow	12.6 gpm	17.9 gpm
Overall Hydraulic Pump Flow	12.6 gpm	17.9 gpm
Hydraulic System Type	Open center	Open Center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	Not Published	1
No. of Optional Remote Valves	Up to 2	1
▶Fluid Capacity
Fuel Tank Capacity	7.13 gal	14.8 gal
Coolant Capacity	1.32 gal	2.0 gal
Crankcase Capacity	1.14 gal	1.58 gal
Transmission / Hydraulic System Capacity	9.77 gal	11.89 gal
Front Axle Fluid Capacity	1.69 gal	1.8 gal
▶PTO & Hitch
PTO Type	Independent	Independent
PTO Rear	540 rpm	540 rpm
Mid-PTO Availability	Not Published	Optional (2,000 rpm)
Category, 3-Point Hitch	Category 1	Category I
Hitch Lift Capacity	3,306.9 lb	3,538 lb
Hitch Lift Capacity (at 24”)	2,425 lb	3,177 lb
Lift Control Type	Position control	Position with Draft Control
▶Transmission & Drivetrain
Transmission Type	Hydrostatic (HST), 3-range	Hydrostatic
No. of Speeds	3 range (HST)	3 Range
Max Travel Speed (Forward)	18.21 mph	16.52 mph
Max Travel Speed (Reverse)	18.21 mph	16.52 mph
Clutch	None (HST)	Not Published
Differential Lock & Limited Slip Options	Rear differential lock	Differential Lock: Rear (Standard)
▶Chassis, Steering & Controls
Frame Type	Not Published	Not Published
Steering	Electro-hydraulic power steering	Hydrostatic Power Steering
Brakes	Wet, multi-disc	Wet Multi Disc
Seat Suspension & Adjustability	Heated leather seat (cab)	Adjustable Seat
Front Axle Type	Selectable 4WD	Not Published
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	1,655 lb (max. drawbar vertical load)
▶Dimensions & Maneuverability
Overall Length with 3-Point Hitch	134.88 in	139.6 in
Overall Width	56.3 in	65.6 in
Wheelbase	65.7 in	75.6 in
Ground Clearance	13.19 in	13.8 in
Min. Turn Radius without Brakes	Not Published	9.8 ft
Height to Top of ROPS	Not Published	103.1 in
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	85.9 in	Not Published
▶Weight
Tractor Weight (Base)	3,551 lb	4,000 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published
▶Tire Options
Tire Size & Options	R1 ag 7-16 / 11.2-24 (standard); R4 industrial 28x8.50-15 / 43x16.00-20	R1 Agricultural, R3 Turf, R4 Industrial
R1 Agricultural - Front	7-16	8-16
R1 Agricultural - Rear	11.2-24	13.6-24
R3 Turf - Front	Not Published	29-12.5-15
R3 Turf - Rear	Not Published	21.5L-16.1
R4 Industrial - Front	28x8.50-15	10-16.5
R4 Industrial - Rear	43x16.00-20	14.9-24
▶Loader & Attachments
Quick Attach Loader System	SSQA	Built-in parking stand; quick attach/detach; single-lever joystick control with float; bucket level indicator
Loader Model	BBL400	KL6010
Loader Lift Height	104 in	KL6010: 108.3 in (to pivot pin)
Loader Lift Capacity (Full Height)	2,200 lb	KL6010: 2,761 lb (at pivot pin, max height)
Loader Breakout Force	3,660 lb	KL6010: 3,727 lb (at pivot pin)
▶Warranty
Warranty Length & Coverage	Engine and powertrain 72 months or 2,000 hours; other tractor parts 24 months or 1,000 hours	Non-commercial tractor: 24 months, unlimited hours, parts & labor; non-commercial powertrain (engine and driveline): 72 months, unlimited hours, parts & labor
▶ITC Company Accessories
Accessories that fit	Brush Guard Side Guards $199.99 Bolt onto the side of the OEM guard and offers wrap around protection Branson TYM 15/20 Series--Bad Boy 40/50 Series Brush Screen $250.00 Branson / TYM 15 Series Fuel Tank Cover $250.00	Kioti NS/NX Brush Screen Insert $265.00 Brush Guard Side Guards $199.99 Bolt onto the side of the OEM guard and offers wrap around protection

Find a Bad Boy dealer near you→Find a KIOTI dealer near you→

Bad Boy Tractors 4035 Cab vs Kioti NX4510H: Quick Answers

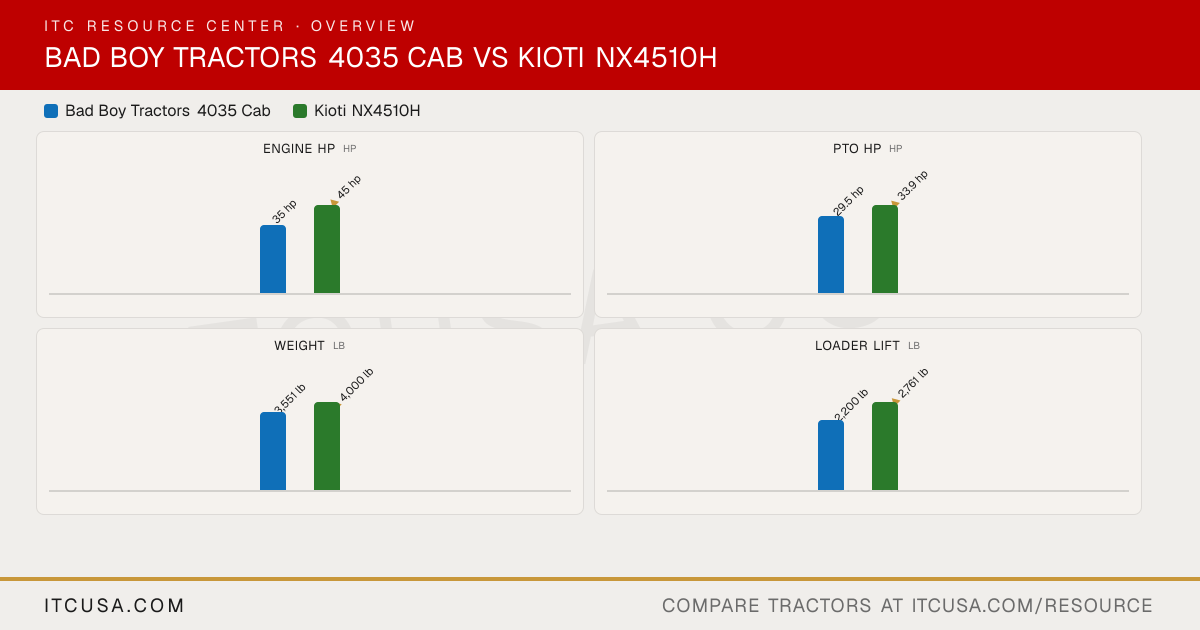

Which has more horsepower, the Bad Boy Tractors 4035 Cab or the Kioti NX4510H?

The Kioti NX4510H leads on engine hp at 45 hp hp, compared to 35 hp hp for the Bad Boy Tractors 4035 Cab.

Which has more PTO horsepower, the Bad Boy Tractors 4035 Cab or the Kioti NX4510H?

The Kioti NX4510H leads on pto hp at 33.9 hp hp, compared to 29.5 hp hp for the Bad Boy Tractors 4035 Cab.

Which is heavier, the Bad Boy Tractors 4035 Cab or the Kioti NX4510H?

The Kioti NX4510H leads on weight at 4,000 lb lb, compared to 3,551 lb lb for the Bad Boy Tractors 4035 Cab.

Which has more loader lift capacity, the Bad Boy Tractors 4035 Cab or the Kioti NX4510H?

The Kioti NX4510H leads on loader lift at 2,761 lb lb, compared to 2,200 lb lb for the Bad Boy Tractors 4035 Cab.

Which has more three-point hitch lift capacity, the Bad Boy Tractors 4035 Cab or the Kioti NX4510H?

The Kioti NX4510H leads on 3-pt lift (24 in) at 3,177 lb lb, compared to 2,425 lb lb for the Bad Boy Tractors 4035 Cab.
