Bad Boy Tractors 4035 Cab vs Mahindra 1640 HST Cab

Across 9 measurable specs, the Bad Boy Tractors 4035 Cab leads 7 categories to 2. Machine pages: Bad Boy Tractors 4035 Cab and Mahindra 1640 HST Cab.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

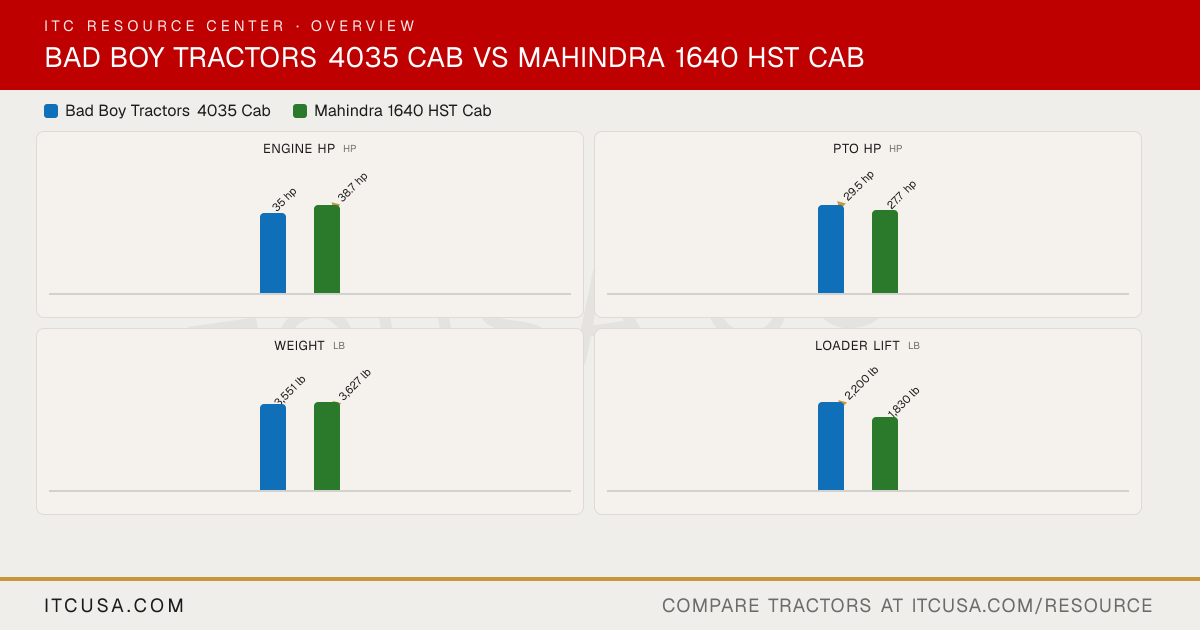

Category Verdict

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Bad Boy Tractors4035 Cab	Mahindra1640 HST Cab

▶Engine
Engine Manufacturer	TYM	Mahindra
Engine Model	A1700N4-BUTC_4	CE-38
Engine Type	Vertical, 4-stroke, water-cooled diesel	Four-stroke, naturally aspirated, direct injection, water cooled diesel
No. of Cylinders	3	4
Displacement	104.7 in³	166.7 in³
Rated Engine Speed	2600 rpm	2400 rpm
Engine Power (Gross)	35 hp	38.7 hp
PTO Power	29.5 hp	27.7 hp
Engine Emissions Constraints	Not Published	Tier 4
Cooling System Type	Water-cooled	Water-cooled
Air Cleaner	Not Published	Not Published
Fuel System	Not Published	Direct injection
Alternator	50 A, 12 V	90 A, 12 V
▶Hydraulics
Pump Type	Not Published	Not Published
Implement Flow	8.2 gpm	7.7 gpm
Steering Flow	4.4 gpm	3.4 gpm
Total Hydraulic Flow	12.6 gpm	11.1 gpm
Overall Hydraulic Pump Flow	12.6 gpm	11.1 gpm
Hydraulic System Type	Open center	Open Center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	Not Published	Not Published
No. of Optional Remote Valves	Up to 2	1
▶Fluid Capacity
Fuel Tank Capacity	7.13 gal	7.7 gal
Coolant Capacity	1.32 gal	Not Published
Crankcase Capacity	1.14 gal	Not Published
Transmission / Hydraulic System Capacity	9.77 gal	Not Published
Front Axle Fluid Capacity	1.69 gal	Not Published
▶PTO & Hitch
PTO Type	Independent	Live with o/r clutch
PTO Rear	540 rpm	540 rpm @ 2376 rpm
Mid-PTO Availability	Not Published	Optional; 2000 rpm @ 2526 rpm
Category, 3-Point Hitch	Category 1	CAT I with Telescoping Stabilizers & Flex Links
Hitch Lift Capacity	3,306.9 lb	2646 lb
Hitch Lift Capacity (at 24”)	2,425 lb	1720 lb
Lift Control Type	Position control	Position control
▶Transmission & Drivetrain
Transmission Type	Hydrostatic (HST), 3-range	HST, 3 ranges
No. of Speeds	3 range (HST)	Infinite / 3 Ranges
Max Travel Speed (Forward)	18.21 mph	14.8 mph
Max Travel Speed (Reverse)	18.21 mph	Not Published
Clutch	None (HST)	Dry-Single
Differential Lock & Limited Slip Options	Rear differential lock	Not Published
▶Chassis, Steering & Controls
Frame Type	Not Published	Not Published
Steering	Electro-hydraulic power steering	Hydrostatic Power Steering
Brakes	Wet, multi-disc	Wet Disc
Seat Suspension & Adjustability	Heated leather seat (cab)	mComfort seat with contoured cushions, folding armrests, legroom adjustment and retractable seatbelt
Front Axle Type	Selectable 4WD	Not Published
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published
▶Dimensions & Maneuverability
Overall Length with 3-Point Hitch	134.88 in	127.8 in
Overall Width	56.3 in	62 in
Wheelbase	65.7 in	76.9 in
Ground Clearance	13.19 in	12.8 in
Min. Turn Radius without Brakes	Not Published	9.2 ft (with brake applied)
Height to Top of ROPS	Not Published	Not Published
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	85.9 in	89.4 in
▶Weight
Tractor Weight (Base)	3,551 lb	3,627 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	4250 lb
▶Tire Options
Tire Size & Options	R1 ag 7-16 / 11.2-24 (standard); R4 industrial 28x8.50-15 / 43x16.00-20	R1 Agriculture, R3 Turf, R4 Industrial
R1 Agricultural - Front	7-16	7 x 16
R1 Agricultural - Rear	11.2-24	11.2 x 24
R3 Turf - Front	Not Published	27 x 10.5-15
R3 Turf - Rear	Not Published	41 x 14-20
R4 Industrial - Front	28x8.50-15	28 x 8.5-15
R4 Industrial - Rear	43x16.00-20	43 x 16-20
▶Loader & Attachments
Quick Attach Loader System	SSQA	Front loader with skid-steer couplers for superfast hookups
Loader Model	BBL400	1640L (64 in bucket)
Loader Lift Height	104 in	1640L: 92 in
Loader Lift Capacity (Full Height)	2,200 lb	1640L: 1,830 lb
Loader Breakout Force	3,660 lb	1640L: 2,777 lb
▶Warranty
Warranty Length & Coverage	Engine and powertrain 72 months or 2,000 hours; other tractor parts 24 months or 1,000 hours	7-year/3,000-hour, $0 deductible limited powertrain warranty
▶ITC Company Accessories
Accessories that fit	Brush Guard Side Guards $199.99 Bolt onto the side of the OEM guard and offers wrap around protection Branson TYM 15/20 Series--Bad Boy 40/50 Series Brush Screen $250.00 Branson / TYM 15 Series Fuel Tank Cover $250.00	None tagged yet

Find a Bad Boy dealer near you→Find a Mahindra dealer near you→

Bad Boy Tractors 4035 Cab vs Mahindra 1640 HST Cab: Quick Answers

Which has more horsepower, the Bad Boy Tractors 4035 Cab or the Mahindra 1640 HST Cab?

The Mahindra 1640 HST Cab leads on engine hp at 38.7 hp hp, compared to 35 hp hp for the Bad Boy Tractors 4035 Cab.

Which has more PTO horsepower, the Bad Boy Tractors 4035 Cab or the Mahindra 1640 HST Cab?

The Bad Boy Tractors 4035 Cab leads on pto hp at 29.5 hp hp, compared to 27.7 hp hp for the Mahindra 1640 HST Cab.

Which is heavier, the Bad Boy Tractors 4035 Cab or the Mahindra 1640 HST Cab?

The Mahindra 1640 HST Cab leads on weight at 3,627 lb lb, compared to 3,551 lb lb for the Bad Boy Tractors 4035 Cab.

Which has more loader lift capacity, the Bad Boy Tractors 4035 Cab or the Mahindra 1640 HST Cab?

The Bad Boy Tractors 4035 Cab leads on loader lift at 2,200 lb lb, compared to 1,830 lb lb for the Mahindra 1640 HST Cab.

Which has more three-point hitch lift capacity, the Bad Boy Tractors 4035 Cab or the Mahindra 1640 HST Cab?

The Bad Boy Tractors 4035 Cab leads on 3-pt lift (24 in) at 2,425 lb lb, compared to 1,720 lb lb for the Mahindra 1640 HST Cab.
