Bad Boy Tractors 4035 Cab vs Mahindra 3616

Across 8 measurable specs, the Bad Boy Tractors 4035 Cab leads 7 categories to 1. Machine pages: Bad Boy Tractors 4035 Cab and Mahindra 3616.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

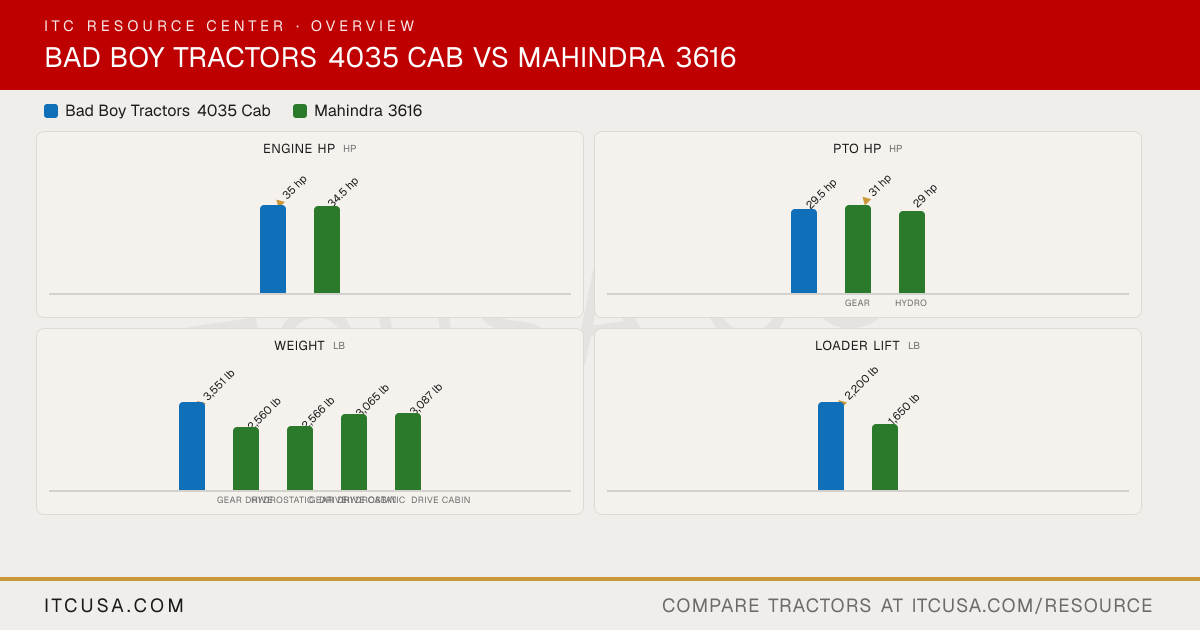

Category Verdict

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Bad Boy Tractors4035 Cab	Mahindra3616

▶Engine
Engine Manufacturer	TYM	Mitsubishi
Engine Model	A1700N4-BUTC_4	Not Published
Engine Type	Vertical, 4-stroke, water-cooled diesel	Three Cylinders, Four Cycle, Valve in Cylinder Head, Cross Flow Porting
No. of Cylinders	3	3
Displacement	104.7 in³	101.4 in³
Rated Engine Speed	2600 rpm	2600 rpm
Engine Power (Gross)	35 hp	34.5 hp
PTO Power	29.5 hp	Gear: 31 hp; Hydro: 29 hp
Engine Emissions Constraints	Not Published	Not Published
Cooling System Type	Water-cooled	Liquid-cooled
Air Cleaner	Not Published	Dry Type Air Cleaning System with Double Filter
Fuel System	Not Published	3016: BOSCH M type ND-PFR, DENSO; 3616: BOSCH-PFR
Alternator	50 A, 12 V	55 A, 12 V
▶Hydraulics
Pump Type	Not Published	Front Mounted, Engine Driven, Pressure Loading Gear Type
Implement Flow	8.2 gpm	7.7 gpm at 2600 engine rpm
Steering Flow	4.4 gpm	3.4 gpm at 2600 engine rpm
Total Hydraulic Flow	12.6 gpm	Not Published
Overall Hydraulic Pump Flow	12.6 gpm	Not Published
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	Not Published	Not Published
No. of Optional Remote Valves	Up to 2	1 (optional)
▶Fluid Capacity
Fuel Tank Capacity	7.13 gal	7.1 gal
Coolant Capacity	1.32 gal	Not Published
Crankcase Capacity	1.14 gal	Not Published
Transmission / Hydraulic System Capacity	9.77 gal	Not Published
Front Axle Fluid Capacity	1.69 gal	Not Published
▶PTO & Hitch
PTO Type	Independent	Gear Drive: Independent PTO; Hydrostatic Drive: Live PTO (internal over-running clutch)
PTO Rear	540 rpm	540 rpm @ 2376 rpm
Mid-PTO Availability	Not Published	Optional, 2000 rpm @ 2525 rpm
Category, 3-Point Hitch	Category I	Category I
Hitch Lift Capacity	3,306.9 lb	2646 lb
Hitch Lift Capacity (at 24”)	2,425 lb	1720 lb
Lift Control Type	Position control	Position control
▶Transmission & Drivetrain
Transmission Type	Hydrostatic (HST), 3-range	Gear Drive: Synchromesh on shuttle (forward-reverse) and main gear shift of constant mesh with two ranges of selective sliding gears; Hydrostatic Drive: HST with three ranges of selective sliding gears
No. of Speeds	3 range (HST)	Not Published
Max Travel Speed (Forward)	18.21 mph	Not Published
Max Travel Speed (Reverse)	18.21 mph	Not Published
Clutch	None (HST)	Dry, Single Disc, Diaphragm Type, 8.46 in
Differential Lock & Limited Slip Options	Rear differential lock	Controlled by pedal, mechanically actuated (gear drive: RH step; hydrostatic drive: LH step)
▶Chassis, Steering & Controls
Frame Type	Not Published	Not Published
Steering	Electro-hydraulic power steering	Hydrostatic
Brakes	Wet, multi-disc	Wet Disk Plate Type
Seat Suspension & Adjustability	Heated leather seat (cab)	Not Published
Front Axle Type	Selectable 4WD	Mechanical Front Drive (MFD): Spiral Bevel Gear Type Differential with Bevel Gear Reductions
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	969 lbf
▶Dimensions & Maneuverability
Overall Length with 3-Point Hitch	134.88 in	121.3 in
Overall Width	56.3 in	3616 (43x16.00-20): 62 in
Wheelbase	65.7 in	68.9 in
Ground Clearance	13.19 in	3616 (28x8.50-15): 12.5 in
Min. Turn Radius without Brakes	Not Published	3616: 98.4 in (with brake assistance) (with brake applied)
Height to Top of ROPS	Not Published	3616 (43x16.00-20): 84.4 in
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	85.9 in	3616 CABIN (43x16.00-20): 83 in
▶Weight
Tractor Weight (Base)	3,551 lb	Gear Drive: 2560 lb; Hydrostatic Drive: 2566 lb; Gear Drive Cabin: 3065 lb; Hydrostatic Drive Cabin: 3087 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published
▶Tire Options
Tire Size & Options	R1 ag 7-16 / 11.2-24 (standard); R4 industrial 28x8.50-15 / 43x16.00-20	Not Published
R1 Agricultural - Front	7-16	7x16
R1 Agricultural - Rear	11.2-24	11.2x24
R3 Turf - Front	Not Published	27x10.5-15
R3 Turf - Rear	Not Published	41x14-20
R4 Industrial - Front	28x8.50-15	28x8.5-15
R4 Industrial - Rear	43x16.00-20	43x16-20
▶Loader & Attachments
Quick Attach Loader System	SSQA	Not Published
Loader Model	BBL400	ML115
Loader Lift Height	104 in	ML115: 99 in
Loader Lift Capacity (Full Height)	2,200 lb	ML115: 1,650 lb
Loader Breakout Force	3,660 lb	ML115: 2,650 lb
▶Warranty
Warranty Length & Coverage	Engine and powertrain 72 months or 2,000 hours; other tractor parts 24 months or 1,000 hours	Not Published
▶ITC Company Accessories
Accessories that fit	Brush Guard Side Guards $199.99 Bolt onto the side of the OEM guard and offers wrap around protection Branson TYM 15/20 Series--Bad Boy 40/50 Series Brush Screen $250.00 Branson / TYM 15 Series Fuel Tank Cover $250.00	None tagged yet

Find a Bad Boy dealer near you→Find a Mahindra dealer near you→

Bad Boy Tractors 4035 Cab vs Mahindra 3616: Quick Answers

Which has more horsepower, the Bad Boy Tractors 4035 Cab or the Mahindra 3616?

The Bad Boy Tractors 4035 Cab leads on engine hp at 35 hp hp, compared to 34.5 hp hp for the Mahindra 3616.

Which has more PTO horsepower, the Bad Boy Tractors 4035 Cab or the Mahindra 3616?

The Mahindra 3616 leads on pto hp at 31 hp hp, compared to 29.5 hp hp for the Bad Boy Tractors 4035 Cab.

Which is heavier, the Bad Boy Tractors 4035 Cab or the Mahindra 3616?

The Bad Boy Tractors 4035 Cab leads on weight at 3,551 lb lb, compared to 3,087 lb lb for the Mahindra 3616.

Which has more loader lift capacity, the Bad Boy Tractors 4035 Cab or the Mahindra 3616?

The Bad Boy Tractors 4035 Cab leads on loader lift at 2,200 lb lb, compared to 1,650 lb lb for the Mahindra 3616.

Which has more three-point hitch lift capacity, the Bad Boy Tractors 4035 Cab or the Mahindra 3616?

The Bad Boy Tractors 4035 Cab leads on 3-pt lift (24 in) at 2,425 lb lb, compared to 1,720 lb lb for the Mahindra 3616.
