Bad Boy Tractors 4035 Cab vs Mahindra Max 26XLT

Across 9 measurable specs, the Bad Boy Tractors 4035 Cab leads 9 categories to 0. Machine pages: Bad Boy Tractors 4035 Cab and Mahindra Max 26XLT.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

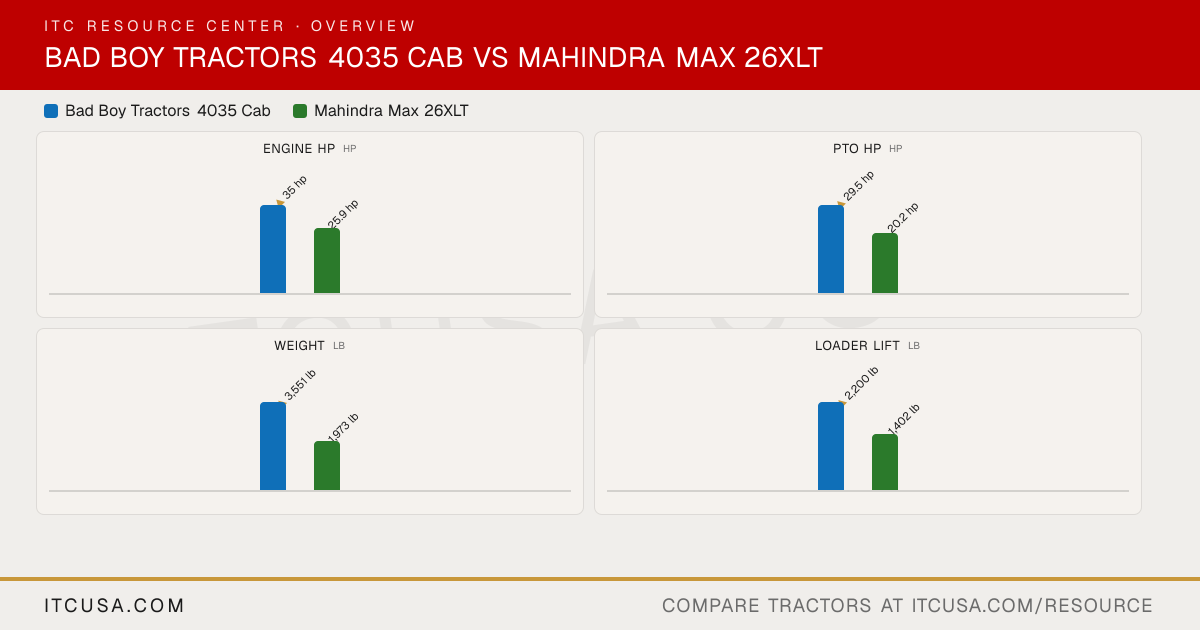

Category Verdict

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Bad Boy Tractors4035 Cab	MahindraMax 26XLT

▶Engine
Engine Manufacturer	TYM	Mitsubishi
Engine Model	A1700N4-BUTC_4	S3L2
Engine Type	Vertical, 4-stroke, water-cooled diesel	Four-stroke, Naturally Aspirated, Indirect Injection, Water Cooled Diesel Engine
No. of Cylinders	3	3
Displacement	104.7 in³	80.4 in³
Rated Engine Speed	2600 rpm	2500 rpm
Engine Power (Gross)	35 hp	25.9 hp
PTO Power	29.5 hp	20.2 hp
Engine Emissions Constraints	Not Published	Not Published
Cooling System Type	Water-cooled	Water Cooled
Air Cleaner	Not Published	Not Published
Fuel System	Not Published	Indirect Injection
Alternator	50 A, 12 V	50 A, 12 V
▶Hydraulics
Pump Type	Not Published	Not Published
Implement Flow	8.2 gpm	5.8 gpm
Steering Flow	4.4 gpm	2.7 gpm
Total Hydraulic Flow	12.6 gpm	8.5 gpm
Overall Hydraulic Pump Flow	12.6 gpm	8.5 gpm
Hydraulic System Type	Open center	Open Center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	Not Published	Not Published
No. of Optional Remote Valves	Up to 2	Not Published
▶Fluid Capacity
Fuel Tank Capacity	7.13 gal	6.1 gal
Coolant Capacity	1.32 gal	Not Published
Crankcase Capacity	1.14 gal	Not Published
Transmission / Hydraulic System Capacity	9.77 gal	Not Published
Front Axle Fluid Capacity	1.69 gal	Not Published
▶PTO & Hitch
PTO Type	Independent	Live
PTO Rear	540 rpm	540 @ 2376 rpm
Mid-PTO Availability	Not Published	Optional; 2000 @ 2526 rpm
Category, 3-Point Hitch	Category I	CAT I
Hitch Lift Capacity	3,306.9 lb	2315 lb
Hitch Lift Capacity (at 24”)	2,425 lb	Not Published
Lift Control Type	Position control	Position Control
▶Transmission & Drivetrain
Transmission Type	Hydrostatic (HST), 3-range	HST - 2 ranges
No. of Speeds	3 range (HST)	Infinite
Max Travel Speed (Forward)	18.21 mph	10.4 mph
Max Travel Speed (Reverse)	18.21 mph	Not Published
Clutch	None (HST)	Dry - Single
Differential Lock & Limited Slip Options	Rear differential lock	Not Published
▶Chassis, Steering & Controls
Frame Type	Not Published	Not Published
Steering	Electro-hydraulic power steering	Power Steering
Brakes	Wet, multi-disc	Wet disc
Seat Suspension & Adjustability	Heated leather seat (cab)	Not Published
Front Axle Type	Selectable 4WD	Not Published
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published
▶Dimensions & Maneuverability
Overall Length with 3-Point Hitch	134.88 in	110 in
Overall Width	56.3 in	54.3 in
Wheelbase	65.7 in	63.2 in
Ground Clearance	13.19 in	11.4 in
Min. Turn Radius without Brakes	Not Published	7.2 ft
Height to Top of ROPS	Not Published	84.3 in
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	85.9 in	Not Published
▶Weight
Tractor Weight (Base)	3,551 lb	1973 lb
Weight with ROPS and Loader	Not Published	2600 lb
Weight with Cab and Loader	Not Published	Not Published
▶Tire Options
Tire Size & Options	R1 ag 7-16 / 11.2-24 (standard); R4 industrial 28x8.50-15 / 43x16.00-20	R1 Agriculture, R3 Turf, R4 Industrial
R1 Agricultural - Front	7-16	7-12
R1 Agricultural - Rear	11.2-24	9.5-16
R3 Turf - Front	Not Published	23x8.5-12
R3 Turf - Rear	Not Published	33x12.5-15
R4 Industrial - Front	28x8.50-15	23x8.50-12
R4 Industrial - Rear	43x16.00-20	12-16.5
▶Loader & Attachments
Quick Attach Loader System	SSQA	Quick-Attach Adapter (included)
Loader Model	BBL400	MXLT26L
Loader Lift Height	104 in	MXLT26L: 82.7 in
Loader Lift Capacity (Full Height)	2,200 lb	MXLT26L: 1402 lb (at pivot pin)
Loader Breakout Force	3,660 lb	MXLT26L: 2690 lb (at pivot pin)
▶Warranty
Warranty Length & Coverage	Engine and powertrain 72 months or 2,000 hours; other tractor parts 24 months or 1,000 hours	Two Year All Aggregate (bumper to bumper) plus Five-Year Limited Powertrain; extends to a total 7-year / 3000 Hrs Limited Powertrain on eligible non-commercial, residential purchases
▶ITC Company Accessories
Accessories that fit	Brush Guard Side Guards $199.99 Bolt onto the side of the OEM guard and offers wrap around protection Branson TYM 15/20 Series--Bad Boy 40/50 Series Brush Screen $250.00 Branson / TYM 15 Series Fuel Tank Cover $250.00	None tagged yet

Find a Bad Boy dealer near you→Find a Mahindra dealer near you→

Bad Boy Tractors 4035 Cab vs Mahindra Max 26XLT: Quick Answers

Which has more horsepower, the Bad Boy Tractors 4035 Cab or the Mahindra Max 26XLT?

The Bad Boy Tractors 4035 Cab leads on engine hp at 35 hp hp, compared to 25.9 hp hp for the Mahindra Max 26XLT.

Which has more PTO horsepower, the Bad Boy Tractors 4035 Cab or the Mahindra Max 26XLT?

The Bad Boy Tractors 4035 Cab leads on pto hp at 29.5 hp hp, compared to 20.2 hp hp for the Mahindra Max 26XLT.

Which is heavier, the Bad Boy Tractors 4035 Cab or the Mahindra Max 26XLT?

The Bad Boy Tractors 4035 Cab leads on weight at 3,551 lb lb, compared to 1,973 lb lb for the Mahindra Max 26XLT.

Which has more loader lift capacity, the Bad Boy Tractors 4035 Cab or the Mahindra Max 26XLT?

The Bad Boy Tractors 4035 Cab leads on loader lift at 2,200 lb lb, compared to 1,402 lb lb for the Mahindra Max 26XLT.

Which has more three-point hitch lift capacity, the Bad Boy Tractors 4035 Cab or the Mahindra Max 26XLT?

The Bad Boy Tractors 4035 Cab leads on 3-pt lift (24 in) at 2,425 lb lb, compared to 2,315 lb lb for the Mahindra Max 26XLT.
