Bad Boy Tractors 4035 Cab vs Massey Ferguson 1533

Across 7 measurable specs, the Bad Boy Tractors 4035 Cab leads 5 categories to 2. Machine pages: Bad Boy Tractors 4035 Cab and Massey Ferguson 1533.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

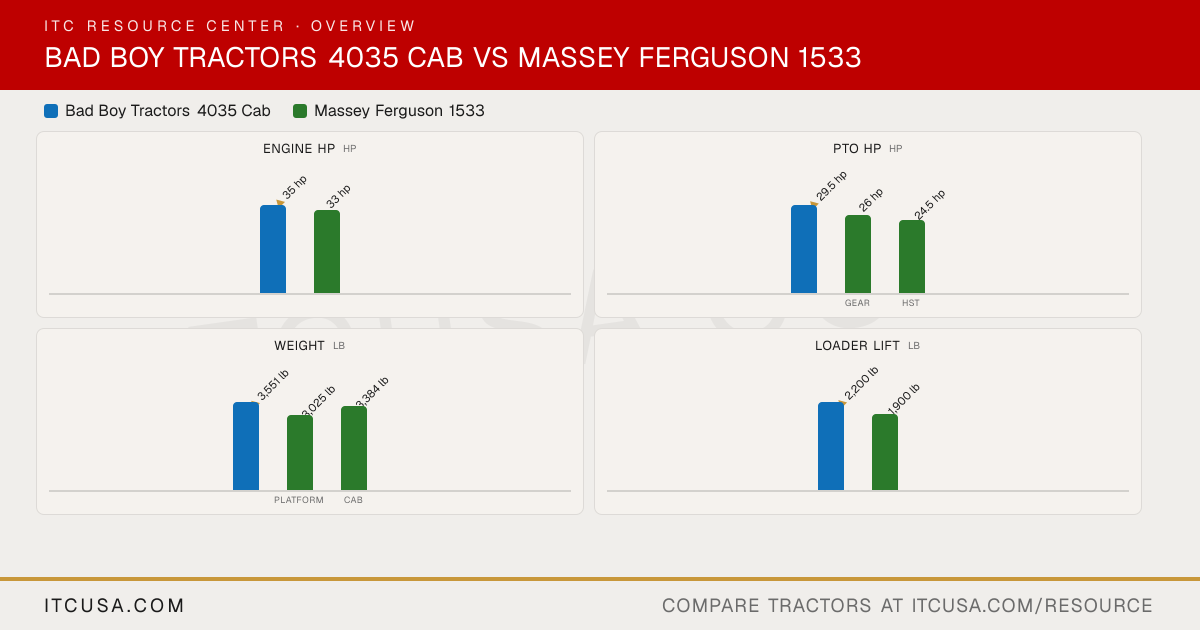

Category Verdict

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Bad Boy Tractors4035 Cab	Massey Ferguson1533

▶Engine
Engine Manufacturer	TYM	Iseki
Engine Model	A1700N4-BUTC_4	Not Published
Engine Type	Vertical, 4-stroke, water-cooled diesel	3-cylinder liquid-cooled diesel
No. of Cylinders	3	3
Displacement	104.7 in³	91.4 in³
Rated Engine Speed	2600 rpm	2600 rpm
Engine Power (Gross)	35 hp	33 hp
PTO Power	29.5 hp	Gear: 26 hp; HST: 24.5 hp
Engine Emissions Constraints	Not Published	Not Published
Cooling System Type	Water-cooled	Liquid-cooled
Air Cleaner	Not Published	Dry
Fuel System	Not Published	Not Published
Alternator	50 A, 12 V	Not Published
▶Hydraulics
Pump Type	Not Published	Not Published
Implement Flow	8.2 gpm	9.1 gpm
Steering Flow	4.4 gpm	SynchroShuttle: 4.9 gpm; HST and PowerShuttle: 6 gpm
Total Hydraulic Flow	12.6 gpm	SynchroShuttle: 14.0 gpm; HST and PowerShuttle: 15.1 gpm
Overall Hydraulic Pump Flow	12.6 gpm	Not Published
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	9.1 gpm
No. of Standard Remote Valves	Not Published	Not Published
No. of Optional Remote Valves	Up to 2	2 spool optional
▶Fluid Capacity
Fuel Tank Capacity	7.13 gal	10.6 gal
Coolant Capacity	1.32 gal	7.1 qt
Crankcase Capacity	1.14 gal	5 qt
Transmission / Hydraulic System Capacity	9.77 gal	32.8 qt
Front Axle Fluid Capacity	1.69 gal	7.9 qt
▶PTO & Hitch
PTO Type	Independent	Independent, electro-hydraulic control
PTO Rear	540 rpm	540 rpm
Mid-PTO Availability	Not Published	Optional, 2000 rpm
Category, 3-Point Hitch	Category I	Category I
Hitch Lift Capacity	3,306.9 lb	2,800 lb
Hitch Lift Capacity (at 24”)	2,425 lb	Not Published
Lift Control Type	Position control	Position control with rate of drop control
▶Transmission & Drivetrain
Transmission Type	Hydrostatic (HST), 3-range	8x8 SynchroShuttle (platform only), 12x12 PowerShuttle, or 3-range hydrostatic with cruise (platform only)
No. of Speeds	3 range (HST)	Not Published
Max Travel Speed (Forward)	18.21 mph	Not Published
Max Travel Speed (Reverse)	18.21 mph	Not Published
Clutch	None (HST)	Wet multi-disc (PowerShuttle)
Differential Lock & Limited Slip Options	Rear differential lock	Not Published
▶Chassis, Steering & Controls
Frame Type	Not Published	Semi-flat isolated platform, folding ROPS
Steering	Electro-hydraulic power steering	Power steering
Brakes	Wet, multi-disc	Wet disc
Seat Suspension & Adjustability	Heated leather seat (cab)	Adjustable suspension seat with retractable seat belt and adjustable armrest
Front Axle Type	Selectable 4WD	4WD front axle, push-pull engagement lever
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published
▶Dimensions & Maneuverability
Overall Length with 3-Point Hitch	134.88 in	121.0 in
Overall Width	56.3 in	62.0 in
Wheelbase	65.7 in	70.0 in
Ground Clearance	13.19 in	14.0 in
Min. Turn Radius without Brakes	Not Published	Not Published
Height to Top of ROPS	Not Published	87.4 in
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	85.9 in	Not Published
▶Weight
Tractor Weight (Base)	3,551 lb	Platform: 3,025 lb; Cab: 3,384 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published
▶Tire Options
Tire Size & Options	R1 ag 7-16 / 11.2-24 (standard); R4 industrial 28x8.50-15 / 43x16.00-20	Ag: 8-16 front, 12.4-24 rear (13.6-24 optional); turf: 27x8.50-15 front, 41x14.00-20 rear (LSW305 R343 / LSW610 R470 optional); industrial: 10-16.5 front, 14.9-24 rear (also 25x8.5-14 front, 15x19.5 rear)
R1 Agricultural - Front	7-16	8-16
R1 Agricultural - Rear	11.2-24	12.4-24 (13.6-24 optional)
R3 Turf - Front	Not Published	27x8.50-15 (LSW305 R343 optional)
R3 Turf - Rear	Not Published	41x14.00-20 (LSW610 R470 optional)
R4 Industrial - Front	28x8.50-15	10-16.5 or 25x8.5-14
R4 Industrial - Rear	43x16.00-20	14.9-24 or 15x19.5
▶Loader & Attachments
Quick Attach Loader System	SSQA	DL120: pin-type or skid-steer quick attach
Loader Model	BBL400	DL120
Loader Lift Height	104 in	DL120: 102 in
Loader Lift Capacity (Full Height)	2,200 lb	DL120: 1,900 lb
Loader Breakout Force	3,660 lb	Not Published
▶Warranty
Warranty Length & Coverage	Engine and powertrain 72 months or 2,000 hours; other tractor parts 24 months or 1,000 hours	2-year/2,000-hour all-inclusive; 3-year/2,000-hour engine and powertrain
▶ITC Company Accessories
Accessories that fit	Brush Guard Side Guards $199.99 Bolt onto the side of the OEM guard and offers wrap around protection Branson TYM 15/20 Series--Bad Boy 40/50 Series Brush Screen $250.00 Branson / TYM 15 Series Fuel Tank Cover $250.00	None tagged yet

Find a Bad Boy dealer near you→Find a dealer near you→

Bad Boy Tractors 4035 Cab vs Massey Ferguson 1533: Quick Answers

Which has more horsepower, the Bad Boy Tractors 4035 Cab or the Massey Ferguson 1533?

The Bad Boy Tractors 4035 Cab leads on engine hp at 35 hp hp, compared to 33 hp hp for the Massey Ferguson 1533.

Which has more PTO horsepower, the Bad Boy Tractors 4035 Cab or the Massey Ferguson 1533?

The Bad Boy Tractors 4035 Cab leads on pto hp at 29.5 hp hp, compared to 26 hp hp for the Massey Ferguson 1533.

Which is heavier, the Bad Boy Tractors 4035 Cab or the Massey Ferguson 1533?

The Bad Boy Tractors 4035 Cab leads on weight at 3,551 lb lb, compared to 3,384 lb lb for the Massey Ferguson 1533.

Which has more loader lift capacity, the Bad Boy Tractors 4035 Cab or the Massey Ferguson 1533?

The Bad Boy Tractors 4035 Cab leads on loader lift at 2,200 lb lb, compared to 1,900 lb lb for the Massey Ferguson 1533.

Which has more three-point hitch lift capacity, the Bad Boy Tractors 4035 Cab or the Massey Ferguson 1533?

The Massey Ferguson 1533 leads on 3-pt lift (24 in) at 2,800 lb lb, compared to 2,425 lb lb for the Bad Boy Tractors 4035 Cab.
