Bad Boy Tractors 4035 Cab vs Massey Ferguson 1635

Across 8 measurable specs, the Bad Boy Tractors 4035 Cab leads 5 categories to 3. Machine pages: Bad Boy Tractors 4035 Cab and Massey Ferguson 1635.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

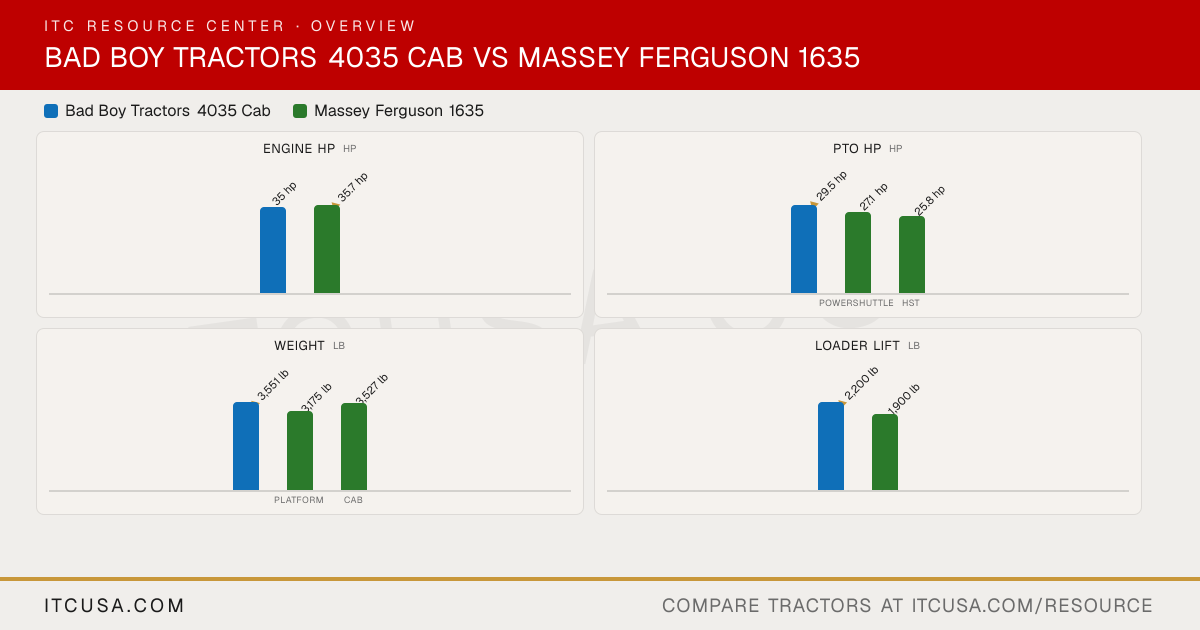

Category Verdict

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Bad Boy Tractors4035 Cab	Massey Ferguson1635

▶Engine
Engine Manufacturer	TYM	Iseki
Engine Model	A1700N4-BUTC_4	E3CG
Engine Type	Vertical, 4-stroke, water-cooled diesel	3-cylinder liquid-cooled indirect-injection diesel, naturally aspirated
No. of Cylinders	3	3
Displacement	104.7 in³	100.5 in³
Rated Engine Speed	2600 rpm	2600 rpm
Engine Power (Gross)	35 hp	35.7 hp
PTO Power	29.5 hp	PowerShuttle: 27.1 hp; HST: 25.8 hp
Engine Emissions Constraints	Not Published	Tier 4
Cooling System Type	Water-cooled	Liquid-cooled
Air Cleaner	Not Published	Dry pleated paper, 2 elements
Fuel System	Not Published	Indirect injection
Alternator	50 A, 12 V	Platform: 40 A; Cab: 60 A
▶Hydraulics
Pump Type	Not Published	Gear pump, engine timing gear driven
Implement Flow	8.2 gpm	11.6 gpm
Steering Flow	4.4 gpm	HST: 4.9 gpm; PowerShuttle: 6 gpm
Total Hydraulic Flow	12.6 gpm	HST: 16.5 gpm; PowerShuttle: 17.6 gpm
Overall Hydraulic Pump Flow	12.6 gpm	Not Published
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	11.6 gpm
No. of Standard Remote Valves	Not Published	1
No. of Optional Remote Valves	Up to 2	Up to 3
▶Fluid Capacity
Fuel Tank Capacity	7.13 gal	Platform: 9.2 gal; Cab: 10.5 gal
Coolant Capacity	1.32 gal	6.6 qt
Crankcase Capacity	1.14 gal	5.6 qt
Transmission / Hydraulic System Capacity	9.77 gal	8.2 gal
Front Axle Fluid Capacity	1.69 gal	7.9 qt
▶PTO & Hitch
PTO Type	Independent	Independent, electro-hydraulic push-button control
PTO Rear	540 rpm	540 rpm
Mid-PTO Availability	Not Published	Optional, 2000 rpm
Category, 3-Point Hitch	Category I	Category I
Hitch Lift Capacity	3,306.9 lb	2,800 lb
Hitch Lift Capacity (at 24”)	2,425 lb	2,535 lb
Lift Control Type	Position control	Position control with rate of drop control
▶Transmission & Drivetrain
Transmission Type	Hydrostatic (HST), 3-range	12x12 PowerShuttle or 3-range hydrostatic with cruise control
No. of Speeds	3 range (HST)	Not Published
Max Travel Speed (Forward)	18.21 mph	Not Published
Max Travel Speed (Reverse)	18.21 mph	Not Published
Clutch	None (HST)	PowerShuttle: dry single disc engine clutch (9.4 in) with wet multi-disc shuttle clutch
Differential Lock & Limited Slip Options	Rear differential lock	Mechanical rear differential lock, pedal engaged
▶Chassis, Steering & Controls
Frame Type	Not Published	Flat isolated platform, folding ROPS, one-piece flip-up hood
Steering	Electro-hydraulic power steering	Hydrostatic power steering, 3-position tilt wheel
Brakes	Wet, multi-disc	Wet disc
Seat Suspension & Adjustability	Heated leather seat (cab)	Suspended seat with retractable seat belt
Front Axle Type	Selectable 4WD	4WD front axle, mechanical lever engagement, 56 degree steering angle, 1.61 drive ratio
Front Axle Rating	Not Published	3,968 lb
Drawbar Capacity	Not Published	880 lb
▶Dimensions & Maneuverability
Overall Length with 3-Point Hitch	134.88 in	122.0 in
Overall Width	56.3 in	64.5 in
Wheelbase	65.7 in	69.7 in
Ground Clearance	13.19 in	14.2 in
Min. Turn Radius without Brakes	Not Published	8.2 ft (with brake applied)
Height to Top of ROPS	Not Published	100.0 in
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	85.9 in	86.6 in
▶Weight
Tractor Weight (Base)	3,551 lb	Platform: 3,175 lb; Cab: 3,527 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published
▶Tire Options
Tire Size & Options	R1 ag 7-16 / 11.2-24 (standard); R4 industrial 28x8.50-15 / 43x16.00-20	Ag: 8-16 front, 12.4-24 rear (13.6-24 optional); turf: 27x8.50-15 front, 41x14.00-20 rear (LSW305 R343 / LSW610 R470 optional); industrial: 10-16.5 front, 14.9-24 rear (also 25x8.5-14 front, 15x19.5 rear)
R1 Agricultural - Front	7-16	8-16
R1 Agricultural - Rear	11.2-24	12.4-24 (13.6-24 optional)
R3 Turf - Front	Not Published	27x8.50-15 (LSW305 R343 optional)
R3 Turf - Rear	Not Published	41x14.00-20 (LSW610 R470 optional)
R4 Industrial - Front	28x8.50-15	10-16.5 or 25x8.5-14
R4 Industrial - Rear	43x16.00-20	14.9-24 or 15x19.5
▶Loader & Attachments
Quick Attach Loader System	SSQA	DL120: pin type or skid steer type quick attach, pedestal mount
Loader Model	BBL400	DL120
Loader Lift Height	104 in	DL120: 102 in
Loader Lift Capacity (Full Height)	2,200 lb	DL120: 1,900 lb
Loader Breakout Force	3,660 lb	DL120: 2,562 lb
▶Warranty
Warranty Length & Coverage	Engine and powertrain 72 months or 2,000 hours; other tractor parts 24 months or 1,000 hours	2-year/2,000-hour all-inclusive; 3-year/2,000-hour engine and powertrain
▶ITC Company Accessories
Accessories that fit	Brush Guard Side Guards $199.99 Bolt onto the side of the OEM guard and offers wrap around protection Branson TYM 15/20 Series--Bad Boy 40/50 Series Brush Screen $250.00 Branson / TYM 15 Series Fuel Tank Cover $250.00	None tagged yet

Find a Bad Boy dealer near you→Find a dealer near you→

Bad Boy Tractors 4035 Cab vs Massey Ferguson 1635: Quick Answers

Which has more horsepower, the Bad Boy Tractors 4035 Cab or the Massey Ferguson 1635?

The Massey Ferguson 1635 leads on engine hp at 35.7 hp hp, compared to 35 hp hp for the Bad Boy Tractors 4035 Cab.

Which has more PTO horsepower, the Bad Boy Tractors 4035 Cab or the Massey Ferguson 1635?

The Bad Boy Tractors 4035 Cab leads on pto hp at 29.5 hp hp, compared to 27.1 hp hp for the Massey Ferguson 1635.

Which is heavier, the Bad Boy Tractors 4035 Cab or the Massey Ferguson 1635?

The Bad Boy Tractors 4035 Cab leads on weight at 3,551 lb lb, compared to 3,527 lb lb for the Massey Ferguson 1635.

Which has more loader lift capacity, the Bad Boy Tractors 4035 Cab or the Massey Ferguson 1635?

The Bad Boy Tractors 4035 Cab leads on loader lift at 2,200 lb lb, compared to 1,900 lb lb for the Massey Ferguson 1635.

Which has more three-point hitch lift capacity, the Bad Boy Tractors 4035 Cab or the Massey Ferguson 1635?

The Massey Ferguson 1635 leads on 3-pt lift (24 in) at 2,535 lb lb, compared to 2,425 lb lb for the Bad Boy Tractors 4035 Cab.
