Bad Boy Tractors 4035 Cab vs Massey Ferguson 1736

Across 8 measurable specs, the Bad Boy Tractors 4035 Cab leads 5 categories to 3. Machine pages: Bad Boy Tractors 4035 Cab and Massey Ferguson 1736.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Bad Boy Tractors4035 Cab	Massey Ferguson1736

▶Engine
Engine Manufacturer	TYM	Mitsubishi
Engine Model	A1700N4-BUTC_4	K38
Engine Type	Vertical, 4-stroke, water-cooled diesel	3-cylinder turbocharged and intercooled diesel
No. of Cylinders	3	3
Displacement	104.7 in³	101 in³
Rated Engine Speed	2600 rpm	2500 rpm
Engine Power (Gross)	35 hp	36.2 hp
PTO Power	29.5 hp	Gear: 27.5 hp; HST: 26.3 hp
Engine Emissions Constraints	Not Published	Tier 4
Cooling System Type	Water-cooled	Liquid-cooled
Air Cleaner	Not Published	Not Published
Fuel System	Not Published	Common rail direct injection with electronic engine management
Alternator	50 A, 12 V	Not Published
▶Hydraulics
Pump Type	Not Published	Engine-driven gear-type pump
Implement Flow	8.2 gpm	11.6 gpm
Steering Flow	4.4 gpm	6.8 gpm
Total Hydraulic Flow	12.6 gpm	Not Published
Overall Hydraulic Pump Flow	12.6 gpm	Not Published
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	11.6 gpm
No. of Standard Remote Valves	Not Published	Not Published
No. of Optional Remote Valves	Up to 2	Not Published
▶Fluid Capacity
Fuel Tank Capacity	7.13 gal	10.6 gal
Coolant Capacity	1.32 gal	Not Published
Crankcase Capacity	1.14 gal	Not Published
Transmission / Hydraulic System Capacity	9.77 gal	Not Published
Front Axle Fluid Capacity	1.69 gal	Not Published
▶PTO & Hitch
PTO Type	Independent	Independent, electro-hydraulically engaged
PTO Rear	540 rpm	540 rpm (1-3/8 in 6-spline)
Mid-PTO Availability	Not Published	Optional, 2000 rpm
Category, 3-Point Hitch	Category I	Category I
Hitch Lift Capacity	3,306.9 lb	Not Published
Hitch Lift Capacity (at 24”)	2,425 lb	2,535 lb
Lift Control Type	Position control	Position control; draft control optional
▶Transmission & Drivetrain
Transmission Type	Hydrostatic (HST), 3-range	12x12 power shuttle (4 gears, 3 ranges) or 3-range electronic Servo-HST
No. of Speeds	3 range (HST)	Power shuttle: 12F / 12R; Servo-HST: 3-range infinite
Max Travel Speed (Forward)	18.21 mph	Not Published
Max Travel Speed (Reverse)	18.21 mph	Not Published
Clutch	None (HST)	Wet multi-disc (power shuttle)
Differential Lock & Limited Slip Options	Rear differential lock	Mechanical rear differential lock, right side heel pedal
▶Chassis, Steering & Controls
Frame Type	Not Published	Drop-axle rear with bull gear final drives
Steering	Electro-hydraulic power steering	Power steering, tilt steering wheel
Brakes	Wet, multi-disc	Internal wet disc brakes, individual control via independent foot pedals
Seat Suspension & Adjustability	Heated leather seat (cab)	Deluxe suspended seat with armrests and seat belt (vinyl on ROPS, cloth on cab)
Front Axle Type	Selectable 4WD	Cast steel 4WD front axle with center drive line and bevel-gear final drives
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published
▶Dimensions & Maneuverability
Overall Length with 3-Point Hitch	134.88 in	122.0 in
Overall Width	56.3 in	64.2 in
Wheelbase	65.7 in	69.7 in
Ground Clearance	13.19 in	Not Published
Min. Turn Radius without Brakes	Not Published	Not Published
Height to Top of ROPS	Not Published	Not Published
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	85.9 in	91.3 in
▶Weight
Tractor Weight (Base)	3,551 lb	ROPS: 3,362 lb; Cab: 3,803 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published
▶Tire Options
Tire Size & Options	R1 ag 7-16 / 11.2-24 (standard); R4 industrial 28x8.50-15 / 43x16.00-20	Ag: 8-16 front, 12.4-24 rear (13.6-24 optional); turf: 27x8.50-15 front, 41x14.00-20 rear; industrial: 10-16.5 front, 17.5L-24 rear (also 250/75R16 front, 400/80R24 rear)
R1 Agricultural - Front	7-16	8-16
R1 Agricultural - Rear	11.2-24	12.4-24 (13.6-24 optional)
R3 Turf - Front	Not Published	27x8.50-15
R3 Turf - Rear	Not Published	41x14.00-20
R4 Industrial - Front	28x8.50-15	10-16.5 or 250/75R16
R4 Industrial - Rear	43x16.00-20	17.5L-24 or 400/80R24
▶Loader & Attachments
Quick Attach Loader System	SSQA	DL125: universal skid steer or compact quick-attach tool carrier
Loader Model	BBL400	DL125
Loader Lift Height	104 in	DL125: 102.4 in
Loader Lift Capacity (Full Height)	2,200 lb	DL125: 1,840 lb
Loader Breakout Force	3,660 lb	DL125: 2,190 lb
▶Warranty
Warranty Length & Coverage	Engine and powertrain 72 months or 2,000 hours; other tractor parts 24 months or 1,000 hours	5-year powertrain warranty
▶ITC Company Accessories
Accessories that fit	Brush Guard Side Guards $199.99 Bolt onto the side of the OEM guard and offers wrap around protection Branson TYM 15/20 Series--Bad Boy 40/50 Series Brush Screen $250.00 Branson / TYM 15 Series Fuel Tank Cover $250.00	None tagged yet

Find a Bad Boy dealer near you→Find a dealer near you→

Bad Boy Tractors 4035 Cab vs Massey Ferguson 1736: Quick Answers

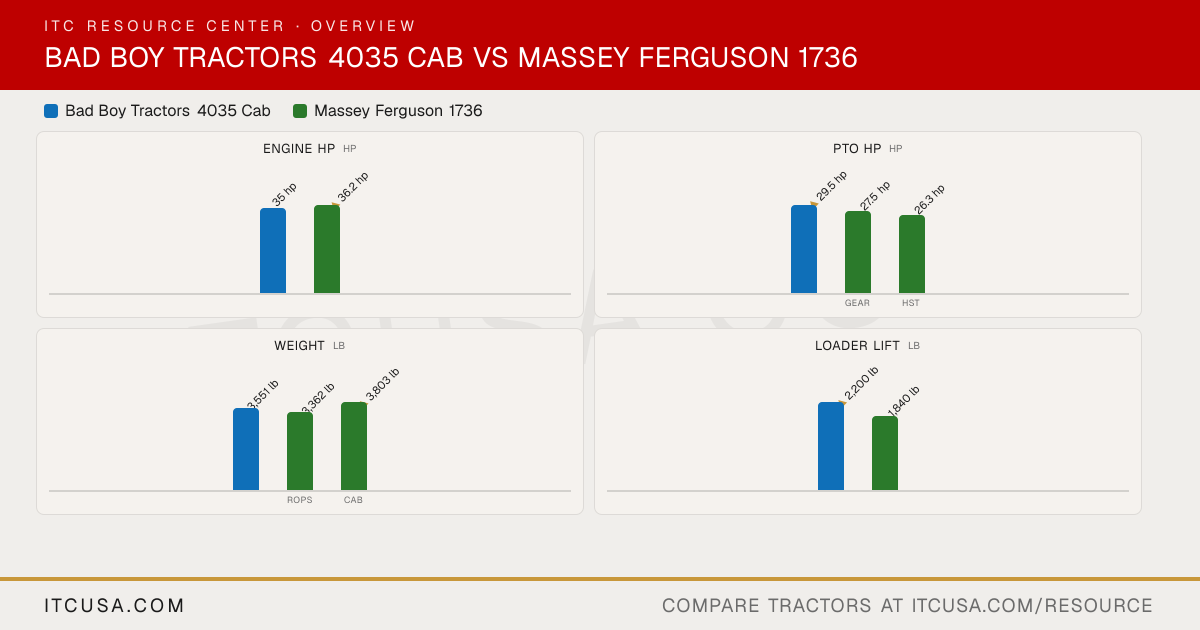

Which has more horsepower, the Bad Boy Tractors 4035 Cab or the Massey Ferguson 1736?

The Massey Ferguson 1736 leads on engine hp at 36.2 hp hp, compared to 35 hp hp for the Bad Boy Tractors 4035 Cab.

Which has more PTO horsepower, the Bad Boy Tractors 4035 Cab or the Massey Ferguson 1736?

The Bad Boy Tractors 4035 Cab leads on pto hp at 29.5 hp hp, compared to 27.5 hp hp for the Massey Ferguson 1736.

Which is heavier, the Bad Boy Tractors 4035 Cab or the Massey Ferguson 1736?

The Massey Ferguson 1736 leads on weight at 3,803 lb lb, compared to 3,551 lb lb for the Bad Boy Tractors 4035 Cab.

Which has more loader lift capacity, the Bad Boy Tractors 4035 Cab or the Massey Ferguson 1736?

The Bad Boy Tractors 4035 Cab leads on loader lift at 2,200 lb lb, compared to 1,840 lb lb for the Massey Ferguson 1736.

Which has more three-point hitch lift capacity, the Bad Boy Tractors 4035 Cab or the Massey Ferguson 1736?

The Massey Ferguson 1736 leads on 3-pt lift (24 in) at 2,535 lb lb, compared to 2,425 lb lb for the Bad Boy Tractors 4035 Cab.
