Bad Boy Tractors 4035 Cab vs Massey Ferguson 2604H

Across 8 measurable specs, the Massey Ferguson 2604H leads 7 categories to 1. Machine pages: Bad Boy Tractors 4035 Cab and Massey Ferguson 2604H.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

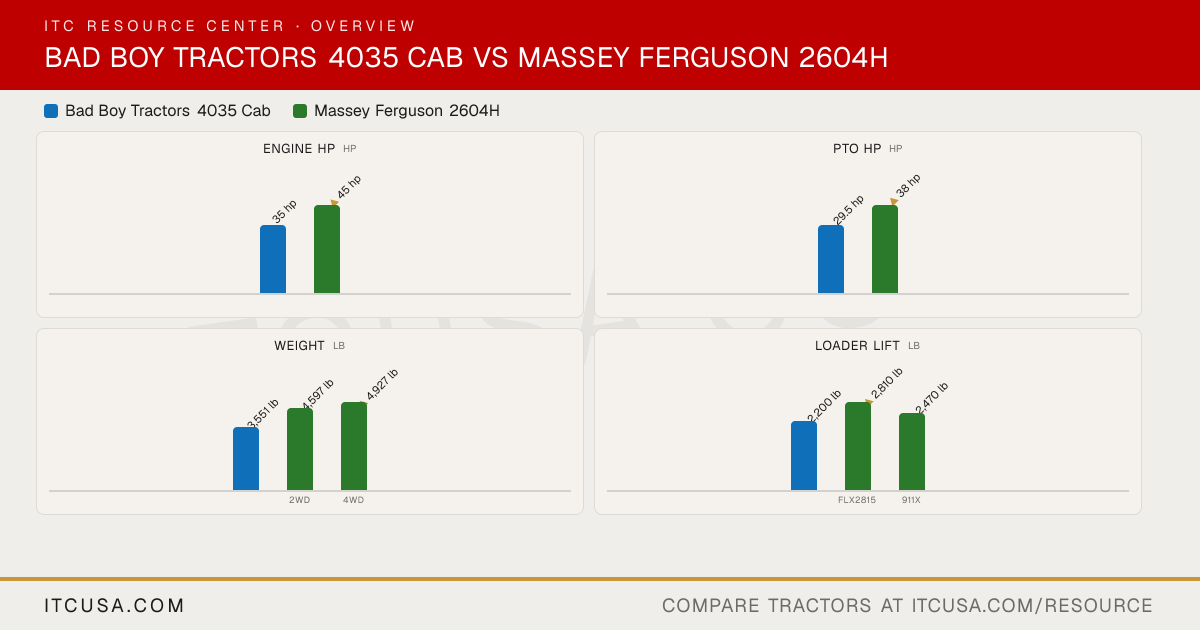

Category Verdict

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Bad Boy Tractors4035 Cab	Massey Ferguson2604H

▶Engine
Engine Manufacturer	TYM	Simpson
Engine Model	A1700N4-BUTC_4	SJV326
Engine Type	Vertical, 4-stroke, water-cooled diesel	3-cylinder, turbocharged, intercooled, liquid-cooled diesel
No. of Cylinders	3	3
Displacement	104.7 in³	157.9 in³
Rated Engine Speed	2600 rpm	2000 rpm
Engine Power (Gross)	35 hp	45 hp
PTO Power	29.5 hp	38 hp
Engine Emissions Constraints	Not Published	Tier 4
Cooling System Type	Water-cooled	Liquid cooled
Air Cleaner	Not Published	Not Published
Fuel System	Not Published	Electronically controlled high-pressure common rail
Alternator	50 A, 12 V	Not Published
▶Hydraulics
Pump Type	Not Published	Mark 1A scotch yoke piston pump
Implement Flow	8.2 gpm	Not Published
Steering Flow	4.4 gpm	Not Published
Total Hydraulic Flow	12.6 gpm	15.7 gpm
Overall Hydraulic Pump Flow	12.6 gpm	15.7 gpm
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	10.6 gpm
No. of Standard Remote Valves	Not Published	1
No. of Optional Remote Valves	Up to 2	Not Published
▶Fluid Capacity
Fuel Tank Capacity	7.13 gal	14.5 gal
Coolant Capacity	1.32 gal	4 gal
Crankcase Capacity	1.14 gal	2.5 gal
Transmission / Hydraulic System Capacity	9.77 gal	10.5 gal
Front Axle Fluid Capacity	1.69 gal	4WD: 1.5 gal differential, plus 0.23 gal per wheel end
▶PTO & Hitch
PTO Type	Independent	Live
PTO Rear	540 rpm	540 rpm, 6-spline
Mid-PTO Availability	Not Published	Not Published
Category, 3-Point Hitch	Category 1	Category I and II
Hitch Lift Capacity	3,306.9 lb	3,747 lb
Hitch Lift Capacity (at 24”)	2,425 lb	2,204 lb
Lift Control Type	Position control	Draft, position and response control
▶Transmission & Drivetrain
Transmission Type	Hydrostatic (HST), 3-range	8F x 2R SideShift sliding gear
No. of Speeds	3 range (HST)	8 forward and 2 reverse
Max Travel Speed (Forward)	18.21 mph	Not Published
Max Travel Speed (Reverse)	18.21 mph	Not Published
Clutch	None (HST)	Dual dry
Differential Lock & Limited Slip Options	Rear differential lock	Mechanical engagement via right-side heel pedal
▶Chassis, Steering & Controls
Frame Type	Not Published	Not Published
Steering	Electro-hydraulic power steering	Hydrostatic power steering with separate reservoir
Brakes	Wet, multi-disc	Drum brakes
Seat Suspension & Adjustability	Heated leather seat (cab)	ReverseRise adjustable seat with fixed steering column
Front Axle Type	Selectable 4WD	2WD: straight, telescopically adjustable; 4WD: heavy-duty planetary reduction
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published
▶Dimensions & Maneuverability
Overall Length with 3-Point Hitch	134.88 in	2WD: 138 in; 4WD: 139 in
Overall Width	56.3 in	64.6 in
Wheelbase	65.7 in	2WD: 80.7 in; 4WD: 81.5 in
Ground Clearance	13.19 in	Not Published
Min. Turn Radius without Brakes	Not Published	Not Published
Height to Top of ROPS	Not Published	90.6 in
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	85.9 in	Not Published
▶Weight
Tractor Weight (Base)	3,551 lb	2WD: 4,597 lb; 4WD: 4,927 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published
▶Tire Options
Tire Size & Options	R1 ag 7-16 / 11.2-24 (standard); R4 industrial 28x8.50-15 / 43x16.00-20	2WD standard (ag): 6x16 front, 12.4x28 rear; 2WD optional (ag): 7.5x16 front, 13.6x28 rear; 4WD standard (ag): 10.5/80-18 front, 12.4x28 rear
R1 Agricultural - Front	7-16	2WD: 6x16 (7.5x16 optional); 4WD: 10.5/80-18
R1 Agricultural - Rear	11.2-24	2WD: 12.4x28 (13.6x28 optional); 4WD: 12.4x28
R3 Turf - Front	Not Published	Not Published
R3 Turf - Rear	Not Published	Not Published
R4 Industrial - Front	28x8.50-15	Not Published
R4 Industrial - Rear	43x16.00-20	Not Published
▶Loader & Attachments
Quick Attach Loader System	SSQA	Skid steer style coupling
Loader Model	BBL400	FLx2815 (2WD); 911X (4WD)
Loader Lift Height	104 in	FLx2815: 111 in; 911X: 114 in
Loader Lift Capacity (Full Height)	2,200 lb	FLx2815: 2,810 lb; 911X: 2,470 lb
Loader Breakout Force	3,660 lb	FLx2815: 4,240 lb; 911X: 2,755 lb
▶Warranty
Warranty Length & Coverage	Engine and powertrain 72 months or 2,000 hours; other tractor parts 24 months or 1,000 hours	5-year powertrain warranty
▶ITC Company Accessories
Accessories that fit	Brush Guard Side Guards $199.99 Bolt onto the side of the OEM guard and offers wrap around protection Branson TYM 15/20 Series--Bad Boy 40/50 Series Brush Screen $250.00 Branson / TYM 15 Series Fuel Tank Cover $250.00	None tagged yet

Find a Bad Boy dealer near you→Find a dealer near you→

Bad Boy Tractors 4035 Cab vs Massey Ferguson 2604H: Quick Answers

Which has more horsepower, the Bad Boy Tractors 4035 Cab or the Massey Ferguson 2604H?

The Massey Ferguson 2604H leads on engine hp at 45 hp hp, compared to 35 hp hp for the Bad Boy Tractors 4035 Cab.

Which has more PTO horsepower, the Bad Boy Tractors 4035 Cab or the Massey Ferguson 2604H?

The Massey Ferguson 2604H leads on pto hp at 38 hp hp, compared to 29.5 hp hp for the Bad Boy Tractors 4035 Cab.

Which is heavier, the Bad Boy Tractors 4035 Cab or the Massey Ferguson 2604H?

The Massey Ferguson 2604H leads on weight at 4,927 lb lb, compared to 3,551 lb lb for the Bad Boy Tractors 4035 Cab.

Which has more loader lift capacity, the Bad Boy Tractors 4035 Cab or the Massey Ferguson 2604H?

The Massey Ferguson 2604H leads on loader lift at 2,810 lb lb, compared to 2,200 lb lb for the Bad Boy Tractors 4035 Cab.

Which has more three-point hitch lift capacity, the Bad Boy Tractors 4035 Cab or the Massey Ferguson 2604H?

The Bad Boy Tractors 4035 Cab leads on 3-pt lift (24 in) at 2,425 lb lb, compared to 2,204 lb lb for the Massey Ferguson 2604H.
