Bad Boy Tractors 4035 Cab vs Yanmar YT235

Across 9 measurable specs, the Bad Boy Tractors 4035 Cab leads 9 categories to 0. Machine pages: Bad Boy Tractors 4035 Cab and Yanmar YT235.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

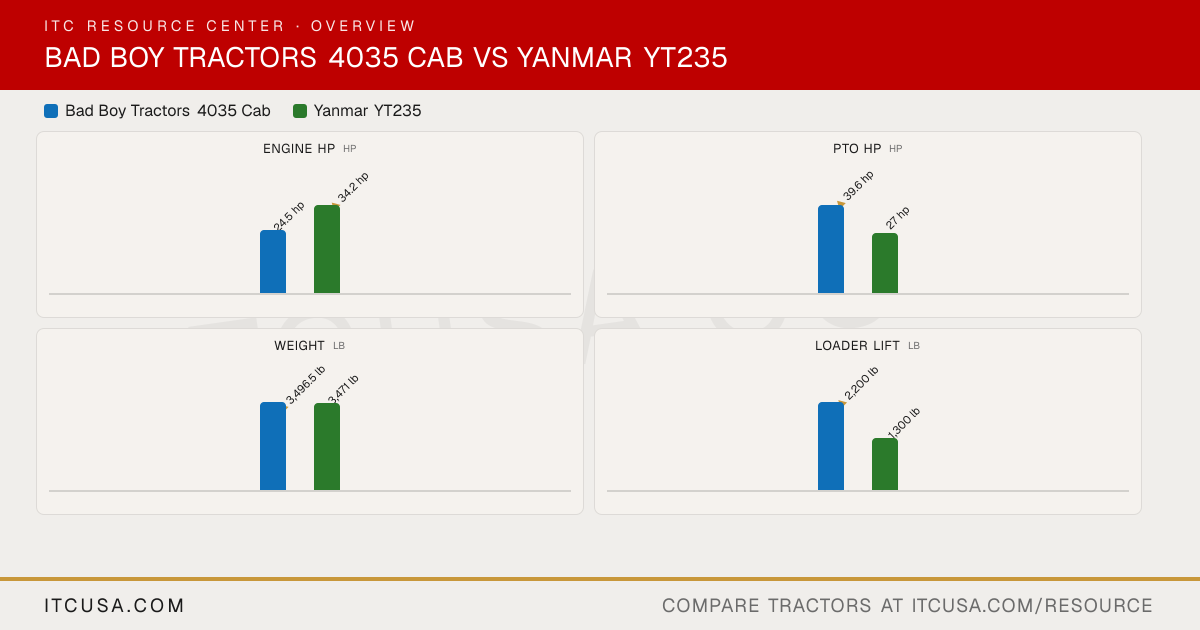

Category Verdict

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Bad Boy Tractors4035 Cab	YanmarYT235

▶Engine
Engine Manufacturer	TYM	YANMAR
Engine Model	A1700N4-BUTC_4	3TNV88C
Engine Type	Vertical, water-cooled 4-cycle diesel	3-cylinder, naturally aspirated diesel
No. of Cylinders	3	3
Displacement	104.5 in³	100.1 in³
Rated Engine Speed	2600 rpm	2800 rpm
Engine Power (Gross)	35 hp	34.2 hp
PTO Power	29.5 hp	27 hp
Engine Emissions Constraints	Not Published	Tier 4
Cooling System Type	Water-cooled	Liquid cooled
Air Cleaner	Not Published	Dual stage cyclonic (resin 5.5 in.)
Fuel System	Not Published	Common rail direct injection
Alternator	50 A, 12 V	40 A
▶Hydraulics
Pump Type	Not Published	Not Published
Implement Flow	8.2 gpm	7.1 gpm
Steering Flow	4.4 gpm	4.1 gpm
Total Hydraulic Flow	12.6 gpm	11.2 gpm (7.1 + 4.1, computed)
Overall Hydraulic Pump Flow	12.6 gpm	11.2 gpm (7.1 + 4.1, computed)
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	Not Published	Not Published
No. of Optional Remote Valves	Up to 2	Not Published
▶Fluid Capacity
Fuel Tank Capacity	7.13 gal	7.4 gal
Coolant Capacity	1.32 gal	4.8 qt
Crankcase Capacity	1.14 gal	4.6 qt
Transmission / Hydraulic System Capacity	9.77 gal	8.2 gal
Front Axle Fluid Capacity	1.69 gal	2.4 gal
▶PTO & Hitch
PTO Type	Independent	Independent (electro-hydraulic)
PTO Rear	540 rpm	540 rpm
Mid-PTO Availability	Not Published	Standard
Category, 3-Point Hitch	Category I	Category I
Hitch Lift Capacity	3,307 lb	2,205 lb
Hitch Lift Capacity (at 24”)	2,425 lb	1,764 lb
Lift Control Type	Position control	Position control
▶Transmission & Drivetrain
Transmission Type	Hydrostatic (HST), 3-range	Hydrostatic (Dual Touch Pedal)
No. of Speeds	3 range (HST)	Hydrostatic; 3 ranges
Max Travel Speed (Forward)	18.21 mph	11.7 mph (with R4 tires)
Max Travel Speed (Reverse)	18.21 mph	8.2 mph (with R4 tires)
Clutch	None (HST)	N/A (hydrostatic)
Differential Lock & Limited Slip Options	Rear differential lock	Rear differential lock (foot pedal engagement)
▶Chassis, Steering & Controls
Frame Type	Not Published	Not Published
Steering	Electro-hydraulic power steering	Fully hydraulic power steering
Brakes	Wet, multi-disc	Wet disc
Seat Suspension & Adjustability	Heated leather seat (cab)	Not Published
Front Axle Type	Selectable 4WD	2WD/4WD selectable engagement
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published
▶Dimensions & Maneuverability
Overall Width	55.6 in	58.3 in (with R4 tires)
Wheelbase	65.7 in	65 in
Ground Clearance	13.19 in	10.8 in (with R4 tires)
Min. Turn Radius without Brakes	Not Published	Not Published
Height to Top of ROPS	Not Published	89.0 in (with R4 tires)
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	85.9 in	Not Published
Overall Length	134.88 in	116.9 in (with 3-point hitch and R4 tires)
▶Weight
Tractor Weight (Base)	3,551 lb	2,558 lb (with ROPS, R4 tires, full fluid)
Weight with ROPS and Loader	Not Published	3,473 lb (2,558 + 617 + 298, computed; YL310 loader with bucket)
Weight with Cab and Loader	Not Published	Not Published
▶Tire Options
Tire Size & Options	R1 ag 7-16 / 11.2-24 (standard); R4 industrial 28x8.50-15 / 43x16.00-20	R1 Agricultural; R3 Turf; R4 Industrial
R1 Agricultural - Front	7-16	6-14
R1 Agricultural - Rear	11.2-24	9.5-22
R3 Turf - Front	Not Published	25x8.5-14
R3 Turf - Rear	Not Published	13.6x16
R4 Industrial - Front	28x8.50-15	25x8.5-14
R4 Industrial - Rear	43x16.00-20	15-19.6
▶Loader & Attachments
Quick Attach Loader System	SSQA	YL310: Skid steer style bucket attachment
Loader Model	BBL400	YL310
Loader Lift Height	104 in	YL310: 84 in (to bucket pivot pin)
Loader Lift Capacity (Full Height)	2,200 lb (at pivot pin)	YL310: 1,300 lb at pivot pins
Loader Breakout Force	3,660 lb	YL310: 2,105 lb at pivot pins
▶Warranty
Warranty Length & Coverage	Basic 24 months or 1,000 hours; powertrain 72 months or 2,000 hours	Basic 24 months or 2,000 hours; powertrain 10 years or 3,000 hours; attachments 1 year
▶ITC Company Accessories
Accessories that fit	Brush Guard Side Guards $199.99 Bolt onto the side of the OEM guard and offers wrap around protection Branson TYM 15/20 Series--Bad Boy 40/50 Series Brush Screen $250.00 Branson / TYM 15 Series Fuel Tank Cover $250.00	None tagged yet

Find a Bad Boy dealer near you→Find a dealer near you→

Bad Boy Tractors 4035 Cab vs Yanmar YT235: Quick Answers

Which has more horsepower, the Bad Boy Tractors 4035 Cab or the Yanmar YT235?

The Bad Boy Tractors 4035 Cab leads on engine hp at 35 hp hp, compared to 34.2 hp hp for the Yanmar YT235.

Which has more PTO horsepower, the Bad Boy Tractors 4035 Cab or the Yanmar YT235?

The Bad Boy Tractors 4035 Cab leads on pto hp at 29.5 hp hp, compared to 27 hp hp for the Yanmar YT235.

Which is heavier, the Bad Boy Tractors 4035 Cab or the Yanmar YT235?

The Bad Boy Tractors 4035 Cab leads on weight at 3,551 lb lb, compared to 2,558 lb lb for the Yanmar YT235.

Which has more loader lift capacity, the Bad Boy Tractors 4035 Cab or the Yanmar YT235?

The Bad Boy Tractors 4035 Cab leads on loader lift at 2,200 lb lb, compared to 1,300 lb lb for the Yanmar YT235.

Which has more three-point hitch lift capacity, the Bad Boy Tractors 4035 Cab or the Yanmar YT235?

The Bad Boy Tractors 4035 Cab leads on 3-pt lift (24 in) at 2,425 lb lb, compared to 1,764 lb lb for the Yanmar YT235.
