Bad Boy Tractors 5045 Cab vs Bobcat CT5545

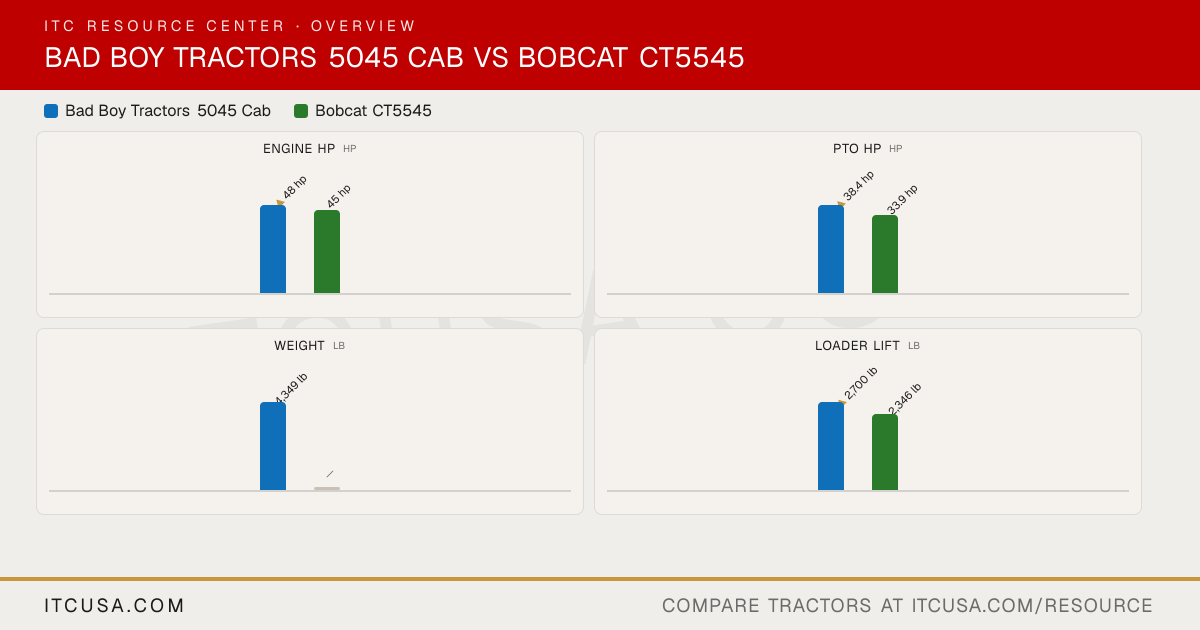

Across 6 measurable specs, this matchup is a dead heat: 3 categories to the Bad Boy Tractors 5045 Cab, 3 to the Bobcat CT5545. Machine pages: Bad Boy Tractors 5045 Cab and Bobcat CT5545.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Bad Boy Tractors5045 Cab	BobcatCT5545

▶Engine
PTO Power	38.4 hp	33.9 hp
Alternator	70 A, 12 V	Not Published
Air Cleaner	Dry Element	Not Published
Engine Type	4 Cylinder Diesel	Diesel
Fuel System	Diesel fuel injection system	Not Published
Displacement	139.5 in³	109.8 in³
No. of Cylinders	4	3
Rated Engine Speed	2600 rpm	2750 rpm
Cooling System Type	Liquid cooled (Water cooled)	Not Published
Engine Manufacturer	Not clearly specified; engines are model A2300N3 (Natural) and A2300T11 (Turbo)	Not Published
Engine Power (Gross)	48 hp	45 hp
Engine Emissions Constraints	DPF / DOC	Not Published
▶Weight
Tractor Weight (Base)	4,349 lbs for Cabin models; 3,831-3,836 lbs (1,738-3,836 lb) for ROPS models	—
Weight with ROPS and Loader	Not Applicable	Not Applicable
Weight with Cab and Loader	4,349 lb (tractor only)	Not Published
▶Warranty
Warranty Length & Coverage	6-year powertrain warranty	24 months / 1,500 hours (whichever occurs first)
▶Hydraulics
Pump Type	Hydrostatic power steering pump	Not Published
Steering Flow	5.0 gpm	8.2 gpm
Implement Flow	5045CS: 11.4 gpm; 5045CH: 10.7 gpm	9.6 gpm
Total Hydraulic Flow	5045CS: 16.4 gpm; 5045CH: 15.7 gpm	17.8 gpm
Hydraulic System Type	Not Published	Not Published
System Operating Pressure	Not specified in document	—
Rear Remote Hydraulic Flow	Not Published	Not Published
Overall Hydraulic Pump Flow	5045CS: 16.4 gpm; 5045CH: 15.7 gpm	17.8 gpm
No. of Optional Remote Valves	Not Published	2
No. of Standard Remote Valves	Not Published	1
▶PTO & Hitch
PTO Rear	540 / 540E rpm	540 rpm
PTO Type	Independent	Independent
Lift Control Type	Position	Position with Draft Control
Hitch Lift Capacity	3,306 lb	3,177 lb
Mid-PTO Availability	Not Published	Optional: 2,103 rpm
Category, 3-Point Hitch	Category 1	Category 1
Hitch Lift Capacity (at 24”)	2,425 lb	3,177 lb
▶Tire Options
R3 Turf - Rear	Not Published	Not Published
R3 Turf - Front	Not Published	Not Published
Tire Size & Options	R1 Agricultural	Not Published
R4 Industrial - Rear	Not Published	Not Published
R4 Industrial - Front	Not Published	Not Published
R1 Agricultural - Rear	13.6-26	Not Published
R1 Agricultural - Front	9.5-16	Not Published
▶Fluid Capacity
Coolant Capacity	1.56 gal for Cabin; 2.08 gal for ROPS	Not Published
Crankcase Capacity	1.20 gal	Not Published
Fuel Tank Capacity	11.8 gal	14.8 gal
Front Axle Fluid Capacity	1.90 gal	Not Published
Transmission / Hydraulic System Capacity	10.04 gal	Not Published
▶Loader & Attachments
Loader Lift Height	107.7 in (pivot pin)	Not Published
Loader Breakout Force	3,660 lb	Not Published
Quick Attach Loader System	SSQA	Not Published
Loader Lift Capacity (Full Height)	2,700 lb	2,346 lb
▶Transmission & Drivetrain
Clutch	Wet, multi-disc	Not Applicable
No. of Speeds	5045CS: 16F/16R; 5045CH: 4-range	Not Applicable
Transmission Type	Synchromesh (MEC models) or HST (hydraulic shuttle transmission)	Infinite, 3 Range Hydrostatic (Servo control valve with Electric sol.)
Max Travel Speed (Forward)	16.0 mph	17.5 mph (28.2 km/hr)
Max Travel Speed (Reverse)	15.2 mph	17.5 mph (28.2 km/hr)
Differential Lock & Limited Slip Options	Rear differential lock	Std
▶Chassis, Steering & Controls
Brakes	Wet, Multi-disc	Wet Multi-Disc
Steering	Power steering	Hydrostatic power steering
Frame Type	Compact utility tractor, 4WD	Not Published
Front Axle Type	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published
Front Axle Rating	Not Published	Not Published
Seat Suspension & Adjustability	Deluxe suspension seat	Not Published
▶Dimensions & Maneuverability
Wheelbase	71.1 in.	75.6 in
Overall Width	64.9 in.	74.2 in
Overall Length	127.4 in. with 3PT	—
Ground Clearance	15.5 in. with 4WD	13.0 in
Height to Top of ROPS	97.0 in. for Cabin; 98.4 in. for ROPS	Not Applicable
Height to Top of Cab Model	97.0 in	94.2 in
Height to Top of ROPS (folded)	Not Applicable	Not Applicable
Min. Turn Radius without Brakes	Not Published	117.6 in
Overall Length with 3-Point Hitch	127.4 in	139.6 in
▶ITC Company Accessories
Accessories that fit	None tagged yet	Brush Guard Side Guards $199.99 Bolt onto the side of the OEM guard and offers wrap around protection

Bad Boy Tractors 5045 Cab vs Bobcat CT5545: Quick Answers

Which has more horsepower, the Bad Boy Tractors 5045 Cab or the Bobcat CT5545?

The Bad Boy Tractors 5045 Cab leads on engine hp at 48 hp hp, compared to 45 hp hp for the Bobcat CT5545.

Which has more PTO horsepower, the Bad Boy Tractors 5045 Cab or the Bobcat CT5545?

The Bad Boy Tractors 5045 Cab leads on pto hp at 38.4 hp hp, compared to 33.9 hp hp for the Bobcat CT5545.

Which has more loader lift capacity, the Bad Boy Tractors 5045 Cab or the Bobcat CT5545?

The Bad Boy Tractors 5045 Cab leads on loader lift at 2,700 lb lb, compared to 2,346 lb lb for the Bobcat CT5545.

Which has more three-point hitch lift capacity, the Bad Boy Tractors 5045 Cab or the Bobcat CT5545?

The Bobcat CT5545 leads on 3-pt lift (24 in) at 3,177 lb lb, compared to 2,425 lb lb for the Bad Boy Tractors 5045 Cab.
