Bad Boy Tractors 5045 Cab vs Kioti NS6010C HST

Across 9 measurable specs, the Kioti NS6010C HST leads 6 categories to 3. Machine pages: Bad Boy Tractors 5045 Cab and Kioti NS6010C HST.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Bad Boy Tractors5045 Cab	KiotiNS6010C HST

▶Engine
Engine Manufacturer	TYM	KIOTI
Engine Model	A2300N3	3HT-S4TM58A
Engine Type	4 cylinder water-cooled diesel, naturally aspirated	3-cylinder, in-line vertical, water-cooled, 4-cycle turbo diesel, CRDI
No. of Cylinders	4	3
Displacement	139.5 in³	111.4 in³
Rated Engine Speed	2600 rpm	2600 rpm
Engine Power (Gross)	48 hp	57.7 hp
PTO Power	38.4 hp	47.9 hp
Engine Emissions Constraints	Tier 4	Tier 4
Cooling System Type	Water-cooled	Water-cooled
Air Cleaner	Dry element	Dry element
Fuel System	Not Published	Common Rail Diesel (CRDI)
Alternator	70 A, 12 V	Not Published
▶Hydraulics
Pump Type	Not Published	Gear
Implement Flow	10.7 gpm	Not Published
Steering Flow	5 gpm	Not Published
Total Hydraulic Flow	15.7 gpm	16.5 gpm
Overall Hydraulic Pump Flow	15.7 gpm	16.5 gpm
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	4 ports	1
No. of Optional Remote Valves	Not Published	1
▶Fluid Capacity
Fuel Tank Capacity	11.8 gal	13.2 gal
Coolant Capacity	1.56 gal	2.03 gal
Crankcase Capacity	1.20 gal	1.95 gal
Transmission / Hydraulic System Capacity	10.04 gal	9.51 gal
Front Axle Fluid Capacity	1.90 gal	2.25 gal
▶PTO & Hitch
PTO Type	Independent	Independent
PTO Rear	540 / 540E rpm	540 rpm
Mid-PTO Availability	Not Published	Optional (2,000 rpm)
Category, 3-Point Hitch	Category I	Category II
Hitch Lift Capacity	3,306 lb	2,940 lb
Hitch Lift Capacity (at 24”)	2,425 lb	2,493 lb
Lift Control Type	Position control	Position with Draft Control
▶Transmission & Drivetrain
Transmission Type	Hydrostatic (HST), 4-range	Hydrostatic
No. of Speeds	4 range (HST)	3-Range
Max Travel Speed (Forward)	19.5 mph	17.5 mph
Max Travel Speed (Reverse)	19.5 mph	12.2 mph
Clutch	None (HST)	Not Published
Differential Lock & Limited Slip Options	Rear differential lock (standard)	Mechanical differential lock: rear standard
▶Chassis, Steering & Controls
Frame Type	Compact utility tractor, 4WD	Not Published
Steering	Hydrostatic power steering	Hydrostatic Power Steering
Brakes	Wet, multi-disc	Wet disc type
Seat Suspension & Adjustability	Heated leather seat (cab)	Deluxe suspension seat
Front Axle Type	Selectable 4WD	Not Published
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published
▶Dimensions & Maneuverability
Overall Width	64.9 in	70.4 in
Wheelbase	71.1 in	75.5 in
Ground Clearance	15.5 in	11.8 in
Min. Turn Radius without Brakes	9.18 ft (with brake applied)	11.2 ft (with brake applied)
Height to Top of ROPS	Not Published	Not Published
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	97.0 in	93.7 in
Overall Length	127.4 in (with 3-point hitch)	136.4 in (with 3-point hitch)
▶Weight
Tractor Weight (Base)	4,349 lb	4,479 lb (with AG tires)
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published
▶Tire Options
Tire Size & Options	9.5-16 front / 13.6-26 rear (ag)	Agricultural, Turf, Industrial
R1 Agricultural - Front	9.5-16	8-16
R1 Agricultural - Rear	13.6-26	13.6-24
R3 Turf - Front	Not Published	29-12.5-15
R3 Turf - Rear	Not Published	21.5L-16.1
R4 Industrial - Front	Not Published	10-16.5
R4 Industrial - Rear	Not Published	14.9-24
▶Loader & Attachments
Quick Attach Loader System	SSQA	Built-in parking stand; quick attach/detach; single-lever joystick control with float; bucket level indicator
Loader Model	BBL500	KL5810
Loader Lift Height	106.6 in	KL5810: 106.3 in (to pivot pin)
Loader Lift Capacity (Full Height)	2,700 lb (at pivot pin)	KL5810: 2,621 lb (at pivot pin)
Loader Breakout Force	3,660 lb	KL5810: 3,896 lb (at pivot pin)
▶Warranty
Warranty Length & Coverage	Basic 24 months or 1,000 hours; powertrain 72 months or 2,000 hours	Non-commercial: basic 24 months, powertrain 72 months, unlimited hours, parts and labor
▶ITC Company Accessories
Accessories that fit	Brush Guard Side Guards $199.99 Bolt onto the side of the OEM guard and offers wrap around protection Branson TYM 15/20 Series--Bad Boy 40/50 Series Brush Screen $250.00	Kioti NS/NX Brush Screen Insert $265.00 Brush Guard Side Guards $199.99 Bolt onto the side of the OEM guard and offers wrap around protection

Find a Bad Boy dealer near you→Find a KIOTI dealer near you→

Bad Boy Tractors 5045 Cab vs Kioti NS6010C HST: Quick Answers

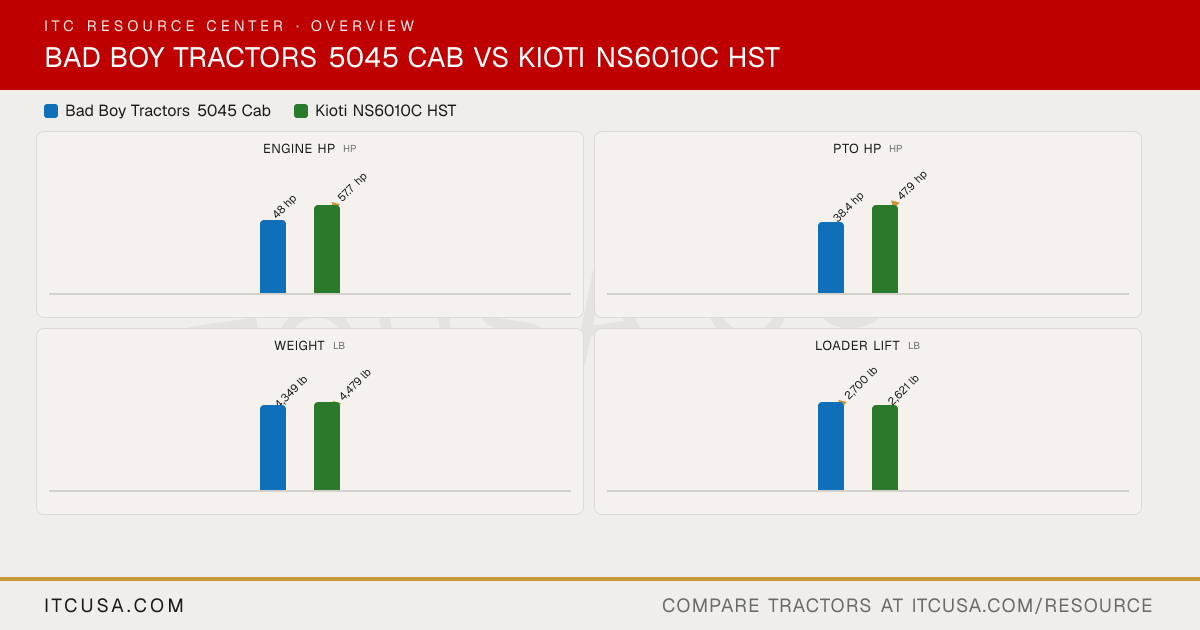

Which has more horsepower, the Bad Boy Tractors 5045 Cab or the Kioti NS6010C HST?

The Kioti NS6010C HST leads on engine hp at 57.7 hp hp, compared to 48 hp hp for the Bad Boy Tractors 5045 Cab.

Which has more PTO horsepower, the Bad Boy Tractors 5045 Cab or the Kioti NS6010C HST?

The Kioti NS6010C HST leads on pto hp at 47.9 hp hp, compared to 38.4 hp hp for the Bad Boy Tractors 5045 Cab.

Which is heavier, the Bad Boy Tractors 5045 Cab or the Kioti NS6010C HST?

The Kioti NS6010C HST leads on weight at 4,479 lb lb, compared to 4,349 lb lb for the Bad Boy Tractors 5045 Cab.

Which has more loader lift capacity, the Bad Boy Tractors 5045 Cab or the Kioti NS6010C HST?

The Bad Boy Tractors 5045 Cab leads on loader lift at 2,700 lb lb, compared to 2,621 lb lb for the Kioti NS6010C HST.

Which has more three-point hitch lift capacity, the Bad Boy Tractors 5045 Cab or the Kioti NS6010C HST?

The Kioti NS6010C HST leads on 3-pt lift (24 in) at 2,493 lb lb, compared to 2,425 lb lb for the Bad Boy Tractors 5045 Cab.
