Bad Boy Tractors 5045 Cab vs Kubota LX4020HSDC

Across 8 measurable specs, the Bad Boy Tractors 5045 Cab leads 8 categories to 0. Machine pages: Bad Boy Tractors 5045 Cab and Kubota LX4020HSDC.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

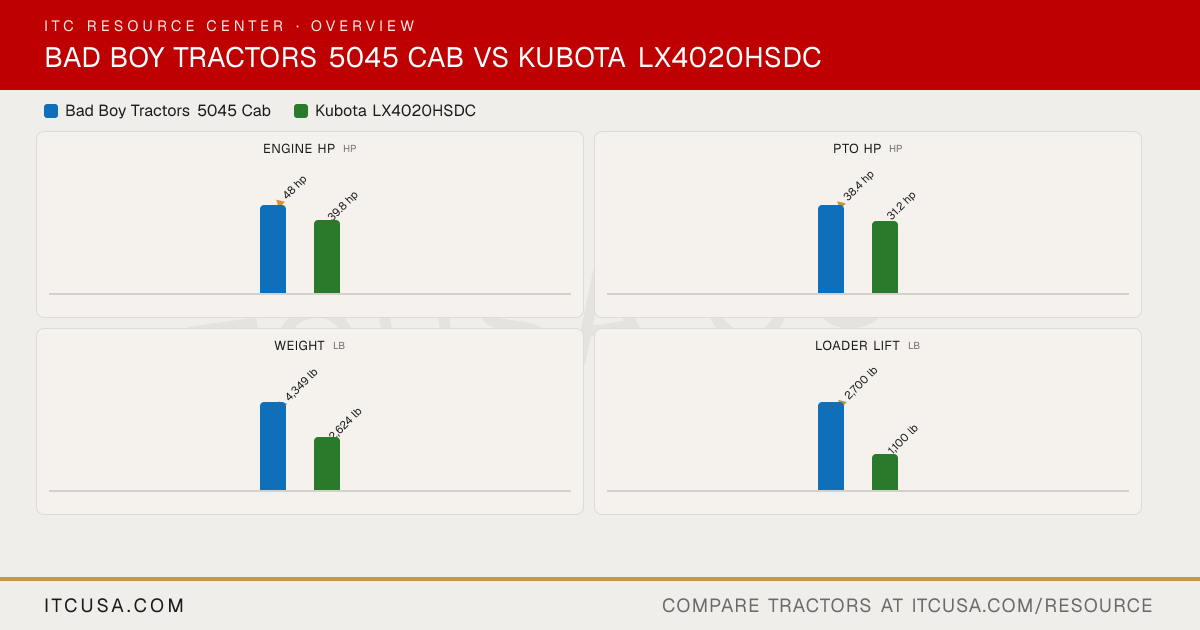

Category Verdict

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Bad Boy Tractors5045 Cab	KubotaLX4020HSDC

▶Engine
Engine Manufacturer	TYM	Kubota
Engine Model	A2300N3	V1505-CR-TE5-D40Q3
Engine Type	4 cylinder water-cooled diesel, naturally aspirated	Direct injection, vertical, water-cooled, 4-cycle, diesel, turbocharged
No. of Cylinders	4	4
Displacement	139.5 in³	91.4 in³
Rated Engine Speed	2600 rpm	2700 rpm
Engine Power (Gross)	48 hp	39.8 hp
PTO Power	38.4 hp	31.2 hp
Engine Emissions Constraints	Tier 4	Not Published
Cooling System Type	Water-cooled	Pressurized radiator
Air Cleaner	Dry element	6 in paper filter (with dual element)
Fuel System	Not Published	Direct injection
Alternator	70 A, 12 V	Not Published
▶Hydraulics
Pump Type	Not Published	Dual pump
Implement Flow	10.7 gpm	5.4 gpm
Steering Flow	5 gpm	4.1 gpm
Total Hydraulic Flow	15.7 gpm	9.5 gpm
Overall Hydraulic Pump Flow	15.7 gpm	9.5 gpm
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	4 ports	0
No. of Optional Remote Valves	Not Published	Optional, up to 2
▶Fluid Capacity
Fuel Tank Capacity	11.8 gal	8.5 gal
Coolant Capacity	1.56 gal	5.7 qt
Crankcase Capacity	1.20 gal	5.0 qt
Transmission / Hydraulic System Capacity	10.04 gal	5.5 gal
Front Axle Fluid Capacity	1.90 gal	4.8 qt
▶PTO & Hitch
PTO Type	Independent	Independent
PTO Rear	540 / 540E rpm	540 rpm
Mid-PTO Availability	Not Published	2460 rpm
Category, 3-Point Hitch	Category 1	Category I
Hitch Lift Capacity	3,306 lb	2535 lb
Hitch Lift Capacity (at 24”)	2,425 lb	1962 lb
Lift Control Type	Position control	Position control valve
▶Transmission & Drivetrain
Transmission Type	Hydrostatic (HST), 4-range	Hydrostatic transmission
No. of Speeds	4 range (HST)	3 ranges
Max Travel Speed (Forward)	19.5 mph	17.0 mph
Max Travel Speed (Reverse)	19.5 mph	13.0 mph
Clutch	None (HST)	Not Published
Differential Lock & Limited Slip Options	Rear differential lock (standard)	Differential lock standard
▶Chassis, Steering & Controls
Frame Type	Compact utility tractor, 4WD	Not Published
Steering	Hydrostatic power steering	Hydrostatic power steering
Brakes	Wet, multi-disc	Multi-plate wet disk
Seat Suspension & Adjustability	Heated leather seat (cab)	Seat Type: Deluxe; Seat Suspension: Adjustable
Front Axle Type	Selectable 4WD	Not Published
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	1100 lb
▶Dimensions & Maneuverability
Overall Length with 3-Point Hitch	127.4 in	116.1 in
Overall Width	64.9 in	53.7 in
Wheelbase	71.1 in	66.7 in
Ground Clearance	15.5 in	8.9 in
Min. Turn Radius without Brakes	110.2 in (with brake applied)	7.5 ft (with brake applied)
Height to Top of ROPS	Not Published	Not Published
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	97.0 in	85.6 in
▶Weight
Tractor Weight (Base)	4,349 lb	2624 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published
▶Tire Options
Tire Size & Options	9.5-16 front / 13.6-26 rear (ag)	R1 Agricultural, R3 Turf, R4 Industrial, R14
R1 Agricultural - Front	9.5-16	180/85D12
R1 Agricultural - Rear	13.6-26	320/85D16
R3 Turf - Front	Not Published	24X8.50-14
R3 Turf - Rear	Not Published	13.6-16
R4 Industrial - Front	Not Published	23x8.5-12 or 25x8.5-14
R4 Industrial - Rear	Not Published	14-17.5 or 15-19.5
▶Loader & Attachments
Quick Attach Loader System	SSQA	Front Loader (LA545 - 2 Lever Quick Coupler (STD); Swift-tach (OPT))
Loader Model	BBL500	LA545
Loader Lift Height	106.6 in	87.6 in
Loader Lift Capacity (Full Height)	2,700 lb	1100 lb
Loader Breakout Force	3,660 lb	Not Published
▶Warranty
Warranty Length & Coverage	Engine and powertrain 72 months or 2,000 hours; other tractor parts 24 months or 1,000 hours	Non-Commercial Home & Residential Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 72 months or 2000 hours. Commercial Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 36 months or 2000 hours.
▶ITC Company Accessories
Accessories that fit	Brush Guard Side Guards $199.99 Bolt onto the side of the OEM guard and offers wrap around protection Branson TYM 15/20 Series--Bad Boy 40/50 Series Brush Screen $250.00	None tagged yet

Find a Bad Boy dealer near you→Find a Kubota dealer near you→

Bad Boy Tractors 5045 Cab vs Kubota LX4020HSDC: Quick Answers

Which has more horsepower, the Bad Boy Tractors 5045 Cab or the Kubota LX4020HSDC?

The Bad Boy Tractors 5045 Cab leads on engine hp at 48 hp hp, compared to 39.8 hp hp for the Kubota LX4020HSDC.

Which has more PTO horsepower, the Bad Boy Tractors 5045 Cab or the Kubota LX4020HSDC?

The Bad Boy Tractors 5045 Cab leads on pto hp at 38.4 hp hp, compared to 31.2 hp hp for the Kubota LX4020HSDC.

Which is heavier, the Bad Boy Tractors 5045 Cab or the Kubota LX4020HSDC?

The Bad Boy Tractors 5045 Cab leads on weight at 4,349 lb lb, compared to 2,624 lb lb for the Kubota LX4020HSDC.

Which has more loader lift capacity, the Bad Boy Tractors 5045 Cab or the Kubota LX4020HSDC?

The Bad Boy Tractors 5045 Cab leads on loader lift at 2,700 lb lb, compared to 1,100 lb lb for the Kubota LX4020HSDC.

Which has more three-point hitch lift capacity, the Bad Boy Tractors 5045 Cab or the Kubota LX4020HSDC?

The Bad Boy Tractors 5045 Cab leads on 3-pt lift (24 in) at 2,425 lb lb, compared to 1,962 lb lb for the Kubota LX4020HSDC.
