Bad Boy Tractors 5045 Cab vs TYM T494

Across 8 measurable specs, the TYM T494 leads 6 categories to 2. Machine pages: Bad Boy Tractors 5045 Cab and TYM T494.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

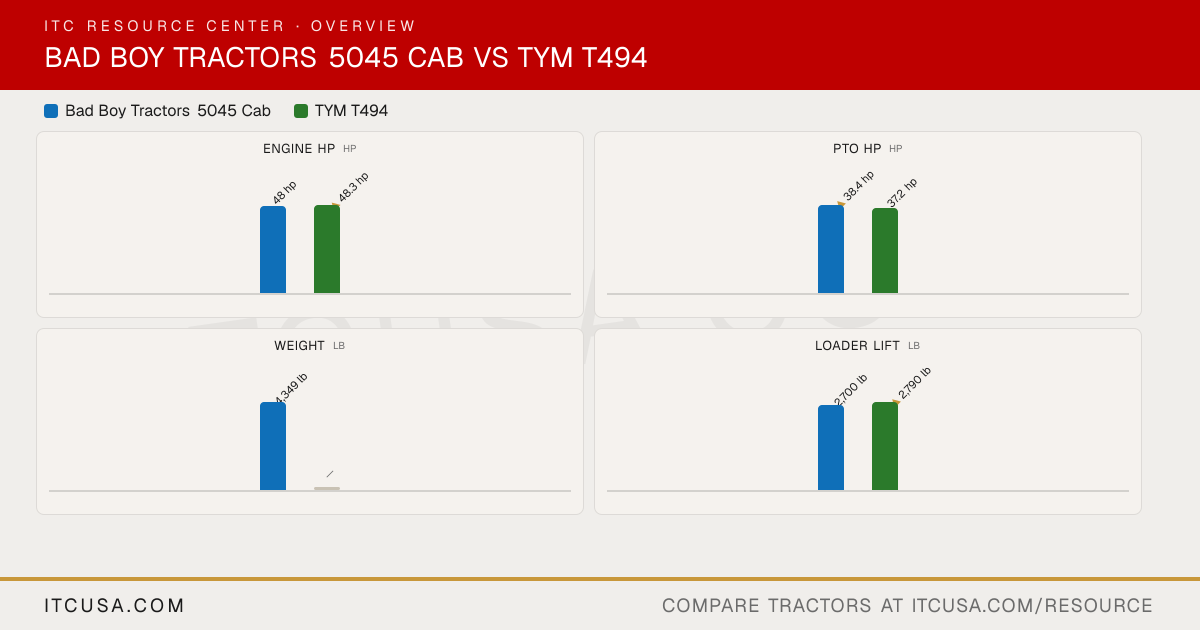

Category Verdict

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Bad Boy Tractors5045 Cab	TYMT494

▶Engine
PTO Power	38.4 hp	37.2 hp
Alternator	70 A, 12 V	70 A, 12 V
Air Cleaner	Dry Element	Single dry
Engine Type	4 Cylinder Diesel	4-cylinder, naturally aspirated diesel
Fuel System	Diesel fuel injection system	IDI
Displacement	139.5 in³	139.5 in³
No. of Cylinders	4	4
Rated Engine Speed	2600 rpm	2600 rpm
Cooling System Type	Liquid cooled (Water cooled)	Not Published
Engine Manufacturer	Not clearly specified; engines are model A2300N3 (Natural) and A2300T11 (Turbo)	TYM
Engine Power (Gross)	48 hp	48.3 hp
Engine Emissions Constraints	DPF / DOC	Tier 4
▶Weight
Tractor Weight (Base)	4,349 lbs for Cabin models; 3,831-3,836 lbs (1,738-3,836 lb) for ROPS models	—
Weight with ROPS and Loader	Not Applicable	Not Published
Weight with Cab and Loader	4,349 lb (tractor only)	Not Applicable
▶Warranty
Warranty Length & Coverage	6-year powertrain warranty	Up to 2 years or until the 2,000 hours mark, bumper-to-bumper warranty; 3000 hours maximum coverage period for parts and labour on drivetrains or powertrains; 12-months warranty period for implements, including loaders and backhoes.
▶Hydraulics
Pump Type	Hydrostatic power steering pump	Dual gear pump
Steering Flow	5.0 gpm	4.3 gpm
Implement Flow	5045CS: 11.4 gpm; 5045CH: 10.7 gpm	7.7 gpm
Total Hydraulic Flow	5045CS: 16.4 gpm; 5045CH: 15.7 gpm	11.9 gpm
Hydraulic System Type	Not Published	Open center
System Operating Pressure	Not specified in document	—
Rear Remote Hydraulic Flow	Not Published	Not Published
Overall Hydraulic Pump Flow	5045CS: 16.4 gpm; 5045CH: 15.7 gpm	11.9 gpm
No. of Optional Remote Valves	Not Published	Not Published
No. of Standard Remote Valves	Not Published	2
▶PTO & Hitch
PTO Rear	540 / 540E rpm	540 rpm
PTO Type	Independent	Independent
Lift Control Type	Position	Position control/Draft
Hitch Lift Capacity	3,306 lb	3,822 lb
Mid-PTO Availability	Not Published	Optional
Category, 3-Point Hitch	Category 1	Category I
Hitch Lift Capacity (at 24”)	2,425 lb	3,050.6 lb
▶Tire Options
R3 Turf - Rear	Not Published	Multi-Trac CS 44x18.00-20 NHS TL 4PR
R3 Turf - Front	Not Published	Multi-Trac CS 27x10.50-15 NHS TL 4PR
Tire Size & Options	R1 Agricultural	R1 Agricultural, R3 Turf, R4 Industrial
R4 Industrial - Rear	Not Published	Xtra Grip 4.6 gal-24 NHS TL 6PR
R4 Industrial - Front	Not Published	Trac Chief 12-16.5 NHS TL 6PR
R1 Agricultural - Rear	13.6-26	Farm Specialist 13.6-26 NHS TL 6PR
R1 Agricultural - Front	9.5-16	Farm Specialist 9.5-16 NHS TL 6PR
▶Fluid Capacity
Coolant Capacity	1.56 gal for Cabin; 2.08 gal for ROPS	6.9 qt
Crankcase Capacity	1.20 gal	6.8 qt
Fuel Tank Capacity	11.8 gal	17.0 gal
Front Axle Fluid Capacity	1.90 gal	10.5 qt
Transmission / Hydraulic System Capacity	10.04 gal	9.2 gal
▶Loader & Attachments
Loader Lift Height	107.7 in (pivot pin)	109.4 in
Loader Breakout Force	3,660 lb	5,316 lb
Quick Attach Loader System	SSQA	TX57: Quick attachment assembly
Loader Lift Capacity (Full Height)	2,700 lb	2,790 lb
▶Transmission & Drivetrain
Clutch	Wet, multi-disc	Dry single plate
No. of Speeds	5045CS: 16F/16R; 5045CH: 4-range	F8 x R8
Transmission Type	Synchromesh (MEC models) or HST (hydraulic shuttle transmission)	Synchro-shuttle
Max Travel Speed (Forward)	16.0 mph	18.6 mph
Max Travel Speed (Reverse)	15.2 mph	Not Published
Differential Lock & Limited Slip Options	Rear differential lock	Not Published
▶Chassis, Steering & Controls
Brakes	Wet, Multi-disc	Wet disc
Steering	Power steering	Hydrostatic
Frame Type	Compact utility tractor, 4WD	Not Published
Front Axle Type	Not Published	4WD
Drawbar Capacity	Not Published	Not Published
Front Axle Rating	Not Published	Not Published
Seat Suspension & Adjustability	Deluxe suspension seat	Not Published
▶Dimensions & Maneuverability
Wheelbase	71.1 in.	76.2 in
Overall Width	64.9 in.	63.8 in
Overall Length	127.4 in. with 3PT	—
Ground Clearance	15.5 in. with 4WD	13.8 in
Height to Top of ROPS	97.0 in. for Cabin; 98.4 in. for ROPS	102.1 in
Height to Top of Cab Model	97.0 in	Not Applicable
Height to Top of ROPS (folded)	Not Applicable	Not Published
Min. Turn Radius without Brakes	Not Published	131.5 in
Overall Length with 3-Point Hitch	127.4 in	141.3 in
▶ITC Company Accessories
Accessories that fit	None tagged yet	TYM T494 / T574 Extended Brush Screen Insert $299.99 A must have when working with brush. TYM T494 / T574 Hydraulic Valve Cover $299.99 TYM T494 / T574 Rubber Hose Protector $47.99 TYM T494 / T574 HD Protection Package $1250.00 TYM T494 / T574 Fuel Tank Cover $214.99 TYM T494 / T574 Skid Plate only $714.99

Bad Boy Tractors 5045 Cab vs TYM T494: Quick Answers

Which has more horsepower, the Bad Boy Tractors 5045 Cab or the TYM T494?

The TYM T494 leads on engine hp at 48.3 hp hp, compared to 48 hp hp for the Bad Boy Tractors 5045 Cab.

Which has more PTO horsepower, the Bad Boy Tractors 5045 Cab or the TYM T494?

The Bad Boy Tractors 5045 Cab leads on pto hp at 38.4 hp hp, compared to 37.2 hp hp for the TYM T494.

Which has more loader lift capacity, the Bad Boy Tractors 5045 Cab or the TYM T494?

The TYM T494 leads on loader lift at 2,790 lb lb, compared to 2,700 lb lb for the Bad Boy Tractors 5045 Cab.

Which has more three-point hitch lift capacity, the Bad Boy Tractors 5045 Cab or the TYM T494?

The TYM T494 leads on 3-pt lift (24 in) at 3,050.6 lb lb, compared to 2,425 lb lb for the Bad Boy Tractors 5045 Cab.
