Bad Boy Tractors 5045 Cab vs TYM T554C

Across 9 measurable specs, the TYM T554C leads 7 categories to 2. Machine pages: Bad Boy Tractors 5045 Cab and TYM T554C.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Bad Boy Tractors5045 Cab	TYMT554C

▶Engine
PTO Power	38.4 hp	45.6 hp
Alternator	70 A, 12 V	70 A, 12 V
Air Cleaner	Dry Element	Dual dry
Engine Type	4 Cylinder Diesel	4-cylinder, turbocharged diesel
Fuel System	Diesel fuel injection system	CRDI
Displacement	139.5 in³	127.6 in³
No. of Cylinders	4	4
Rated Engine Speed	2600 rpm	2800 rpm
Cooling System Type	Liquid cooled (Water cooled)	Not Published
Engine Manufacturer	Not clearly specified; engines are model A2300N3 (Natural) and A2300T11 (Turbo)	Yanmar
Engine Power (Gross)	48 hp	55.9 hp
Engine Emissions Constraints	DPF / DOC	Not Published
▶Weight
Tractor Weight (Base)	4,349 lbs for Cabin models; 3,831-3,836 lbs (1,738-3,836 lb) for ROPS models	—
Weight with ROPS and Loader	Not Applicable	Not Applicable
Weight with Cab and Loader	4,349 lb (tractor only)	5,494 lb
▶Warranty
Warranty Length & Coverage	6-year powertrain warranty	Up to 2 years or until the 2,000 hours mark, bumper-to-bumper warranty; 3000 hours maximum coverage period for parts and labour on drivetrains or powertrains; 12-months warranty period for implements, including loaders and backhoes.
▶Hydraulics
Pump Type	Hydrostatic power steering pump	Dual gear pump
Steering Flow	5.0 gpm	4.6 gpm
Implement Flow	5045CS: 11.4 gpm; 5045CH: 10.7 gpm	9.5 gpm
Total Hydraulic Flow	5045CS: 16.4 gpm; 5045CH: 15.7 gpm	14.1 gpm
Hydraulic System Type	Not Published	Not Published
System Operating Pressure	Not specified in document	—
Rear Remote Hydraulic Flow	Not Published	Not Published
Overall Hydraulic Pump Flow	5045CS: 16.4 gpm; 5045CH: 15.7 gpm	14.1 gpm
No. of Optional Remote Valves	Not Published	Not Published
No. of Standard Remote Valves	Not Published	2
▶PTO & Hitch
PTO Rear	540 / 540E rpm	540 rpm
PTO Type	Independent	Independent
Lift Control Type	Position	Position/Draft
Hitch Lift Capacity	3,306 lb	3,314 lb
Mid-PTO Availability	Not Published	Not Published
Category, 3-Point Hitch	Category 1	Category I
Hitch Lift Capacity (at 24”)	2,425 lb	2,945 lb
▶Tire Options
R3 Turf - Rear	Not Published	Multi-Trac CS 44x18.00-20 NHS TL 4PR
R3 Turf - Front	Not Published	Multi-Trac CS 27x10.50-15 NHS TL 4PR
Tire Size & Options	R1 Agricultural	R1 Agricultural, R3 Turf, R4 Industrial
R4 Industrial - Rear	Not Published	Xtra Grip 4.6 gal-24 NHS TL 6PR
R4 Industrial - Front	Not Published	Trac Chief 12-16.5 NHS TL 6PR
R1 Agricultural - Rear	13.6-26	Farm Specialist 13.6-26 NHS TL 6PR
R1 Agricultural - Front	9.5-16	Farm Specialist 9.5-16 NHS TL 6PR
▶Fluid Capacity
Coolant Capacity	1.56 gal for Cabin; 2.08 gal for ROPS	9 qt
Crankcase Capacity	1.20 gal	7.1 qt
Fuel Tank Capacity	11.8 gal	17.0 gal
Front Axle Fluid Capacity	1.90 gal	10.5 qt
Transmission / Hydraulic System Capacity	10.04 gal	9.2 gal
▶Loader & Attachments
Loader Lift Height	107.7 in (pivot pin)	109.1 in
Loader Breakout Force	3,660 lb	4,938 lb
Quick Attach Loader System	SSQA	TX55: Quick attach mechanism
Loader Lift Capacity (Full Height)	2,700 lb	2,478 lb
▶Transmission & Drivetrain
Clutch	Wet, multi-disc	Dry single plate
No. of Speeds	5045CS: 16F/16R; 5045CH: 4-range	F16 x R16
Transmission Type	Synchromesh (MEC models) or HST (hydraulic shuttle transmission)	Synchro-Shuttle
Max Travel Speed (Forward)	16.0 mph	18.4 mph
Max Travel Speed (Reverse)	15.2 mph	Not Published
Differential Lock & Limited Slip Options	Rear differential lock	Not Published
▶Chassis, Steering & Controls
Brakes	Wet, Multi-disc	Wet disc
Steering	Power steering	Hydrostatic
Frame Type	Compact utility tractor, 4WD	Not Published
Front Axle Type	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published
Front Axle Rating	Not Published	Not Published
Seat Suspension & Adjustability	Deluxe suspension seat	Not Published
▶Dimensions & Maneuverability
Wheelbase	71.1 in.	76.2 in
Overall Width	64.9 in.	63.8 in
Overall Length	127.4 in. with 3PT	—
Ground Clearance	15.5 in. with 4WD	13.8 in
Height to Top of ROPS	97.0 in. for Cabin; 98.4 in. for ROPS	Not Applicable
Height to Top of Cab Model	97.0 in	99.6 in
Height to Top of ROPS (folded)	Not Applicable	Not Applicable
Min. Turn Radius without Brakes	Not Published	150.4 in
Overall Length with 3-Point Hitch	127.4 in	141.3 in
▶ITC Company Accessories
Accessories that fit	None tagged yet	Brush Guard Side Guards $199.99 Bolt onto the side of the OEM guard and offers wrap around protection

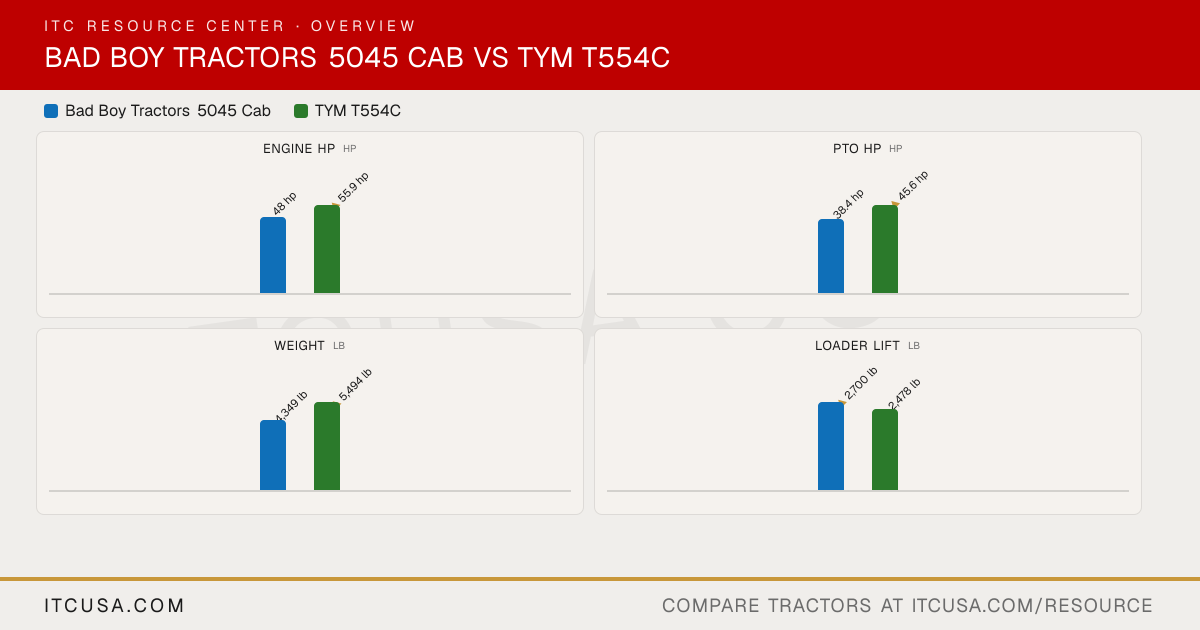

Bad Boy Tractors 5045 Cab vs TYM T554C: Quick Answers

Which has more horsepower, the Bad Boy Tractors 5045 Cab or the TYM T554C?

The TYM T554C leads on engine hp at 55.9 hp hp, compared to 48 hp hp for the Bad Boy Tractors 5045 Cab.

Which has more PTO horsepower, the Bad Boy Tractors 5045 Cab or the TYM T554C?

The TYM T554C leads on pto hp at 45.6 hp hp, compared to 38.4 hp hp for the Bad Boy Tractors 5045 Cab.

Which is heavier, the Bad Boy Tractors 5045 Cab or the TYM T554C?

The TYM T554C leads on weight at 5,494 lb lb, compared to 4,349 lb lb for the Bad Boy Tractors 5045 Cab.

Which has more loader lift capacity, the Bad Boy Tractors 5045 Cab or the TYM T554C?

The Bad Boy Tractors 5045 Cab leads on loader lift at 2,700 lb lb, compared to 2,478 lb lb for the TYM T554C.

Which has more three-point hitch lift capacity, the Bad Boy Tractors 5045 Cab or the TYM T554C?

The TYM T554C leads on 3-pt lift (24 in) at 2,945 lb lb, compared to 2,425 lb lb for the Bad Boy Tractors 5045 Cab.
