Bad Boy Tractors 5055 vs Kubota LX4020

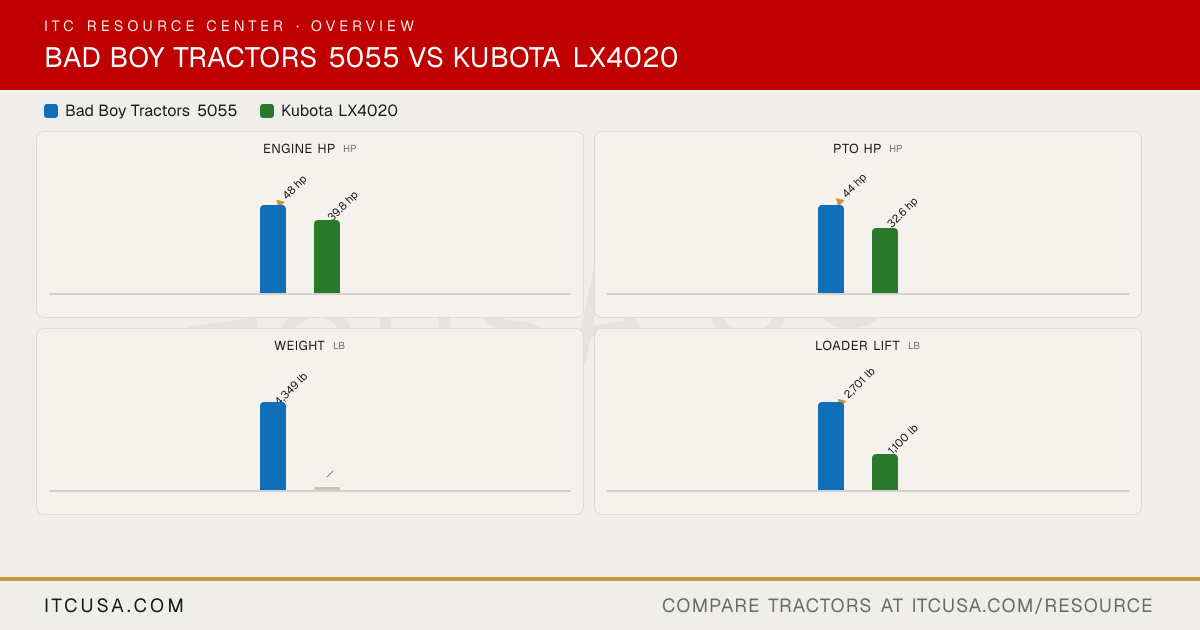

Across 7 measurable specs, the Bad Boy Tractors 5055 leads 6 categories to 1. Machine pages: Bad Boy Tractors 5055 and Kubota LX4020.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Bad Boy Tractors5055	KubotaLX4020

▶Engine
PTO Power	44 hp	32.6 hp
Alternator	70 A	Not Published
Air Cleaner	Dry Element	6 inch paper filter (with dual element)
Engine Type	4-cylinder, water-cooled diesel	Direct injection, vertical, water-cooled, 4-cycle, diesel, turbocharged
Fuel System	Diesel	Not Published
Displacement	139.5 in³	91.4 in³
No. of Cylinders	4	4
Rated Engine Speed	2600 rpm	2700 rpm
Cooling System Type	Not Published	Pressurized radiator
Engine Manufacturer	A2300N3 (5045CS/5045CH/5045S/5045H), A2300T11 (5055CS/5055CH), A2300T3 (5055S/5055H)	Kubota
Engine Power (Gross)	48 hp	39.8 hp
Engine Emissions Constraints	DPF / DOC	Not Published
▶Weight
Tractor Weight (Base)	CABIN: 4,349 lbs, ROPS Synchro: 3,831-3,836 lbs (1,738-3,836 lb), ROPS HST: 3,754-3,836 lbs (1,703-3,836 lb)	—
Weight with ROPS and Loader	3,836 lb (tractor only)	Not Published
Weight with Cab and Loader	Not Applicable	Not Applicable
▶Warranty
Warranty Length & Coverage	6-year powertrain warranty	Non-Commercial Home & Residential Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 72 months or 2000 hours. Commercial Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 36 months or 2000 hours.
▶Hydraulics
Pump Type	Hydrostatic Power Steering	Dual pump
Steering Flow	5.0 gpm	Not Published
Implement Flow	5055S: 11.4 gpm; 5055H: 10.7 gpm	Not Published
Total Hydraulic Flow	5055S: 16.4 gpm; 5055H: 15.7 gpm	9.5 gpm
Hydraulic System Type	Not Published	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
Overall Hydraulic Pump Flow	5055S: 16.4 gpm; 5055H: 15.7 gpm	9.5 gpm
No. of Optional Remote Valves	Up to 2 rear SCVs	Not Published
No. of Standard Remote Valves	Not Published	Not Published
▶PTO & Hitch
PTO Rear	540 / 540E rpm	540 rpm
PTO Type	Independent	Independent
Lift Control Type	Not Published	Position control valve
Hitch Lift Capacity	3,306 lb	2535 lb
Mid-PTO Availability	Not Published	2460 rpm
Category, 3-Point Hitch	Category 1	Category I
Hitch Lift Capacity (at 24”)	2,425 lb	1962 lb
▶Tire Options
R3 Turf - Rear	Not Published	Option 1: 13.6-16; Option 2: 16.6-16
R3 Turf - Front	Not Published	24X8.50-14
Tire Size & Options	Not Published	R1 Agricultural, R3 Turf
R4 Industrial - Rear	Not Published	Not Applicable
R4 Industrial - Front	Not Published	Not Applicable
R1 Agricultural - Rear	Not Published	320/85D16
R1 Agricultural - Front	Not Published	180/85D12
▶Fluid Capacity
Coolant Capacity	CABIN: 1.56 gal, ROPS: 2.08 gal	Not Published
Crankcase Capacity	1.20 gal	5.0 qt
Fuel Tank Capacity	11.8 gal	8.5 gal
Front Axle Fluid Capacity	1.90 gal	Not Published
Transmission / Hydraulic System Capacity	10.04 gal	5.5 gal
▶Loader & Attachments
Loader Lift Height	107.7 in (pivot pin)	87.6 in
Loader Breakout Force	3,660 lb	Not Published
Quick Attach Loader System	SSQA	Front Loader (LA545 - 2 Lever Quick Coupler (STD); Swift-tach (OPT))
Loader Lift Capacity (Full Height)	2,701 lb	1100 lb
▶Transmission & Drivetrain
Clutch	Not Published	N/A
No. of Speeds	5055S: 16F/16R; 5055H: 4-range	3 ranges
Transmission Type	Synchromesh (Mechanical models) or HST (Hydrostatic models)	Hydrostatic transmission
Max Travel Speed (Forward)	16.0 mph Synchro; 19.5 mph HST	17.0 mph
Max Travel Speed (Reverse)	15.2 mph Synchro; 19.5 mph HST	13.0 mph
Differential Lock & Limited Slip Options	Differential lock	Differential lock standard
▶Chassis, Steering & Controls
Brakes	Wet, Multi-disc	Multi-plate wet disk
Steering	Power steering	Hydrostatic power steering
Frame Type	Compact utility tractor, 4WD	Not Published
Front Axle Type	Selectable 4WD	Not Published
Drawbar Capacity	Not Published	Not Published
Front Axle Rating	Not Published	Not Published
Seat Suspension & Adjustability	Heated leather seat	Seat Type: Deluxe; Seat Suspension: Adjustable
▶Dimensions & Maneuverability
Wheelbase	71.1 in.	66.7 in
Overall Width	64.9 in.	53.7 in
Overall Length	127.4 in.	—
Ground Clearance	15.5 in.	8.9 in
Height to Top of ROPS	CABIN: 97.0 in., ROPS: 98.4 in.	88.2 in
Height to Top of Cab Model	Not Applicable	Not Applicable
Height to Top of ROPS (folded)	Not Published	Not Published
Min. Turn Radius without Brakes	Not Published	Not Published
Overall Length with 3-Point Hitch	127.4 in	Not Published
▶ITC Company Accessories
Accessories that fit	Brush Guard Side Guards $199.99 Bolt onto the side of the OEM guard and offers wrap around protection Branson TYM 15/20 Series--Bad Boy 40/50 Series Brush Screen $250.00	None tagged yet

Bad Boy Tractors 5055 vs Kubota LX4020: Quick Answers

Which has more horsepower, the Bad Boy Tractors 5055 or the Kubota LX4020?

The Bad Boy Tractors 5055 leads on engine hp at 48 hp hp, compared to 39.8 hp hp for the Kubota LX4020.

Which has more PTO horsepower, the Bad Boy Tractors 5055 or the Kubota LX4020?

The Bad Boy Tractors 5055 leads on pto hp at 44 hp hp, compared to 32.6 hp hp for the Kubota LX4020.

Which has more loader lift capacity, the Bad Boy Tractors 5055 or the Kubota LX4020?

The Bad Boy Tractors 5055 leads on loader lift at 2,701 lb lb, compared to 1,100 lb lb for the Kubota LX4020.

Which has more three-point hitch lift capacity, the Bad Boy Tractors 5055 or the Kubota LX4020?

The Bad Boy Tractors 5055 leads on 3-pt lift (24 in) at 2,425 lb lb, compared to 1,962 lb lb for the Kubota LX4020.
