Which has more horsepower, the Bad Boy Tractors 4035 or the Kubota LX4020?

The Kubota LX4020 leads on engine hp at 39.8 hp hp, compared to 34.9 hp hp for the Bad Boy Tractors 4035.

Which has more PTO horsepower, the Bad Boy Tractors 4035 or the Kubota LX4020?

The Kubota LX4020 leads on pto hp at 32.6 hp hp, compared to 30 hp hp for the Bad Boy Tractors 4035.

Which has more loader lift capacity, the Bad Boy Tractors 4035 or the Kubota LX4020?

The Bad Boy Tractors 4035 leads on loader lift at 2,200 lb lb, compared to 1,100 lb lb for the Kubota LX4020.

Which has more three-point hitch lift capacity, the Bad Boy Tractors 4035 or the Kubota LX4020?

The Bad Boy Tractors 4035 leads on 3-pt lift (24 in) at 2,425 lb lb, compared to 1,962 lb lb for the Kubota LX4020.

Bad Boy Tractors 4035 vs Kubota LX4020

Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.

Across 7 measurable specs, the Bad Boy Tractors 4035 leads 5 categories to 2. Machine pages: Bad Boy Tractors 4035 and Kubota LX4020.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Spec	Bad Boy Tractors 4035	Kubota LX4020
Engine HP (hp)	34.9 hp	▲ 39.8 hp
PTO HP (hp)	30 hp	▲ 32.6 hp
Weight (lb)	3,496.5 lb	—
Loader Lift (lb)	▲ 2,200 lb	1,100 lb
3-Pt Lift (24 in) (lb)	▲ 2,425 lb	1,962 lb
Lift Height (in)	▲ 104 in	87.6 in
Breakout Force (lbf)	3,660 lbf	—
Hydraulic Flow (gpm)	▲ 12.6 gpm	9.5 gpm
Travel Speed (mph)	▲ 19.1 mph	17 mph

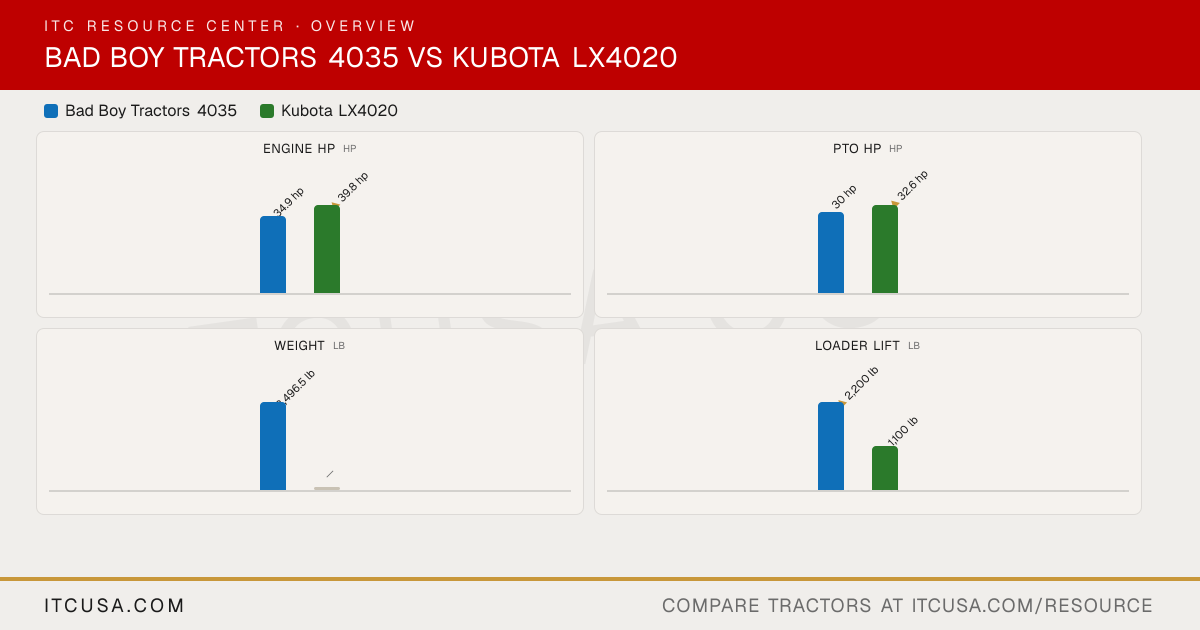

The headline numbers at a glance.

Bad Boy Tractors 4035Kubota LX4020

Engine HPhp

34.9 hp

▲39.8 hp

PTO HPhp

30 hp

▲32.6 hp

Weightlb

3,496.5 lb

—

Loader Liftlb

▲2,200 lb

1,100 lb

3-Pt Lift (24 in)lb

▲2,425 lb

1,962 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Bad Boy Tractors4035	KubotaLX4020


PTO Power	30 hp	32.6 hp
Alternator	50 A, 12 V	Not Published
Air Cleaner	Not Published	6 inch paper filter (with dual element)
Engine Type	3 Cylinder, Water-Cooled, Diesel	Direct injection, vertical, water-cooled, 4-cycle, diesel, turbocharged
Fuel System	Diesel fuel	Not Published
Displacement	104.7 in³	91.4 in³
No. of Cylinders	3	4
Rated Engine Speed	2600 rpm	2700 rpm
Cooling System Type	Water cooled	Pressurized radiator
Engine Manufacturer	A1700N4-BUTC_4	Kubota
Engine Power (Gross)	34.9 hp	39.8 hp
Engine Emissions Constraints	EPA Final Tier4	Not Published

Tractor Weight (Base)	3,496.5 lb (3,497 lbs) for ROPS MODEL; 3,728 lb (3,728 lbs) for CABIN MODEL	—
Weight with ROPS and Loader	3163 lbs	Not Published
Weight with Cab and Loader	3,728 lbs	Not Applicable

Warranty Length & Coverage	6-year powertrain warranty	Non-Commercial Home & Residential Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 72 months or 2000 hours. Commercial Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 36 months or 2000 hours.

Pump Type	Not Published	Dual pump
Steering Flow	4.4 gpm	Not Published
Implement Flow	8.2 gpm	Not Published
Total Hydraulic Flow	12.6 gpm (4.4+8.2)	9.5 gpm
Hydraulic System Type	Open Center	Open center
System Operating Pressure	180 - 407.9 lbf/cm² for control valve	—
Rear Remote Hydraulic Flow	Not Published	Not Published
Overall Hydraulic Pump Flow	12.6 gpm	9.5 gpm
No. of Optional Remote Valves	Optional (up to 2)	Not Published
No. of Standard Remote Valves	Not Published	Not Published

PTO Rear	540 RPM	540 rpm
PTO Type	Independent	Independent
Lift Control Type	Position Control	Position control valve
Hitch Lift Capacity	3,306.9 lb	2535 lb
Mid-PTO Availability	Not Published	2460 rpm
Category, 3-Point Hitch	Cat 1	Category I
Hitch Lift Capacity (at 24”)	2,425 lb	1962 lb

R3 Turf - Rear	Not Published	Option 1: 13.6-16; Option 2: 16.6-16
R3 Turf - Front	Not Published	24X8.50-14
Tire Size & Options	Std (manual): 8.0-16 / 12.4-24; IND (website): 28X8.50-15 / 43X16.00-20	R1 Agricultural, R3 Turf
R4 Industrial - Rear	43X16.00-20	Not Applicable
R4 Industrial - Front	28X8.50-15	Not Applicable
R1 Agricultural - Rear	12.4-24 6PR	320/85D16
R1 Agricultural - Front	8.0-16 4PR	180/85D12

Coolant Capacity	1.32 gal	Not Published
Crankcase Capacity	1.14 gal	5.0 qt
Fuel Tank Capacity	7.13 gal	8.5 gal
Front Axle Fluid Capacity	Not Published	Not Published
Transmission / Hydraulic System Capacity	9.77 u.s. gal (37 ℓ) HST	5.5 gal

Loader Lift Height	104 in	87.6 in
Loader Breakout Force	3,660 lb	Not Published
Quick Attach Loader System	SSQA	Front Loader (LA545 - 2 Lever Quick Coupler (STD); Swift-tach (OPT))
Loader Lift Capacity (Full Height)	2,200 lb (at pivot pin)	1100 lb

Clutch	None (HST)	N/A
No. of Speeds	3 Range	3 ranges
Transmission Type	HST (3-range)	Hydrostatic transmission
Max Travel Speed (Forward)	19.08 mph (range C)	17.0 mph
Max Travel Speed (Reverse)	19.08 mph (range C)	13.0 mph
Differential Lock & Limited Slip Options	Differential lock	Differential lock standard

Brakes	Wet multi-disc	Multi-plate wet disk
Steering	Fully hydraulic power steering	Hydrostatic power steering
Frame Type	Not Published	Not Published
Front Axle Type	Cast Iron	Not Published
Drawbar Capacity	Not Published	Not Published
Front Axle Rating	Not Published	Not Published
Seat Suspension & Adjustability	Not Published	Seat Type: Deluxe; Seat Suspension: Adjustable

Wheelbase	65.7 in	66.7 in
Overall Width	56.7 in	53.7 in
Overall Length	134.88 in.	—
Ground Clearance	15 in	8.9 in
Height to Top of ROPS	96.85 in	88.2 in
Height to Top of Cab Model	Not Applicable	Not Applicable
Height to Top of ROPS (folded)	Not Published	Not Published
Min. Turn Radius without Brakes	Not Published	Not Published
Overall Length with 3-Point Hitch	134.88 in	Not Published

Accessories that fit	Brush Guard Side Guards $199.99 Bolt onto the side of the OEM guard and offers wrap around protection Branson TYM 15/20 Series--Bad Boy 40/50 Series Brush Screen $250.00	None tagged yet
