Bad Boy Tractors 4035 Cab vs Kubota LX4020

Across 8 measurable specs, the Bad Boy Tractors 4035 Cab leads 6 categories to 2. Machine pages: Bad Boy Tractors 4035 Cab and Kubota LX4020.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Bad Boy Tractors4035 Cab	KubotaLX4020

▶Engine
Engine Manufacturer	TYM	Kubota
Engine Model	A1700N4-BUTC_4	V1505-CR-TE5-D40R4
Engine Type	Vertical, 4-stroke, water-cooled diesel	Direct injection, vertical, water-cooled, 4-cycle, diesel, turbocharged
No. of Cylinders	3	4
Displacement	104.7 in³	91.4 in³
Rated Engine Speed	2600 rpm	2700 rpm
Engine Power (Gross)	35 hp	39.8 hp
PTO Power	29.5 hp	32.6 hp
Engine Emissions Constraints	Not Published	Not Published
Cooling System Type	Water-cooled	Pressurized radiator
Air Cleaner	Not Published	6 in paper filter (with dual element)
Fuel System	Not Published	Direct injection
Alternator	50 A, 12 V	Not Published
▶Hydraulics
Pump Type	Not Published	Dual pump
Implement Flow	8.2 gpm	5.4 gpm
Steering Flow	4.4 gpm	4.1 gpm
Total Hydraulic Flow	12.6 gpm	9.5 gpm
Overall Hydraulic Pump Flow	12.6 gpm	9.5 gpm
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	Not Published	0
No. of Optional Remote Valves	Up to 2	Optional, up to 2
▶Fluid Capacity
Fuel Tank Capacity	7.13 gal	8.5 gal
Coolant Capacity	1.32 gal	4.5 qt
Crankcase Capacity	1.14 gal	5.0 qt
Transmission / Hydraulic System Capacity	9.77 gal	5.5 gal
Front Axle Fluid Capacity	1.69 gal	4.8 qt
▶PTO & Hitch
PTO Type	Independent	Independent
PTO Rear	540 rpm	540 rpm
Mid-PTO Availability	Not Published	2460 rpm
Category, 3-Point Hitch	Category 1	Category I
Hitch Lift Capacity	3,306.9 lb	2535 lb
Hitch Lift Capacity (at 24”)	2,425 lb	1962 lb
Lift Control Type	Position control	Position control valve
▶Transmission & Drivetrain
Transmission Type	Hydrostatic (HST), 3-range	Hydrostatic transmission
No. of Speeds	3 range (HST)	3 ranges
Max Travel Speed (Forward)	18.21 mph	17.0 mph
Max Travel Speed (Reverse)	18.21 mph	13.0 mph
Clutch	None (HST)	Not Published
Differential Lock & Limited Slip Options	Rear differential lock	Differential lock standard
▶Chassis, Steering & Controls
Frame Type	Not Published	Not Published
Steering	Electro-hydraulic power steering	Hydrostatic power steering
Brakes	Wet, multi-disc	Multi-plate wet disk
Seat Suspension & Adjustability	Heated leather seat (cab)	Seat Type: Deluxe; Seat Suspension: Adjustable
Front Axle Type	Selectable 4WD	Not Published
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	1100 lb
▶Dimensions & Maneuverability
Overall Length with 3-Point Hitch	134.88 in	116.1 in
Overall Width	56.3 in	53.7 in
Wheelbase	65.7 in	66.7 in
Ground Clearance	13.19 in	8.9 in
Min. Turn Radius without Brakes	Not Published	7.5 ft (with brake applied)
Height to Top of ROPS	Not Published	88.2 in
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	85.9 in	85.6 in
▶Weight
Tractor Weight (Base)	3,551 lb	2191 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published
▶Tire Options
Tire Size & Options	R1 ag 7-16 / 11.2-24 (standard); R4 industrial 28x8.50-15 / 43x16.00-20	R1 Agricultural, R3 Turf, R4 Industrial, R14
R1 Agricultural - Front	7-16	180/85D12
R1 Agricultural - Rear	11.2-24	320/85D16
R3 Turf - Front	Not Published	24X8.50-14
R3 Turf - Rear	Not Published	13.6-16
R4 Industrial - Front	28x8.50-15	23x8.5-12 or 25x8.5-14
R4 Industrial - Rear	43x16.00-20	14-17.5 or 15-19.5
▶Loader & Attachments
Quick Attach Loader System	SSQA	Front Loader (LA545 - 2 Lever Quick Coupler (STD); Swift-tach (OPT))
Loader Model	BBL400	LA545
Loader Lift Height	104 in	87.6 in
Loader Lift Capacity (Full Height)	2,200 lb	1100 lb
Loader Breakout Force	3,660 lb	Not Published
▶Warranty
Warranty Length & Coverage	Engine and powertrain 72 months or 2,000 hours; other tractor parts 24 months or 1,000 hours	Non-Commercial Home & Residential Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 72 months or 2000 hours. Commercial Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 36 months or 2000 hours.
▶ITC Company Accessories
Accessories that fit	Brush Guard Side Guards $199.99 Bolt onto the side of the OEM guard and offers wrap around protection Branson TYM 15/20 Series--Bad Boy 40/50 Series Brush Screen $250.00 Branson / TYM 15 Series Fuel Tank Cover $250.00	None tagged yet

Find a Bad Boy dealer near you→Find a Kubota dealer near you→

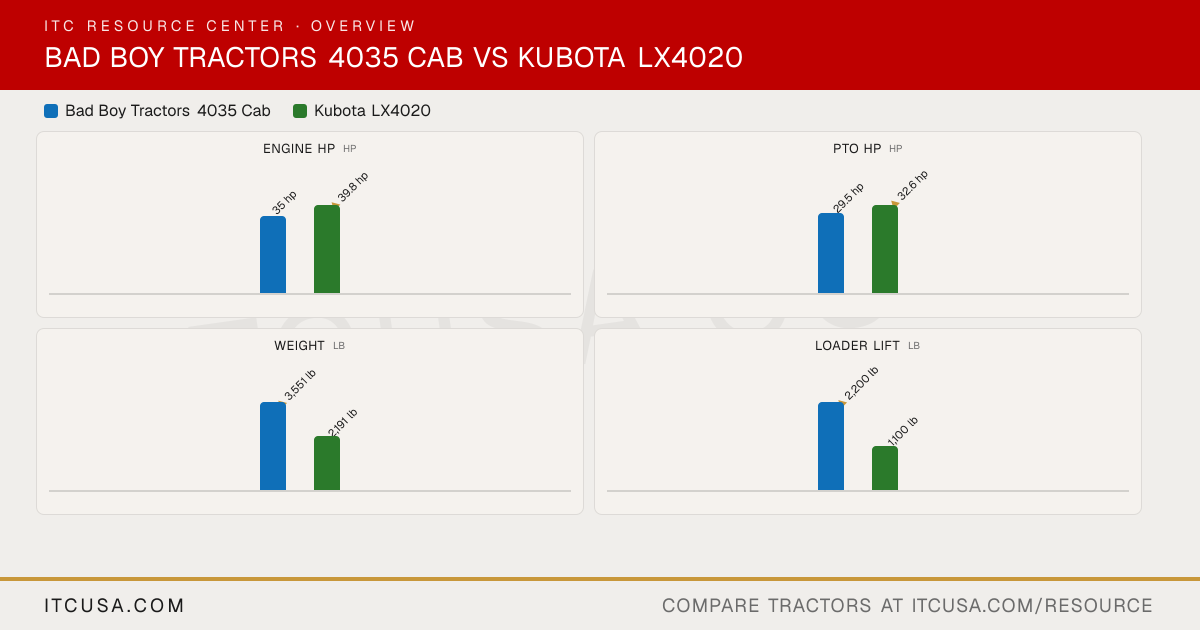

Bad Boy Tractors 4035 Cab vs Kubota LX4020: Quick Answers

Which has more horsepower, the Bad Boy Tractors 4035 Cab or the Kubota LX4020?

The Kubota LX4020 leads on engine hp at 39.8 hp hp, compared to 35 hp hp for the Bad Boy Tractors 4035 Cab.

Which has more PTO horsepower, the Bad Boy Tractors 4035 Cab or the Kubota LX4020?

The Kubota LX4020 leads on pto hp at 32.6 hp hp, compared to 29.5 hp hp for the Bad Boy Tractors 4035 Cab.

Which is heavier, the Bad Boy Tractors 4035 Cab or the Kubota LX4020?

The Bad Boy Tractors 4035 Cab leads on weight at 3,551 lb lb, compared to 2,191 lb lb for the Kubota LX4020.

Which has more loader lift capacity, the Bad Boy Tractors 4035 Cab or the Kubota LX4020?

The Bad Boy Tractors 4035 Cab leads on loader lift at 2,200 lb lb, compared to 1,100 lb lb for the Kubota LX4020.

Which has more three-point hitch lift capacity, the Bad Boy Tractors 4035 Cab or the Kubota LX4020?

The Bad Boy Tractors 4035 Cab leads on 3-pt lift (24 in) at 2,425 lb lb, compared to 1,962 lb lb for the Kubota LX4020.
