Across 9 measurable specs, the Mahindra 5155 Shuttle leads 6 categories to 2 (1 tied). Machine pages: Bad Boy Tractors 5055 and Mahindra 5155 Shuttle.
Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.
Category Verdict
| Spec | Bad Boy Tractors 5055 | Mahindra 5155 Shuttle |
|---|
| Engine HP (hp) | 55 hp | 55 hp |
| PTO HP (hp) | 44 hp | ▲ 47 hp |
| Weight (lb) | 3,836 lb | ▲ 5,390 lb |
| Loader Lift (lb) | 2,700 lb | ▲ 3,100 lb |
| 3-Pt Lift (24 in) (lb) | 2,425 lb | ▲ 3,748 lb |
| Lift Height (in) | 106.6 in | ▲ 122 in |
| Breakout Force (lbf) | 3,660 lbf | ▲ 5,200 lbf |
| Hydraulic Flow (gpm) | ▲ 15.7 gpm | 13.3 gpm |
| Travel Speed (mph) | ▲ 19.5 mph | 17.9 mph |

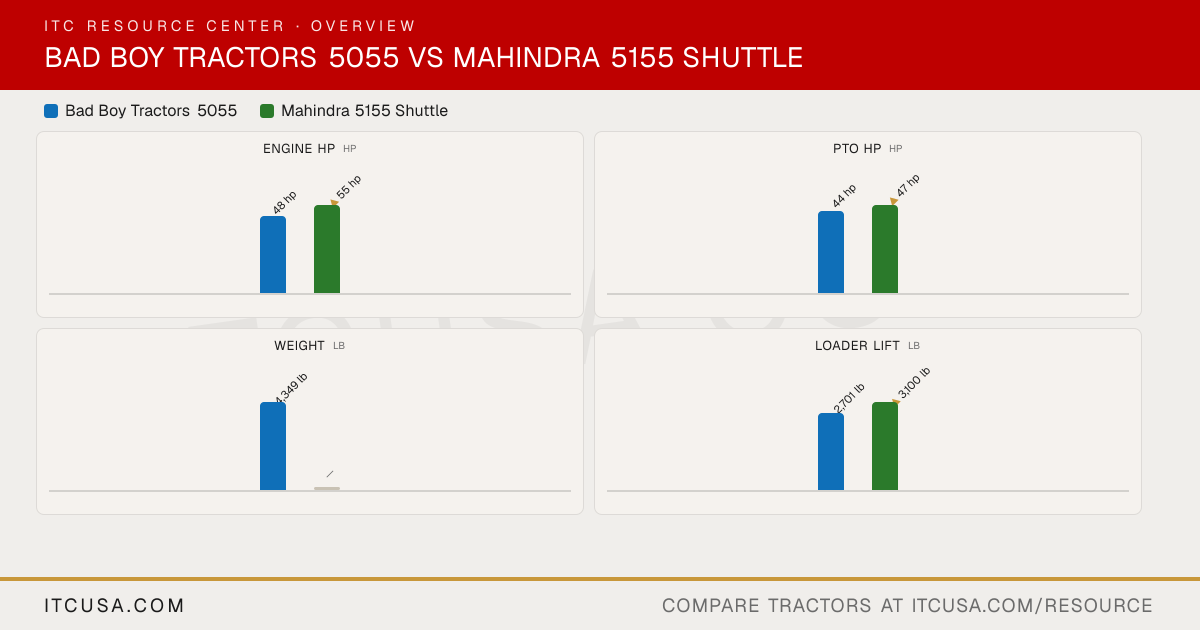

The headline numbers at a glance.
Bad Boy Tractors 5055Mahindra 5155 Shuttle
ITCUSA.COMITCUSA.COMITCUSA.COM
Share↓ Image𝕏f✉ Full Spec Sheet
Every published spec, side by side, including the details the graphs above don't chart.
| Spec | Bad Boy Tractors5055 | Mahindra5155 Shuttle |
|---|
|
|---|
| Engine Manufacturer | TYM | Mahindra |
|---|
| Engine Model | A2300T3 | DH55 |
|---|
| Engine Type | 4 cylinder water-cooled diesel, turbocharged | Four-stroke, turbocharged, direct injection, water-cooled diesel |
|---|
| No. of Cylinders | 4 | 4 |
|---|
| Displacement | 139.5 in³ | 166.2 in³ |
|---|
| Rated Engine Speed | 2600 rpm | 2300 rpm |
|---|
| Engine Power (Gross) | 55 hp | 55 hp |
|---|
| PTO Power | 44 hp | 47 hp |
|---|
| Engine Emissions Constraints | Tier 4 | Tier 4 |
|---|
| Cooling System Type | Water-cooled | Water-cooled |
|---|
| Air Cleaner | Dry element | Not Published |
|---|
| Fuel System | Not Published | Direct injection |
|---|
| Alternator | 50 A, 12 V | 55 A |
|---|
|
|---|
| Pump Type | Not Published | Not Published |
|---|
| Implement Flow | 10.7 gpm | 8.71 gpm |
|---|
| Steering Flow | 5 gpm | 4.62 gpm |
|---|
| Total Hydraulic Flow | 15.7 gpm | 13.3 gpm |
|---|
| Overall Hydraulic Pump Flow | 15.7 gpm | 13.3 gpm |
|---|
| Hydraulic System Type | Open center | Open center |
|---|
| Rear Remote Hydraulic Flow | Not Published | Not Published |
|---|
| No. of Standard Remote Valves | Not Published | One |
|---|
| No. of Optional Remote Valves | Up to 4 ports | One (optional second rear valve) |
|---|
|
|---|
| Fuel Tank Capacity | 11.8 gal | 17.1 gal |
|---|
| Coolant Capacity | 2.08 gal | Not Published |
|---|
| Crankcase Capacity | 1.20 gal | Not Published |
|---|
| Transmission / Hydraulic System Capacity | 10.04 gal | Not Published |
|---|
| Front Axle Fluid Capacity | 1.90 gal | Not Published |
|---|
|
|---|
| PTO Type | Independent | Independent |
|---|
| PTO Rear | 540 / 540E rpm | 540 rpm @ 2300 engine rpm; 540E rpm @ 1725 engine rpm |
|---|
| Mid-PTO Availability | Not Published | Not Published |
|---|
| Category, 3-Point Hitch | Category I | CAT I & II with telescopic stabilizers & flex links |
|---|
| Hitch Lift Capacity | 3,306 lb | Not Published |
|---|
| Hitch Lift Capacity (at 24”) | 2,425 lb | 3,748 lb |
|---|
| Lift Control Type | Position control | Position control |
|---|
|
|---|
| Transmission Type | Hydrostatic (HST), 4-range | Full synchromesh with forward/reverse synchro shuttle and constant-mesh range |
|---|
| No. of Speeds | 4 range (HST) | 12F / 12R |
|---|
| Max Travel Speed (Forward) | 19.5 mph | 17.9 mph |
|---|
| Max Travel Speed (Reverse) | 19.5 mph | Not Published |
|---|
| Clutch | None (HST) | Dual dry with cerametallic lining |
|---|
| Differential Lock & Limited Slip Options | Rear differential lock (standard) | Not Published |
|---|
|
|---|
| Frame Type | Compact utility tractor | Not Published |
|---|
| Steering | Hydrostatic power steering | Power steering with tilt steering wheel |
|---|
| Brakes | Wet, multi-disc | Fully-enclosed, 7-in diameter, dry disc |
|---|
| Seat Suspension & Adjustability | Heated leather seat | Adjustable seat with contoured cushions, armrests and a soft-coil suspension |
|---|
| Front Axle Type | Selectable 4WD | Not Published |
|---|
| Front Axle Rating | Not Published | Not Published |
|---|
| Drawbar Capacity | Not Published | Not Published |
|---|
|
|---|
| Overall Width | 64.9 in | 74.8 in |
|---|
| Wheelbase | 71.1 in | 77.9 in |
|---|
| Ground Clearance | 15.5 in | 16.4 in |
|---|
| Min. Turn Radius without Brakes | 9.18 ft (with brake applied) | 10.8 ft (3.29 m) |
|---|
| Height to Top of ROPS | 98.4 in | Not Published |
|---|
| Height to Top of ROPS (folded) | Not Published | Not Published |
|---|
| Height to Top of Cab Model | Not Applicable | Not Published |
|---|
| Overall Length | 127.4 in (with 3-point hitch) | 136.6 in |
|---|
|
|---|
| Tractor Weight (Base) | 3,836 lb | 5,390 lb |
|---|
| Weight with ROPS and Loader | Not Published | 6,690 lb |
|---|
| Weight with Cab and Loader | Not Published | Not Published |
|---|
|
|---|
| Tire Size & Options | 9.5-16 front / 13.6-26 rear (ag) | R1 Agricultural or R4 Industrial |
|---|
| R1 Agricultural - Front | 9.5-16 | 9.5 x 20 |
|---|
| R1 Agricultural - Rear | 13.6-26 | 14.9 x 28 |
|---|
| R3 Turf - Front | Not Published | Not Published |
|---|
| R3 Turf - Rear | Not Published | Not Published |
|---|
| R4 Industrial - Front | Not Published | 10.5/80 x 18 |
|---|
| R4 Industrial - Rear | Not Published | 16.9 x 24 |
|---|
|
|---|
| Quick Attach Loader System | SSQA | Skid-steer style quick-attach coupler |
|---|
| Loader Model | BBL500 | 5155-4L (front loader); 65B (rear backhoe) |
|---|
| Loader Lift Height | 106.6 in | 122 in |
|---|
| Loader Lift Capacity (Full Height) | 2,700 lb (at pivot pin) | 3,100 lb |
|---|
| Loader Breakout Force | 3,660 lb | 5,200 lb |
|---|
|
|---|
| Warranty Length & Coverage | Basic 24 months or 1,000 hours; powertrain 72 months or 2,000 hours | 5-year limited powertrain warranty |
|---|
|
|---|
| Accessories that fit | | None tagged yet |
|---|
Bad Boy Tractors 5055 vs Mahindra 5155 Shuttle: Quick Answers
- Which has more horsepower, the Bad Boy Tractors 5055 or the Mahindra 5155 Shuttle?
- They are effectively tied: both machines are rated at 55 hp hp for engine hp.
- Which has more PTO horsepower, the Bad Boy Tractors 5055 or the Mahindra 5155 Shuttle?
- The Mahindra 5155 Shuttle leads on pto hp at 47 hp hp, compared to 44 hp hp for the Bad Boy Tractors 5055.
- Which is heavier, the Bad Boy Tractors 5055 or the Mahindra 5155 Shuttle?
- The Mahindra 5155 Shuttle leads on weight at 5,390 lb lb, compared to 3,836 lb lb for the Bad Boy Tractors 5055.
- Which has more loader lift capacity, the Bad Boy Tractors 5055 or the Mahindra 5155 Shuttle?
- The Mahindra 5155 Shuttle leads on loader lift at 3,100 lb lb, compared to 2,700 lb lb for the Bad Boy Tractors 5055.
- Which has more three-point hitch lift capacity, the Bad Boy Tractors 5055 or the Mahindra 5155 Shuttle?
- The Mahindra 5155 Shuttle leads on 3-pt lift (24 in) at 3,748 lb lb, compared to 2,425 lb lb for the Bad Boy Tractors 5055.
