Bad Boy Tractors 5055 vs New Holland Boomer 40

Across 8 measurable specs, the Bad Boy Tractors 5055 leads 8 categories to 0. Machine pages: Bad Boy Tractors 5055 and New Holland Boomer 40.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

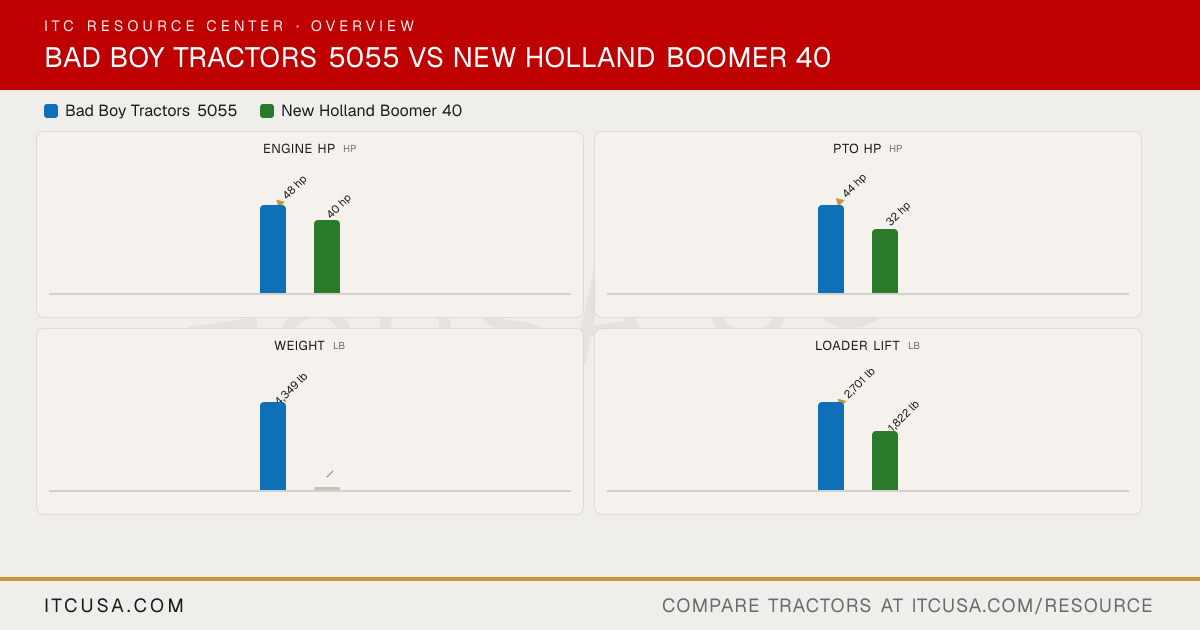

Category Verdict

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Bad Boy Tractors5055	New HollandBoomer 40

▶Engine
PTO Power	44 hp	32 hp
Alternator	70 A	70 A, 12 V
Air Cleaner	Dry Element	Not Published
Engine Type	4-cylinder, water-cooled diesel	Not Published
Fuel System	Diesel	CRDI
Displacement	139.5 in³	0.1 in³
No. of Cylinders	4	3
Rated Engine Speed	2600 rpm	2600 rpm
Cooling System Type	Not Published	Not Published
Engine Manufacturer	A2300N3 (5045CS/5045CH/5045S/5045H), A2300T11 (5055CS/5055CH), A2300T3 (5055S/5055H)	LS Mtron
Engine Power (Gross)	48 hp	40 hp
Engine Emissions Constraints	DPF / DOC	T4B Final
▶Weight
Tractor Weight (Base)	CABIN: 4,349 lbs, ROPS Synchro: 3,831-3,836 lbs (1,738-3,836 lb), ROPS HST: 3,754-3,836 lbs (1,703-3,836 lb)	—
Weight with ROPS and Loader	3,836 lb (tractor only)	Not Published
Weight with Cab and Loader	Not Applicable	Not Published
▶Warranty
Warranty Length & Coverage	6-year powertrain warranty	6-year Boomer Guard Limited Warranty (2-year full + 4-year powertrain)
▶Hydraulics
Pump Type	Hydrostatic Power Steering	Gear
Steering Flow	5.0 gpm	HST: 5.6 gpm; Gear: 4.2 gpm
Implement Flow	5055S: 11.4 gpm; 5055H: 10.7 gpm	8.2 gpm
Total Hydraulic Flow	5055S: 16.4 gpm; 5055H: 15.7 gpm	HST: 13.8 gpm; Gear: 12.4 gpm
Hydraulic System Type	Not Published	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
Overall Hydraulic Pump Flow	5055S: 16.4 gpm; 5055H: 15.7 gpm	HST: 13.8 gpm; Gear: 12.4 gpm
No. of Optional Remote Valves	Up to 2 rear SCVs	1 or 2
No. of Standard Remote Valves	Not Published	Not Published
▶PTO & Hitch
PTO Rear	540 / 540E rpm	540 rpm
PTO Type	Independent	Independent (wet clutch, switch-actuated)
Lift Control Type	Not Published	Not Published
Hitch Lift Capacity	3,306 lb	1808 lb
Mid-PTO Availability	Not Published	Standard
Category, 3-Point Hitch	Category 1	Category I
Hitch Lift Capacity (at 24”)	2,425 lb	1433 lb
▶Tire Options
R3 Turf - Rear	Not Published	41X14.00-20
R3 Turf - Front	Not Published	25X8.50-14
Tire Size & Options	Not Published	R1 Agricultural, R3 Turf, R4 Industrial
R4 Industrial - Rear	Not Published	43X16.00X20; 43X16-20
R4 Industrial - Front	Not Published	25X8.50-14
R1 Agricultural - Rear	Not Published	11.2-24
R1 Agricultural - Front	Not Published	7.0-14
▶Fluid Capacity
Coolant Capacity	CABIN: 1.56 gal, ROPS: 2.08 gal	Not Published
Crankcase Capacity	1.20 gal	Not Published
Fuel Tank Capacity	11.8 gal	ROPS: 10.5 gal; CAB: 12.4 gal
Front Axle Fluid Capacity	1.90 gal	Not Published
Transmission / Hydraulic System Capacity	10.04 gal	Not Published
▶Loader & Attachments
Loader Lift Height	107.7 in (pivot pin)	104 in
Loader Breakout Force	3,660 lb	2444 lb
Quick Attach Loader System	SSQA	250TLA: New Holland Quick Mount; optional skid steer quick attach
Loader Lift Capacity (Full Height)	2,701 lb	1822 lb
▶Transmission & Drivetrain
Clutch	Not Published	Gear: Dry single disc; HST: Not Applicable
No. of Speeds	5055S: 16F/16R; 5055H: 4-range	HST: 3-range; Gear: 12F/12R
Transmission Type	Synchromesh (Mechanical models) or HST (Hydrostatic models)	HST: 3-range hydrostatic; Gear: 12x12 synchronized shuttle
Max Travel Speed (Forward)	16.0 mph Synchro; 19.5 mph HST	HST: 14.8 mph; Gear: 14.2 mph
Max Travel Speed (Reverse)	15.2 mph Synchro; 19.5 mph HST	Not Published
Differential Lock & Limited Slip Options	Differential lock	Mechanical rear differential lock
▶Chassis, Steering & Controls
Brakes	Wet, Multi-disc	Wet disc
Steering	Power steering	Power steering
Frame Type	Compact utility tractor, 4WD	Not Published
Front Axle Type	Selectable 4WD	Four-wheel drive (4WD)
Drawbar Capacity	Not Published	Not Published
Front Axle Rating	Not Published	Not Published
Seat Suspension & Adjustability	Heated leather seat	Not Published
▶Dimensions & Maneuverability
Wheelbase	71.1 in.	66 in
Overall Width	64.9 in.	66.4 in
Overall Length	127.4 in.	—
Ground Clearance	15.5 in.	Not Published
Height to Top of ROPS	CABIN: 97.0 in., ROPS: 98.4 in.	97.1 in
Height to Top of Cab Model	Not Applicable	94 in
Height to Top of ROPS (folded)	Not Published	Not Published
Min. Turn Radius without Brakes	Not Published	Not Published
Overall Length with 3-Point Hitch	127.4 in	119 in
▶ITC Company Accessories
Accessories that fit	Brush Guard Side Guards $199.99 Bolt onto the side of the OEM guard and offers wrap around protection Branson TYM 15/20 Series--Bad Boy 40/50 Series Brush Screen $250.00	None tagged yet

Bad Boy Tractors 5055 vs New Holland Boomer 40: Quick Answers

Which has more horsepower, the Bad Boy Tractors 5055 or the New Holland Boomer 40?

The Bad Boy Tractors 5055 leads on engine hp at 48 hp hp, compared to 40 hp hp for the New Holland Boomer 40.

Which has more PTO horsepower, the Bad Boy Tractors 5055 or the New Holland Boomer 40?

The Bad Boy Tractors 5055 leads on pto hp at 44 hp hp, compared to 32 hp hp for the New Holland Boomer 40.

Which has more loader lift capacity, the Bad Boy Tractors 5055 or the New Holland Boomer 40?

The Bad Boy Tractors 5055 leads on loader lift at 2,701 lb lb, compared to 1,822 lb lb for the New Holland Boomer 40.

Which has more three-point hitch lift capacity, the Bad Boy Tractors 5055 or the New Holland Boomer 40?

The Bad Boy Tractors 5055 leads on 3-pt lift (24 in) at 2,425 lb lb, compared to 1,433 lb lb for the New Holland Boomer 40.
