Bad Boy Tractors 4035 vs New Holland Boomer 40

Across 9 measurable specs, this matchup is a dead heat: 4 categories to the Bad Boy Tractors 4035, 4 to the New Holland Boomer 40, 1 tied. Machine pages: Bad Boy Tractors 4035 and New Holland Boomer 40.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

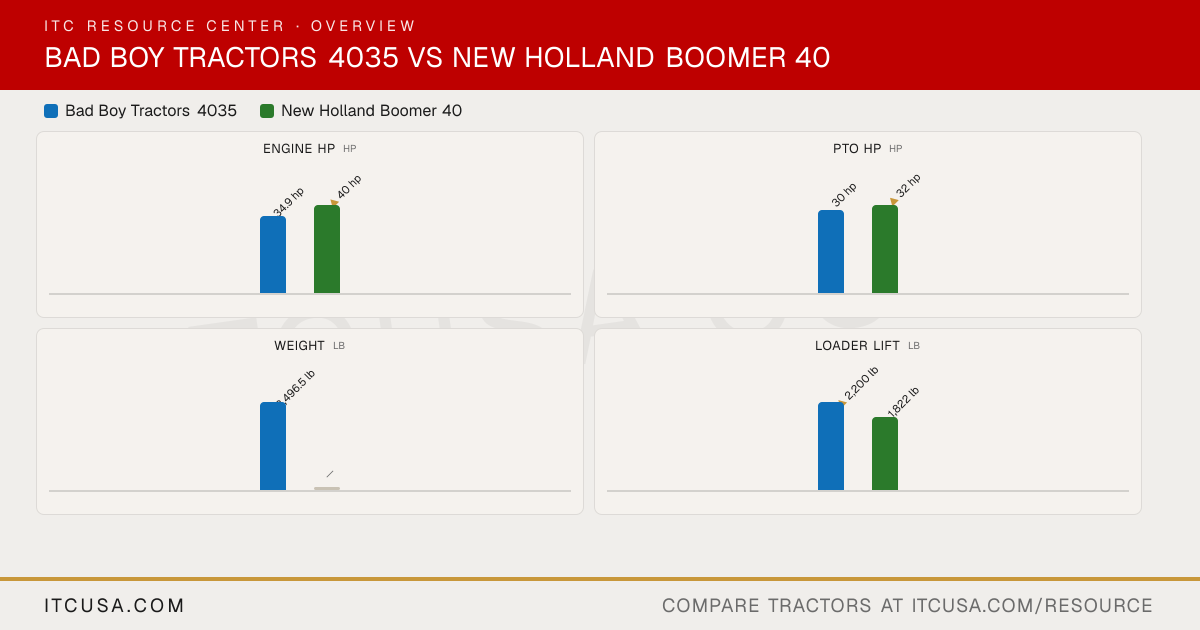

Category Verdict

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Bad Boy Tractors4035	New HollandBoomer 40

▶Engine
Engine Manufacturer	TYM	LS Mtron
Engine Model	A1700N4-BUTR_4	L3CRV-T4
Engine Type	Vertical, 4-stroke, water-cooled diesel	3-cylinder, turbocharged, liquid-cooled diesel
No. of Cylinders	3	3
Displacement	104.5 in³	114.7 in³
Rated Engine Speed	2600 rpm	2600 rpm
Engine Power (Gross)	35 hp	40 hp
PTO Power	29.5 hp	Gear: 34 hp; HST: 32 hp
Engine Emissions Constraints	EPA Final Tier4	Tier 4B (final)
Cooling System Type	Water-cooled	Liquid cooled
Air Cleaner	Not Published	Replaceable primary and inner elements
Fuel System	Not Published	Electronically controlled common rail direct injection
Alternator	50 A, 12 V	ROPS: 70 A, 12 V; Cab: 85 A, 12 V
▶Hydraulics
Pump Type	Not Published	Gear
Implement Flow	8.2 gpm	8.2 gpm
Steering Flow	4.4 gpm	Gear: 4.2 gpm; HST: 5.3 gpm
Total Hydraulic Flow	12.6 gpm	Gear: 12.4 gpm; HST: 13.5 gpm
Overall Hydraulic Pump Flow	12.6 gpm	Gear: 12.4 gpm; HST: 13.5 gpm
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	Not Published	1
No. of Optional Remote Valves	Up to 2	Up to 2 (second valve optional)
▶Fluid Capacity
Fuel Tank Capacity	7.13 gal	ROPS: 10.5 gal; Cab: 12.4 gal
Coolant Capacity	1.32 gal	7.5 qt
Crankcase Capacity	1.14 gal	5.8 qt
Transmission / Hydraulic System Capacity	9.77 gal	8.5 gal
Front Axle Fluid Capacity	1.69 gal	6.87 qt
▶PTO & Hitch
PTO Type	Independent	Independent, electro-hydraulic engagement
PTO Rear	540 rpm	540 rpm
Mid-PTO Availability	Not Published	Standard (2000 rpm)
Category, 3-Point Hitch	Category I	Category I
Hitch Lift Capacity	3,307 lb	1,808 lb
Hitch Lift Capacity (at 24”)	2,425 lb	1,345 lb
Lift Control Type	Position control	Position control (draft control optional)
▶Transmission & Drivetrain
Transmission Type	Hydrostatic (HST), 3-range	Gear: 12x12 synchronized shuttle shift (SSS); HST: 3-range hydrostatic, dual pedal
No. of Speeds	3 range (HST)	Gear: 12F/12R; HST: 3-range
Max Travel Speed (Forward)	19.08 mph	Gear: 14.2 mph; HST: 14.8 mph
Max Travel Speed (Reverse)	19.08 mph	Gear: 13.63 mph; HST: 13.60 mph
Clutch	None (HST)	Gear: dry single disc (9.4 in); HST: n/a
Differential Lock & Limited Slip Options	Rear differential lock	Mechanical rear differential lock (pedal)
▶Chassis, Steering & Controls
Frame Type	Not Published	Not Published
Steering	Hydrostatic power steering	Power steering
Brakes	Wet, multi-disc	Wet multi-disc
Seat Suspension & Adjustability	Not Published	ROPS: adjustable suspension seat (fore/aft, weight and height adjustment); Cab: cloth seat with weight control, easy fore/aft movement and adjustable armrests
Front Axle Type	Selectable 4WD	Four-wheel drive (FWD)
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published
▶Dimensions & Maneuverability
Overall Width	56.7 in	66.4 in
Wheelbase	65.7 in	66 in
Ground Clearance	13.1 in	Not Published
Min. Turn Radius without Brakes	Not Published	9.2 ft (with brake applied)
Height to Top of ROPS	96.85 in	92.7 in
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	Not Published	90 in
Overall Length	134.88 in	119 in
▶Weight
Tractor Weight (Base)	3,164 lb	ROPS Gear: 2,804 lb; ROPS HST: 2,870 lb; Cab: 3,574 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published
▶Tire Options
Tire Size & Options	R1 ag 8.0-16 / 12.4-24 (standard); R4 industrial 28x8.50-15 / 43x16.00-20	R1 Agricultural, R3 Turf, R4 Industrial
R1 Agricultural - Front	8.0-16	7-14
R1 Agricultural - Rear	12.4-24	11.2-24
R3 Turf - Front	Not Published	25x8.50-14
R3 Turf - Rear	Not Published	41x14.00-20
R4 Industrial - Front	28x8.50-15	25x8.50-14
R4 Industrial - Rear	43x16.00-20	43x16.00-20
▶Loader & Attachments
Quick Attach Loader System	SSQA	Tool-free loader mount; optional skid-steer quick-attach plates
Loader Model	BBL400	250TLA
Loader Lift Height	104 in	250TLA: 104 in (at pivot pin)
Loader Lift Capacity (Full Height)	2,200 lb (at pivot pin)	250TLA: 1,822 lb (at bucket pivot pin, max height)
Loader Breakout Force	3,660 lb	250TLA: 3,257 lb (at bucket pivot pin)
▶Warranty
Warranty Length & Coverage	Basic 24 months or 1,000 hours; powertrain 72 months or 2,000 hours	Basic 2 years or 750 hours; powertrain 4 more years (6 years or 1,500 hours total)
▶ITC Company Accessories
Accessories that fit	Brush Guard Side Guards $199.99 Bolt onto the side of the OEM guard and offers wrap around protection Branson TYM 15/20 Series--Bad Boy 40/50 Series Brush Screen $250.00 Branson / TYM 15 Series Fuel Tank Cover $250.00	None tagged yet

Find a Bad Boy dealer near you→Find a New Holland dealer near you→

Bad Boy Tractors 4035 vs New Holland Boomer 40: Quick Answers

Which has more horsepower, the Bad Boy Tractors 4035 or the New Holland Boomer 40?

The New Holland Boomer 40 leads on engine hp at 40 hp hp, compared to 35 hp hp for the Bad Boy Tractors 4035.

Which has more PTO horsepower, the Bad Boy Tractors 4035 or the New Holland Boomer 40?

The New Holland Boomer 40 leads on pto hp at 34 hp hp, compared to 29.5 hp hp for the Bad Boy Tractors 4035.

Which is heavier, the Bad Boy Tractors 4035 or the New Holland Boomer 40?

The New Holland Boomer 40 leads on weight at 3,574 lb lb, compared to 3,164 lb lb for the Bad Boy Tractors 4035.

Which has more loader lift capacity, the Bad Boy Tractors 4035 or the New Holland Boomer 40?

The Bad Boy Tractors 4035 leads on loader lift at 2,200 lb lb, compared to 1,822 lb lb for the New Holland Boomer 40.

Which has more three-point hitch lift capacity, the Bad Boy Tractors 4035 or the New Holland Boomer 40?

The Bad Boy Tractors 4035 leads on 3-pt lift (24 in) at 2,425 lb lb, compared to 1,345 lb lb for the New Holland Boomer 40.
