Bad Boy Tractors 5055 Cab vs TYM 4820

Across 8 measurable specs, this matchup is a dead heat: 2 categories to the Bad Boy Tractors 5055 Cab, 2 to the TYM 4820, 4 tied. Machine pages: Bad Boy Tractors 5055 Cab and TYM 4820.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Bad Boy Tractors5055 Cab	TYM4820

▶Engine
PTO Power	44 hp	38.4 hp
Alternator	70 A, 12 V	50 A, 12 V
Air Cleaner	Dry Element	Dry element
Engine Type	4-cylinder, water-cooled diesel	4-cylinder, naturally aspirated diesel
Fuel System	Water-Cooled Diesel	IDI
Displacement	139.5 in³	139.5 in³
Engine Model	A2300T3-UTR_4	—
No. of Cylinders	4	4
Rated Engine Speed	2600 rpm	2600 rpm
Cooling System Type	Water-Cooled	Not Published
Engine Manufacturer	A2300T11	TYM
Engine Power (Gross)	55 hp	48 hp
Engine Emissions Constraints	Tier 4	Tier 4
▶Weight
Tractor Weight (Base)	CABIN: 4,349 lbs; ROPS Synchro: 3,831-3,836 lbs (1,738-3,836 lb); ROPS HST: 3,754-3,836 lbs (1,703-3,836 lb)	—
Weight with ROPS and Loader	Not Applicable	Not Published
Weight with Cab and Loader	4,349 lb (tractor only)	Not Applicable
▶Warranty
Warranty Length & Coverage	6-year powertrain warranty	Up to 2 years or until the 2,000 hours mark, bumper-to-bumper warranty; 3000 hours maximum coverage period for parts and labour on drivetrains or powertrains; 12-months warranty period for implements, including loaders and backhoes.
▶Hydraulics
Pump Type	Not Published	Dual gear pump
Steering Flow	5 GPM	5.2 gpm
Implement Flow	5055CS: 11.4 gpm; 5055CH: 10.7 gpm	11.4 gpm
Total Hydraulic Flow	5055CS: 16.4 gpm; 5055CH: 15.7 gpm	16.5 gpm
Hydraulic System Type	Not Published	Open center
System Operating Pressure	Not published in source	—
Rear Remote Hydraulic Flow	Not Published	Not Published
Overall Hydraulic Pump Flow	5055CS: 16.4 gpm; 5055CH: 15.7 gpm	16.5 gpm
No. of Optional Remote Valves	Not Published	Up to 4
No. of Standard Remote Valves	2 Remotes	0
▶PTO & Hitch
PTO Rear	540 / 540E RPM	540/750 rpm
PTO Type	Independent	Independent
Lift Control Type	Position	Position control
Hitch Lift Capacity	3,306 lb	3,306 lb
Mid-PTO Availability	Not Published	Not Published
Category, 3-Point Hitch	CAT I	Category I
Hitch Lift Capacity (at 24”)	2,425 lb	2,425 lb
▶Tire Options
R3 Turf - Rear	Not Published	41x14-20 / 44x18-20
R3 Turf - Front	Not Published	27x8.5-15 / 29x12.5-15
Tire Size & Options	R1 Agricultural	R1 Agricultural, R3 Turf, R4 Industrial
R4 Industrial - Rear	Not Published	17.5Lx24
R4 Industrial - Front	Not Published	12-16.5
R1 Agricultural - Rear	13.6 - 26	13.6-26
R1 Agricultural - Front	9.5 - 16	9.5-16
▶Fluid Capacity
Coolant Capacity	1.56 gal	6.2 qt
Crankcase Capacity	1.20 gal	4.8 qt
Fuel Tank Capacity	11.8 gal	11.8 gal
Front Axle Fluid Capacity	1.90 gal	6.8 qt
Transmission / Hydraulic System Capacity	10.04 gal	HST: 11.1 gal; Gear: 10.3 gal
▶Loader & Attachments
Loader Model	BBL500	—
Loader Lift Height	106.6 in	106.6 in
Loader Breakout Force	3,660 lbs.	3,660 lb
Quick Attach Loader System	SSQA	BL200: Quick attach assembly (lever-lock)
Loader Lift Capacity (Full Height)	2,700 lbs.	2,701 lb
▶Transmission & Drivetrain
Clutch	Dry Single Type (N/A)	HST: Not Applicable; Gear: Dry single plate
No. of Speeds	5055CS: 16F/16R; 5055CH: 4-range	HST: 4-Range; Gear: F16 x R16 (4-Range)
Transmission Type	Synchromesh (MEC models) or HST (Hydrostatic)	HST: HST; Gear: Synchromesh
Max Travel Speed (Forward)	19.5 mph	HST: 19.5 mph; Gear: 16 mph
Max Travel Speed (Reverse)	19.5 mph	Not Published
Differential Lock & Limited Slip Options	Differential lock	Differential lock system
▶Chassis, Steering & Controls
Brakes	Wet, Multi-disc	Wet, multi disc
Steering	Hydrostatic Power Steering	Hydrostatic
Frame Type	Compact utility tractor, 4WD	Not Published
Front Axle Type	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published
Front Axle Rating	Not Published	Not Published
Seat Suspension & Adjustability	Heated leather seat	Suspension seat
▶Dimensions & Maneuverability
Wheelbase	71.1 in	71.1 in
Overall Width	64.9 in	64.9 in
Overall Length	127.4 in. with 3-point hitch	—
Ground Clearance	15.5 in	15.5 in
Height to Top of ROPS	5055CS/CH - 97 in	98.4 in
Height to Top of Cab Model	97 in	Not Applicable
Height to Top of ROPS (folded)	Not Applicable	Not Published
Min. Turn Radius without Brakes	9.18 feet (2.80 m)	L: 128.7 in; R: 126.0 in
Overall Length with 3-Point Hitch	127.4 in	127.4 in
▶ITC Company Accessories
Accessories that fit	None tagged yet	Brush Guard Side Guards $199.99 Bolt onto the side of the OEM guard and offers wrap around protection Branson TYM 15/20 Series--Bad Boy 40/50 Series Brush Screen $250.00 TYM 20 Series Protection Package $2150.00

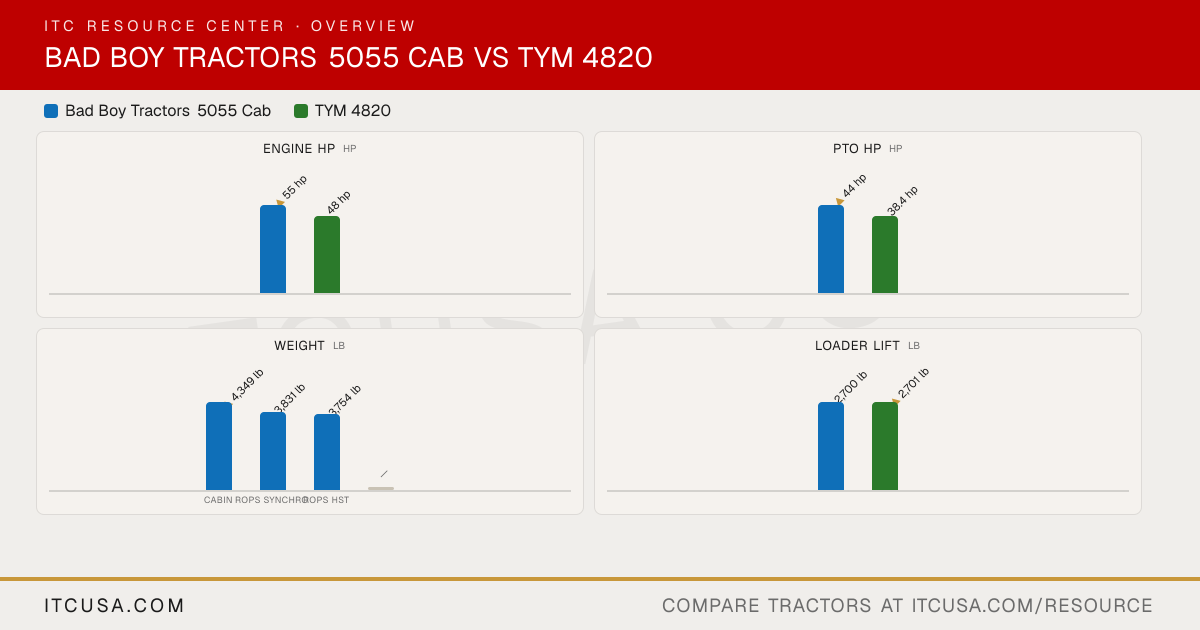

Bad Boy Tractors 5055 Cab vs TYM 4820: Quick Answers

Which has more horsepower, the Bad Boy Tractors 5055 Cab or the TYM 4820?

The Bad Boy Tractors 5055 Cab leads on engine hp at 55 hp hp, compared to 48 hp hp for the TYM 4820.

Which has more PTO horsepower, the Bad Boy Tractors 5055 Cab or the TYM 4820?

The Bad Boy Tractors 5055 Cab leads on pto hp at 44 hp hp, compared to 38.4 hp hp for the TYM 4820.

Which has more loader lift capacity, the Bad Boy Tractors 5055 Cab or the TYM 4820?

The TYM 4820 leads on loader lift at 2,701 lb lb, compared to 2,700 lb lb for the Bad Boy Tractors 5055 Cab.

Which has more three-point hitch lift capacity, the Bad Boy Tractors 5055 Cab or the TYM 4820?

They are effectively tied: both machines are rated at 2,425 lb lb for 3-pt lift (24 in).
