Front AG. (TURF, INDUSTRIAL) 18X8.5-10; Rear AG. (TURF, INDUSTRIAL) 26X12.00-12
R1 Bar, R3 Turf, R4 Industrial
R4 Industrial - Rear
26X12.00-12
15.00-19.5
R4 Industrial - Front
18X8.5-10
25X8.50-14
R1 Agricultural - Rear
26X12.00-12
11.2-24
R1 Agricultural - Front
18X8.5-10
7-14
Coolant Capacity
2.0 (1.9) qts (L)
Not Published
Crankcase Capacity
5.2 (4.9) qts (L)
1.1 gal
Fuel Tank Capacity
6.7 gal.
10.0 gal
Front Axle Fluid Capacity
NOT FOUND
1.0 gal
Transmission / Hydraulic System Capacity
NOT FOUND
9.2 gal
Loader Model
FL6
—
Loader Lift Height
71.9 in.
84.0 in
Loader Breakout Force
1554 lb.
1,704 lb
Quick Attach Loader System
Standard Quick Attach Mounting System
Quick-change attachment carrier
Loader Lift Capacity (Full Height)
608 lb.
1,186 lb
Clutch
Clutch-free (Hydrostatic)
Not Published
No. of Speeds
2
8F/8R
Transmission Type
2-Range HST
8F/8R synchromesh shuttle shift gear transmission
Max Travel Speed (Forward)
11.1 mph (17.8 km/hr.)
11.1 mph
Max Travel Speed (Reverse)
7.6 mph (12.2 km/hr.)
11.6 mph
Differential Lock & Limited Slip Options
Std
Not Published
Brakes
Wet Multi-disc
Not Published
Steering
Hydrostatic Power Steering
Not Published
Frame Type
Not Published
Not Published
Front Axle Type
Not Published
MFWD (4WD)
Drawbar Capacity
7.7 kN / 1730 lb
Not Published
Front Axle Rating
Not Published
Not Published
Seat Suspension & Adjustability
Suspension Seat ■
Not Published
Wheelbase
55.1 in.
62.6 in
Overall Width
46.0 in.
57.3 in
Ground Clearance
6.3 in.
13.0 in
Height to Top of ROPS
87.6 in.
Not Published
Height to Top of Cab Model
NOT FOUND — no source lists a cab-model height. The CT1021 is an open-station (two-post folding ROPS) machine; a Field Cab is a dealer-installed option only, and no cab height spec was found in any source.
Not Applicable
Height to Top of ROPS (folded)
NOT FOUND — no source explicitly lists the folded ROPS height. The only height figure available across all sources is Height (ROPS) [upright]: 87.6 in (2225 mm)
Not Published
Min. Turn Radius without Brakes
100.0 in.
Not Published
Overall Length with 3-Point Hitch
99.3 in.
111.2 in

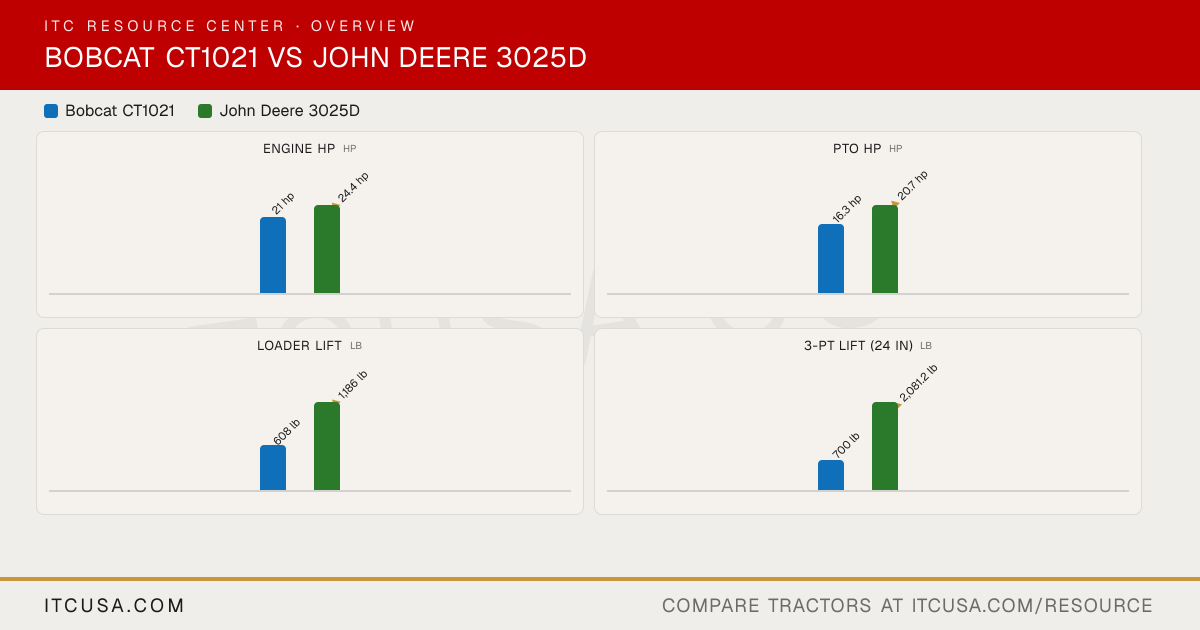

Bobcat CT1021 vs John Deere 3025D: Quick Answers
Which has more horsepower, the Bobcat CT1021 or the John Deere 3025D?
The John Deere 3025D leads on engine hp at 24.4 hp hp, compared to 21 hp hp for the Bobcat CT1021.
Which has more PTO horsepower, the Bobcat CT1021 or the John Deere 3025D?
The John Deere 3025D leads on pto hp at 20.7 hp hp, compared to 16.3 hp hp for the Bobcat CT1021.
Which has more loader lift capacity, the Bobcat CT1021 or the John Deere 3025D?
The John Deere 3025D leads on loader lift at 1,186 lb lb, compared to 608 lb lb for the Bobcat CT1021.
Which has more three-point hitch lift capacity, the Bobcat CT1021 or the John Deere 3025D?
The John Deere 3025D leads on 3-pt lift (24 in) at 2,081.2 lb lb, compared to 700 lb lb for the Bobcat CT1021.
