24 months / 1,500 hours (whichever occurs first) - covers defects in material and workmanship
Non-Commercial Home & Residential Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 72 months or 2000 hours. Commercial Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 36 months or 2000 hours.
Pump Type
Gear
Dual pump
Steering Flow
N/A
Not Published
Implement Flow
6.5 gpm (24.5 Lpm)
Not Published
Total Hydraulic Flow
7.2 gpm
8.7 gpm
Hydraulic System Type
Open Center
Open center
Rear Remote Hydraulic Flow
NOT FOUND
Not Published
Overall Hydraulic Pump Flow
7.2 gpm
8.7 gpm
No. of Optional Remote Valves
1 Pair
Not Published
No. of Standard Remote Valves
1
Not Published
PTO Rear
540 rpm
540 rpm
PTO Type
Independent
Independent
Lift Control Type
Hydraulic Position Control System
Position control valve
Hitch Lift Capacity
700 lb.
2139 lb
Mid-PTO Availability
Standard: 2200 rpm
2500 rpm
Category, 3-Point Hitch
Category 1 Limited
Category I
Hitch Lift Capacity (at 24”)
700 lb
1676 lb
R3 Turf - Rear
26X12.00-12
Not Published
R3 Turf - Front
18X8.5-10
Not Published
Tire Size & Options
Front AG. (TURF, INDUSTRIAL) 18X8.5-10; Rear AG. (TURF, INDUSTRIAL) 26X12.00-12
R1 Agricultural, R4 Industrial
R4 Industrial - Rear
26X12.00-12
12.4-16 / 15-19.5
R4 Industrial - Front
18X8.5-10
23X8.50-14 / 25X8.50-14
R1 Agricultural - Rear
26X12.00-12
12.4-16
R1 Agricultural - Front
18X8.5-10
7.0-12
Coolant Capacity
2.0 (1.9) qts (L)
4.5 qt
Crankcase Capacity
5.2 (4.9) qts (L)
4.2 qt
Fuel Tank Capacity
6.7 gal.
7.1 gal
Front Axle Fluid Capacity
NOT FOUND
Not Published
Transmission / Hydraulic System Capacity
NOT FOUND
4.0 gal
Loader Model
FL6
—
Loader Lift Height
71.9 in.
84 in
Loader Breakout Force
1554 lb.
2245 lb
Quick Attach Loader System
Standard Quick Attach Mounting System
Front Loader (LA535 - 2 Lever Quick Coupler (STD); Swift-tach (OPT))
Loader Lift Capacity (Full Height)
608 lb.
1067 lb
Clutch
Clutch-free (Hydrostatic)
N/A
No. of Speeds
2
3 ranges
Transmission Type
2-Range HST
Hydrostatic transmission
Max Travel Speed (Forward)
11.1 mph (17.8 km/hr.)
11.2 mph
Max Travel Speed (Reverse)
7.6 mph (12.2 km/hr.)
8.4 mph
Differential Lock & Limited Slip Options
Std
Differential lock standard
Brakes
Wet Multi-disc
Multi-plate wet disc
Steering
Hydrostatic Power Steering
Hydraulic power steering
Frame Type
Not Published
Not Published
Front Axle Type
Not Published
Not Published
Drawbar Capacity
7.7 kN / 1730 lb
Not Published
Front Axle Rating
Not Published
Not Published
Seat Suspension & Adjustability
Suspension Seat ■
Deluxe high-back suspension seat
Wheelbase
55.1 in.
65.6 in
Overall Width
46.0 in.
53.7 in
Ground Clearance
6.3 in.
14.6 in
Height to Top of ROPS
87.6 in.
88.4 in
Height to Top of Cab Model
NOT FOUND — no source lists a cab-model height. The CT1021 is an open-station (two-post folding ROPS) machine; a Field Cab is a dealer-installed option only, and no cab height spec was found in any source.
Not Applicable
Height to Top of ROPS (folded)
NOT FOUND — no source explicitly lists the folded ROPS height. The only height figure available across all sources is Height (ROPS) [upright]: 87.6 in (2225 mm)
Not Published
Min. Turn Radius without Brakes
100.0 in.
Not Published
Overall Length with 3-Point Hitch
99.3 in.
Not Published

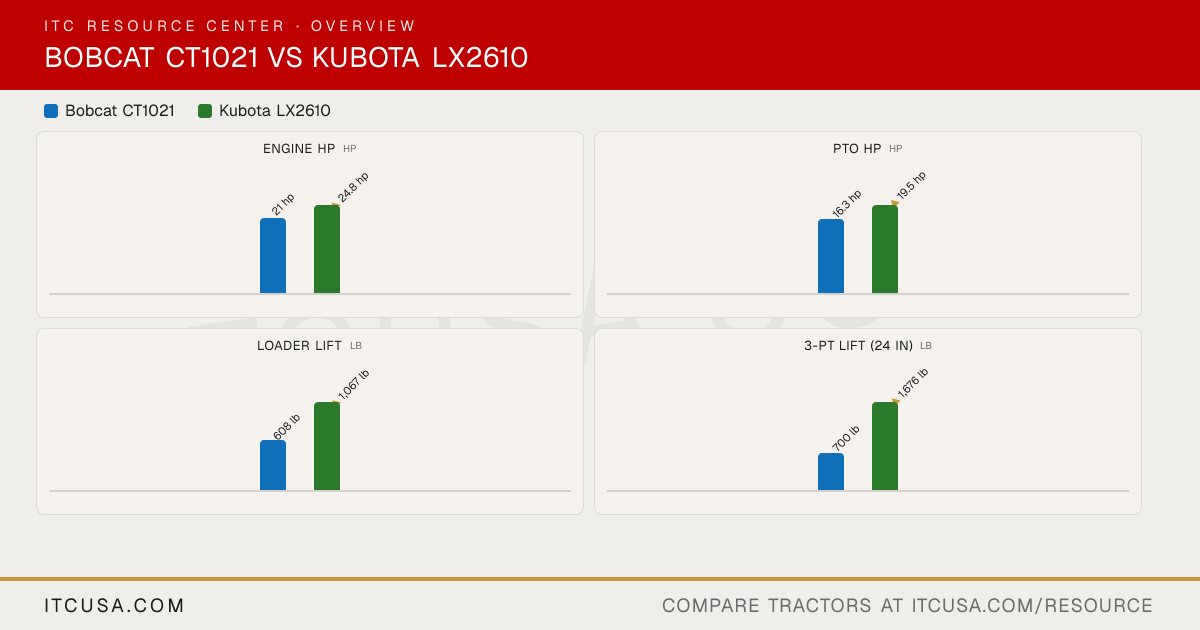

Bobcat CT1021 vs Kubota LX2610: Quick Answers
Which has more horsepower, the Bobcat CT1021 or the Kubota LX2610?
The Kubota LX2610 leads on engine hp at 24.8 hp hp, compared to 21 hp hp for the Bobcat CT1021.
Which has more PTO horsepower, the Bobcat CT1021 or the Kubota LX2610?
The Kubota LX2610 leads on pto hp at 19.5 hp hp, compared to 16.3 hp hp for the Bobcat CT1021.
Which has more loader lift capacity, the Bobcat CT1021 or the Kubota LX2610?
The Kubota LX2610 leads on loader lift at 1,067 lb lb, compared to 608 lb lb for the Bobcat CT1021.
Which has more three-point hitch lift capacity, the Bobcat CT1021 or the Kubota LX2610?
The Kubota LX2610 leads on 3-pt lift (24 in) at 1,676 lb lb, compared to 700 lb lb for the Bobcat CT1021.
