Front AG. (TURF, INDUSTRIAL) 18X8.5-10; Rear AG. (TURF, INDUSTRIAL) 26X12.00-12
R1 Agricultural, R3 Turf, R4 Industrial
R4 Industrial - Rear
26X12.00-12
43X16.00-20
R4 Industrial - Front
18X8.5-10
27X8.50-15
R1 Agricultural - Rear
26X12.00-12
11.2-24
R1 Agricultural - Front
18X8.5-10
7-14
Coolant Capacity
2.0 (1.9) qts (L)
Not Published
Crankcase Capacity
5.2 (4.9) qts (L)
Not Published
Fuel Tank Capacity
6.7 gal.
10.6 gal
Front Axle Fluid Capacity
NOT FOUND
Not Published
Transmission / Hydraulic System Capacity
NOT FOUND
Not Published
Loader Model
FL6
—
Loader Lift Height
71.9 in.
94.3 in
Loader Breakout Force
1554 lb.
2,962 lb
Quick Attach Loader System
Standard Quick Attach Mounting System
LL3001, LL3002: ISO 24410 Quick Attaching Coupler
Loader Lift Capacity (Full Height)
608 lb.
1,965 lb
Clutch
Clutch-free (Hydrostatic)
Not Applicable
No. of Speeds
2
3 ranges
Transmission Type
2-Range HST
Hydrostatic Drive
Max Travel Speed (Forward)
11.1 mph (17.8 km/hr.)
Not Published
Max Travel Speed (Reverse)
7.6 mph (12.2 km/hr.)
Not Published
Differential Lock & Limited Slip Options
Std
Mechanical differential lock (pedal)
Brakes
Wet Multi-disc
Wet, Multi-disc
Steering
Hydrostatic Power Steering
Hydrostatic power steering
Frame Type
Not Published
Not Published
Front Axle Type
Not Published
Not Published
Drawbar Capacity
7.7 kN / 1730 lb
Not Published
Front Axle Rating
Not Published
Not Published
Seat Suspension & Adjustability
Suspension Seat ■
Not Published
Wheelbase
55.1 in.
66 in
Overall Width
46.0 in.
66 in
Ground Clearance
6.3 in.
Not Published
Height to Top of ROPS
87.6 in.
95 in
Height to Top of Cab Model
NOT FOUND — no source lists a cab-model height. The CT1021 is an open-station (two-post folding ROPS) machine; a Field Cab is a dealer-installed option only, and no cab height spec was found in any source.
Not Applicable
Height to Top of ROPS (folded)
NOT FOUND — no source explicitly lists the folded ROPS height. The only height figure available across all sources is Height (ROPS) [upright]: 87.6 in (2225 mm)
Not Published
Min. Turn Radius without Brakes
100.0 in.
11.5 ft (3.5 m)
Overall Length with 3-Point Hitch
99.3 in.
119 in

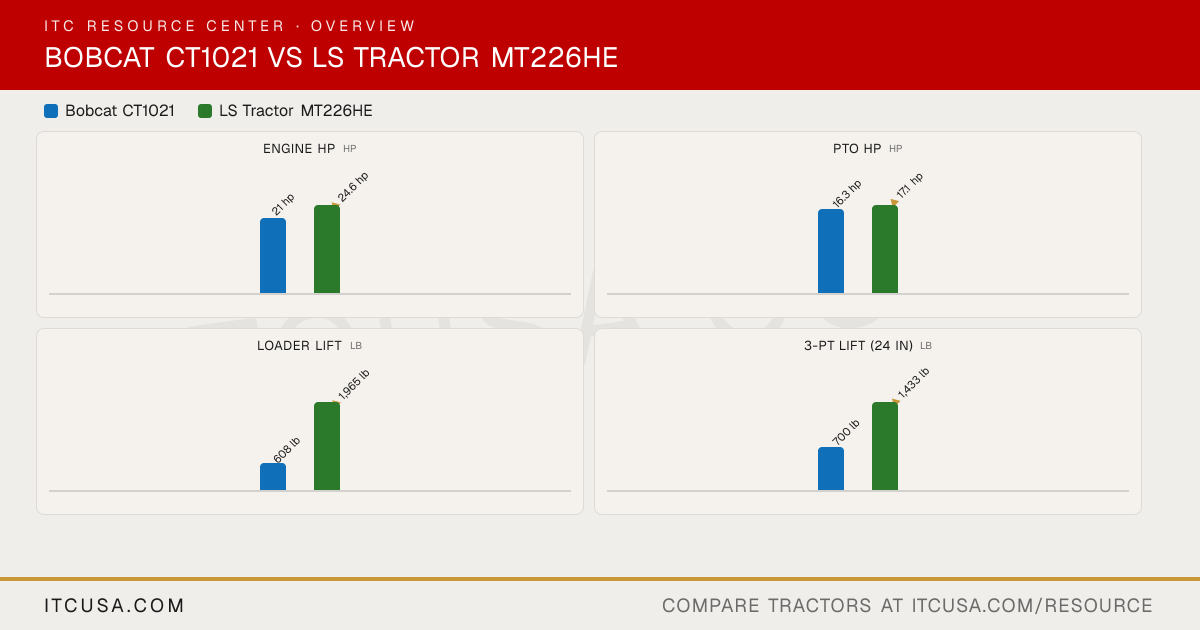

Bobcat CT1021 vs LS Tractor MT226HE: Quick Answers
Which has more horsepower, the Bobcat CT1021 or the LS Tractor MT226HE?
The LS Tractor MT226HE leads on engine hp at 24.6 hp hp, compared to 21 hp hp for the Bobcat CT1021.
Which has more PTO horsepower, the Bobcat CT1021 or the LS Tractor MT226HE?
The LS Tractor MT226HE leads on pto hp at 17.1 hp hp, compared to 16.3 hp hp for the Bobcat CT1021.
Which has more loader lift capacity, the Bobcat CT1021 or the LS Tractor MT226HE?
The LS Tractor MT226HE leads on loader lift at 1,965 lb lb, compared to 608 lb lb for the Bobcat CT1021.
Which has more three-point hitch lift capacity, the Bobcat CT1021 or the LS Tractor MT226HE?
The LS Tractor MT226HE leads on 3-pt lift (24 in) at 1,433 lb lb, compared to 700 lb lb for the Bobcat CT1021.
