24 months / 1,500 hours (whichever occurs first) - covers defects in material and workmanship
7-Year Limited Powertrain Warranty
Pump Type
Gear
Not Published
Steering Flow
N/A
3.8 gpm
Implement Flow
6.5 gpm (24.5 Lpm)
7.6 gpm
Total Hydraulic Flow
7.2 gpm
11.4 gpm
Hydraulic System Type
Open Center
Open Center, full-live hydraulic with position control
Rear Remote Hydraulic Flow
NOT FOUND
Not Published
Overall Hydraulic Pump Flow
7.2 gpm
11.4 gpm
No. of Optional Remote Valves
1 Pair
Single or dual
No. of Standard Remote Valves
1
Not Published
PTO Rear
540 rpm
540 rpm @ 2837 rpm
PTO Type
Independent
Independent Wet Clutch
Lift Control Type
Hydraulic Position Control System
Position Control
Hitch Lift Capacity
700 lb.
Not Published
Mid-PTO Availability
Standard: 2200 rpm
Optional; 2500 rpm @ 2837 rpm
Category, 3-Point Hitch
Category 1 Limited
CAT I with check chains
Hitch Lift Capacity (at 24”)
700 lb
771 lb
R3 Turf - Rear
26X12.00-12
26X12-12
R3 Turf - Front
18X8.5-10
18X8.5-10
Tire Size & Options
Front AG. (TURF, INDUSTRIAL) 18X8.5-10; Rear AG. (TURF, INDUSTRIAL) 26X12.00-12
R3 Turf, R4 Industrial
R4 Industrial - Rear
26X12.00-12
26X12-12
R4 Industrial - Front
18X8.5-10
18X8.5-10
R1 Agricultural - Rear
26X12.00-12
Not Published
R1 Agricultural - Front
18X8.5-10
Not Published
Coolant Capacity
2.0 (1.9) qts (L)
Not Published
Crankcase Capacity
5.2 (4.9) qts (L)
Not Published
Fuel Tank Capacity
6.7 gal.
6.6 gal
Front Axle Fluid Capacity
NOT FOUND
Not Published
Transmission / Hydraulic System Capacity
NOT FOUND
Not Published
Loader Model
FL6
—
Loader Lift Height
71.9 in.
68 in
Loader Breakout Force
1554 lb.
1433 lb
Quick Attach Loader System
Standard Quick Attach Mounting System
L11: Skid-steer couplers (skid-steer style quick attach) for superfast hookups.
Loader Lift Capacity (Full Height)
608 lb.
794 lb
Clutch
Clutch-free (Hydrostatic)
Not Applicable
No. of Speeds
2
Infinite / 2 ranges
Transmission Type
2-Range HST
HST
Max Travel Speed (Forward)
11.1 mph (17.8 km/hr.)
7.3 mph
Max Travel Speed (Reverse)
7.6 mph (12.2 km/hr.)
Not Published
Differential Lock & Limited Slip Options
Std
Not Published
Brakes
Wet Multi-disc
Single Pedal
Steering
Hydrostatic Power Steering
Hydrostatic Power Steering
Frame Type
Not Published
Not Published
Front Axle Type
Not Published
Not Published
Drawbar Capacity
7.7 kN / 1730 lb
Not Published
Front Axle Rating
Not Published
Not Published
Seat Suspension & Adjustability
Suspension Seat ■
Not Published
Wheelbase
55.1 in.
55.1 in
Overall Width
46.0 in.
46.3 in
Ground Clearance
6.3 in.
6.7 in
Height to Top of ROPS
87.6 in.
86.6 in
Height to Top of Cab Model
NOT FOUND — no source lists a cab-model height. The CT1021 is an open-station (two-post folding ROPS) machine; a Field Cab is a dealer-installed option only, and no cab height spec was found in any source.
Not Applicable
Height to Top of ROPS (folded)
NOT FOUND — no source explicitly lists the folded ROPS height. The only height figure available across all sources is Height (ROPS) [upright]: 87.6 in (2225 mm)
Not Published
Min. Turn Radius without Brakes
100.0 in.
Not Published
Overall Length with 3-Point Hitch
99.3 in.
100.4 in

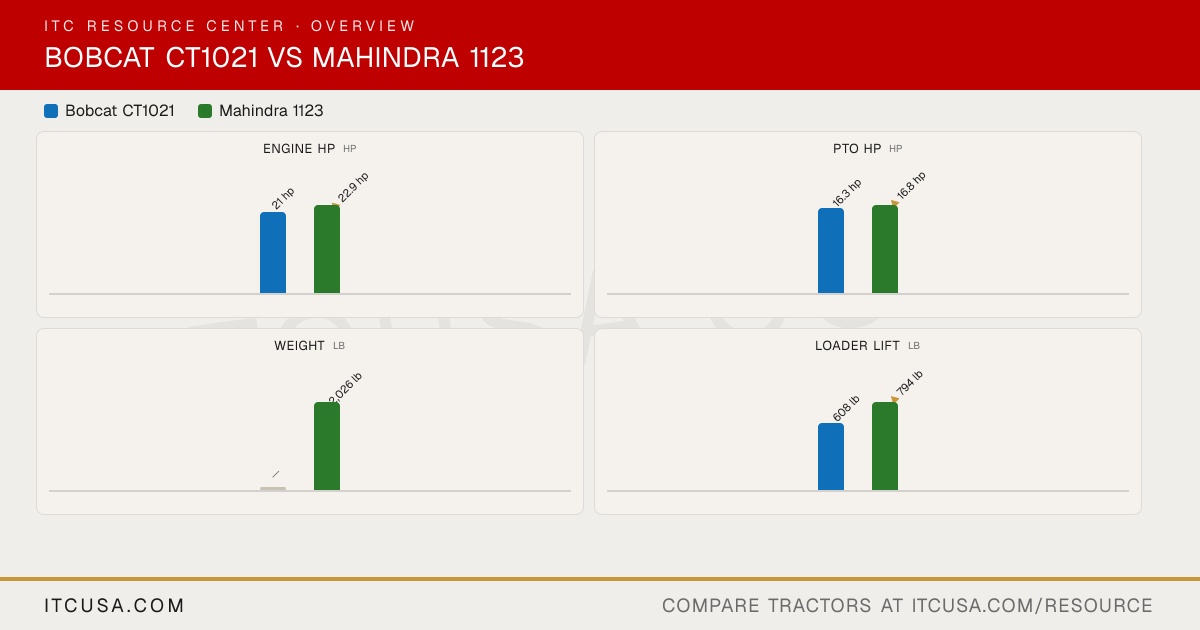

Bobcat CT1021 vs Mahindra 1123: Quick Answers
Which has more horsepower, the Bobcat CT1021 or the Mahindra 1123?
The Mahindra 1123 leads on engine hp at 22.9 hp hp, compared to 21 hp hp for the Bobcat CT1021.
Which has more PTO horsepower, the Bobcat CT1021 or the Mahindra 1123?
The Mahindra 1123 leads on pto hp at 16.8 hp hp, compared to 16.3 hp hp for the Bobcat CT1021.
Which has more loader lift capacity, the Bobcat CT1021 or the Mahindra 1123?
The Mahindra 1123 leads on loader lift at 794 lb lb, compared to 608 lb lb for the Bobcat CT1021.
Which has more three-point hitch lift capacity, the Bobcat CT1021 or the Mahindra 1123?
The Mahindra 1123 leads on 3-pt lift (24 in) at 771 lb lb, compared to 700 lb lb for the Bobcat CT1021.
