24 months / 1,500 hours (whichever occurs first) - covers defects in material and workmanship
—
Pump Type
Gear
—
Steering Flow
N/A
—
Implement Flow
6.5 gpm (24.5 Lpm)
—
Total Hydraulic Flow
7.2 gpm
—
Hydraulic System Type
Open Center
—
Rear Remote Hydraulic Flow
NOT FOUND
—
Overall Hydraulic Pump Flow
7.2 gpm
—
No. of Optional Remote Valves
1 Pair
—
No. of Standard Remote Valves
1
1DA
PTO Rear
540 rpm
540
PTO Type
Independent
Mechanical
Lift Control Type
Hydraulic Position Control System
—
Hitch Lift Capacity
700 lb.
1323 lbs 1,322.8 lb
Mid-PTO Availability
Standard: 2200 rpm
—
Category, 3-Point Hitch
Category 1 Limited
I
Hitch Lift Capacity (at 24”)
700 lb
—
R3 Turf - Rear
26X12.00-12
—
R3 Turf - Front
18X8.5-10
—
Tire Size & Options
Front AG. (TURF, INDUSTRIAL) 18X8.5-10; Rear AG. (TURF, INDUSTRIAL) 26X12.00-12
—
R4 Industrial - Rear
26X12.00-12
—
R4 Industrial - Front
18X8.5-10
—
R1 Agricultural - Rear
26X12.00-12
280/70R18
R1 Agricultural - Front
18X8.5-10
6.5/80-12
Coolant Capacity
2.0 (1.9) qts (L)
—
Crankcase Capacity
5.2 (4.9) qts (L)
—
Fuel Tank Capacity
6.7 gal.
6.9 gal
Front Axle Fluid Capacity
NOT FOUND
—
Transmission / Hydraulic System Capacity
NOT FOUND
—
Loader Model
FL6
3200 / 3200V
Loader Lift Height
71.9 in.
85
Loader Breakout Force
1554 lb.
1058 / 1146
Quick Attach Loader System
Standard Quick Attach Mounting System
—
Loader Lift Capacity (Full Height)
608 lb.
926 / 1411
Clutch
Clutch-free (Hydrostatic)
Single Clutch
No. of Speeds
2
6
Transmission Type
2-Range HST
6-speed gear
Max Travel Speed (Forward)
11.1 mph (17.8 km/hr.)
—
Max Travel Speed (Reverse)
7.6 mph (12.2 km/hr.)
—
Differential Lock & Limited Slip Options
Std
mechanical rear
Brakes
Wet Multi-disc
Wet disc brakes
Steering
Hydrostatic Power Steering
Power steering
Frame Type
Not Published
Two-post folding ROPS
Front Axle Type
Not Published
—
Drawbar Capacity
7.7 kN / 1730 lb
—
Front Axle Rating
Not Published
—
Seat Suspension & Adjustability
Suspension Seat ■
—
Wheelbase
55.1 in.
61.4 inches 61 in
Overall Width
46.0 in.
—
Ground Clearance
6.3 in.
—
Height to Top of ROPS
87.6 in.
—
Height to Top of Cab Model
NOT FOUND — no source lists a cab-model height. The CT1021 is an open-station (two-post folding ROPS) machine; a Field Cab is a dealer-installed option only, and no cab height spec was found in any source.
—
Height to Top of ROPS (folded)
NOT FOUND — no source explicitly lists the folded ROPS height. The only height figure available across all sources is Height (ROPS) [upright]: 87.6 in (2225 mm)
—
Min. Turn Radius without Brakes
100.0 in.
—
Overall Length with 3-Point Hitch
99.3 in.
—

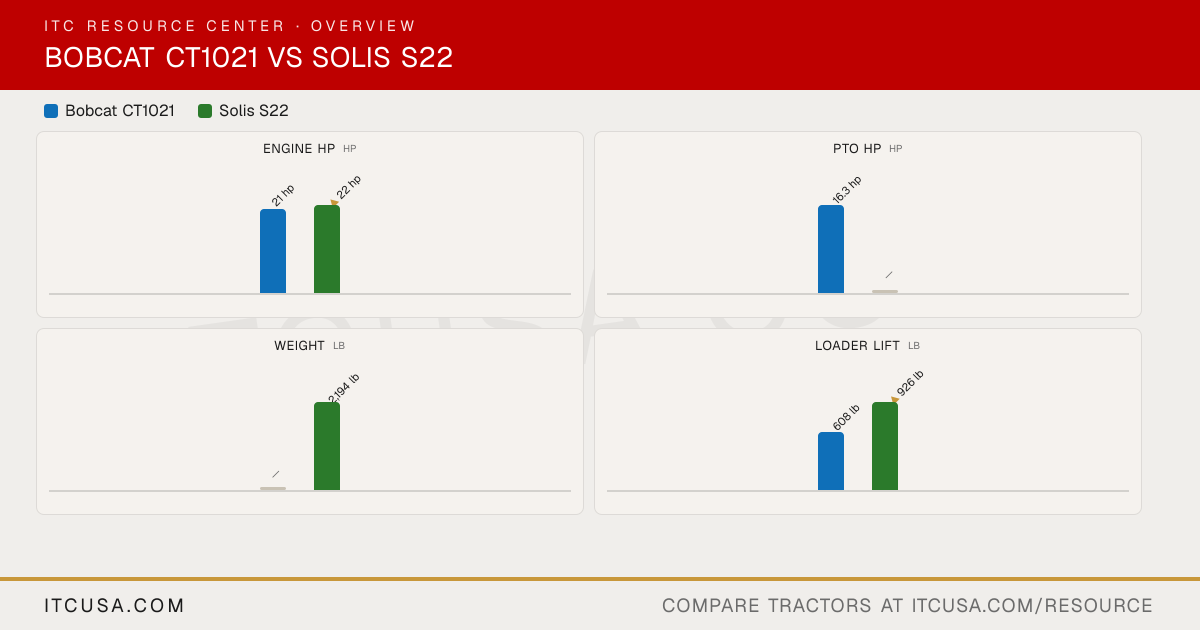

Bobcat CT1021 vs Solis S22: Quick Answers
Which has more horsepower, the Bobcat CT1021 or the Solis S22?
The Solis S22 leads on engine hp at 22 hp hp, compared to 21 hp hp for the Bobcat CT1021.
Which has more loader lift capacity, the Bobcat CT1021 or the Solis S22?
The Solis S22 leads on loader lift at 926 lb lb, compared to 608 lb lb for the Bobcat CT1021.
Which has more three-point hitch lift capacity, the Bobcat CT1021 or the Solis S22?
The Solis S22 leads on 3-pt lift (24 in) at 1,323 lb lb, compared to 700 lb lb for the Bobcat CT1021.
