High-back seat with armrests on spring suspension platform; fore-and-aft adjustment; swivels for backhoe operation
Wheelbase
55.1 in.
63.0 in.
Overall Width
46.0 in.
54.6 in. with R4 Tires
Ground Clearance
6.3 in.
8.5 in. with R4 Tires
Height to Top of ROPS
87.6 in.
85.8 in. with R4 Tires
Height to Top of Cab Model
NOT FOUND — no source lists a cab-model height. The CT1021 is an open-station (two-post folding ROPS) machine; a Field Cab is a dealer-installed option only, and no cab height spec was found in any source.
Not Applicable
Height to Top of ROPS (folded)
NOT FOUND — no source explicitly lists the folded ROPS height. The only height figure available across all sources is Height (ROPS) [upright]: 87.6 in (2225 mm)
70.4 in. with Folded ROPS, R4 Tires, Top of Steering Wheel
Min. Turn Radius without Brakes
100.0 in.
8.5 ft. (2.6 m)
Overall Length with 3-Point Hitch
99.3 in.
105.8 in.

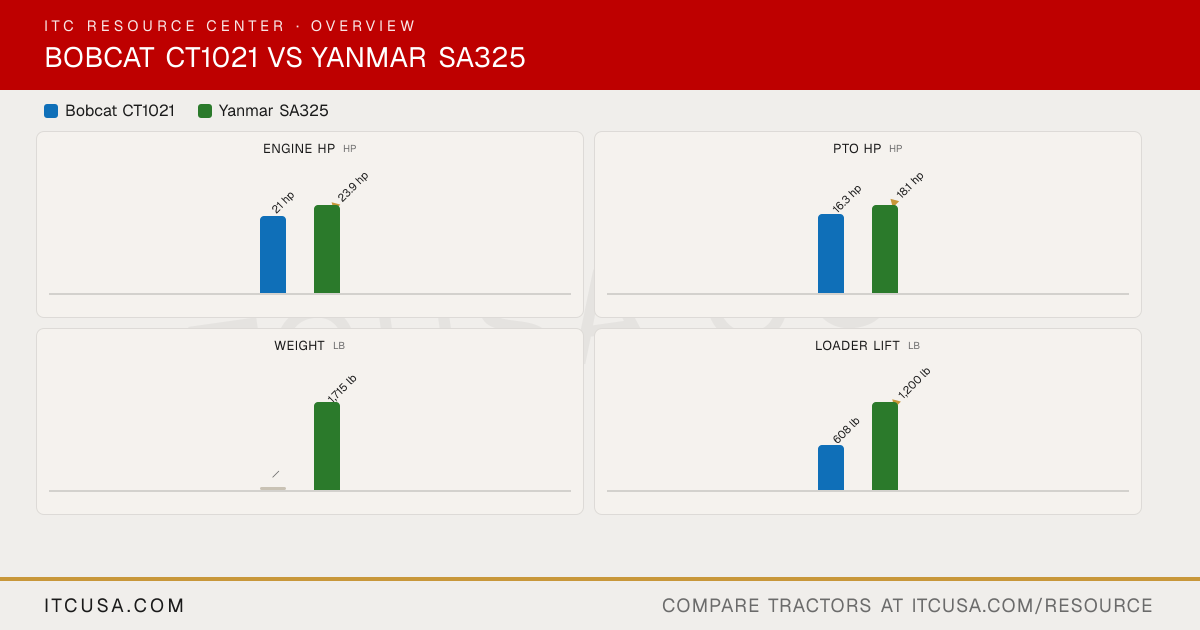

Bobcat CT1021 vs Yanmar SA325: Quick Answers
Which has more horsepower, the Bobcat CT1021 or the Yanmar SA325?
The Yanmar SA325 leads on engine hp at 23.9 hp hp, compared to 21 hp hp for the Bobcat CT1021.
Which has more PTO horsepower, the Bobcat CT1021 or the Yanmar SA325?
The Yanmar SA325 leads on pto hp at 18.1 hp hp, compared to 16.3 hp hp for the Bobcat CT1021.
Which has more loader lift capacity, the Bobcat CT1021 or the Yanmar SA325?
The Yanmar SA325 leads on loader lift at 1,200 lb lb, compared to 608 lb lb for the Bobcat CT1021.
Which has more three-point hitch lift capacity, the Bobcat CT1021 or the Yanmar SA325?
The Yanmar SA325 leads on 3-pt lift (24 in) at 1,209 lb lb, compared to 700 lb lb for the Bobcat CT1021.
