24 months / 1,500 hours (whichever occurs first) - covers defects in material and workmanship
Tractor: 24 months or 2,000 hours; Powertrain: 10 years or 3,000 hours; Attachments: 1-year limited warranty
Pump Type
Gear
Not Published
Steering Flow
N/A
3.7 gpm
Implement Flow
6.5 gpm (24.5 Lpm)
4.3 gpm
Total Hydraulic Flow
7.2 gpm
8 gpm
Hydraulic System Type
Open Center
Open center
Rear Remote Hydraulic Flow
NOT FOUND
Not Applicable
Overall Hydraulic Pump Flow
7.2 gpm
8 gpm
No. of Optional Remote Valves
1 Pair
Not Published
No. of Standard Remote Valves
1
Not Published
PTO Rear
540 rpm
554 rpm @ 3,200 engine rpm
PTO Type
Independent
Independent (hydraulic clutch)
Lift Control Type
Hydraulic Position Control System
Position control
Hitch Lift Capacity
700 lb.
Not Published
Mid-PTO Availability
Standard: 2200 rpm
Standard
Category, 3-Point Hitch
Category 1 Limited
Limited Category I
Hitch Lift Capacity (at 24”)
700 lb
1,209 lb
R3 Turf - Rear
26X12.00-12
36x14.00-15 4PR
R3 Turf - Front
18X8.5-10
23x8.50-12 4PR
Tire Size & Options
Front AG. (TURF, INDUSTRIAL) 18X8.5-10; Rear AG. (TURF, INDUSTRIAL) 26X12.00-12
R3 Turf; R4 Industrial
R4 Industrial - Rear
26X12.00-12
14-17.5 6PR
R4 Industrial - Front
18X8.5-10
23x8.50-12 4PR
R1 Agricultural - Rear
26X12.00-12
Not Applicable
R1 Agricultural - Front
18X8.5-10
Not Applicable
Coolant Capacity
2.0 (1.9) qts (L)
3.0 qt
Crankcase Capacity
5.2 (4.9) qts (L)
3.6 qt
Fuel Tank Capacity
6.7 gal.
6.1 gal
Front Axle Fluid Capacity
NOT FOUND
3.7 qt
Transmission / Hydraulic System Capacity
NOT FOUND
4.1 gal
Loader Model
FL6
—
Loader Lift Height
71.9 in.
79 in
Loader Breakout Force
1554 lb.
2,090 lb
Quick Attach Loader System
Standard Quick Attach Mounting System
YL210: YANMAR quick attachment system
Loader Lift Capacity (Full Height)
608 lb.
1,200 lb
Clutch
Clutch-free (Hydrostatic)
Not Applicable
No. of Speeds
2
Unlimited (hydrostatic); 2 ranges (High/Low)
Transmission Type
2-Range HST
Hydrostatic transmission, dual range speeds
Max Travel Speed (Forward)
11.1 mph (17.8 km/hr.)
13.1 mph
Max Travel Speed (Reverse)
7.6 mph (12.2 km/hr.)
9.1 mph
Differential Lock & Limited Slip Options
Std
Differential lock
Brakes
Wet Multi-disc
Wet disc
Steering
Hydrostatic Power Steering
Hydrostatic power steering
Frame Type
Not Published
Full-frame chassis
Front Axle Type
Not Published
Not Published
Drawbar Capacity
7.7 kN / 1730 lb
Not Published
Front Axle Rating
Not Published
Not Published
Seat Suspension & Adjustability
Suspension Seat ■
Not Published
Wheelbase
55.1 in.
63 in
Overall Width
46.0 in.
54.1 in
Ground Clearance
6.3 in.
9.9 in
Height to Top of ROPS
87.6 in.
87.2 in
Height to Top of Cab Model
NOT FOUND — no source lists a cab-model height. The CT1021 is an open-station (two-post folding ROPS) machine; a Field Cab is a dealer-installed option only, and no cab height spec was found in any source.
Not Applicable
Height to Top of ROPS (folded)
NOT FOUND — no source explicitly lists the folded ROPS height. The only height figure available across all sources is Height (ROPS) [upright]: 87.6 in (2225 mm)
71.8 in
Min. Turn Radius without Brakes
100.0 in.
8.5 ft (2.6 m)
Overall Length with 3-Point Hitch
99.3 in.
105.8 in

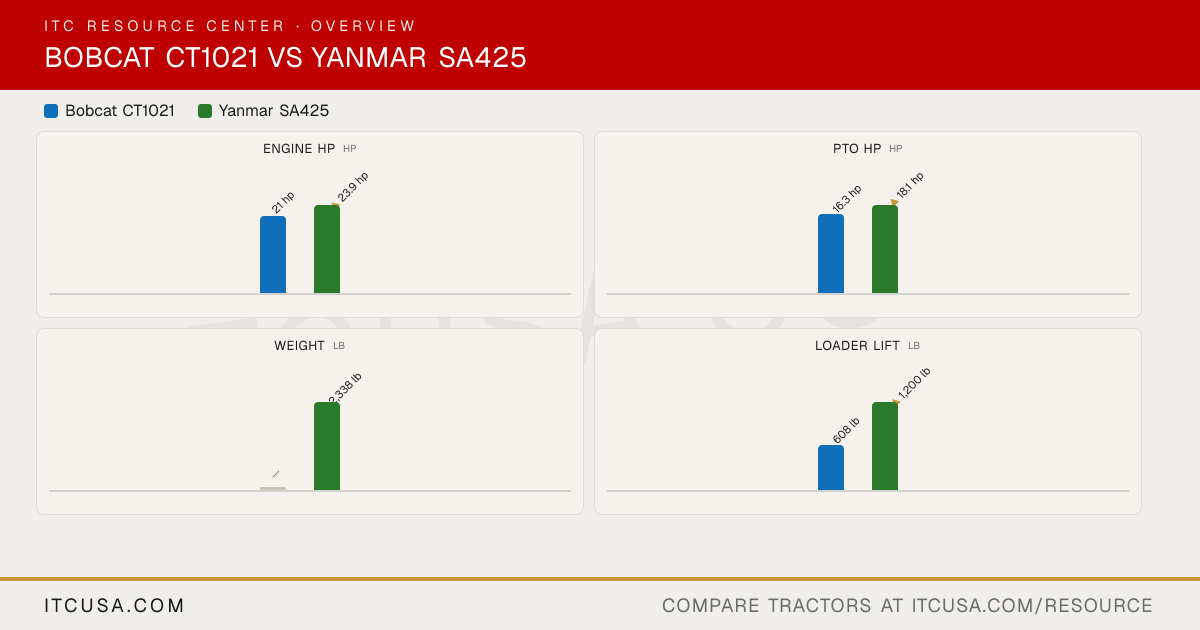

Bobcat CT1021 vs Yanmar SA425: Quick Answers
Which has more horsepower, the Bobcat CT1021 or the Yanmar SA425?
The Yanmar SA425 leads on engine hp at 23.9 hp hp, compared to 21 hp hp for the Bobcat CT1021.
Which has more PTO horsepower, the Bobcat CT1021 or the Yanmar SA425?
The Yanmar SA425 leads on pto hp at 18.1 hp hp, compared to 16.3 hp hp for the Bobcat CT1021.
Which has more loader lift capacity, the Bobcat CT1021 or the Yanmar SA425?
The Yanmar SA425 leads on loader lift at 1,200 lb lb, compared to 608 lb lb for the Bobcat CT1021.
Which has more three-point hitch lift capacity, the Bobcat CT1021 or the Yanmar SA425?
The Yanmar SA425 leads on 3-pt lift (24 in) at 1,209 lb lb, compared to 700 lb lb for the Bobcat CT1021.
