Which has more horsepower, the Bobcat CT1025 or the TYM 2400?

The Bobcat CT1025 leads on engine hp at 24.5 hp hp, compared to 24 hp hp for the TYM 2400.

Which has more PTO horsepower, the Bobcat CT1025 or the TYM 2400?

The TYM 2400 leads on pto hp at 21 hp hp, compared to 18.8 hp hp for the Bobcat CT1025.

Which has more loader lift capacity, the Bobcat CT1025 or the TYM 2400?

The TYM 2400 leads on loader lift at 1,314 lb lb, compared to 608 lb lb for the Bobcat CT1025.

Which has more three-point hitch lift capacity, the Bobcat CT1025 or the TYM 2400?

The TYM 2400 leads on 3-pt lift (24 in) at 974 lb lb, compared to 700 lb lb for the Bobcat CT1025.

Bobcat CT1025 vs TYM 2400

Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.

Across 8 measurable specs, the TYM 2400 leads 7 categories to 1. Machine pages: Bobcat CT1025 and TYM 2400.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Spec	Bobcat CT1025	TYM 2400
Engine HP (hp)	▲ 24.5 hp	24 hp
PTO HP (hp)	18.8 hp	▲ 21 hp
Weight (lb)	2,127 lb	—
Loader Lift (lb)	608 lb	▲ 1,314 lb
3-Pt Lift (24 in) (lb)	700 lb	▲ 974 lb
Lift Height (in)	71.9 in	▲ 88.3 in
Breakout Force (lbf)	1,554 lbf	▲ 1,960 lbf
Hydraulic Flow (gpm)	6.5 gpm	▲ 7.9 gpm
Travel Speed (mph)	11.1 mph	▲ 12.1 mph

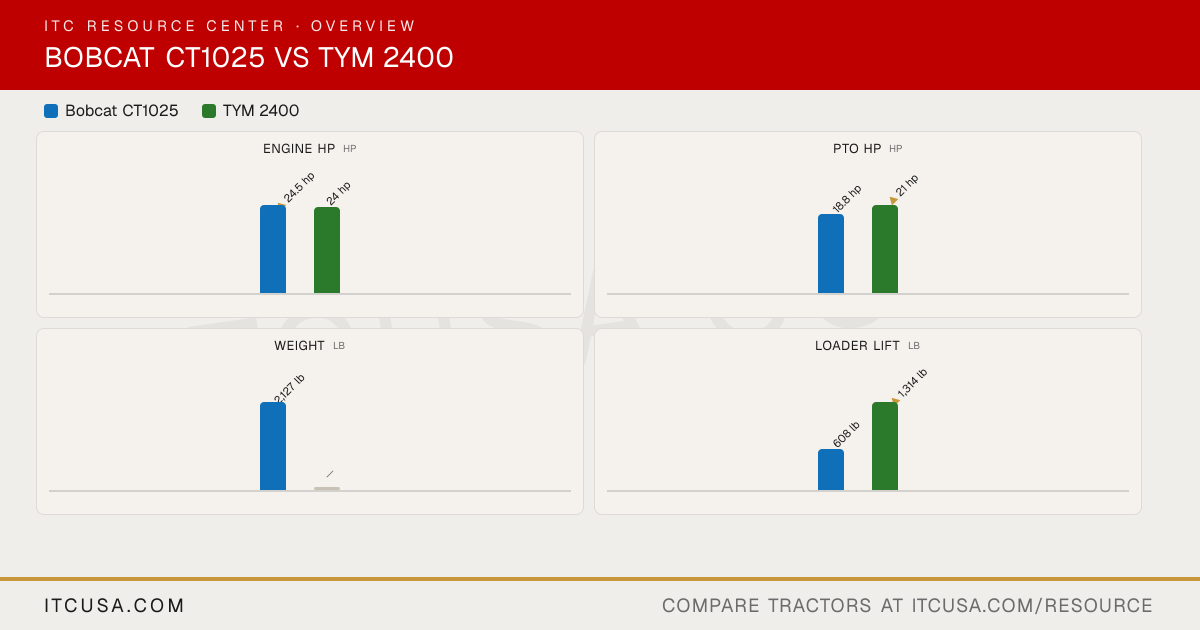

The headline numbers at a glance.

Bobcat CT1025TYM 2400

Engine HPhp

▲24.5 hp

24 hp

PTO HPhp

18.8 hp

▲21 hp

Weightlb

2,127 lb

—

Loader Liftlb

608 lb

▲1,314 lb

3-Pt Lift (24 in)lb

700 lb

▲974 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	BobcatCT1025	TYM2400


PTO Power	18.8 hp	21 hp
Alternator	alternator	60 A, 12 V
Air Cleaner	Dry type, replaceable	Dry element
Engine Type	Diesel	3-cylinder, naturally aspirated diesel
Fuel System	Diesel, Common Rail Direct Injection (CRDI)	IDI
Displacement	69.01 in³	71.7 in³
Engine Model	Shibaura 0.3 gal 3-cyl diesel	—
No. of Cylinders	3	3
Rated Engine Speed	2600 rpm	2850 rpm
Cooling System Type	water cooled	Not Published
Engine Manufacturer	Shibaura	TYM
Engine Power (Gross)	24.5 hp	24 hp
Engine Emissions Constraints	Tier 4	Tier 4

Weight with ROPS and Loader	2,127 LB Approximate Operating Weight	Not Published
Weight with Cab and Loader	1652.00 KG	Not Applicable

Warranty Length & Coverage	24 months or 1,500 hours (whichever occurs first)	Up to 2 years or until the 2,000 hours mark, bumper-to-bumper warranty; 3000 hours maximum coverage period for parts and labour on drivetrains or powertrains; 12-months warranty period for implements, including loaders and backhoes.

Pump Type	Gear	Dual gear pump
Steering Flow	16.90	3.3 gpm
Implement Flow	26.00	4.7 gpm
Total Hydraulic Flow	6.5 gpm	7.9 gpm
Hydraulic System Type	Open Center	Open center
Rear Remote Hydraulic Flow	NOT FOUND	Not Published
Overall Hydraulic Pump Flow	7.2 gpm	7.9 gpm
No. of Optional Remote Valves	1 Pair	2
No. of Standard Remote Valves	Std. (4 port)	0

PTO Rear	540 rpm	540/1000 rpm
PTO Type	Independent	Live
Lift Control Type	Hydraulic Position Control System	Position control
Hitch Lift Capacity	700 lb.	1,499 lb
Mid-PTO Availability	Standard: 2200 rpm	Not Published
Category, 3-Point Hitch	Category 1 Limited	Category I
Hitch Lift Capacity (at 24”)	700 lb	974 lb

R3 Turf - Rear	41x14.0-20 R3	33x12.50-16.5
R3 Turf - Front	27x8.5-15 R3	23x8.50-12
Tire Size & Options	Agricultural, Turf, Industrial	R1 Agricultural, R3 Turf, R4 Industrial
R4 Industrial - Rear	15-19.5 R4	12-16.5
R4 Industrial - Front	25x8.5-14 R4	23x8.50-12
R1 Agricultural - Rear	26x12.00-12	9.5-16
R1 Agricultural - Front	18x8.5-10	6.0-12

Coolant Capacity	0.9 gal	5.3 qt
Crankcase Capacity	2 gal	2.9 qt
Fuel Tank Capacity	7.1 gal.	6.0 gal
Front Axle Fluid Capacity	1.6 gal	3.5 qt
Transmission / Hydraulic System Capacity	5.8 gal	3.7 gal

Loader Model	FL6	—
Loader Lift Height	71.9 in.	88.3 in
Loader Breakout Force	1554 lb.	1,960 lb
Quick Attach Loader System	Standard Quick Attach Mounting System	BL100S: Skid-type quick attachment
Loader Lift Capacity (Full Height)	608 lb.	1,314 lb

Clutch	Clutch-free (hydrostatic)	Dry single plate
No. of Speeds	2-Range	Gear: F6 x R2; HST: 2-Range
Transmission Type	Hydrostatic	Gear: Constant Mesh; HST: HST
Max Travel Speed (Forward)	11.1 mph (17.8 km/hr.)	Gear: 9.9 mph; HST: 12.1 mph
Max Travel Speed (Reverse)	7.6 mph (12.2 km/hr.)	Not Published
Differential Lock & Limited Slip Options	Std	Not Published

Brakes	Wet Multi-disc	Wet, multi disc
Steering	Hydrostatic Power Steering	Hydrostatic
Frame Type	4x4 MFWD 4WD	Not Published
Front Axle Type	MFWD	4WD
Drawbar Capacity	650.00 KG	Not Published
Front Axle Rating	Manual(MEC)	Not Published
Seat Suspension & Adjustability	Std	Comfortable suspension seat

Wheelbase	55.1 in.	59.1 in
Overall Width	46.0 in.	44.2 in
Ground Clearance	6.3 in.	12.1 in
Height to Top of ROPS	87.56 in	87.3 in
Height to Top of Cab Model	Not Published	Not Applicable
Height to Top of ROPS (folded)	2520.00 MM	Not Published
Min. Turn Radius without Brakes	8.3 ft. (2.54 m)	115.4 in
Overall Length with 3-Point Hitch	99.3 in.	120.3 in
