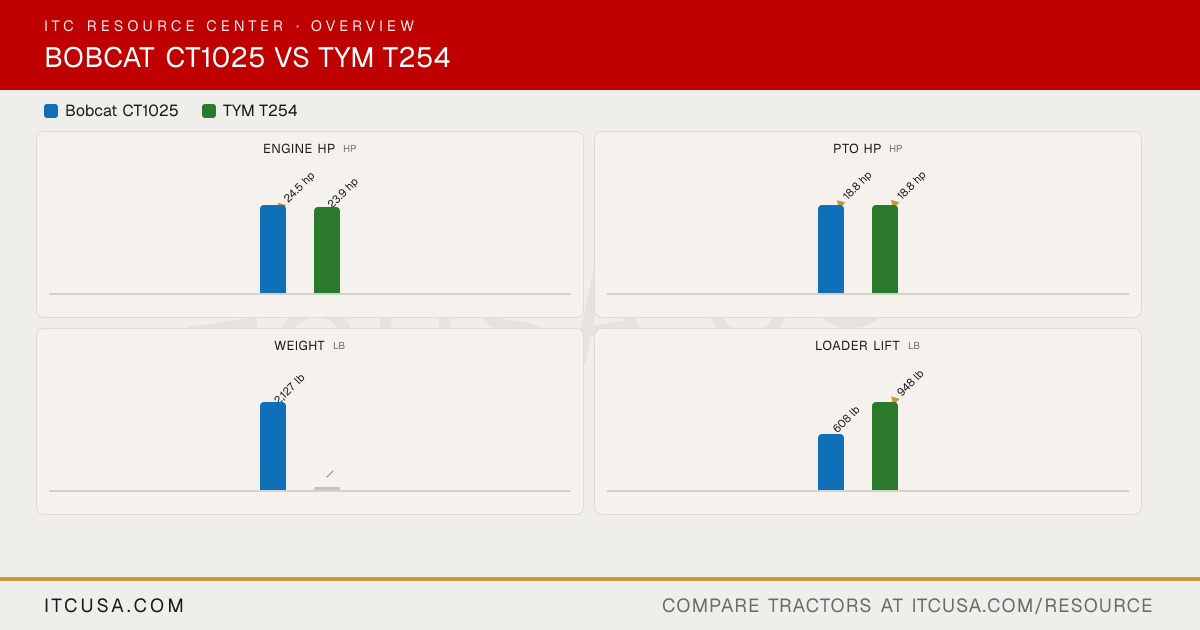

Every published spec, side by side, including the details the graphs above don't chart.
Spec
BobcatCT1025
TYMT254
PTO Power
18.8 hp
18.8 hp
Alternator
alternator
40 A, 12 V
Air Cleaner
Dry type, replaceable
Single dry
Engine Type
Diesel
3-cylinder, naturally aspirated diesel
Fuel System
Diesel, Common Rail Direct Injection (CRDI)
IDI
Displacement
69.01 in³
77.3 in³
Engine Model
Shibaura 0.3 gal 3-cyl diesel
—
No. of Cylinders
3
3
Rated Engine Speed
2600 rpm
3000 rpm
Cooling System Type
water cooled
Water-cooled
Engine Manufacturer
Shibaura
Yanmar
Engine Power (Gross)
24.5 hp
23.9 hp
Engine Emissions Constraints
Tier 4
Tier 4
Weight with ROPS and Loader
2,127 LB Approximate Operating Weight
Not Published
Weight with Cab and Loader
1652.00 KG
Not Published
Warranty Length & Coverage
24 months or 1,500 hours (whichever occurs first)
Up to 2 years or until the 2,000 hours mark, bumper-to-bumper warranty; 3000 hours maximum coverage period for parts and labour on drivetrains or powertrains; 12-months warranty period for implements, including loaders and backhoes.
Pump Type
Gear
Single gear pump
Steering Flow
16.90
2.8 gpm
Implement Flow
26.00
4.2 gpm
Total Hydraulic Flow
6.5 gpm
6.9 gpm
Hydraulic System Type
Open Center
Open center
Rear Remote Hydraulic Flow
NOT FOUND
Not Published
Overall Hydraulic Pump Flow
7.2 gpm
6.9 gpm
No. of Optional Remote Valves
1 Pair
1
No. of Standard Remote Valves
Std. (4 port)
0
PTO Rear
540 rpm
540 rpm
PTO Type
Independent
Independent
Lift Control Type
Hydraulic Position Control System
Position control
Hitch Lift Capacity
700 lb.
1,214 lb
Mid-PTO Availability
Standard: 2200 rpm
Available
Category, 3-Point Hitch
Category 1 Limited
Category I (Narrow)
Hitch Lift Capacity (at 24”)
700 lb
1,101 lb
R3 Turf - Rear
41x14.0-20 R3
29x12.50-15
R3 Turf - Front
27x8.5-15 R3
20x8.00-10
Tire Size & Options
Agricultural, Turf, Industrial
R1 Agricultural, R3 Turf, R4 Industrial; R4 Lg Industrial (optional)
