Bobcat CT5545 vs Kioti NS4710

Across 9 measurable specs, the Bobcat CT5545 leads 7 categories to 2. Machine pages: Bobcat CT5545 and Kioti NS4710.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

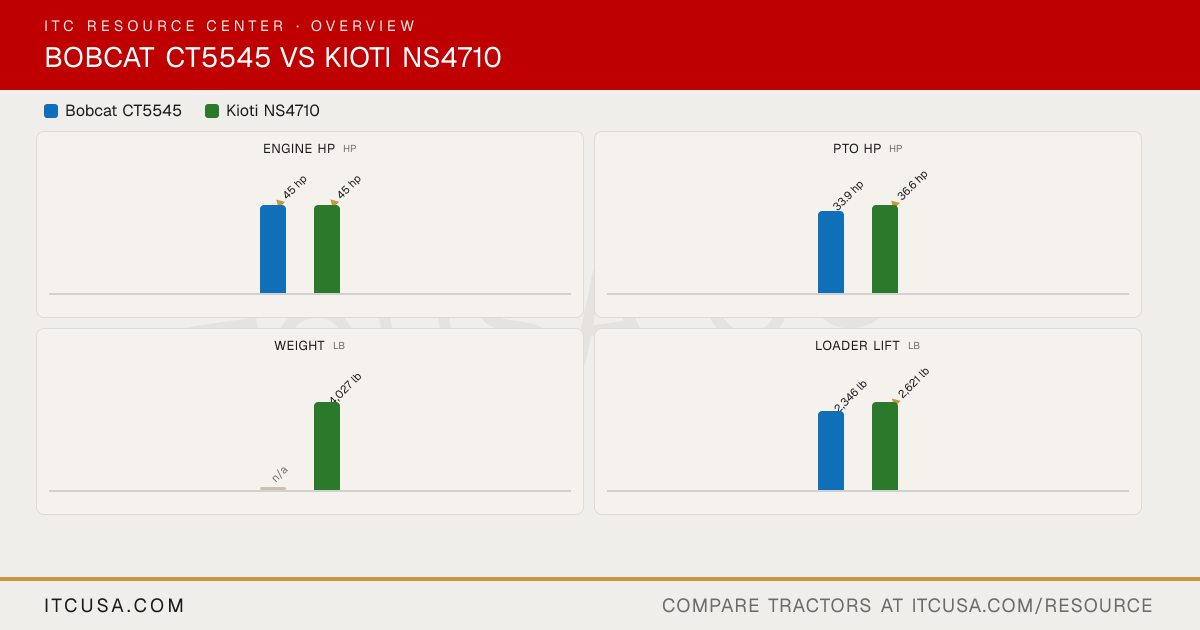

Category Verdict

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	BobcatCT5545	KiotiNS4710

▶Engine
Engine Manufacturer	Daedong	KIOTI (Daedong)
Engine Model	3FT-TH4-U	3HT-S4TM45A
Engine Type	Turbocharged diesel	KIOTI 3 Cylinder, In-Line Vertical, Water-Cooled 4-Cycle Turbo Diesel, CRDI
No. of Cylinders	3	3
Displacement	111.4 in³	111.4 in³
Rated Engine Speed	2750 rpm	2600 rpm
Engine Power (Gross)	45 hp	44.9 hp
PTO Power	33.9 hp	36.6 hp
Engine Emissions Constraints	Tier 4	Tier 4
Cooling System Type	Liquid-cooled	Water-cooled
Air Cleaner	Not Published	Dry type element
Fuel System	Not Published	Common Rail Direct Injection (CRDI)
Alternator	Not Published	Not Published
▶Hydraulics
Pump Type	Not Published	Gear
Implement Flow	9.6 gpm	9.61 gpm
Steering Flow	8.2 gpm	6.87 gpm
Total Hydraulic Flow	17.8 gpm	16.5 gpm
Overall Hydraulic Pump Flow	17.8 gpm	16.5 gpm
Hydraulic System Type	Not Published	Open Center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	1 pair	1
No. of Optional Remote Valves	2 pairs (2nd and 3rd pairs optional)	1
▶Fluid Capacity
Fuel Tank Capacity	14.8 gal	13.2 gal
Coolant Capacity	Not Published	2.03 gal
Crankcase Capacity	Not Published	1.95 gal
Transmission / Hydraulic System Capacity	Not Published	11.36 gal
Front Axle Fluid Capacity	Not Published	2.25 gal
▶PTO & Hitch
PTO Type	Independent	Independent
PTO Rear	540 rpm	540 rpm
Mid-PTO Availability	Optional: 2103 rpm	Optional (2,000 rpm)
Category, 3-Point Hitch	Category I	Category I
Hitch Lift Capacity	3177 lb	2,940 lb
Hitch Lift Capacity (at 24”)	3177 lb	2,493 lb
Lift Control Type	Position with draft control	Position with Draft Control
▶Transmission & Drivetrain
Transmission Type	3-Range E-HST (electronic hydrostatic)	Synchro Shuttle
No. of Speeds	Infinite forward and reverse	12x12
Max Travel Speed (Forward)	17.5 mph	16.7 mph
Max Travel Speed (Reverse)	17.5 mph	14.8 mph
Clutch	Not Published	Dry Type Single Stage
Differential Lock & Limited Slip Options	Rear differential lock (standard)	Mechanical differential lock: rear standard
▶Chassis, Steering & Controls
Frame Type	Not Published	Not Published
Steering	Hydrostatic power steering	Hydrostatic Power Steering
Brakes	Wet multi-disc	Wet disc type
Seat Suspension & Adjustability	Adjustable seat (standard)	Deluxe suspension seat
Front Axle Type	Four-wheel drive (standard)	Not Published
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published
▶Dimensions & Maneuverability
Overall Length with 3-Point Hitch	139.6 in	136.4 in
Overall Width	74.2 in	67.1 in
Wheelbase	75.6 in	75.5 in
Ground Clearance	13.0 in	13.4 in
Min. Turn Radius without Brakes	117.6 in (with brake applied)	11.0 ft (with brake applied)
Height to Top of ROPS	Not Published	98.4 in
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	94.2 in	Not Published
▶Weight
Tractor Weight (Base)	4685 lb	4,027 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published
▶Tire Options
Tire Size & Options	R1 Agricultural; R3 Turf; R4 Industrial	R1 Agricultural, R3 Turf, R4 Industrial
R1 Agricultural - Front	8-16	8-16
R1 Agricultural - Rear	13.6-24	13.6-24
R3 Turf - Front	29-12.5-15	29-12.5-15
R3 Turf - Rear	21.5L-16.1	21.5L-16.1
R4 Industrial - Front	10-16.5	10-16.5
R4 Industrial - Rear	14.9-24	14.9-24
▶Loader & Attachments
Quick Attach Loader System	Front-end loader with standard quick attach mounting system	Built-in parking stand; quick attach/detach; single-lever joystick control with float; bucket level indicator
Loader Model	FL9-5	KL5810
Loader Lift Height	108.6 in	KL5810: 106.3 in (to pivot pin)
Loader Lift Capacity (Full Height)	2346 lb	KL5810: 2,621 lb (at pivot pin, max height)
Loader Breakout Force	4524 lbf	KL5810: 3,896 lb (at pivot pin)
▶Warranty
Warranty Length & Coverage	24 months or 1500 hours (whichever occurs first); powertrain 48 months (consumer use) or 36 months / 2000 hours (business use)	Non-commercial tractor: 24 months, unlimited hours, parts & labor; non-commercial powertrain (engine and driveline): 72 months, unlimited hours, parts & labor
▶ITC Company Accessories
Accessories that fit	Brush Guard Side Guards $199.99 Bolt onto the side of the OEM guard and offers wrap around protection	Kioti NS/NX Brush Screen Insert $265.00 Brush Guard Side Guards $199.99 Bolt onto the side of the OEM guard and offers wrap around protection

Find a dealer near you→Find a KIOTI dealer near you→

Bobcat CT5545 vs Kioti NS4710: Quick Answers

Which has more horsepower, the Bobcat CT5545 or the Kioti NS4710?

The Bobcat CT5545 leads on engine hp at 45 hp hp, compared to 44.9 hp hp for the Kioti NS4710.

Which has more PTO horsepower, the Bobcat CT5545 or the Kioti NS4710?

The Kioti NS4710 leads on pto hp at 36.6 hp hp, compared to 33.9 hp hp for the Bobcat CT5545.

Which is heavier, the Bobcat CT5545 or the Kioti NS4710?

The Bobcat CT5545 leads on weight at 4,685 lb lb, compared to 4,027 lb lb for the Kioti NS4710.

Which has more loader lift capacity, the Bobcat CT5545 or the Kioti NS4710?

The Kioti NS4710 leads on loader lift at 2,621 lb lb, compared to 2,346 lb lb for the Bobcat CT5545.

Which has more three-point hitch lift capacity, the Bobcat CT5545 or the Kioti NS4710?

The Bobcat CT5545 leads on 3-pt lift (24 in) at 3,177 lb lb, compared to 2,493 lb lb for the Kioti NS4710.
