Which has more horsepower, the Case IH Farmall 25SC or the Kubota BX2680?

The Kubota BX2680 leads on engine hp at 24.8 hp hp, compared to 24.7 hp hp for the Case IH Farmall 25SC.

Which has more PTO horsepower, the Case IH Farmall 25SC or the Kubota BX2680?

The Kubota BX2680 leads on pto hp at 19.5 hp hp, compared to 17.2 hp hp for the Case IH Farmall 25SC.

Which has more loader lift capacity, the Case IH Farmall 25SC or the Kubota BX2680?

The Kubota BX2680 leads on loader lift at 739 lb lb, compared to 693 lb lb for the Case IH Farmall 25SC.

Which has more three-point hitch lift capacity, the Case IH Farmall 25SC or the Kubota BX2680?

The Case IH Farmall 25SC leads on 3-pt lift (24 in) at 728 lb lb, compared to 680 lb lb for the Kubota BX2680.

Case IH Farmall 25SC vs Kubota BX2680

Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.

Across 7 measurable specs, the Kubota BX2680 leads 4 categories to 3. Machine pages: Case IH Farmall 25SC and Kubota BX2680.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Spec	Case IH Farmall 25SC	Kubota BX2680
Engine HP (hp)	24.7 hp	▲ 24.8 hp
PTO HP (hp)	17.2 hp	▲ 19.5 hp
Loader Lift (lb)	693 lb	▲ 739 lb
3-Pt Lift (24 in) (lb)	▲ 728 lb	680 lb
Lift Height (in)	▲ 72 in	71 in
Breakout Force (lbf)	▲ 1,426 lbf	1,286 lbf
Hydraulic Flow (gpm)	4.6 gpm	▲ 6.2 gpm
Travel Speed (mph)	—	8.1 mph

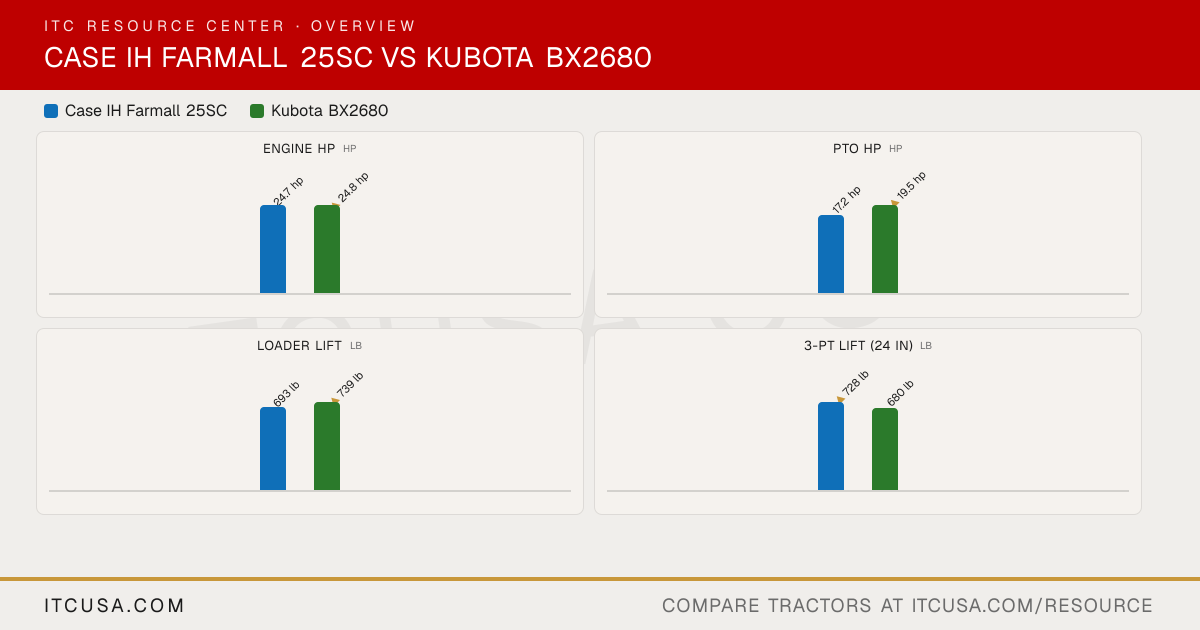

The headline numbers at a glance.

Case IH Farmall 25SCKubota BX2680

Engine HPhp

24.7 hp

▲24.8 hp

PTO HPhp

17.2 hp

▲19.5 hp

Weightlb

—

Loader Liftlb

693 lb

▲739 lb

3-Pt Lift (24 in)lb

▲728 lb

680 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Case IHFarmall 25SC	KubotaBX2680


PTO Power	17.2 hp	19.5 hp
Alternator	Not Published	40 A, 12 V
Air Cleaner	Not Published	Sheet net and replaceable treated paper element, spin on oil filter
Engine Type	Diesel, naturally aspirated	Liquid cooled, 4-cycle, diesel
Fuel System	Indirect injection	Direct injection
Displacement	76.9 in³	61.1 in³
No. of Cylinders	3	3
Rated Engine Speed	3000 rpm	3200 rpm
Cooling System Type	Water-cooled	Water with pressurized radiator, reverse air-flow design
Engine Manufacturer	Not Published	Kubota
Engine Power (Gross)	24.7 hp	24.8 hp
Engine Emissions Constraints	Tier 4	Not Published

Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Applicable

Warranty Length & Coverage	Not Published	Non-Commercial Home & Residential Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 72 months or 2000 hours. Commercial Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 36 months or 2000 hours.

Pump Type	Not Published	Open center tandem pump gear type
Steering Flow	Not Published	1.0 gpm
Implement Flow	4.6 gpm	5.2 gpm
Total Hydraulic Flow	Not Published	6.2 gpm
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
Overall Hydraulic Pump Flow	Not Published	6.2 gpm
No. of Optional Remote Valves	1	2 (optional; ISO 7241-1 series A or B)
No. of Standard Remote Valves	0	Not Published

PTO Rear	540 rpm	STD (540 rpm)
PTO Type	Independent electro-hydraulic engagement; Mid-PTO: standard (2,500 rpm)	Live independent PTO (with hydraulic clutch)
Lift Control Type	Not Published	Not Published
Hitch Lift Capacity	992 lb	Not Published
Mid-PTO Availability	Standard	STD (2500 rpm)
Category, 3-Point Hitch	Category 1	SAE Category I Optional
Hitch Lift Capacity (at 24”)	728 lb @ 24 in behind ball ends	680 lb

R3 Turf - Rear	Not Published	26X12-12
R3 Turf - Front	Not Published	18X8.5-10
Tire Size & Options	Not Published	R1 Agricultural, R3 Turf, R4 Industrial
R4 Industrial - Rear	Not Published	26X12-12
R4 Industrial - Front	Not Published	18X8.5-10
R1 Agricultural - Rear	Not Published	26X12-12
R1 Agricultural - Front	Not Published	18X8.5-10

Coolant Capacity	Not Published	Not Published
Crankcase Capacity	Not Published	Not Published
Fuel Tank Capacity	6.6 gal	6.6 gal
Front Axle Fluid Capacity	Not Published	Not Published
Transmission / Hydraulic System Capacity	Not Published	Not Published

Loader Lift Height	Up to 72 in	71.0 in
Loader Breakout Force	Up to 1,426 lb	1,286 lbf (bucket pivot pin)
Quick Attach Loader System	L320S	Swift-Tach Loader (LA344S - Two Lever Quick Attach Bucket)
Loader Lift Capacity (Full Height)	Up to 693 lb	739 lb

Clutch	Wet clutch	Dry type single plate - Main clutch 9.45 in.
No. of Speeds	Not Published	2 Range (Low-High)
Transmission Type	2-Range Hydrostatic Synchro Shuttle (wet clutch)	Hydrostatic transmission
Max Travel Speed (Forward)	Not Published	8.1 mph
Max Travel Speed (Reverse)	Not Published	6.2 mph
Differential Lock & Limited Slip Options	Mechanical differential lock	Rear differential lock standard

Brakes	Not Published	Mechanical, wet disc type
Steering	Not Published	Integral power steering
Frame Type	Not Published	Not Published
Front Axle Type	Mechanical Front Drive (MFD)	4WD: Bevel gear front axle, non-adjustable tread spacing
Drawbar Capacity	Not Published	Max. drawbar load @ hitch: 550 lb.
Front Axle Rating	Not Published	Not Published
Seat Suspension & Adjustability	Not Published	Not Published

Wheelbase	56 in	55.1 in
Overall Width	Not Published	45.1 in
Ground Clearance	Not Published	6.5 in
Height to Top of ROPS	87.4 in	83.1 in
Height to Top of Cab Model	Not Applicable	Not Applicable
Height to Top of ROPS (folded)	62.4 in	Not Published
Min. Turn Radius without Brakes	Not Published	7.5 ft (2.3 m)
Overall Length with 3-Point Hitch	97 in	99.0 in (w/ Front guard)

Case IH Farmall 25SC vs Kubota BX2680: Quick Answers

Which has more horsepower, the Case IH Farmall 25SC or the Kubota BX2680?: The Kubota BX2680 leads on engine hp at 24.8 hp hp, compared to 24.7 hp hp for the Case IH Farmall 25SC.
Which has more PTO horsepower, the Case IH Farmall 25SC or the Kubota BX2680?: The Kubota BX2680 leads on pto hp at 19.5 hp hp, compared to 17.2 hp hp for the Case IH Farmall 25SC.
Which has more loader lift capacity, the Case IH Farmall 25SC or the Kubota BX2680?: The Kubota BX2680 leads on loader lift at 739 lb lb, compared to 693 lb lb for the Case IH Farmall 25SC.
Which has more three-point hitch lift capacity, the Case IH Farmall 25SC or the Kubota BX2680?: The Case IH Farmall 25SC leads on 3-pt lift (24 in) at 728 lb lb, compared to 680 lb lb for the Kubota BX2680.
