Case IH Farmall 25SC vs New Holland Workmaster 25S

Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.

Across 8 measurable specs, the New Holland Workmaster 25S leads 4 categories to 0 (4 tied). Machine pages: Case IH Farmall 25SC and New Holland Workmaster 25S.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Spec	Case IH Farmall 25SC	New Holland Workmaster 25S
Engine HP (hp)	24.7 hp	24.7 hp
PTO HP (hp)	17.2 hp	17.2 hp
Weight (lb)	1,444 lb	▲ 1,805 lb
Loader Lift (lb)	693 lb	▲ 1,005 lb
3-Pt Lift (24 in) (lb)	728 lb	728 lb
Lift Height (in)	72 in	72 in
Breakout Force (lbf)	1,426 lbf	▲ 2,078 lbf
Hydraulic Flow (gpm)	4.6 gpm	▲ 6.7 gpm
Travel Speed (mph)	n/a	9.1 mph

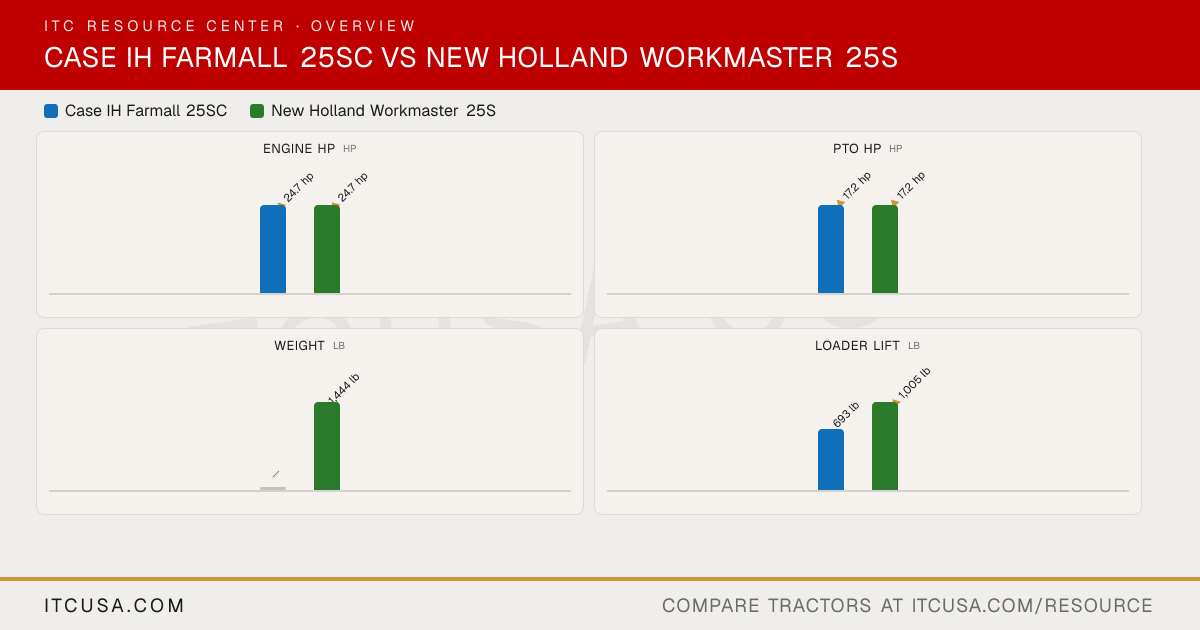

The headline numbers at a glance.

Case IH Farmall 25SCNew Holland Workmaster 25S

Engine HPhp

▲24.7 hp

PTO HPhp

▲17.2 hp

Weightlb

1,444 lb

▲1,805 lb

ROPSCab

Loader Liftlb

693 lb

▲1,005 lb

3-Pt Lift (24 in)lb

▲728 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Case IHFarmall 25SC	New HollandWorkmaster 25S


Engine Manufacturer	Yanmar	Yanmar
Engine Model	Not Published	3TNV80F
Engine Type	3-cylinder, Tier 4 B/Final, indirect-injection, water-cooled	3-cylinder, naturally aspirated, liquid-cooled diesel
No. of Cylinders	3	3
Displacement	77.3 in³	77.3 in³
Rated Engine Speed	3000 rpm	3000 rpm
Engine Power (Gross)	24.7 hp	24.7 hp
PTO Power	17.2 hp	17.2 hp
Engine Emissions Constraints	Tier 4	Tier 4
Cooling System Type	Water-cooled	Pressurized liquid with recirculating bypass
Air Cleaner	Not Published	Single-element
Fuel System	Indirect injection	In-line injection pump, indirect injection (swirl chamber)
Alternator	Not Published	50 A

Pump Type	Not Published	Gear
Implement Flow	4.6 gpm	4.6 gpm
Steering Flow	Not Published	2.1 gpm
Total Hydraulic Flow	Not Published	6.7 gpm
Overall Hydraulic Pump Flow	Not Published	6.7 gpm
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	None	Not Published
No. of Optional Remote Valves	1	1

Fuel Tank Capacity	6.6 gal	6.6 gal
Coolant Capacity	Not Published	3.49 qt
Crankcase Capacity	Not Published	3 qt
Transmission / Hydraulic System Capacity	Not Published	3.3 gal
Front Axle Fluid Capacity	Not Published	0.5 gal

PTO Type	Independent, electro-hydraulic engagement	Independent, electro-hydraulic engagement
PTO Rear	540 rpm	540 rpm
Mid-PTO Availability	Standard, 2,500 rpm	Standard (2,500 rpm)
Category, 3-Point Hitch	Category I	Category I
Hitch Lift Capacity	992 lb	992 lb
Hitch Lift Capacity (at 24”)	728 lb	728 lb
Lift Control Type	Not Published	Lift-hold-lower

Transmission Type	2-range hydrostatic (wet clutch)	2-range hydrostatic, dual pedal
No. of Speeds	Infinite, 2-range hydrostatic	Infinite (2 ranges)
Max Travel Speed (Forward)	Not Published	9.1 mph
Max Travel Speed (Reverse)	Not Published	5.5 mph
Clutch	Wet clutch	Not Published
Differential Lock & Limited Slip Options	Mechanical differential lock	Mechanical, foot-operated rear differential lock

Frame Type	Not Published	Not Published
Steering	Power steering	Hydrostatic power steering
Brakes	Not Published	Wet, multi-disc
Seat Suspension & Adjustability	Not Published	Deluxe high-back seat with armrests and adjustable backrest
Front Axle Type	Mechanical Front Drive (MFD)	4WD
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published

Overall Width	Not Published	46.7 in
Wheelbase	56 in	56.1 in
Ground Clearance	Not Published	12 in
Min. Turn Radius without Brakes	Not Published	94 in
Height to Top of ROPS	87.4 in	87.4 in
Height to Top of ROPS (folded)	62.4 in	64 in
Height to Top of Cab Model	Not Applicable	87.4 in
Overall Length	97 in	97.4 in

Tractor Weight (Base)	1,444 lb	ROPS: 1,444 lb; Cab: 1,805 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published

Tire Size & Options	R3 turf or R4 industrial	R3 Turf, R4 Industrial
R1 Agricultural - Front	Not Published	Not Published
R1 Agricultural - Rear	Not Published	Not Published
R3 Turf - Front	18x8.5-10	18x8.50-10
R3 Turf - Rear	26x12-12	26x12.0-12
R4 Industrial - Front	18x8.5-10	18x8.50-10
R4 Industrial - Rear	26x12-12	26x12.0-12

Quick Attach Loader System	L320S	100LC: Quick Mount system, no tools needed
Loader Model	L320S	100LC
Loader Lift Height	72 in	100LC: 72 in (at pivot pin)
Loader Lift Capacity (Full Height)	693 lb	100LC: 1,005 lb (at bucket pivot pin, max height)
Loader Breakout Force	1,426 lb	100LC: 2,078 lb (at bucket pivot pin)

Warranty Length & Coverage	Not Published	Basic 2 years or 750 hours; powertrain to 6 years or 1,500 hours total

Find a Case IH dealer near you Find a New Holland dealer near you

Case IH Farmall 25SC vs New Holland Workmaster 25S: Quick Answers

Which has more horsepower, the Case IH Farmall 25SC or the New Holland Workmaster 25S?: They are effectively tied: both machines are rated at 24.7 hp hp for engine hp.
Which has more PTO horsepower, the Case IH Farmall 25SC or the New Holland Workmaster 25S?: They are effectively tied: both machines are rated at 17.2 hp hp for pto hp.
Which is heavier, the Case IH Farmall 25SC or the New Holland Workmaster 25S?: The New Holland Workmaster 25S leads on weight at 1,805 lb lb, compared to 1,444 lb lb for the Case IH Farmall 25SC.
Which has more loader lift capacity, the Case IH Farmall 25SC or the New Holland Workmaster 25S?: The New Holland Workmaster 25S leads on loader lift at 1,005 lb lb, compared to 693 lb lb for the Case IH Farmall 25SC.
Which has more three-point hitch lift capacity, the Case IH Farmall 25SC or the New Holland Workmaster 25S?: They are effectively tied: both machines are rated at 728 lb lb for 3-pt lift (24 in).
