Which has more horsepower, the Bad Boy Tractors 3026 or the New Holland Workmaster 25S?

The New Holland Workmaster 25S leads on engine hp at 24.7 hp hp, compared to 24 hp hp for the Bad Boy Tractors 3026.

Which has more PTO horsepower, the Bad Boy Tractors 3026 or the New Holland Workmaster 25S?

The Bad Boy Tractors 3026 leads on pto hp at 18 hp hp, compared to 17.2 hp hp for the New Holland Workmaster 25S.

Which is heavier, the Bad Boy Tractors 3026 or the New Holland Workmaster 25S?

The Bad Boy Tractors 3026 leads on weight at 1,829.8 lb lb, compared to 1,444 lb lb for the New Holland Workmaster 25S.

Which has more loader lift capacity, the Bad Boy Tractors 3026 or the New Holland Workmaster 25S?

The Bad Boy Tractors 3026 leads on loader lift at 1,314 lb lb, compared to 1,005 lb lb for the New Holland Workmaster 25S.

Which has more three-point hitch lift capacity, the Bad Boy Tractors 3026 or the New Holland Workmaster 25S?

The Bad Boy Tractors 3026 leads on 3-pt lift (24 in) at 974 lb lb, compared to 728 lb lb for the New Holland Workmaster 25S.

Bad Boy Tractors 3026 vs New Holland Workmaster 25S

Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.

Across 9 measurable specs, the Bad Boy Tractors 3026 leads 7 categories to 2. Machine pages: Bad Boy Tractors 3026 and New Holland Workmaster 25S.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Spec	Bad Boy Tractors 3026	New Holland Workmaster 25S
Engine HP (hp)	24 hp	▲ 24.7 hp
PTO HP (hp)	▲ 18 hp	17.2 hp
Weight (lb)	▲ 1,829.8 lb	1,444 lb
Loader Lift (lb)	▲ 1,314 lb	1,005 lb
3-Pt Lift (24 in) (lb)	▲ 974 lb	728 lb
Lift Height (in)	▲ 86 in	72 in
Breakout Force (lbf)	1,960 lbf	▲ 2,078 lbf
Hydraulic Flow (gpm)	▲ 7.4 gpm	6.7 gpm
Travel Speed (mph)	▲ 14.8 mph	9.1 mph

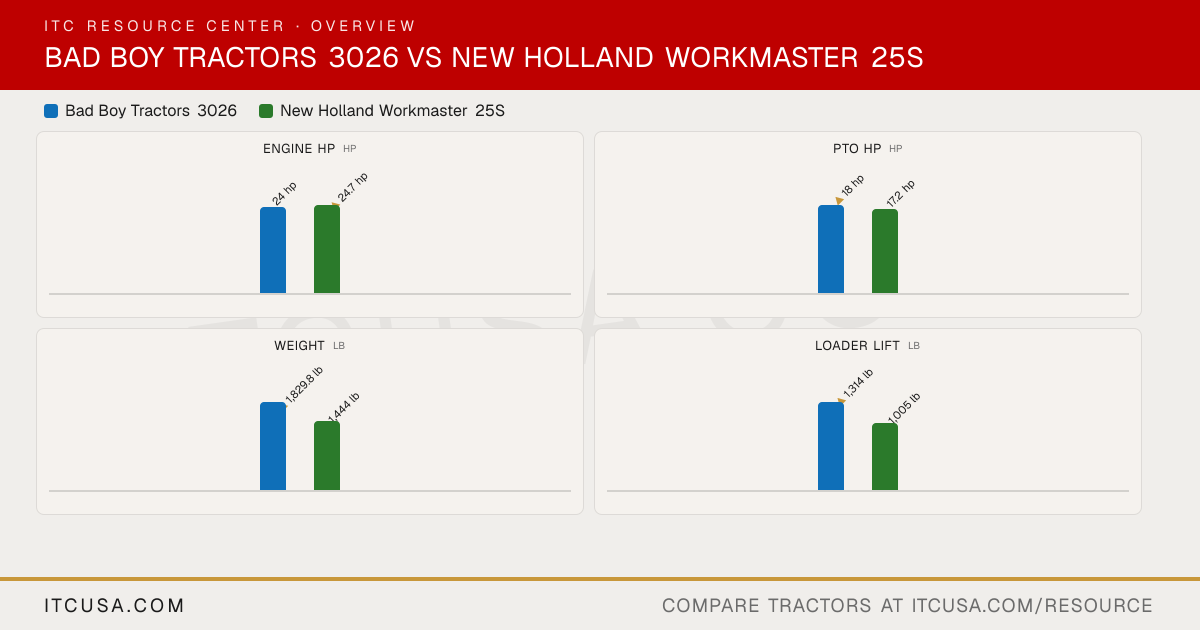

The headline numbers at a glance.

Bad Boy Tractors 3026New Holland Workmaster 25S

Engine HPhp

24 hp

▲24.7 hp

PTO HPhp

▲18 hp

17.2 hp

Weightlb

▲1,829.8 lb

1,444 lb

Loader Liftlb

▲1,314 lb

1,005 lb

3-Pt Lift (24 in)lb

▲974 lb

728 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Bad Boy Tractors3026	New HollandWorkmaster 25S


PTO Power	18 hp	17.2 hp
Alternator	50 A, 12 V	40 A, 12 V
Air Cleaner	Dry, Element	Not Published
Engine Type	3 CYL, Water Cooled, Diesel	3-cylinder, naturally aspirated diesel
Fuel System	Diesel	In-line injection pump
Displacement	71.7 in³	76.9 in³
Engine Model	A1100N2	—
No. of Cylinders	3	3
Rated Engine Speed	2600 rpm	3000 rpm
Cooling System Type	Water Cooled	Pressurized liquid with recirculating bypass
Engine Manufacturer	TYM	Yanmar
Engine Power (Gross)	24 hp	24.7 hp
Engine Emissions Constraints	Final Tier4	Tier 4B Final

Tractor Weight (Base)	1,829.8 lb (1,829 lbs) for 2024H, 2,107.6 lb (2,107 lbs) for 3026H	—
Weight with ROPS and Loader	Not Published	1,444 lb (ROPS tractor only)
Weight with Cab and Loader	2,106 lbs - base tractor with loader, no cab option confirmed for 3026 in available sources	1,805 lb (Cab tractor only)

Warranty Length & Coverage	6-year powertrain warranty	6-year limited warranty (2-year bumper-to-bumper + 4-year powertrain)

Pump Type	Gear type pump with primary and secondary pumps	Gear
Steering Flow	3.1 gpm	2.1 gpm
Implement Flow	4.3 gpm	4.6 gpm
Total Hydraulic Flow	7.4 gpm 28.0 lpm	6.7 gpm
Hydraulic System Type	Power Assisted Hydro-Static	Open center
System Operating Pressure	352.7 lbf/cm² (max operating pressure)	—
Rear Remote Hydraulic Flow	Not Published	Not Published
Overall Hydraulic Pump Flow	7.7 gal per min	6.7 gpm
No. of Optional Remote Valves	Optional (Up To 1)	1
No. of Standard Remote Valves	0	0

PTO Rear	540 / 960 rpm @ 2,600 rpm	540 rpm
PTO Type	Live P.T.O. (6 Spline shaft)	Independent, electro-hydraulic engagement
Lift Control Type	Position control	Lift-hold-lower
Hitch Lift Capacity	1,433 lbs	992 lb at ball ends
Mid-PTO Availability	Option: 2,500 rpm (Mid)	Standard (2,500 rpm)
Category, 3-Point Hitch	Cat 1	Category I
Hitch Lift Capacity (at 24”)	974 lb	728 lb

R3 Turf - Rear	Not Published	26X12.0-12
R3 Turf - Front	Not Published	18X8.50-10
Tire Size & Options	IND (Industrial) Front: 25×8.50-14; IND Rear: 14×17.5	R3 Turf, R4 Industrial
R4 Industrial - Rear	14X17.5	26X12.0-12
R4 Industrial - Front	25X8.50-14	18X8.50-10
R1 Agricultural - Rear	11.2-20 8PR	Not Applicable
R1 Agricultural - Front	7-16 6PR	Not Applicable

Coolant Capacity	1.21 gal	3.5 qt
Crankcase Capacity	0.79 gal	3.0 qt
Fuel Tank Capacity	6.08 gal	6.6 gal
Front Axle Fluid Capacity	0.79 gal	0.5 gal
Transmission / Hydraulic System Capacity	2.90 gal	3.0 gal

Loader Lift Height	86 in.	72 in
Loader Breakout Force	1,960 lbs.	2,078 lb
Quick Attach Loader System	SSQA	100LC: Quick Mount system (no tools)
Loader Lift Capacity (Full Height)	1,314 lbs.	1,005 lb

Clutch	Dry Single Plate	Not Applicable
No. of Speeds	3 Range	Infinite (2-range)
Transmission Type	Hydrostatic (HST)	2-Range Hydrostatic / Dual Pedal
Max Travel Speed (Forward)	14.8 mph	9.1 mph
Max Travel Speed (Reverse)	14.8 mph	5.5 mph
Differential Lock & Limited Slip Options	Differential Lock	Mechanical, foot-operated rear diff lock

Brakes	Wet, Multi-Disc	Wet, multi-disc
Steering	Hydrostatic	Central support, bevel gear type
Frame Type	Steel frame with cast iron axles	Not Published
Front Axle Type	4 Wheel Drive	4WD (FWD)
Drawbar Capacity	Not Published	Not Published
Front Axle Rating	Not Published	Not Published
Seat Suspension & Adjustability	Adjustable seat; flips up and back for rear backhoe operation	Not Published

Wheelbase	65.7"	56.1 in
Overall Width	53.8"	46.7 in
Overall Length	120.7 in for 2024H, 122.9 in for 3026H	—
Ground Clearance	16.4"	12 in
Height to Top of ROPS	91.4"	90 in
Height to Top of Cab Model	Not Applicable	87.4 in
Height to Top of ROPS (folded)	91.4 in - ROPS up (no folded dimension found in available sources)	64 in
Min. Turn Radius without Brakes	46°	94 in
Overall Length with 3-Point Hitch	110 in	97.4 in
