Case IH Farmall 35A vs New Holland Boomer 35

Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.

Across 9 measurable specs, the New Holland Boomer 35 leads 4 categories to 3 (2 tied). Machine pages: Case IH Farmall 35A and New Holland Boomer 35.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Spec	Case IH Farmall 35A	New Holland Boomer 35
Engine HP (hp)	35 hp	35 hp
PTO HP (hp)	▲ 30.1 hp	29.7 hp
Weight (lb)	▲ 3,042 lb	2,870 lb
Loader Lift (lb)	890 lb	▲ 1,822 lb
3-Pt Lift (24 in) (lb)	▲ 1,596 lb	1,345 lb
Lift Height (in)	98 in	▲ 104 in
Breakout Force (lbf)	1,900 lbf	▲ 3,257 lbf
Hydraulic Flow (gpm)	13.3 gpm	▲ 13.5 gpm
Travel Speed (mph)	14.8 mph	14.8 mph

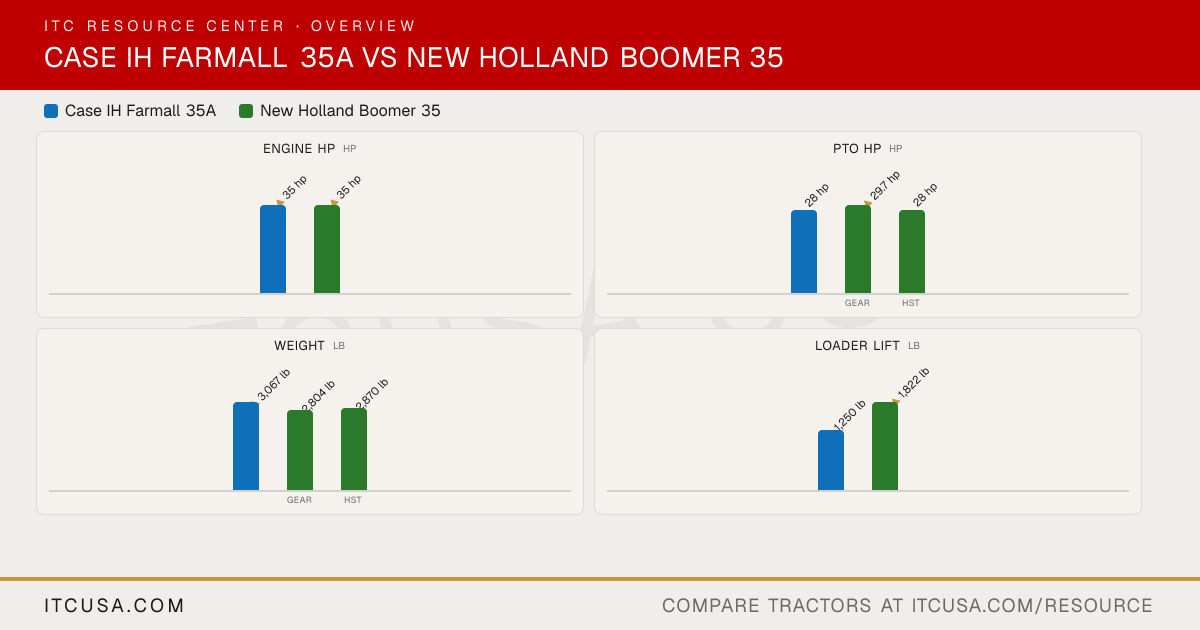

The headline numbers at a glance.

Case IH Farmall 35ANew Holland Boomer 35

Engine HPhp

▲35 hp

PTO HPhp

▲30.1 hp

29.7 hp

28 hp

GearHST

Weightlb

▲3,042 lb

2,804 lb

2,870 lb

GearHST

Loader Liftlb

890 lb

▲1,822 lb

3-Pt Lift (24 in)lb

▲1,596 lb

1,345 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Case IHFarmall 35A	New HollandBoomer 35


Engine Manufacturer	LS Mtron	LS Mtron
Engine Model	Not Published	L3CRV-T5
Engine Type	3-cylinder, Tier 4 B/Final	3-cylinder, turbocharged, liquid-cooled diesel
No. of Cylinders	3	3
Displacement	114.7 in³	114.7 in³
Rated Engine Speed	2600 rpm	2600 rpm
Engine Power (Gross)	35 hp	35 hp
PTO Power	30.1 hp	Gear: 29.7 hp; HST: 28 hp
Engine Emissions Constraints	Tier 4	Tier 4B (final)
Cooling System Type	Not Published	Liquid cooled
Air Cleaner	Not Published	Replaceable primary and inner elements
Fuel System	Not Published	Electronically controlled common rail direct injection
Alternator	85 A, 12 V	70 A, 12 V

Pump Type	Not Published	Gear
Implement Flow	8.4 gpm	8.2 gpm
Steering Flow	Not Published	Gear: 4.2 gpm; HST: 5.3 gpm
Total Hydraulic Flow	13.3 gpm	Gear: 12.4 gpm; HST: 13.5 gpm
Overall Hydraulic Pump Flow	Not Published	Gear: 12.4 gpm; HST: 13.5 gpm
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	0	1
No. of Optional Remote Valves	3	Up to 2 (second valve optional)

Fuel Tank Capacity	12.6 gal	10.5 gal
Coolant Capacity	Not Published	7.5 qt
Crankcase Capacity	Not Published	5.8 qt
Transmission / Hydraulic System Capacity	Not Published	8.5 gal
Front Axle Fluid Capacity	Not Published	6.87 qt

PTO Type	Independent, electro-hydraulic engagement	Independent, electro-hydraulic engagement
PTO Rear	540 rpm	540 rpm
Mid-PTO Availability	Optional, 2,000 rpm	Standard (2000 rpm)
Category, 3-Point Hitch	Category I	Category I
Hitch Lift Capacity	Not Published	1,808 lb
Hitch Lift Capacity (at 24”)	1,596 lb	1,345 lb
Lift Control Type	Mechanical Draft Control (MDC)	Position control (draft control optional)

Transmission Type	3-range hydrostatic (optional)	Gear: 12x12 synchronized shuttle shift (SSS); HST: 3-range hydrostatic, dual pedal
No. of Speeds	3 ranges	Gear: 12F/12R; HST: 3-range
Max Travel Speed (Forward)	14.8 mph (with R4 tires)	Gear: 14.2 mph; HST: 14.8 mph
Max Travel Speed (Reverse)	Not Published	Gear: 13.63 mph; HST: 13.60 mph
Clutch	n/a (no clutch on hydrostatic)	Gear: dry single disc (9.4 in); HST: n/a
Differential Lock & Limited Slip Options	Mechanical differential lock	Mechanical rear differential lock (pedal)

Frame Type	Not Published	Not Published
Steering	Not Published	Power steering
Brakes	Not Published	Wet multi-disc
Seat Suspension & Adjustability	Adjustable suspension seat	Adjustable suspension seat (fore/aft, weight and height adjustment)
Front Axle Type	Mechanical Front Drive (MFD)	Four-wheel drive (FWD)
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published

Overall Width	66.5 in	66.4 in
Wheelbase	66.2 in	66 in
Ground Clearance	Not Published	Not Published
Min. Turn Radius without Brakes	10.5 ft	9.2 ft (with brake applied)
Height to Top of ROPS	96.2 in	92.7 in
Height to Top of ROPS (folded)	74.2 in	Not Published
Height to Top of Cab Model	Not Published	Not Published
Overall Length	119.4 in	119 in

Tractor Weight (Base)	3,042 lb	Gear: 2,804 lb; HST: 2,870 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published

Tire Size & Options	R1 Agricultural, R3 Turf, or R4 Industrial	R1 Agricultural, R3 Turf, R4 Industrial
R1 Agricultural - Front	7x14	7-14
R1 Agricultural - Rear	11.2x24	11.2-24
R3 Turf - Front	25x8.50-14	25x8.50-14
R3 Turf - Rear	41x14.00-20	41x14.00-20
R4 Industrial - Front	25x8.50-14	25x8.50-14
R4 Industrial - Rear	43x16.00-20	43x16.00-20

Quick Attach Loader System	Not Published	Tool-free loader mount; optional skid-steer quick-attach plates
Loader Model	L340A	250TLA
Loader Lift Height	98 in	250TLA: 104 in (at pivot pin)
Loader Lift Capacity (Full Height)	890 lb at 31.5 in forward of pivot pin	250TLA: 1,822 lb (at bucket pivot pin, max height)
Loader Breakout Force	1,900 lb	250TLA: 3,257 lb (at bucket pivot pin)

Warranty Length & Coverage	Basic 2 years; powertrain 4 additional years (6-year total)	Basic 2 years or 750 hours; powertrain 4 more years (6 years or 1,500 hours total)

Find a Case IH dealer near you Find a New Holland dealer near you

Case IH Farmall 35A vs New Holland Boomer 35: Quick Answers

Which has more horsepower, the Case IH Farmall 35A or the New Holland Boomer 35?: They are effectively tied: both machines are rated at 35 hp hp for engine hp.
Which has more PTO horsepower, the Case IH Farmall 35A or the New Holland Boomer 35?: The Case IH Farmall 35A leads on pto hp at 30.1 hp hp, compared to 29.7 hp hp for the New Holland Boomer 35.
Which is heavier, the Case IH Farmall 35A or the New Holland Boomer 35?: The Case IH Farmall 35A leads on weight at 3,042 lb lb, compared to 2,870 lb lb for the New Holland Boomer 35.
Which has more loader lift capacity, the Case IH Farmall 35A or the New Holland Boomer 35?: The New Holland Boomer 35 leads on loader lift at 1,822 lb lb, compared to 890 lb lb for the Case IH Farmall 35A.
Which has more three-point hitch lift capacity, the Case IH Farmall 35A or the New Holland Boomer 35?: The Case IH Farmall 35A leads on 3-pt lift (24 in) at 1,596 lb lb, compared to 1,345 lb lb for the New Holland Boomer 35.

More Head-to-Heads

Category Verdict

Spec	Case IH Farmall 35A	New Holland Boomer 35
Engine HP (hp)	35 hp	35 hp
PTO HP (hp)	▲ 30.1 hp	29.7 hp
Weight (lb)	▲ 3,042 lb	2,870 lb
Loader Lift (lb)	890 lb	▲ 1,822 lb
3-Pt Lift (24 in) (lb)	▲ 1,596 lb	1,345 lb
Lift Height (in)	98 in	▲ 104 in
Breakout Force (lbf)	1,900 lbf	▲ 3,257 lbf
Hydraulic Flow (gpm)	13.3 gpm	▲ 13.5 gpm
Travel Speed (mph)	14.8 mph	14.8 mph

The headline numbers at a glance.

Case IH Farmall 35ANew Holland Boomer 35

Engine HPhp

▲35 hp

PTO HPhp

▲30.1 hp

29.7 hp

28 hp

GearHST

Weightlb

▲3,042 lb

2,804 lb

2,870 lb

GearHST

Loader Liftlb

890 lb

▲1,822 lb

3-Pt Lift (24 in)lb

▲1,596 lb

1,345 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Case IHFarmall 35A	New HollandBoomer 35


Engine Manufacturer	LS Mtron	LS Mtron
Engine Model	Not Published	L3CRV-T5
Engine Type	3-cylinder, Tier 4 B/Final	3-cylinder, turbocharged, liquid-cooled diesel
No. of Cylinders	3	3
Displacement	114.7 in³	114.7 in³
Rated Engine Speed	2600 rpm	2600 rpm
Engine Power (Gross)	35 hp	35 hp
PTO Power	30.1 hp	Gear: 29.7 hp; HST: 28 hp
Engine Emissions Constraints	Tier 4	Tier 4B (final)
Cooling System Type	Not Published	Liquid cooled
Air Cleaner	Not Published	Replaceable primary and inner elements
Fuel System	Not Published	Electronically controlled common rail direct injection
Alternator	85 A, 12 V	70 A, 12 V

Pump Type	Not Published	Gear
Implement Flow	8.4 gpm	8.2 gpm
Steering Flow	Not Published	Gear: 4.2 gpm; HST: 5.3 gpm
Total Hydraulic Flow	13.3 gpm	Gear: 12.4 gpm; HST: 13.5 gpm
Overall Hydraulic Pump Flow	Not Published	Gear: 12.4 gpm; HST: 13.5 gpm
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	0	1
No. of Optional Remote Valves	3	Up to 2 (second valve optional)

Fuel Tank Capacity	12.6 gal	10.5 gal
Coolant Capacity	Not Published	7.5 qt
Crankcase Capacity	Not Published	5.8 qt
Transmission / Hydraulic System Capacity	Not Published	8.5 gal
Front Axle Fluid Capacity	Not Published	6.87 qt

PTO Type	Independent, electro-hydraulic engagement	Independent, electro-hydraulic engagement
PTO Rear	540 rpm	540 rpm
Mid-PTO Availability	Optional, 2,000 rpm	Standard (2000 rpm)
Category, 3-Point Hitch	Category I	Category I
Hitch Lift Capacity	Not Published	1,808 lb
Hitch Lift Capacity (at 24”)	1,596 lb	1,345 lb
Lift Control Type	Mechanical Draft Control (MDC)	Position control (draft control optional)

Transmission Type	3-range hydrostatic (optional)	Gear: 12x12 synchronized shuttle shift (SSS); HST: 3-range hydrostatic, dual pedal
No. of Speeds	3 ranges	Gear: 12F/12R; HST: 3-range
Max Travel Speed (Forward)	14.8 mph (with R4 tires)	Gear: 14.2 mph; HST: 14.8 mph
Max Travel Speed (Reverse)	Not Published	Gear: 13.63 mph; HST: 13.60 mph
Clutch	n/a (no clutch on hydrostatic)	Gear: dry single disc (9.4 in); HST: n/a
Differential Lock & Limited Slip Options	Mechanical differential lock	Mechanical rear differential lock (pedal)

Frame Type	Not Published	Not Published
Steering	Not Published	Power steering
Brakes	Not Published	Wet multi-disc
Seat Suspension & Adjustability	Adjustable suspension seat	Adjustable suspension seat (fore/aft, weight and height adjustment)
Front Axle Type	Mechanical Front Drive (MFD)	Four-wheel drive (FWD)
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published

Overall Width	66.5 in	66.4 in
Wheelbase	66.2 in	66 in
Ground Clearance	Not Published	Not Published
Min. Turn Radius without Brakes	10.5 ft	9.2 ft (with brake applied)
Height to Top of ROPS	96.2 in	92.7 in
Height to Top of ROPS (folded)	74.2 in	Not Published
Height to Top of Cab Model	Not Published	Not Published
Overall Length	119.4 in	119 in

Tractor Weight (Base)	3,042 lb	Gear: 2,804 lb; HST: 2,870 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published

Tire Size & Options	R1 Agricultural, R3 Turf, or R4 Industrial	R1 Agricultural, R3 Turf, R4 Industrial
R1 Agricultural - Front	7x14	7-14
R1 Agricultural - Rear	11.2x24	11.2-24
R3 Turf - Front	25x8.50-14	25x8.50-14
R3 Turf - Rear	41x14.00-20	41x14.00-20
R4 Industrial - Front	25x8.50-14	25x8.50-14
R4 Industrial - Rear	43x16.00-20	43x16.00-20

Quick Attach Loader System	Not Published	Tool-free loader mount; optional skid-steer quick-attach plates
Loader Model	L340A	250TLA
Loader Lift Height	98 in	250TLA: 104 in (at pivot pin)
Loader Lift Capacity (Full Height)	890 lb at 31.5 in forward of pivot pin	250TLA: 1,822 lb (at bucket pivot pin, max height)
Loader Breakout Force	1,900 lb	250TLA: 3,257 lb (at bucket pivot pin)

Warranty Length & Coverage	Basic 2 years; powertrain 4 additional years (6-year total)	Basic 2 years or 750 hours; powertrain 4 more years (6 years or 1,500 hours total)

Find a Case IH dealer near you Find a New Holland dealer near you

Case IH Farmall 35A vs New Holland Boomer 35: Quick Answers

Which has more horsepower, the Case IH Farmall 35A or the New Holland Boomer 35?

They are effectively tied: both machines are rated at 35 hp hp for engine hp.

Which has more PTO horsepower, the Case IH Farmall 35A or the New Holland Boomer 35?

The Case IH Farmall 35A leads on pto hp at 30.1 hp hp, compared to 29.7 hp hp for the New Holland Boomer 35.

Which is heavier, the Case IH Farmall 35A or the New Holland Boomer 35?

The Case IH Farmall 35A leads on weight at 3,042 lb lb, compared to 2,870 lb lb for the New Holland Boomer 35.

Which has more loader lift capacity, the Case IH Farmall 35A or the New Holland Boomer 35?

The New Holland Boomer 35 leads on loader lift at 1,822 lb lb, compared to 890 lb lb for the Case IH Farmall 35A.

Which has more three-point hitch lift capacity, the Case IH Farmall 35A or the New Holland Boomer 35?

The Case IH Farmall 35A leads on 3-pt lift (24 in) at 1,596 lb lb, compared to 1,345 lb lb for the New Holland Boomer 35.
