Bad Boy Tractors 3026 vs New Holland Boomer 35

Across 9 measurable specs, the New Holland Boomer 35 leads 8 categories to 0 (1 tied). Machine pages: Bad Boy Tractors 3026 and New Holland Boomer 35.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

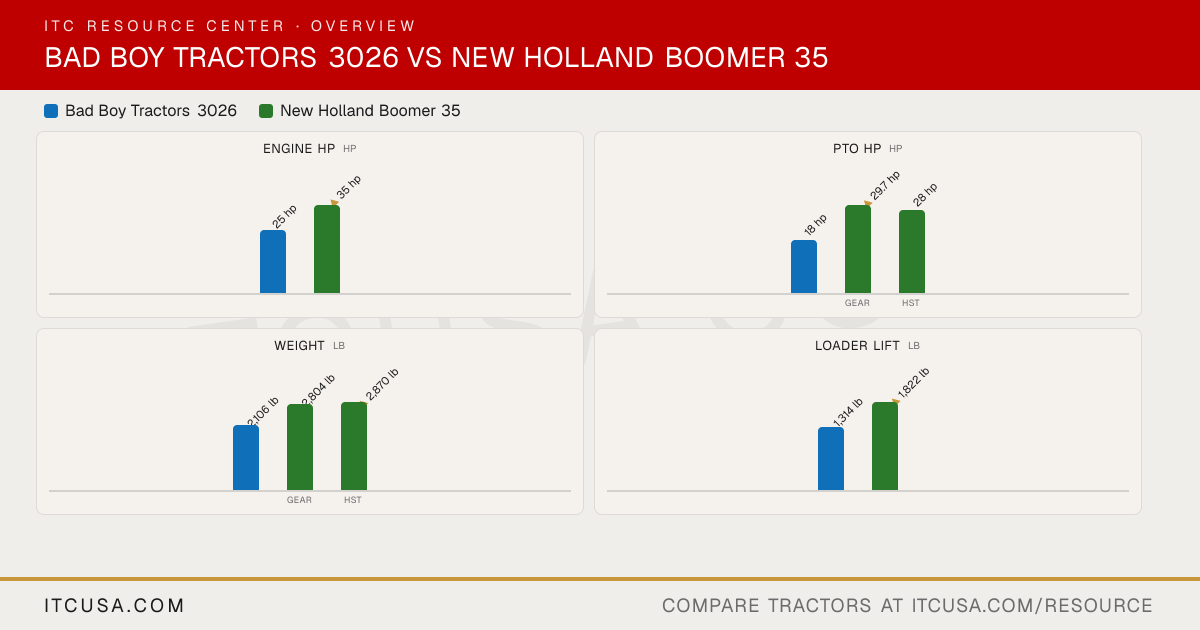

Category Verdict

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Bad Boy Tractors3026	New HollandBoomer 35

▶Engine
Engine Manufacturer	TYM	LS Mtron
Engine Model	A1100N2	L3CRV-T5
Engine Type	3 cylinder, water-cooled diesel, natural aspiration, swirl chamber	3-cylinder, turbocharged, liquid-cooled diesel
No. of Cylinders	3	3
Displacement	71.7 in³	114.7 in³
Rated Engine Speed	2600 rpm	2600 rpm
Engine Power (Gross)	25 hp	35 hp
PTO Power	18 hp	Gear: 29.7 hp; HST: 28 hp
Engine Emissions Constraints	Tier 4	Tier 4
Cooling System Type	Water-cooled	Liquid cooled
Air Cleaner	Dry element	Replaceable primary and inner elements
Fuel System	Indirect injection (swirl chamber)	Electronically controlled common rail direct injection
Alternator	50 A, 12 V	70 A, 12 V
▶Hydraulics
Pump Type	Gear type pump with primary and secondary pumps	Gear
Implement Flow	4.3 gpm	8.2 gpm
Steering Flow	3.1 gpm	Gear: 4.2 gpm; HST: 5.3 gpm
Total Hydraulic Flow	7.4 gpm	Gear: 12.4 gpm; HST: 13.5 gpm
Overall Hydraulic Pump Flow	7.7 gpm	Gear: 12.4 gpm; HST: 13.5 gpm
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	0	1
No. of Optional Remote Valves	1	Up to 2 (second valve optional)
▶Fluid Capacity
Fuel Tank Capacity	6.08 gal	10.5 gal
Coolant Capacity	1.21 gal	7.5 qt
Crankcase Capacity	0.79 gal	5.8 qt
Transmission / Hydraulic System Capacity	2.90 gal	8.5 gal
Front Axle Fluid Capacity	0.79 gal	6.87 qt
▶PTO & Hitch
PTO Type	Live PTO (6 spline shaft)	Independent, electro-hydraulic engagement
PTO Rear	540 / 960 rpm	540 rpm
Mid-PTO Availability	Optional, 2,500 rpm	Standard (2000 rpm)
Category, 3-Point Hitch	Category I	Category I
Hitch Lift Capacity	1,433 lb	1,808 lb
Hitch Lift Capacity (at 24”)	974 lb	1,345 lb
Lift Control Type	Position control	Position control (draft control optional)
▶Transmission & Drivetrain
Transmission Type	Hydrostatic (HST)	Gear: 12x12 synchronized shuttle shift (SSS); HST: 3-range hydrostatic, dual pedal
No. of Speeds	3 range (L/M/H)	Gear: 12F/12R; HST: 3-range
Max Travel Speed (Forward)	14.8 mph	Gear: 14.2 mph; HST: 14.8 mph
Max Travel Speed (Reverse)	14.8 mph	Gear: 13.63 mph; HST: 13.60 mph
Clutch	Dry, single plate	Gear: dry single disc (9.4 in); HST: n/a
Differential Lock & Limited Slip Options	Mechanical rear differential lock	Mechanical rear differential lock (pedal)
▶Chassis, Steering & Controls
Frame Type	Steel frame with cast iron axles	Not Published
Steering	Hydrostatic power steering	Power steering
Brakes	Wet disc	Wet multi-disc
Seat Suspension & Adjustability	Adjustable seat, flips up and back for rear backhoe operation	Adjustable suspension seat (fore/aft, weight and height adjustment)
Front Axle Type	Selectable 4WD	Four-wheel drive (FWD)
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published
▶Dimensions & Maneuverability
Overall Length with 3-Point Hitch	110 in	119 in
Overall Width	53.8 in	66.4 in
Wheelbase	65.7 in	66 in
Ground Clearance	16.4 in	Not Published
Min. Turn Radius without Brakes	Not Published	9.2 ft (with brake applied)
Height to Top of ROPS	91.4 in	92.7 in
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	Not Published	Not Published
▶Weight
Tractor Weight (Base)	2,106 lb	Gear: 2,804 lb; HST: 2,870 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published
▶Tire Options
Tire Size & Options	R4 Industrial (25x8.50-14 front / 14x17.5 rear)	R1 Agricultural, R3 Turf, R4 Industrial
R1 Agricultural - Front	7-16 6PR	7-14
R1 Agricultural - Rear	11.2-20	11.2-24
R3 Turf - Front	Not Published	25x8.50-14
R3 Turf - Rear	Not Published	41x14.00-20
R4 Industrial - Front	25x8.50-14	25x8.50-14
R4 Industrial - Rear	14x17.5	43x16.00-20
▶Loader & Attachments
Quick Attach Loader System	Quick attach front loader	Tool-free loader mount; optional skid-steer quick-attach plates
Loader Model	BBL300	250TLA
Loader Lift Height	86 in	250TLA: 104 in
Loader Lift Capacity (Full Height)	1,314 lb	250TLA: 1,822 lb
Loader Breakout Force	1,960 lbf	250TLA: 3,257 lb
▶Warranty
Warranty Length & Coverage	Basic 24 months or 1,000 hours; powertrain 72 months or 2,000 hours; loader and backhoe 24 months from shipment, 12 months from sale, or 500 hours	Basic 2 years or 750 hours; powertrain 4 more years (6 years or 1,500 hours total)
▶ITC Company Accessories
Accessories that fit	Branson TYM 2510 / 2610 and select 2400 series Brush Screen Insert $249.99	None tagged yet

Find a Bad Boy dealer near you→Find a New Holland dealer near you→

Bad Boy Tractors 3026 vs New Holland Boomer 35: Quick Answers

Which has more horsepower, the Bad Boy Tractors 3026 or the New Holland Boomer 35?

The New Holland Boomer 35 leads on engine hp at 35 hp hp, compared to 25 hp hp for the Bad Boy Tractors 3026.

Which has more PTO horsepower, the Bad Boy Tractors 3026 or the New Holland Boomer 35?

The New Holland Boomer 35 leads on pto hp at 29.7 hp hp, compared to 18 hp hp for the Bad Boy Tractors 3026.

Which is heavier, the Bad Boy Tractors 3026 or the New Holland Boomer 35?

The New Holland Boomer 35 leads on weight at 2,870 lb lb, compared to 2,106 lb lb for the Bad Boy Tractors 3026.

Which has more loader lift capacity, the Bad Boy Tractors 3026 or the New Holland Boomer 35?

The New Holland Boomer 35 leads on loader lift at 1,822 lb lb, compared to 1,314 lb lb for the Bad Boy Tractors 3026.

Which has more three-point hitch lift capacity, the Bad Boy Tractors 3026 or the New Holland Boomer 35?

The New Holland Boomer 35 leads on 3-pt lift (24 in) at 1,345 lb lb, compared to 974 lb lb for the Bad Boy Tractors 3026.
