Across 8 measurable specs, the Bad Boy Tractors 4035 Cab leads 5 categories to 1 (2 tied). Machine pages: Bad Boy Tractors 4035 Cab and New Holland Boomer 35.
Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.
Category Verdict
| Spec | Bad Boy Tractors 4035 Cab | New Holland Boomer 35 |
|---|
| Engine HP (hp) | 35 hp | 35 hp |
| PTO HP (hp) | ▲ 29.5 hp | 28 hp |
| Weight (lb) | 3,551 lb | n/a |
| Loader Lift (lb) | ▲ 2,200 lb | 1,822 lb |
| 3-Pt Lift (24 in) (lb) | ▲ 2,425 lb | 1,433 lb |
| Lift Height (in) | 104 in | 104 in |
| Breakout Force (lbf) | ▲ 3,660 lbf | 2,444 lbf |
| Hydraulic Flow (gpm) | 12.6 gpm | ▲ 13.8 gpm |
| Travel Speed (mph) | ▲ 18.2 mph | 14.8 mph |

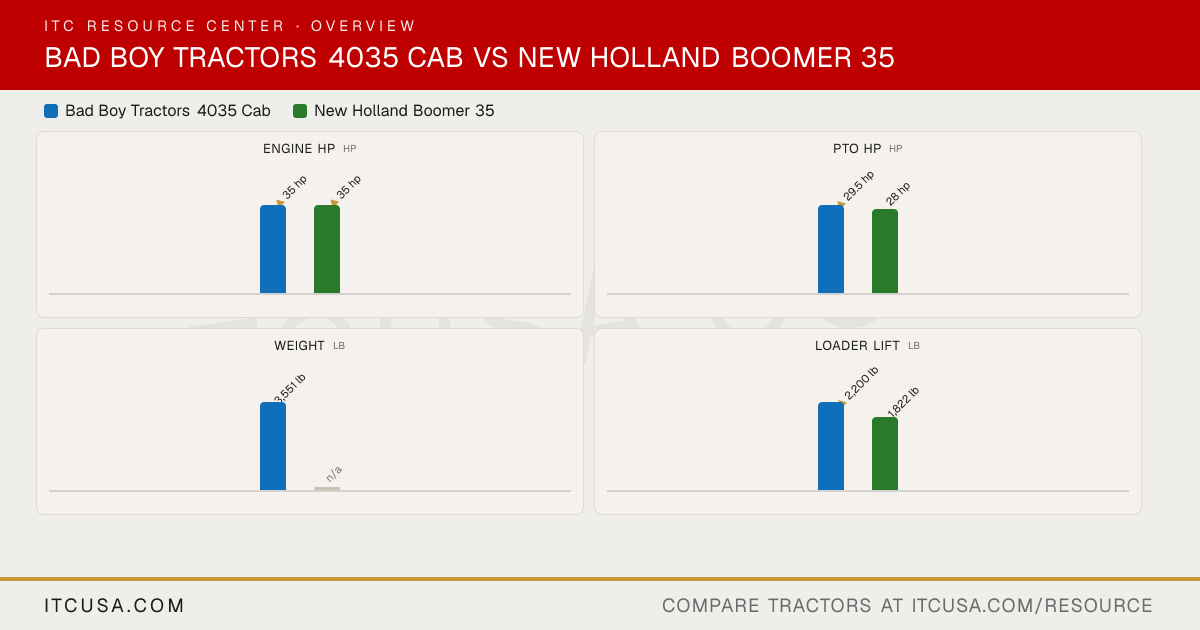

The headline numbers at a glance.
Bad Boy Tractors 4035 CabNew Holland Boomer 35
ITCUSA.COMITCUSA.COMITCUSA.COM
Share↓ Image𝕏f✉ Full Spec Sheet
Every published spec, side by side, including the details the graphs above don't chart.
| Spec | Bad Boy Tractors4035 Cab | New HollandBoomer 35 |
|---|
|
|---|
| Engine Manufacturer | TYM | LS Mtron |
|---|
| Engine Model | A1700N4-BUTC_4 | LS Mtron L3C19-T |
|---|
| Engine Type | Vertical, 4-stroke, water-cooled diesel | Not Published |
|---|
| No. of Cylinders | 3 | 3 |
|---|
| Displacement | 104.7 in³ | 114.7 in³ |
|---|
| Rated Engine Speed | 2600 rpm | 2600 rpm |
|---|
| Engine Power (Gross) | 35 hp | 35 hp |
|---|
| PTO Power | 29.5 hp | 28 hp |
|---|
| Engine Emissions Constraints | Not Published | T4B Final |
|---|
| Cooling System Type | Water-cooled | Not Published |
|---|
| Air Cleaner | Not Published | Not Published |
|---|
| Fuel System | Not Published | CRDI |
|---|
| Alternator | 50 A, 12 V | 70 A, 12 V |
|---|
|
|---|
| Pump Type | Not Published | Gear |
|---|
| Implement Flow | 8.2 gpm | 8.2 gpm |
|---|
| Steering Flow | 4.4 gpm | HST: 5.6 gpm; Gear: 4.2 gpm |
|---|
| Total Hydraulic Flow | 12.6 gpm | HST: 13.8 gpm; Gear: 12.4 gpm |
|---|
| Overall Hydraulic Pump Flow | 12.6 gpm | HST: 13.8 gpm; Gear: 12.4 gpm |
|---|
| Hydraulic System Type | Open center | Open center |
|---|
| Rear Remote Hydraulic Flow | Not Published | Not Published |
|---|
| No. of Standard Remote Valves | Not Published | Not Published |
|---|
| No. of Optional Remote Valves | Up to 2 | 1 or 2 |
|---|
|
|---|
| Fuel Tank Capacity | 7.13 gal | 10.5 gal |
|---|
| Coolant Capacity | 1.32 gal | Not Published |
|---|
| Crankcase Capacity | 1.14 gal | Not Published |
|---|
| Transmission / Hydraulic System Capacity | 9.77 gal | Not Published |
|---|
| Front Axle Fluid Capacity | 1.69 gal | Not Published |
|---|
|
|---|
| PTO Type | Independent | Independent (wet clutch, switch-actuated) |
|---|
| PTO Rear | 540 rpm | 540 rpm |
|---|
| Mid-PTO Availability | Not Published | Standard |
|---|
| Category, 3-Point Hitch | Category 1 | Category I |
|---|
| Hitch Lift Capacity | 3,306.9 lb | 1808 lb |
|---|
| Hitch Lift Capacity (at 24”) | 2,425 lb | 1433 lb |
|---|
| Lift Control Type | Position control | Not Published |
|---|
|
|---|
| Transmission Type | Hydrostatic (HST), 3-range | HST: 3-range hydrostatic; Gear: 12x12 synchronized shuttle |
|---|
| No. of Speeds | 3 range (HST) | HST: 3-range; Gear: 12F/12R |
|---|
| Max Travel Speed (Forward) | 18.21 mph | HST: 14.8 mph; Gear: 14.2 mph |
|---|
| Max Travel Speed (Reverse) | 18.21 mph | Not Published |
|---|
| Clutch | None (HST) | Gear: Dry single disc; HST: Not Applicable |
|---|
| Differential Lock & Limited Slip Options | Rear differential lock | Mechanical rear differential lock |
|---|
|
|---|
| Frame Type | Not Published | Not Published |
|---|
| Steering | Electro-hydraulic power steering | Power steering |
|---|
| Brakes | Wet, multi-disc | Wet disc |
|---|
| Seat Suspension & Adjustability | Heated leather seat (cab) | Not Published |
|---|
| Front Axle Type | Selectable 4WD | Four-wheel drive (4WD) |
|---|
| Front Axle Rating | Not Published | Not Published |
|---|
| Drawbar Capacity | Not Published | Not Published |
|---|
|
|---|
| Overall Length with 3-Point Hitch | 134.88 in | 119 in |
|---|
| Overall Width | 56.3 in | 66.4 in |
|---|
| Wheelbase | 65.7 in | 66 in |
|---|
| Ground Clearance | 13.19 in | Not Published |
|---|
| Min. Turn Radius without Brakes | Not Published | Not Published |
|---|
| Height to Top of ROPS | Not Published | 92.7 in |
|---|
| Height to Top of ROPS (folded) | Not Published | Not Published |
|---|
| Height to Top of Cab Model | 85.9 in | Not Published |
|---|
|
|---|
| Tractor Weight (Base) | 3,551 lb | Not Published |
|---|
| Weight with ROPS and Loader | Not Published | Not Published |
|---|
| Weight with Cab and Loader | Not Published | Not Published |
|---|
|
|---|
| Tire Size & Options | R1 ag 7-16 / 11.2-24 (standard); R4 industrial 28x8.50-15 / 43x16.00-20 | R1 Agricultural, R3 Turf, R4 Industrial |
|---|
| R1 Agricultural - Front | 7-16 | 7.0-14 |
|---|
| R1 Agricultural - Rear | 11.2-24 | 11.2-24 |
|---|
| R3 Turf - Front | Not Published | 25X8.50-14 |
|---|
| R3 Turf - Rear | Not Published | 41X14.00-20 |
|---|
| R4 Industrial - Front | 28x8.50-15 | 25X8.50-14 |
|---|
| R4 Industrial - Rear | 43x16.00-20 | 43X16.00X20; 43X16-20 |
|---|
|
|---|
| Quick Attach Loader System | SSQA | 250TLA: New Holland Quick Mount; optional skid steer quick attach |
|---|
| Loader Model | BBL400 | Not Published |
|---|
| Loader Lift Height | 104 in | 104 in |
|---|
| Loader Lift Capacity (Full Height) | 2,200 lb | 1822 lb |
|---|
| Loader Breakout Force | 3,660 lb | 2444 lb |
|---|
|
|---|
| Warranty Length & Coverage | Engine and powertrain 72 months or 2,000 hours; other tractor parts 24 months or 1,000 hours | 6-year limited warranty (2-year bumper-to-bumper + 4-year powertrain) |
|---|
|
|---|
| Accessories that fit | | None tagged yet |
|---|
Bad Boy Tractors 4035 Cab vs New Holland Boomer 35: Quick Answers
- Which has more horsepower, the Bad Boy Tractors 4035 Cab or the New Holland Boomer 35?
- They are effectively tied: both machines are rated at 35 hp hp for engine hp.
- Which has more PTO horsepower, the Bad Boy Tractors 4035 Cab or the New Holland Boomer 35?
- The Bad Boy Tractors 4035 Cab leads on pto hp at 29.5 hp hp, compared to 28 hp hp for the New Holland Boomer 35.
- Which has more loader lift capacity, the Bad Boy Tractors 4035 Cab or the New Holland Boomer 35?
- The Bad Boy Tractors 4035 Cab leads on loader lift at 2,200 lb lb, compared to 1,822 lb lb for the New Holland Boomer 35.
- Which has more three-point hitch lift capacity, the Bad Boy Tractors 4035 Cab or the New Holland Boomer 35?
- The Bad Boy Tractors 4035 Cab leads on 3-pt lift (24 in) at 2,425 lb lb, compared to 1,433 lb lb for the New Holland Boomer 35.
