Case IH Farmall 35A vs New Holland Workmaster 35
Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.
Across 9 measurable specs, the New Holland Workmaster 35 leads 3 categories to 1 (5 tied). Machine pages: Case IH Farmall 35A and New Holland Workmaster 35.
Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

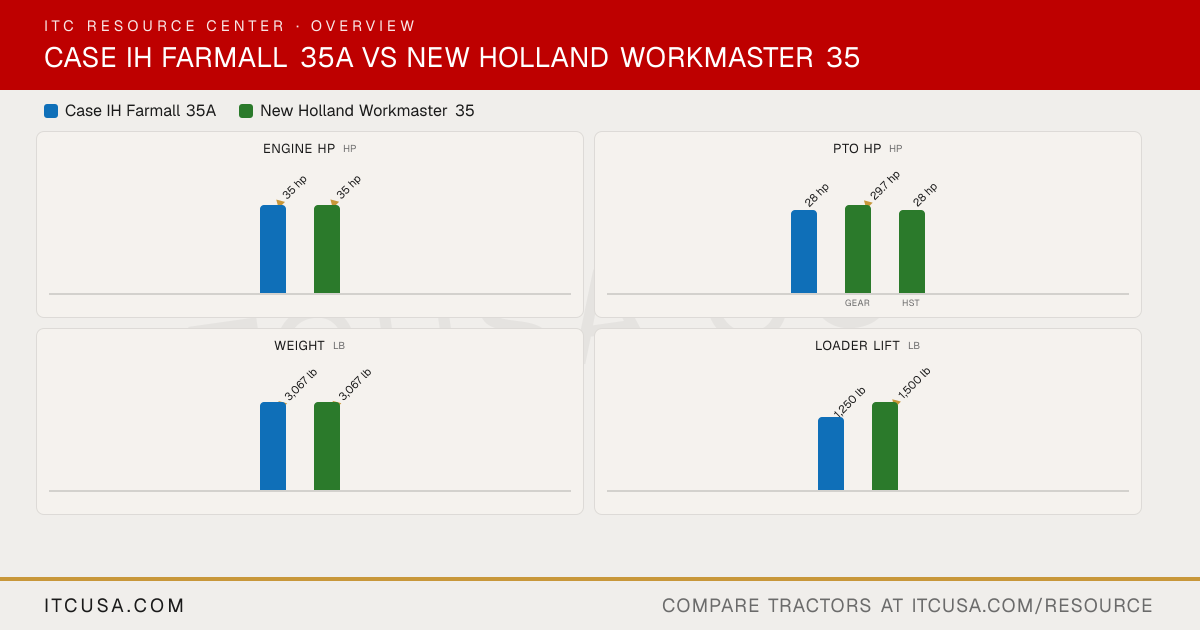

Category Verdict
| Spec | Case IH Farmall 35A | New Holland Workmaster 35 |
|---|---|---|
| Engine HP (hp) | 35 hp | 35 hp |
| PTO HP (hp) | 28 hp | ▲ 29.7 hp |
| Weight (lb) | 3,067 lb | 3,067 lb |
| Loader Lift (lb) | 1,250 lb | ▲ 1,500 lb |
| 3-Pt Lift (24 in) (lb) | 1,433 lb | 1,433 lb |
| Lift Height (in) | ▲ 98.4 in | 91.5 in |
| Breakout Force (lbf) | 1,913 lbf | ▲ 2,700 lbf |
| Hydraulic Flow (gpm) | 13.5 gpm | 13.5 gpm |
| Travel Speed (mph) | 14.8 mph | 14.8 mph |
Full Spec Sheet
Every published spec, side by side, including the details the graphs above don't chart.
| Spec | Case IHFarmall 35A | New HollandWorkmaster 35 |
|---|
| Engine Manufacturer | LS Mtron | LS Mtron |
|---|---|---|
| Engine Model | L3C19-T5 | L3C19-T5 |
| Engine Type | 3-cylinder, turbocharged diesel, Tier 4 B/Final | 3-cylinder, turbocharged, liquid-cooled diesel |
| No. of Cylinders | 3 | 3 |
| Displacement | 116 in³ | 114.7 in³ |
| Rated Engine Speed | 2600 rpm | 2600 rpm |
| Engine Power (Gross) | 35 hp | 35 hp |
| PTO Power | 28 hp | Gear: 29.7 hp; HST: 28 hp |
| Engine Emissions Constraints | Tier 4 | Tier 4 |
| Cooling System Type | Pressurized liquid cooling with recirculating bypass | Pressurized liquid with recirculating bypass |
| Air Cleaner | Not Published | Dual element dry air cleaner (primary and inner safety element) |
| Fuel System | High pressure common rail | High pressure common rail, ECU-controlled timing |
| Alternator | 70 A, 12 V | 70 A, 12 V |
Case IH Farmall 35A vs New Holland Workmaster 35: Quick Answers
- Which has more horsepower, the Case IH Farmall 35A or the New Holland Workmaster 35?
- They are effectively tied: both machines are rated at 35 hp hp for engine hp.
- Which has more PTO horsepower, the Case IH Farmall 35A or the New Holland Workmaster 35?
- The New Holland Workmaster 35 leads on pto hp at 29.7 hp hp, compared to 28 hp hp for the Case IH Farmall 35A.
- Which is heavier, the Case IH Farmall 35A or the New Holland Workmaster 35?
- They are effectively tied: both machines are rated at 3,067 lb lb for weight.
- Which has more loader lift capacity, the Case IH Farmall 35A or the New Holland Workmaster 35?
- The New Holland Workmaster 35 leads on loader lift at 1,500 lb lb, compared to 1,250 lb lb for the Case IH Farmall 35A.
- Which has more three-point hitch lift capacity, the Case IH Farmall 35A or the New Holland Workmaster 35?
- They are effectively tied: both machines are rated at 1,433 lb lb for 3-pt lift (24 in).
