Bad Boy Tractors 3026 vs New Holland Workmaster 35

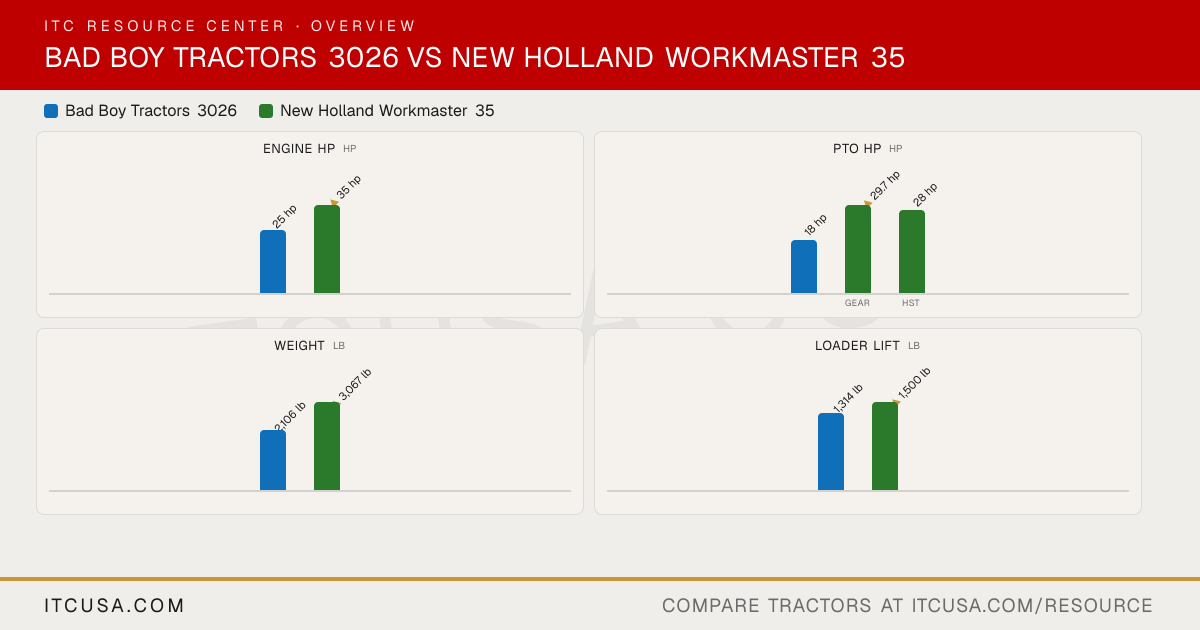

Across 9 measurable specs, the New Holland Workmaster 35 leads 8 categories to 0 (1 tied). Machine pages: Bad Boy Tractors 3026 and New Holland Workmaster 35.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Bad Boy Tractors3026	New HollandWorkmaster 35

▶Engine
Engine Manufacturer	TYM	LS Mtron
Engine Model	A1100N2	L3C19-T5
Engine Type	3-cylinder, naturally aspirated, indirect injection (swirl chamber), liquid-cooled diesel	3-cylinder, turbocharged, liquid-cooled diesel
No. of Cylinders	3	3
Displacement	70.7 in³	114.7 in³
Rated Engine Speed	2600 rpm	2600 rpm
Engine Power (Gross)	24 hp	35 hp
PTO Power	18 hp	Gear: 29.7 hp; HST: 28 hp
Engine Emissions Constraints	Tier 4	Tier 4
Cooling System Type	Water-cooled	Pressurized liquid with recirculating bypass
Air Cleaner	Dry element	Dual element dry air cleaner (primary and inner safety element)
Fuel System	Indirect injection (swirl chamber)	High pressure common rail, ECU-controlled timing
Alternator	50 A, 12 V	70 A, 12 V
▶Hydraulics
Pump Type	Gear type pump with primary and secondary pumps	Gear
Implement Flow	4.3 gpm	8.2 gpm
Steering Flow	3.1 gpm	Gear: 4.2 gpm; HST: 5.3 gpm
Total Hydraulic Flow	7.4 gpm	Gear: 12.4 gpm; HST: 13.5 gpm
Overall Hydraulic Pump Flow	7.7 gpm	Gear: 12.4 gpm; HST: 13.5 gpm
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	0	Not Published
No. of Optional Remote Valves	1	1 or 2
▶Fluid Capacity
Fuel Tank Capacity	6.08 gal	7.4 gal
Coolant Capacity	1.21 gal	7.5 qt
Crankcase Capacity	0.79 gal	5.8 qt
Transmission / Hydraulic System Capacity	2.90 gal	8.5 gal
Front Axle Fluid Capacity	0.79 gal	6.9 qt
▶PTO & Hitch
PTO Type	Live PTO (6 spline shaft)	Independent, electro-hydraulic engagement
PTO Rear	540 / 960 rpm	540 rpm
Mid-PTO Availability	Optional, 2,500 rpm	HST: Standard; Gear: Optional (2,000 rpm)
Category, 3-Point Hitch	Category I	Category I
Hitch Lift Capacity	1,433 lb	1,808 lb
Hitch Lift Capacity (at 24”)	974 lb	1,433 lb
Lift Control Type	Position control	Position control
▶Transmission & Drivetrain
Transmission Type	Hydrostatic (HST)	Gear: 12x12 synchronized shuttle; HST: 3-range hydrostatic, dual pedal
No. of Speeds	3 range (L/M/H)	Gear: 12F/12R; HST: Infinite (3 ranges)
Max Travel Speed (Forward)	14.8 mph	Gear: 14.2 mph; HST: 14.8 mph
Max Travel Speed (Reverse)	14.8 mph	Gear: 13.63 mph; HST: 14.96 mph
Clutch	Dry, single plate	Gear: 9.4 in single dry disc; HST: Not applicable
Differential Lock & Limited Slip Options	Mechanical rear differential lock	Mechanical rear differential lock
▶Chassis, Steering & Controls
Frame Type	Steel frame with cast iron axles	Not Published
Steering	Hydrostatic power steering	Power steering
Brakes	Wet disc	Wet disc
Seat Suspension & Adjustability	Adjustable seat, flips up and back for rear backhoe operation	Mechanical suspension seat, fore/aft adjustable, tilting
Front Axle Type	Selectable 4WD	4WD
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published
▶Dimensions & Maneuverability
Overall Length with 3-Point Hitch	110 in	121 in
Overall Width	53.9 in	66.5 in
Wheelbase	65.7 in	67.5 in
Ground Clearance	16.4 in	13 in
Min. Turn Radius without Brakes	Not Published	123 in (left turn); 124 in (right turn)
Height to Top of ROPS	91.4 in	87.7 in
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	Not Published	Not Published
▶Weight
Tractor Weight (Base)	2,107 lb	3,067 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published
▶Tire Options
Tire Size & Options	R1 Agricultural (11.2-20 rear standard), R4 Industrial (25x8.50-14 / 14-17.5)	R1 Agricultural, R3 Turf, R4 Industrial
R1 Agricultural - Front	7-16 6PR	7-14
R1 Agricultural - Rear	11.2-20	11.2-24
R3 Turf - Front	Not Published	25x8.50-14
R3 Turf - Rear	Not Published	41x14.00-20
R4 Industrial - Front	25x8.50-14	25x8.50-14
R4 Industrial - Rear	14-17.5	43x16-20
▶Loader & Attachments
Quick Attach Loader System	Quick attach front loader	140TL: tool-free quick-mount system; optional skid-steer quick-attach plates
Loader Model	BBL300	140TL
Loader Lift Height	86 in	140TL: 91.5 in
Loader Lift Capacity (Full Height)	1,314 lb	140TL: 1,500 lb
Loader Breakout Force	1,960 lbf	140TL: 2,700 lb
▶Warranty
Warranty Length & Coverage	Basic 24 months or 1,000 hours; powertrain 72 months or 2,000 hours; loader and backhoe 24 months from shipment, 12 months from sale, or 500 hours	Basic 2 years or 750 hours; powertrain to 6 years or 1,500 hours total
▶ITC Company Accessories
Accessories that fit	Branson TYM 2510 / 2610 and select 2400 series Brush Screen Insert $249.99	None tagged yet

Find a Bad Boy dealer near you→Find a New Holland dealer near you→

Bad Boy Tractors 3026 vs New Holland Workmaster 35: Quick Answers

Which has more horsepower, the Bad Boy Tractors 3026 or the New Holland Workmaster 35?

The New Holland Workmaster 35 leads on engine hp at 35 hp hp, compared to 24 hp hp for the Bad Boy Tractors 3026.

Which has more PTO horsepower, the Bad Boy Tractors 3026 or the New Holland Workmaster 35?

The New Holland Workmaster 35 leads on pto hp at 29.7 hp hp, compared to 18 hp hp for the Bad Boy Tractors 3026.

Which is heavier, the Bad Boy Tractors 3026 or the New Holland Workmaster 35?

The New Holland Workmaster 35 leads on weight at 3,067 lb lb, compared to 2,107 lb lb for the Bad Boy Tractors 3026.

Which has more loader lift capacity, the Bad Boy Tractors 3026 or the New Holland Workmaster 35?

The New Holland Workmaster 35 leads on loader lift at 1,500 lb lb, compared to 1,314 lb lb for the Bad Boy Tractors 3026.

Which has more three-point hitch lift capacity, the Bad Boy Tractors 3026 or the New Holland Workmaster 35?

The New Holland Workmaster 35 leads on 3-pt lift (24 in) at 1,433 lb lb, compared to 974 lb lb for the Bad Boy Tractors 3026.
