Bad Boy Tractors 4025 vs New Holland Workmaster 35

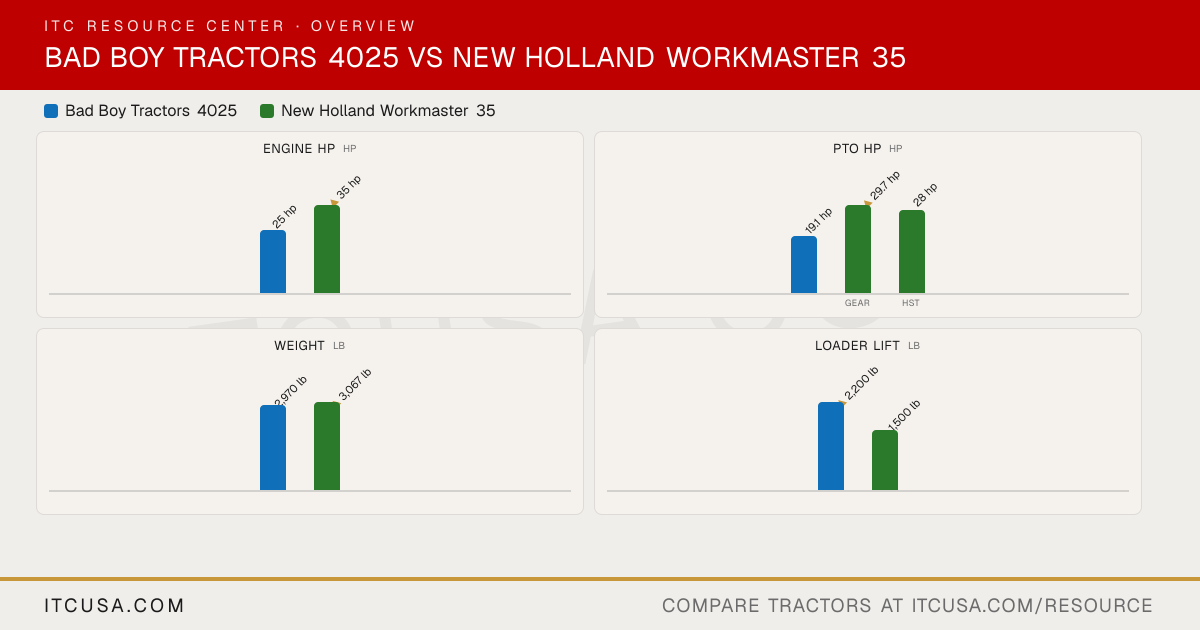

Across 8 measurable specs, this matchup is a dead heat: 4 categories to the Bad Boy Tractors 4025, 4 to the New Holland Workmaster 35. Machine pages: Bad Boy Tractors 4025 and New Holland Workmaster 35.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Bad Boy Tractors4025	New HollandWorkmaster 35

▶Engine
Engine Manufacturer	TYM	LS Mtron
Engine Model	A1700N6-BUTR_3	L3C19-T5
Engine Type	Vertical, 4-stroke, water-cooled diesel	3-cylinder, turbocharged, liquid-cooled diesel
No. of Cylinders	3	3
Displacement	104.7 in³	114.7 in³
Rated Engine Speed	2100 rpm	2600 rpm
Engine Power (Gross)	25 hp	35 hp
PTO Power	19.1 hp	Gear: 29.7 hp; HST: 28 hp
Engine Emissions Constraints	Not Published	Tier 4
Cooling System Type	Water-cooled	Pressurized liquid with recirculating bypass
Air Cleaner	Dry	Dual element dry air cleaner (primary and inner safety element)
Fuel System	Not Published	High pressure common rail, ECU-controlled timing
Alternator	50 A, 12 V	70 A, 12 V
▶Hydraulics
Pump Type	Gear type (primary 0.8 in³/rev, secondary 0.4 in³/rev)	Gear
Implement Flow	7.5 gpm	8.2 gpm
Steering Flow	4 gpm	Gear: 4.2 gpm; HST: 5.3 gpm
Total Hydraulic Flow	11.5 gpm	Gear: 12.4 gpm; HST: 13.5 gpm
Overall Hydraulic Pump Flow	11.5 gpm	Gear: 12.4 gpm; HST: 13.5 gpm
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	Not Published	Not Published
No. of Optional Remote Valves	2	1 or 2
▶Fluid Capacity
Fuel Tank Capacity	7.13 gal	7.4 gal
Coolant Capacity	1.32 gal	7.5 qt
Crankcase Capacity	1.14 gal	5.8 qt
Transmission / Hydraulic System Capacity	Manual: 8.98 gal; HST: 9.77 gal	8.5 gal
Front Axle Fluid Capacity	Not Published	6.9 qt
▶PTO & Hitch
PTO Type	Independent	Independent, electro-hydraulic engagement
PTO Rear	533 rpm	540 rpm
Mid-PTO Availability	Not Published	HST: Standard; Gear: Optional (2,000 rpm)
Category, 3-Point Hitch	Category I	Category I
Hitch Lift Capacity	3,307 lb	1,808 lb
Hitch Lift Capacity (at 24”)	2,425 lb	1,433 lb
Lift Control Type	Position control	Position control
▶Transmission & Drivetrain
Transmission Type	Hydrostatic (HST)	Gear: 12x12 synchronized shuttle; HST: 3-range hydrostatic, dual pedal
No. of Speeds	3 range (A/B/C)	Gear: 12F/12R; HST: Infinite (3 ranges)
Max Travel Speed (Forward)	Not Published	Gear: 14.2 mph; HST: 14.8 mph
Max Travel Speed (Reverse)	Not Published	Gear: 13.63 mph; HST: 14.96 mph
Clutch	None (HST)	Gear: 9.4 in single dry disc; HST: Not applicable
Differential Lock & Limited Slip Options	Mechanical rear differential lock	Mechanical rear differential lock
▶Chassis, Steering & Controls
Frame Type	Heavy-duty steel frame with cast iron axles	Not Published
Steering	Fully hydraulic power steering	Power steering
Brakes	Wet multi-disc	Wet disc
Seat Suspension & Adjustability	Not Published	Mechanical suspension seat, fore/aft adjustable, tilting
Front Axle Type	Selectable 4WD	4WD
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published
▶Dimensions & Maneuverability
Overall Length with 3-Point Hitch	134.88 in	121 in
Overall Width	56.7 in	66.5 in
Wheelbase	65.7 in	67.5 in
Ground Clearance	15 in	13 in
Min. Turn Radius without Brakes	Not Published	123 in (left turn); 124 in (right turn)
Height to Top of ROPS	96.85 in	87.7 in
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	Not Published	Not Published
▶Weight
Tractor Weight (Base)	2,970 lb	3,067 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published
▶Tire Options
Tire Size & Options	R4 Industrial (25x8.50-14 / 15-19.5)	R1 Agricultural, R3 Turf, R4 Industrial
R1 Agricultural - Front	8.0-16	7-14
R1 Agricultural - Rear	12.4-24	11.2-24
R3 Turf - Front	Not Published	25x8.50-14
R3 Turf - Rear	Not Published	41x14.00-20
R4 Industrial - Front	25x8.50-14	25x8.50-14
R4 Industrial - Rear	15-19.5	43x16-20
▶Loader & Attachments
Quick Attach Loader System	Quick attach front loader	140TL: tool-free quick-mount system; optional skid-steer quick-attach plates
Loader Model	BBL400	140TL
Loader Lift Height	104 in	140TL: 91.5 in
Loader Lift Capacity (Full Height)	2,200 lb	140TL: 1,500 lb
Loader Breakout Force	3,660 lbf	140TL: 2,700 lb
▶Warranty
Warranty Length & Coverage	Basic 24 months or 1,000 hours; powertrain 72 months or 2,000 hours; loader and backhoe 24 months from shipment, 12 months from sale, or 500 hours	Basic 2 years or 750 hours; powertrain to 6 years or 1,500 hours total
▶ITC Company Accessories
Accessories that fit	Brush Guard Side Guards $199.99 Bolt onto the side of the OEM guard and offers wrap around protection Branson TYM 15/20 Series--Bad Boy 40/50 Series Brush Screen $250.00 Branson / TYM 15 Series Fuel Tank Cover $250.00	None tagged yet

Find a Bad Boy dealer near you→Find a New Holland dealer near you→

Bad Boy Tractors 4025 vs New Holland Workmaster 35: Quick Answers

Which has more horsepower, the Bad Boy Tractors 4025 or the New Holland Workmaster 35?

The New Holland Workmaster 35 leads on engine hp at 35 hp hp, compared to 25 hp hp for the Bad Boy Tractors 4025.

Which has more PTO horsepower, the Bad Boy Tractors 4025 or the New Holland Workmaster 35?

The New Holland Workmaster 35 leads on pto hp at 29.7 hp hp, compared to 19.1 hp hp for the Bad Boy Tractors 4025.

Which is heavier, the Bad Boy Tractors 4025 or the New Holland Workmaster 35?

The New Holland Workmaster 35 leads on weight at 3,067 lb lb, compared to 2,970 lb lb for the Bad Boy Tractors 4025.

Which has more loader lift capacity, the Bad Boy Tractors 4025 or the New Holland Workmaster 35?

The Bad Boy Tractors 4025 leads on loader lift at 2,200 lb lb, compared to 1,500 lb lb for the New Holland Workmaster 35.

Which has more three-point hitch lift capacity, the Bad Boy Tractors 4025 or the New Holland Workmaster 35?

The Bad Boy Tractors 4025 leads on 3-pt lift (24 in) at 2,425 lb lb, compared to 1,433 lb lb for the New Holland Workmaster 35.
